Choosing a pneumatic breaker is not simply a matter of buying the heaviest tool available. The right breaker has to match the material, working position, available compressed-air supply, chisel interface, and expected duty cycle. A tool that is too light may make slow progress in thick concrete, while a tool that is too heavy can be difficult to control on walls, edges, trench work, or intermittent jobs. Just as importantly, even a correctly sized breaker will underperform if the compressor, hose, or fittings cannot deliver the air it needs while the tool is running.
This guide gives contractors, quarry teams, distributors, rental companies, and industrial buyers a practical way to choose a pneumatic breaker for concrete and rock breaking. It also explains what information to send in an RFQ so the supplier can verify the tool class and working-tool interface before quotation.
1. Start with the job, not the model name
The terms pneumatic pick, pneumatic breaker, jackhammer, and air hammer are used differently across markets. Do not assume that two products with similar names are equivalent. Compare the actual tool class, working weight, intended application, working-tool shank, air requirement, and operating position.
For selection purposes, first define four things:
- Material: concrete, reinforced concrete, asphalt, masonry, frozen ground, soft rock, or harder rock.
- Break size: light chipping and trimming, trench or slab breaking, or heavy foundation and pavement demolition.
- Working position: downward, horizontal, inclined, or overhead.
- Daily workload: short intermittent use or repeated production work over a full shift.
These variables tell you much more than the model name alone.
2. How tool weight changes the job
Breaker weight affects impact class, handling, and where the tool can be used effectively. Chicago Pneumatic's breaker-selection guidance explicitly uses job severity and pavement strength as reasons to move between lighter and heavier weight classes. That does not mean weight is the only performance variable, but it is a useful first filter.
| Tool class | Typical selection logic | Common limitation to check |
|---|---|---|
| Light | Chipping, trimming, softer material, wall or edge work, applications where mobility matters | May be too slow for thick or high-strength concrete |
| Medium | General demolition, trenching, road repair, slab breaking, mixed jobsite work | Needs sufficient compressor capacity and can be tiring in non-downward positions |
| Heavy | Thicker concrete, rigid pavement, foundations, demanding downward demolition | Handling, transport, vibration exposure, and air demand become more important |
A heavier breaker is not automatically the better purchase. If the operator must work horizontally or reposition the tool constantly, control and fatigue can dominate the decision. Conversely, a very light pick can waste labor hours if the material requires a substantially heavier impact class.
3. Match the breaker to the material and working position
Light chipping, trimming, masonry, and softer rock
For localized breaking, edge work, removal of loose material, and softer rock, prioritize control and maneuverability. The current PerfoMax range includes the G10 hand-held pneumatic pick, listed at approximately 10 kg and positioned for concrete and soft-rock breaking. A lighter class can be a better fit when the task is not continuous heavy downward demolition.
General concrete demolition and trench work
For slab breaking, road repair, trenching, and general demolition, a medium-heavy breaker can provide more impact while remaining more manageable than the largest class. The TPB-60 pneumatic breaker is listed by PerfoMax as a 28 kg heavy-duty demolition tool for concrete and rock breaking. Before selecting it, verify the available air supply and the chisel shank used at the site.
Heavy downward breaking
For demanding concrete or rock demolition where the tool is mainly used downward, a heavier class may be appropriate. PerfoMax currently lists the B87C pneumatic breaker at 39 kg for heavy-duty concrete and rock demolition. Do not select this class from weight alone: confirm that the job, operator handling, compressor, hose, fittings, and working-tool interface are all suitable.
4. Air supply is part of the breaker system
A pneumatic breaker converts compressed air into repeated impact. That means the breaker, compressor, hose, couplings, lubricator, and working tool operate as one system. Buyers often check only compressor pressure and overlook delivered airflow at the tool.
Before purchasing, verify:
- Rated operating pressure for the specific breaker. Use the manufacturer's specification rather than assuming one pressure is universal.
- Required air consumption under load. The compressor must supply enough flow for the breaker plus any other tools running at the same time.
- Hose internal diameter and length. Long or undersized hose can cause pressure loss and restrict flow.
- Coupling and fitting size. A restrictive fitting can become the bottleneck even when the compressor itself is large enough.
- Air quality and lubrication. Follow the tool manufacturer's instructions for lubrication, water separation, and maintenance.
If a breaker hits weakly after installation, do not immediately conclude that the tool is defective. Measure or verify the air supply while the breaker is operating. Static pressure with the trigger closed does not prove that adequate air is reaching the tool under load.
5. Check the chisel and shank before you order
The working tool is a compatibility item, not a generic accessory. A point, flat chisel, spade, or other profile may suit different breaking tasks, but the shank must physically match the breaker barrel and retainer specification.
For a replacement purchase, send the supplier at least one of the following:
- existing breaker model;
- existing chisel model or drawing;
- measured shank diameter and length;
- clear photos of the shank and retainer area;
- the material and task for which the chisel is used.
Do not buy chisels based only on overall length or appearance. Two tools can look similar while using different shank dimensions or retainers.

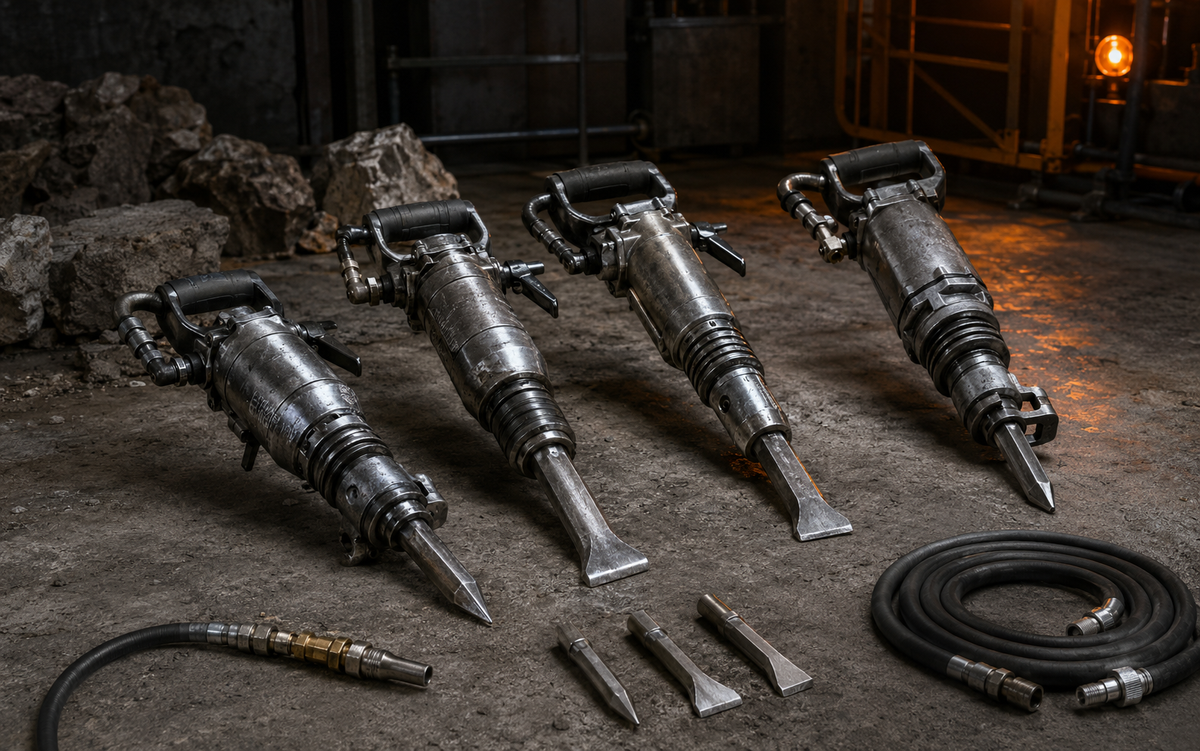

6. A practical PerfoMax selection snapshot
| Current model | Listed weight/class | Best starting point for evaluation | Confirm before RFQ |
|---|---|---|---|
| G10 | Approx. 10 kg | Concrete and soft-rock breaking where a hand-held lighter tool is appropriate | Material, position, air supply, chisel interface, duty cycle |
| TPB-60 | 28 kg | Heavy-duty concrete and rock demolition | Required output, compressor capacity, hose/fittings, shank, work orientation |
| B87C | 39 kg | Heavy-duty concrete and rock demolition where a heavier breaker class is justified | Handling, downward-use suitability, compressor capacity, shank, duty cycle |
This table is a starting point, not a universal ranking. The correct choice depends on the complete operating system and job conditions. See the full PerfoMax Pneumatic Picks collection for the current range.
7. Five common procurement mistakes
Mistake 1: Selecting only by breaker weight
Weight gives a useful indication of tool class, but impact rate, impact energy, air consumption, shank, vibration behavior, and application all matter. Compare the complete specification for the actual model.
Mistake 2: Assuming the compressor is large enough because the pressure gauge looks correct
The relevant question is whether sufficient pressure and airflow reach the breaker while it is operating. Hose losses, fittings, leaks, and simultaneous air users can reduce delivered performance.
Mistake 3: Reusing an old chisel without checking the shank
Existing tooling can be valuable, but only if the interface matches. A dimensioned photo or drawing is often more useful than a verbal description such as “standard chisel.”
Mistake 4: Using the heaviest breaker for every task
Heavy breakers can be effective for demanding downward demolition, but they can be inefficient or difficult to handle for light chipping, horizontal work, and frequent repositioning.
Mistake 5: Ignoring operator exposure and dust control
Hand-held breakers create significant vibration and, when breaking concrete or mineral-containing material, can generate respirable dust. Equipment selection and work planning should include site-specific vibration and dust controls, not only production rate.
8. Safety and exposure considerations belong in the selection process
The UK Health and Safety Executive identifies hand-held breakers and hammer tools as important sources of hand-arm vibration exposure. It recommends assessing and controlling exposure rather than relying on a tool's declared emission value alone. This matters for procurement because duty cycle, trigger time, maintenance condition, operator technique, and job organization can affect real exposure.
Concrete and many rock materials can also contain crystalline silica. NIOSH has documented that water-spray controls can materially reduce dust exposure during jackhammer concrete breaking. The exact control method must fit the site, material, local regulations, and equipment instructions. Buyers should treat dust suppression, PPE, exclusion zones, noise, vibration, hose safety, and operator training as part of the work method rather than as afterthoughts.
9. Quick field validation before a large order
If you are buying for a fleet, distributor program, mine, contractor, or rental business, a short controlled trial can reduce selection risk. Use the same material and realistic air supply that the tool will see in production.
- Record the material and approximate thickness or breaking objective.
- Confirm compressor model, rated flow, hose length, and hose diameter.
- Fit the correct working tool and inspect the retainer.
- Run the breaker long enough to judge penetration or break rate, handling, and air-system stability.
- Check for abnormal icing, leaks, loose fittings, or lubrication problems according to the operating instructions.
- Compare productivity and handling, not just subjective impact feel.
- Record the exact configuration so the production order matches the tested setup.
10. RFQ checklist for pneumatic breakers
To receive a more accurate technical recommendation and quotation, include:
- material being broken: concrete, asphalt, masonry, soft rock, hard rock, or other;
- job type and approximate thickness or break size;
- working orientation: downward, horizontal, inclined, or overhead;
- daily operating hours and expected duty cycle;
- compressor model, available pressure, and airflow;
- hose internal diameter and approximate hose length;
- existing breaker model if this is a replacement;
- chisel/shank dimensions or photos;
- required quantity and spare working tools;
- destination and preferred Incoterm for B2B quotation.
If some specifications are unknown, send photos of the work area, material, existing breaker, chisel, and compressor nameplate. That usually provides a better starting point than guessing at a model.
11. Frequently asked questions
Is a heavier pneumatic breaker always more powerful?
Not necessarily in every meaningful sense. Heavier tools are generally selected for more demanding breaking classes, but actual performance also depends on the design, impact characteristics, air supply, working tool, and material. Compare the manufacturer's full specification and the application.
How do I know whether my compressor can run the breaker?
Match the breaker manufacturer's rated operating pressure and air-consumption requirement to the compressor's available output, then account for hose losses and other tools using air at the same time. Verify performance under load rather than relying only on static pressure.
Can I use the same chisel on different breaker models?
Only when the shank and retainer interface are compatible. Do not assume interchangeability from appearance. Check the model specification or provide measured shank dimensions and photos.
Which pneumatic breaker is better for wall work?
A lighter, more controllable tool is usually easier to manage in horizontal or non-downward work, but the material and required break rate still matter. Very heavy breakers are generally better suited to applications where their weight can work with the operator rather than against the operator.
What information should I send if I do not know the exact model I need?
Send the material, work orientation, photos, compressor information, hose size, existing chisel dimensions, daily workload, and expected quantity. These inputs allow the supplier to narrow the appropriate tool class and verify interface compatibility.
12. Technical references
- Chicago Pneumatic — How to select the right pneumatic breaker for the job.
- UK Health and Safety Executive — Vibration in construction.
- NIOSH — Water Spray Control of Hazardous Dust When Breaking Concrete with a Jackhammer.
Need help matching the breaker to your job?
Review the current PerfoMax Pneumatic Picks range or send an RFQ with your material, work position, compressor information, chisel interface, quantity, and destination. The more complete the operating information, the easier it is to compare the correct breaker class before purchase.
