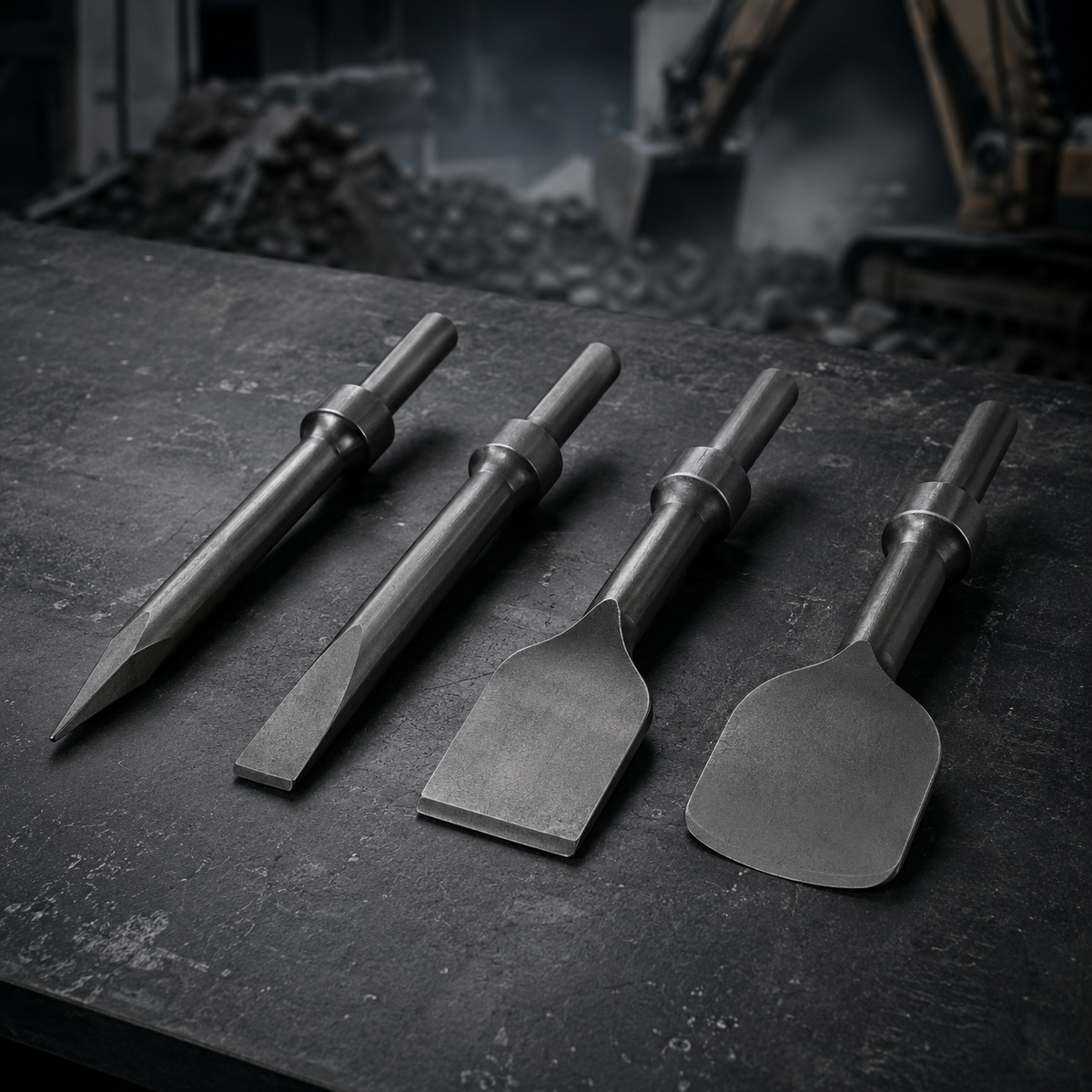

Choose a pneumatic breaker chisel by the action the material needs, not by the name of the breaker alone. Use a moil point to concentrate impact and start a break; a narrow flat chisel to split, cut, or follow a crack; a wide chisel or asphalt cutter to open a seam in softer pavement; and a clay or digging spade only where the ground can be sliced rather than fractured. Then verify the shank, collar, retainer, working length, and breaker manufacturer's approved tooling before installation.
This guide is for contractors, rental fleets, distributors, and industrial buyers choosing breaker steels for concrete demolition, road repair, trenching, and ground work. It focuses on the working end of the tool. Shank compatibility is a separate gate: the correct tip profile is still unusable if the tool does not fit and retain correctly in the breaker.
Pneumatic breaker chisel types: the quick selection table
| Working-tool profile | Primary action | Good starting applications | Do not assume |
|---|---|---|---|
| Moil point | Concentrates impact at a small point | Starting a break, localized penetration, non-reinforced concrete, lightly fissured rock | That a point is fastest in every material |
| Narrow flat chisel | Creates a line of stress and directional split | Concrete edges, cutting or splitting, following cracks, reinforced sections where controlled placement matters | That the edge can be held at any angle |
| Wide chisel | Spreads the working edge across a wider strip | Scaling, surface removal, softer layers, shallow separation | That more width means more breaking power |
| Asphalt cutter | Cuts a broad, defined seam | Asphalt and road-surface opening, edge trimming, some frozen-ground work where approved | That it should replace a point in thick concrete or hard rock |
| Digging or clay spade | Slices and displaces soil over a broad face | Clay, compacted soil, trench cleaning, ground work matched to the blade | That it is intended for rock or reinforced concrete |
The table is a decision starting point. Material structure, reinforcement, crack pattern, breaker class, working orientation, and the available tool interface can change the answer.
Moil point vs flat chisel: what changes at the material?
Choose a moil point when you need a concentrated start
A moil point brings the blow into a small contact area. It is useful when the operator needs to initiate a hole, find a weak plane, or create the first fracture before widening the break. Epiroc's working-tool guidance lists moil points for non-reinforced concrete and for some lightly fissured or monolithic rock conditions. That is a useful principle, but it is not a promise that a point will be fastest in every concrete or rock.
A point can sink into a softer or more plastic material without producing the desired lateral fracture. It can also encourage repeated operation in one deep pocket. If penetration increases but useful breakage around the tool does not, stop and reassess the profile, placement, and material rather than simply holding the breaker in the same spot.
Choose a flat chisel when the break needs direction
A flat chisel turns the working end into an edge. That edge can be aligned with a crack, joint, boundary, or intended break line. Epiroc recommends chisels for several reinforced-concrete situations and for heavily fissured sedimentary or crystalline rock. The practical lesson is that an edge can help control where stress enters a structured material.
Edge orientation matters. The blade should be presented according to the breaker and working-tool instructions, with the operator avoiding side loading, levering, or twisting. A chisel is an impact tool, not a pry bar. If the tool jams, release it using the approved method instead of bending the shank against the bushing.
When a wide chisel or asphalt cutter is the better choice
A wide working edge is most useful when the objective is to separate or remove a layer across a defined strip. Epiroc's application table identifies chisel, wide-chisel, and asphalt-cutter profiles for soft asphalt structures and also lists them as options for frozen ground. Atlas Copco's pneumatic-breaker accessory tables show that narrow chisels, wide chisels, asphalt cutters, digging tools, and spades are model- and shank-specific options rather than universal accessories.
For road repair, an asphalt cutter can help establish a cleaner boundary before material is broken out. Work from the repair plan and site method: confirm underground-service controls, traffic management, dust or fume controls, and the required cut geometry. A breaker steel is not a substitute for a saw-cut where the specification requires sawing.
Do not move automatically to the widest blade. A wider edge spreads the blow across more contact area. In dense, thick, or hard material, that can reduce local penetration or make the tool bounce. If the blade will not enter or the material is not separating along the edge, a narrower chisel or a point may be a better first stage, followed by the wide tool for removal.
Clay spade vs digging chisel for trench and ground work
Soil tools should be selected by how the ground deforms. A broad clay spade can move cohesive, relatively plastic material over a wide face. A narrower digging chisel concentrates the blow where compacted ground, roots, or localized hard zones need to be opened. Mixed ground with stones can change the choice quickly, so the operator should be prepared to switch profiles instead of forcing a broad blade into conditions it cannot penetrate efficiently.
Names vary by supplier. “Clay spade,” “digging spade,” “digging chisel,” and “wide chisel” can describe different blade widths and geometries. Treat the name as a category, not a dimensional specification. Obtain the drawing or measured blade width, working length, shank geometry, and collar arrangement for the exact item.
Use this five-step selection sequence
- Define the material. Record concrete reinforcement, pavement type, rock fracture condition, soil plasticity, frozen ground, and any mixed layers.
- Define the required action. Are you starting a hole, propagating a crack, cutting a boundary, scaling a surface, or excavating soil?
- Choose the narrowest profile that performs the action efficiently. Extra blade width is helpful only when the material can accept it and the job needs a wider working edge.
- Verify the interface. Match shank cross-section, across-flats or diameter measurement, insertion length, collar or stop geometry, retainer design, and approved working-tool length.
- Run a controlled trial. Compare useful breakage, sticking, tool control, edge condition, and time per defined task on representative material.
For fleet or distributor purchases, record the breaker model and the exact steel used in the trial. “Standard point” or “standard flat” is not enough to reproduce an approved setup.
Compatibility checks come before the first blow
The working end determines how the tool acts on the material; the shank determines whether it can be installed safely and transfer impact as intended. Two breaker steels can share a similar point or blade but use different hex sizes, round shanks, insertion lengths, collars, or retainer arrangements.
- Confirm the breaker manufacturer and exact model from the nameplate.
- Check the approved shank form and dimensions in the current manual or parts list.
- Measure the existing tool only after cleaning it; do not use a badly worn section as the nominal dimension.
- Inspect the retainer, bushing, and contact surfaces before fitting a new steel.
- Confirm that the selected profile and overall length are approved for the operating position.
- Never grind, weld, heat, or alter a breaker steel to force compatibility.
If interface information is missing, send a dimensioned sketch and clear photos to the supplier. The live PerfoMax Pneumatic Picks collection provides the relevant commercial pathway; final tool selection should be confirmed against the breaker model and job information before quotation.
How to evaluate a chisel trial without guessing
| Observation | Possible interpretation | Next check |
|---|---|---|
| Point penetrates deeply but little material breaks away | Material may be too soft or plastic for concentrated penetration | Try a suitable edge or spade profile; change placement |
| Wide blade bounces or stalls | Contact area may be too large for the material and breaker class | Try a narrower chisel or start with a point |
| Flat chisel turns away from the intended line | Edge orientation, crack structure, or side loading may be wrong | Reset the tool and review the work angle; do not lever |
| Tool repeatedly sticks | Placement, profile, depth, or material may be trapping the steel | Use approved release practice and adjust the break pattern |
| Abnormal shank or collar marking appears | Possible interface, bushing, retainer, or lubrication problem | Stop operation and inspect the system before reuse |
These signs are diagnostic prompts, not proof of a single cause. Stop the breaker before inspection, isolate the energy source, and follow the equipment manufacturer's maintenance and safety instructions.
Common chisel-selection mistakes
Calling every pointed tool a universal general-purpose choice
A moil point is versatile, but its concentrated action can be inefficient when the job needs a line cut, broad separation, or soil displacement.
Choosing blade width from appearance
A broad blade can look more productive while spreading the blow too widely for dense material. Match width to the failure mechanism and breaker class.
Confusing tip profile with fit
“Flat chisel” describes the working end, not the shank. The order still needs a complete interface specification.
Using the tool as a lever
Twisting or prying can create lateral load on the steel, retainer, and bushing. Reposition and impact according to the operating instructions.
Ordering from a worn sample alone
Wear can hide the original edge, shank dimension, and collar geometry. Combine measurements with breaker identification and an approved parts reference.
RFQ checklist for pneumatic breaker chisels
- breaker brand, model, and serial or nameplate photo;
- shank cross-section and nominal dimensions;
- insertion length and overall length;
- collar, stop, and retainer geometry;
- required working end: moil, narrow flat, wide flat, asphalt cutter, digging chisel, or spade;
- material and task: start, split, cut, scale, or dig;
- working direction and access limits;
- existing tool photos beside a scale and a dimensioned sketch;
- quantity, expected duty, spare ratio, destination, and requested documentation.
A complete RFQ lets the supplier separate two decisions that buyers often combine: will it fit? and will the working end suit the job?
Frequently asked questions
Is a moil point or flat chisel better for concrete?
Use a moil point when concentrated penetration and starting a fracture are the main needs. Use a flat chisel when the break should follow an edge, crack, joint, or controlled line. Reinforcement, thickness, existing fractures, and the approved breaker tooling can change the choice.
Can an asphalt cutter be used on concrete?
Do not assume so. An asphalt cutter is designed around a broad cutting action in softer pavement. Dense or thick concrete may require a point or narrower chisel, and the breaker manufacturer's approved application takes priority.
What is the difference between a wide chisel and a clay spade?
Both have broad working ends, but a wide chisel is generally treated as an impact edge for scaling or layer separation, while a clay spade is shaped for slicing and displacing soil. Names and dimensions vary, so compare drawings rather than labels alone.
Does a matching hex size guarantee compatibility?
No. Check the full shank form, nominal size, insertion length, collar or stop, guide diameter where applicable, retainer, overall length, and model approval.
Should I order one chisel type for an entire fleet?
Only if the breakers, interfaces, materials, and tasks are genuinely standardized. Mixed demolition and ground work often justify a controlled set of profiles tied to specific breaker models.
Technical references
- Epiroc — Working Tools and application recommendations.
- Atlas Copco — RTEX 35 specifications and working-tool options.
- Atlas Copco — RTEX 25 specifications and working-tool options.
Match the working end and the breaker interface before ordering
Review the PerfoMax Pneumatic Picks collection or request a quote with the breaker model, shank measurements, material, required action, photos, quantity, and destination. A technically useful quotation should confirm both fit and application—not only the name of the chisel.
