Short answer: a pneumatic breaker chisel that cracks, bends or mushrooms should be removed from service before the breaker is tested again. The damage pattern can narrow the investigation, but it does not prove one root cause by itself. First isolate and bleed the air supply, preserve the failed tool, then check the chisel’s exact shank geometry, fracture location, straightness, working end, retainer contact area, chuck wear and recent operating conditions.
For mines, quarries, demolition contractors, rental fleets and distributors, the useful question is not simply “Was the steel bad?” It is whether the evidence points toward incompatibility, an over-worn chuck or retainer, side loading, blank firing, a worn working end, abnormal heat, corrosion, material variation or a combination of these conditions. This guide provides a controlled diagnostic sequence. It cannot replace the breaker manufacturer’s inspection limits, site safety rules or a metallurgical examination when the commercial consequence is significant.
Stop-use criteria before diagnosis
Disconnect the air supply, bleed stored pressure and secure the start control before touching the working tool. Do not continue using a chisel with a visible crack, permanent bend, enlarged or rolled-over end, damaged collar or retaining surface, or a shank that no longer passes the breaker manufacturer’s wear check. A broken tool may have sharp edges and retained fragments, so handle it with gloves and eye protection.
Do not grind, heat, weld or straighten the failed tool merely to make it fit again. Reconditioning rules differ by tool design and manufacturer. If the approved manual does not provide a method and discard limit, quarantine the tool and ask the supplier for a disposition.
Read the failure pattern before cleaning it away
| Observed condition | What it can indicate | What to verify next |
|---|---|---|

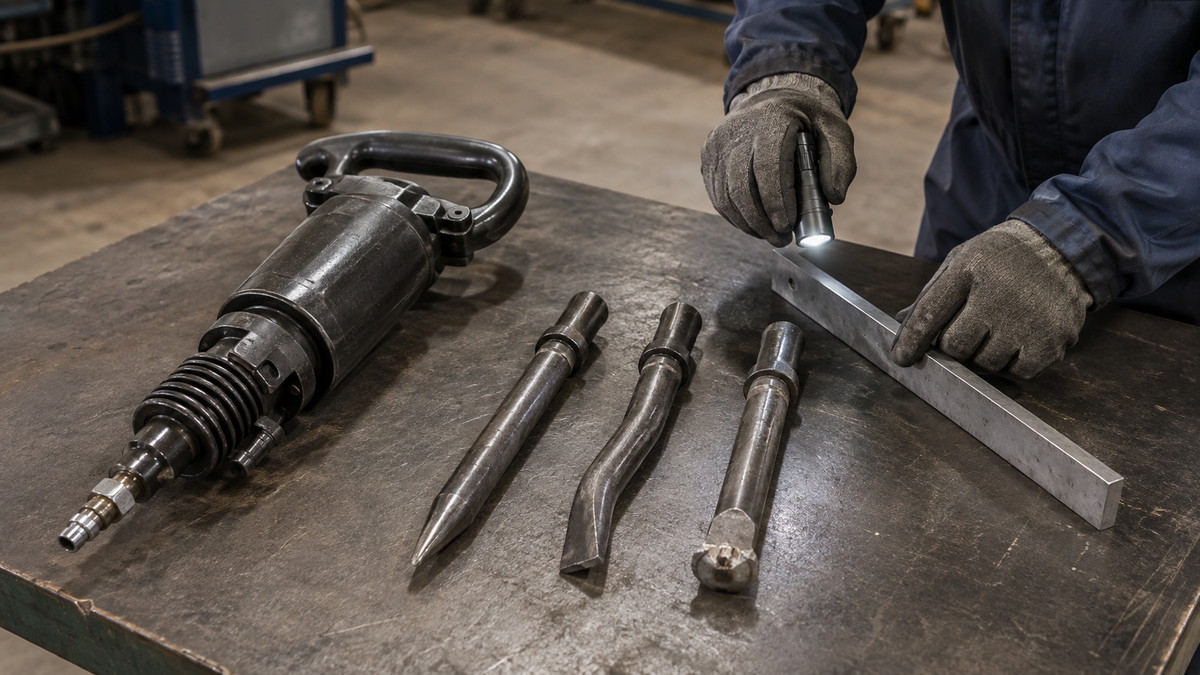

| Tool bent along the body | Side loading, levering, poor axial contact or movement of the workpiece may have introduced bending stress. | Operating angle, use as a pry bar, work support, chuck clearance and whether the tool repeatedly slipped. |
| Fracture near the collar or retainer contact area | Incorrect shank or collar geometry, concentrated retainer contact, excessive play, blank firing or a pre-existing surface defect may be involved. | Exact shank drawing, retainer condition, witness marks, chuck wear and whether the tool was fully seated. |
| Fracture through the body | Cyclic bending, corrosion pitting, impact damage, an earlier crack or material/heat-treatment variation are possible. | Straightness, rust pits, side marks, fracture origin, batch identity and history of the complete tool. |
| Mushroomed or rolled working end | A blunt tool, prolonged impact without useful penetration, abnormal heat or an unsuitable tool shape may have changed the end geometry. | Material being broken, dwell history, edge condition, heat discoloration and the OEM’s sharpening or discard instructions. |
| Mushroomed striking end or damaged shank | Abnormal piston-to-tool contact, wrong shank dimensions, an over-worn chuck or contamination may be concentrating impact. | Shank size, guide diameter, length, collar/retainer geometry, chuck gauge result and piston condition by qualified service personnel. |
| Rapid general wear without fracture | Wrong tool for the task, abrasive contamination, insufficient approved lubrication or excess movement in the chuck may accelerate wear. | Tool type, cleanliness, lubrication instructions, chuck clearance and maintenance records. |
These are conditional relationships. Two tools can look similar after failure while having different origins, and more than one mechanism can act at the same time. Preserve both pieces, photograph the fracture before aggressive cleaning and record which end was fitted into the machine.
Diagnostic sequence for a broken or mushroomed breaker chisel
1. Freeze the configuration
Record the breaker make, complete model, serial or production range, chisel supplier and part number, shank dimensions, tool type, date fitted and approximate operating history. Photograph the breaker nameplate, the complete chisel, both ends, the collar or retaining flat and the chuck opening. If several tools failed, keep each tool linked to its breaker and shift record rather than mixing the evidence.
2. Locate and describe the damage
Measure from a defined end and describe whether the damage is at the working tip, body, collar, retaining surface or striking end. Note bending direction, surface marks, rust, blue or dark heat tint, impact dents and whether the fracture appears to start at an edge or surface pit. Do not label a shiny, granular or dark surface as “brittle,” “fatigue” or “bad heat treatment” from appearance alone; those conclusions require competent examination.
3. Confirm the chisel is actually compatible
“Same hex” is not a complete compatibility statement. Confirm across flats, shank length, guide diameter, collar or retaining-flat geometry, working length and the retainer type against the exact breaker documentation. A tool that enters the chuck can still contact the piston or retainer incorrectly. Use the published pneumatic breaker chisel shank compatibility guide to build the dimension sheet before approving a substitution.
4. Check chuck and retainer wear
Inspect the retainer for cracks, deformation, uneven contact and positive locking. Check the chuck with the manufacturer’s specified gauge or wear method; do not invent a universal clearance. Atlas Copco’s pneumatic-tool maintenance checklist specifically calls for testing retainer function and checking chuck wear with the correct gauge because excess play increases vibration. Its RTEX instructions likewise describe a shank-gauge check and replacement of a worn insertion tool.
5. Review the operating load path
A breaker is intended to transmit repeated axial blows through a correctly seated working tool. Prying, using the chisel to move broken material, allowing the tool to run at a sustained side angle or continuing after the point slips can add bending load. Blank firing or partial contact can also shift impact into the retaining system. Interview the operator without assuming fault: ask what material was being broken, where the tool was positioned, whether the material moved, whether useful cracking or penetration stopped, and whether the tool began to stick or wobble.
Check the breaker manual for the approved work position. Some models are designed mainly for vertical use, while others permit a broader range. Do not turn a general “keep it square” rule into an unsupported claim that every breaker must always be held at one exact angle.
6. Separate lubrication from fit
Internal air-line lubrication protects the breaker mechanism; approved lubrication at the insertion-tool shank may be a separate instruction. Follow the exact manual for oil grade, delivery method and any shank-greasing requirement. More lubricant cannot correct a wrong shank, over-worn chuck or damaged retainer. Conversely, correct geometry does not cancel the need for the specified lubrication and clean compressed air.
7. Perform a controlled comparison only after inspection
If the breaker passes its service checks, compare one documented, correctly matched chisel under a controlled task. Keep the same breaker, air supply, material, work position and operator procedure. Stop immediately if the reference tool wobbles, sticks, shows abnormal contact marks or begins to deform. If the breaker fails the chuck, retainer or internal inspection, repair it before any substitution test.
How to distinguish a tool issue from a breaker issue
| Evidence pattern | More consistent with | Required action |
|---|---|---|
| One tool fails, while controlled tools from other lots run normally in the inspected breaker | A tool-specific or batch-specific issue becomes more plausible. | Quarantine the lot and send failure evidence to the supplier; do not declare a material defect without analysis. |
| Different correctly specified tools show the same retaining marks or rapid shank damage in one breaker | Chuck, retainer, seating or piston-contact condition becomes more plausible. | Remove the breaker for qualified inspection. |
| Failures follow one application, angle or operator practice across several breakers | Application method or load path becomes more plausible. | Review tool type, work sequence, training and task boundary. |
| Failures cluster by purchase lot across inspected breakers and controlled applications | A lot-level manufacturing or material issue becomes more plausible. | Preserve samples and request supplier traceability and technical investigation. |
| No controlled records exist | Cause remains indeterminate. | Start a documented trial rather than replacing parts by guesswork. |
Common diagnostic mistakes
- Assigning blame from the fracture color: visual appearance alone is not a metallurgical conclusion.
- Replacing only the chisel: a worn chuck or damaged retainer can mark the next tool in the same way.
- Checking only across-flats size: shank length, guide diameter and retaining geometry also control contact.
- Grinding away the evidence: aggressive cleaning can erase the initiation area and contact marks.
- Testing with an unknown spare: an undocumented comparison creates another variable instead of isolating the cause.
- Using a breaker as a lever: the tool is designed for impact; prying adds bending stress that the impact system is not intended to carry.
- Continuing with a mushroomed end: deformation can worsen fit, removal and contact conditions.
Evidence package for a supplier or warranty review
- Breaker model, complete suffix, serial range and clear nameplate photo.
- Chisel supplier, part number, purchase order, lot or heat identification if available.
- Dimension record for the shank, guide, collar or retaining flat and overall working length.
- Photos of the complete tool, damage location, both fracture faces, striking end and working end.
- Chuck-gauge result, retainer photos and breaker maintenance history.
- Application: concrete, asphalt, rock or other material; work position; tool type; and whether prying or sticking occurred.
- Air pressure measured at the tool under load, hose arrangement and lubrication method, using the breaker manual’s required units.
- Number of failures, number of tools in the lot and results from any controlled reference test.
A good report separates observation from conclusion. “Fracture 45 mm below the collar after two shifts” is evidence; “bad steel” is a hypothesis until supported.
Frequently asked questions
Can a mushroomed pneumatic breaker chisel still be used?
It should be removed from service and assessed against the tool manufacturer’s limits. Do not force a deformed tool through the chuck or retainer. If the manual does not authorize reconditioning and define the finished geometry, replace it.
Why does a breaker chisel break near the collar?
Possible contributors include a dimensional mismatch, concentrated retainer contact, excess chuck play, blank firing, side load or an existing defect. Inspect the matching surfaces and operating history; location alone cannot identify one cause.
Can a worn chuck break a new chisel?
Excess clearance can allow movement, vibration and uneven contact, so it belongs in every failure investigation. Use the breaker manufacturer’s chuck gauge and discard limit rather than judging looseness by feel.
Should a breaker chisel be sharpened after it becomes blunt?
Only follow the working-tool manufacturer’s documented sharpening procedure, temperature control and minimum dimensions. If those instructions are unavailable, do not improvise with welding, flame cutting or uncontrolled heating.
What should a buyer send when requesting replacement chisels?
Send the breaker model and suffix, shank drawing or measured dimensions, retainer type, required working end, application, photos and quantity. For a failed batch, add lot identification, fracture evidence and chuck/retainer inspection results.
