Direct answer: integral drill steel and a tapered drill rod solve the same broad job—transmitting impact and rotation from a hand-held or air-leg rock drill to the rock—but they are not the same consumable system. An integral drill steel is one fixed assembly with the shank, steel and carbide cutting head combined. A tapered system uses a separate drill rod and a replaceable bit fitted to a matching taper.
Choose integral steel when the approved drilling setup, hole sequence and local maintenance practice favor a simple one-piece consumable. Choose a tapered drill rod when the operation needs to replace bits separately, use more than one bit profile or diameter, or already stocks a controlled H22 rod-and-bit family. In either case, the rock-drill chuck, shank dimensions, flushing path, effective length and hole program must be verified before purchase. A shared “H22” description alone does not make integral and tapered tools interchangeable.
Integral Drill Steel vs Tapered Drill Rod: Quick Comparison
| Selection point | Integral drill steel | Tapered drill rod system |
|---|---|---|
| Construction | Shank, steel and carbide cutting head form one assembly | Rod and bit are separate components joined by a matched taper |
| Cutting-head replacement | The complete steel is removed when its fixed head can no longer be used within the approved wear limits | The bit can be removed and replaced independently if the rod taper remains serviceable |
| Compatibility checks | Rock-drill shank, steel section, length, fixed head and flushing arrangement | Rock-drill shank, rod section, length, taper angle, socket fit, bit diameter and flushing arrangement |
| Inventory structure | Complete steels by length and head diameter | Rods plus separate bits by taper, diameter and cutting profile |
| Configuration flexibility | Fixed once manufactured | Allows approved bit changes within the same verified rod family |
| Main ordering risk | Assuming the shank or overall length is correct without confirming the complete fixed assembly | Matching H22 but missing the taper angle, socket geometry or bit profile |
This is a system-choice comparison, not a universal performance ranking. Rock condition, operator practice, tool quality, flushing, drilling depth and local servicing can change the economic result.
How the Two Drill-Steel Systems Are Built

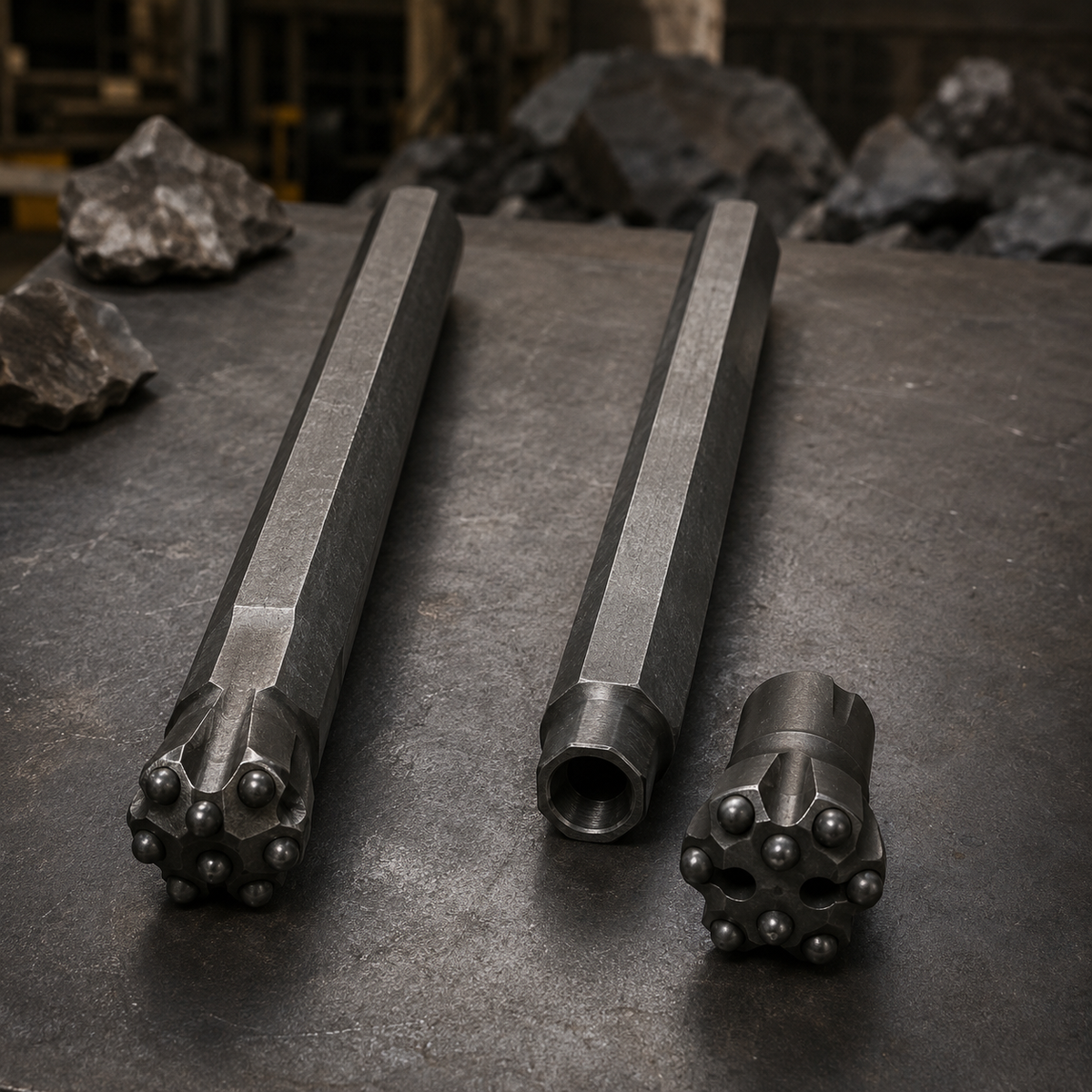

Integral drill steel is a one-piece rock-drilling tool. The back end engages the rock drill, the body transmits percussion and rotation, and the front carries the fixed carbide cutting head. The operator changes the complete steel rather than removing a separate taper bit.
Tapered drill tooling separates the rod from the cutting component. The rod has the rock-drill shank and a conical bit end. The bit has a matching internal socket. Impact during drilling seats the connection, so taper angle, insertion depth, surface condition and extraction practice all matter.
Original rock-tool catalogs treat integral steels and tapered rod-and-bit assemblies as distinct handheld top-hammer systems. That structure reinforces the central purchasing rule: compare complete systems, not isolated dimensions.
Compatibility Gate 1: Confirm the Rock-Drill Shank
The back end must fit the chuck, rotation mechanism and striking arrangement of the actual rock drill. For H22-class tools, “H22” refers to the nominal 22 mm hexagonal steel section. A designation such as H22 × 108 also identifies a shank-length class, but it does not specify the front-end connection or the complete tool.
Before ordering, record:
- rock-drill manufacturer, exact model and nameplate photo;
- chuck or shank specification from the controlled manual;
- hexagonal section measured across flats;
- shank length and collar position;
- striking-face and retaining geometry;
- air or water flushing path;
- whether the current steel is integral or uses a removable bit.
PerfoMax currently lists the Y19A hand-held rock drill and YT28 air-leg rock drill with H22 × 108 reference interfaces. The quoted supplier data sheet and approved configuration still control the delivered machine.
Compatibility Gate 2: Identify the Cutting End
The front-end question immediately separates the two systems. On an integral steel, document the fixed head diameter, head style, carbide condition and flushing holes. On a tapered rod, document the rod’s taper and the bit socket that fits it.
| Field to verify | Integral steel | Tapered rod and bit |
|---|---|---|
| Cutting component | Fixed to the steel | Separate replaceable bit |
| Connection description | No removable front bit connection | Taper angle plus socket fit and insertion depth |
| Head or bit diameter | Part of the complete steel specification | Specified for each replaceable bit |
| Cutting profile | Fixed head supplied on the steel | Button, cross or chisel options only when approved for the matched rod family |
| Wear decision | Evaluate the complete assembly | Evaluate bit and rod taper separately |
PerfoMax’s active H22 × 108 tapered drill rod page covers an 11° connection option. Matching active bit pages include H22 button, cross and chisel families. That does not mean any H22 bit fits any H22 rod: taper angle, socket gauge, insertion depth, diameter and flushing layout must still match.
Match the Choice to the Hole Program
Start with the required hole rather than a preferred consumable. Confirm the initial and final hole diameter, effective drilling depth, hole direction, collar condition, rock hardness and abrasiveness, water or air flushing, and whether the hole is drilled with one steel or a planned sequence.
Integral-steel programs may use a sequence of lengths and head diameters. The exact step pattern is supplier- and application-specific; do not invent a diameter reduction from a generic rule. Each next steel must pass through the hole created before it without creating an unacceptable clearance or jamming risk.
A tapered system can change a worn bit without discarding a serviceable rod, but the replacement bit must preserve the approved hole diameter and connection. A larger bit may exceed the rock drill or application range. A smaller bit may reduce flushing clearance or prevent the following rod, coupling or tool from passing as intended.
Build an Integral-Steel Starter and Follower Series
An integral-steel series is not simply the same tool ordered in several lengths. The buyer job is to define a controlled progression in which each steel reaches the next depth stage, passes through the hole made by the preceding steel, preserves the required final hole gauge and remains compatible with the same rock-drill shank and working envelope. Suppliers may use terms such as starter, follower, series steel or numbered stages differently, so the approved drawing and sequence table—not the label—must control the order.
| Sequence input | Why it matters | Release evidence | Hold condition |
|---|---|---|---|
| Rock drill and shank | Every stage must present the same approved machine-side interface unless the equipment plan explicitly changes | Model/manual reference, shank drawing, or approved master sample | Only “H22” or a visual match is supplied |
| Required depth by stage | Controls the effective length and the order in which steels enter the hole | Hole plan plus each stage’s stated effective-length basis | Overall length, under-collar length and effective drilling length are mixed |
| Head diameter progression | The next steel must pass through the preceding hole while the completed hole still meets its minimum gauge requirement | Supplier-controlled series table or drawing for every stage | A universal diameter reduction is guessed from another family |
| Head design and flushing path | Chisel, cross or other fixed-head geometry changes cutting behavior and cuttings clearance | Head drawing, flushing-hole layout and approved application | Stages mix head types or flushing layouts without approval |
| Working envelope and handling | A later steel can be correct on paper but impossible to load or control in the heading | Available clearance, feed/leg geometry and handling method | The longest stage cannot be inserted, aligned or withdrawn safely |
| Wear and regrinding limit | A worn starter can create an undersize entry that blocks a nominally correct follower | Model-specific gauge/regrinding limit and stage identity | Actual head gauge is unknown or outside the controlled limit |
Seven-step sequence release method
- Freeze the interface: identify the exact rock drill, chuck and shank dimensions that every proposed steel must match.
- Define the finished hole: record required depth, starting diameter, minimum acceptable final gauge, direction, ground condition and flushing method.
- Normalize length: require the supplier to state whether each quoted length is overall, under collar or effective drilling length.
- Order the stages: list each starter/follower position with its controlled length, head diameter, head design and flushing layout. Do not release a quotation that gives only a length range.
- Prove pass-through: confirm from the controlled drawing or sample trial that each later head and steel can enter the predecessor hole without relying on a worn or enlarged test hole.
- Check the site envelope: verify that the operator can load, align, handle and withdraw the longest stage in the actual heading or quarry position.
- Trial and record: run an approved sample sequence in representative ground, record stage order, achieved depth, gauge, flushing behavior, binding, regrinding status and any premature retirement before bulk release.
| Disposition | Use when | Required action |
|---|---|---|
| RELEASE AS A CONTROLLED SERIES | Every stage has verified shank, length basis, head diameter/design, flushing path and sequence position; the sample trial is repeatable | Issue one series code and preserve the complete stage table in the purchase order and receiving plan |
| HOLD FOR DRAWING OR SAMPLE | The supplier offers suitable-looking lengths but one or more dimensions, sequence positions or pass-through conditions are unverified | Request the missing controlled drawing, marked samples or stage table before ordering |
| USE A TAPERED SYSTEM INSTEAD | The operation needs frequent independent bit replacement, multiple approved bit profiles or flexible bit-diameter changes that a fixed-head series cannot support efficiently | Rebuild the RFQ around the verified shank, rod, taper and replaceable-bit family rather than mixing the systems |
| QUARANTINE THE MIXED SET | Loose steels cannot be traced to a stage, supplier revision or controlled diameter progression | Do not assemble a sequence by length alone; identify and gauge every steel or remove the set from production |
Copy-ready series RFQ block: rock-drill make/model; shank dimensions; hole direction and ground; required final depth; stage count; each stage’s effective-length basis; fixed-head type; head diameter by stage; flushing-hole layout; minimum final gauge; regrinding limit; working clearance; sample quantity; drawing/revision; and requested receiving evidence. If these inputs are unavailable, quote the configuration as provisional—not interchangeable.
Compare Replacement Workflow and Inventory
Integral and tapered systems create different stock-keeping logic. Integral steel is normally controlled as a complete item by shank, effective length, head diameter and head configuration. Tapered tooling requires separate controls for rods and bits, including the taper family.
For distributors and maintenance teams, the tapered system can reduce the need to replace a complete rod whenever only the bit has reached its limit. It also creates more ways to make a mismatch. Separate bins, durable labels, receiving checks and controlled compatibility tables are important where multiple taper angles or bit profiles are stocked.
When Integral Drill Steel Is the Better Candidate
Integral drill steel is a credible candidate when most of the following are true:
- the rock drill and chuck are approved for the integral-steel shank;
- the work is a repeatable small-hole program with controlled length and diameter steps;
- the required cutting head is already defined and does not need frequent field changes;
- the site prefers complete-tool replacement and can stock each required step;
- operators and maintenance staff have an approved inspection and regrinding procedure;
- the supplier can document the complete steel, not just the hex section.
Do not choose integral steel merely to remove a connection from the system. The fixed head, steel straightness, flushing passage, collar, shank and sequence still need control.
When a Tapered Drill Rod Is the Better Candidate
A tapered rod-and-bit system is often more practical when:
- bits need to be replaced more frequently than rods;
- the site uses approved button, cross or chisel options for different ground;
- the existing fleet is standardized on a known H22 taper family;
- local distributors already stock compatible rods, bits and extraction tools;
- operators can inspect and remove seated bits correctly;
- the operation wants to manage rod and bit consumption separately.
The PerfoMax Drill Rods collection and Drill Bits collection provide current commercial starting points. The final RFQ must still tie the rod and bit to the actual rock drill and ground condition.
Compare Total Cost per Usable Hole
Unit price alone does not settle the comparison. Calculate cost over a defined batch of acceptable holes and use the same ground, diameter, depth and quality standard.
| Cost component | What to record | Why it changes the decision |
|---|---|---|
| Consumables | Complete integral steels, or tapered rods plus bits | The replacement boundary differs between systems |
| Drilling output | Usable holes and meters, not only gross penetration | Deviation, blocked flushing or an unusable hole creates hidden cost |
| Change time | Tool changes, bit extraction and setup checks | Downtime can outweigh a small unit-price difference |
| Maintenance | Inspection, regrinding, taper care and rejection | Local skill and equipment affect serviceable life |
| Inventory | Number of controlled items and emergency stock | Too many similar items increase mismatch risk |
| Failure loss | Stuck tools, broken steels, damaged chuck and abandoned holes | Compatibility errors create costs beyond the consumable itself |
Use site trial data rather than universal life claims. The better system is the one that produces the required holes safely and consistently at the lower verified total cost.
How to Change Systems Without Creating a Mixed Fleet
- Freeze the existing approved specification and photograph representative tools.
- Confirm the rock drill, chuck, shank, flushing and retaining interfaces.
- Define the hole program and acceptance criteria.
- Obtain controlled drawings or data sheets for the proposed complete system.
- Run a limited, documented trial in representative ground.
- Compare usable holes, tool wear, change time, hole quality and operator feedback.
- Approve the new system, revise stock codes and quarantine look-alike incompatible items.
Do not introduce an integral steel as if it were simply a tapered rod with the bit already fitted. It is a different consumable architecture and needs its own controlled item code.
RFQ Checklist for Integral or Tapered Drill Tooling
- application and worksite: quarry, tunnel, mine, construction or secondary breaking;
- rock-drill make, exact model and nameplate photo;
- hand-held, air-leg or other feed arrangement;
- current shank designation plus measured hex and shank length;
- photo of the striking end, collar, body and cutting end;
- integral steel or separate tapered rod-and-bit system;
- overall and effective length definition;
- required hole diameter, depth and direction;
- for integral steel: fixed head type and diameter for every sequence step;
- for tapered tooling: taper angle, socket/insertion reference, bit profile and diameter;
- flushing medium and passage arrangement;
- rock hardness, abrasiveness, joints and water conditions;
- current wear or failure problem and rejected-tool photos;
- quantity by controlled configuration, destination, packing and inspection needs;
- supplier drawing or data-sheet revision attached to the quotation.
Frequently Asked Questions
Are integral drill steel and tapered drill rods interchangeable?
No. They can sometimes share a nominal shank class at the rock drill, but the front-end architecture is different. Compatibility must be approved for the complete tool, chuck, hole program and flushing arrangement.
Does H22 identify the taper angle?
No. H22 identifies the nominal hexagonal steel section. A tapered rod order must separately confirm the taper angle and bit socket. PerfoMax’s current H22 rod page covers an 11° connection option, while other taper families also exist in the market.
Can the cutting head on integral drill steel be replaced?
The cutting head is part of the integral assembly, not a detachable taper bit. Follow the tool manufacturer’s limits for inspection, regrinding and rejection; do not improvise a replacement joint.
Why can a replacement taper bit feel loose or seat too deeply?
Possible causes include the wrong taper family, mismatched socket geometry, worn mating surfaces, contamination, damage or an unverified aftermarket substitution. Stop using the combination and compare controlled dimensions before drilling.
Which system is cheaper?
Neither is universally cheaper. Compare cost per accepted hole using actual consumption, change time, regrinding, inventory, failure losses and hole quality in representative ground.
Technical Basis and Limits
This selection method is based on original rock-tool technical catalogs, drilling-tool dimensional drawings and field trial practice. Exact shank geometry, stage lengths, fixed-head diameters, pass-through clearances, regrinding limits and retirement criteria remain controlled by the approved supplier drawing, rock-drill manual and site procedure. Family-level examples must not be transferred to a specific PerfoMax configuration without written confirmation.
