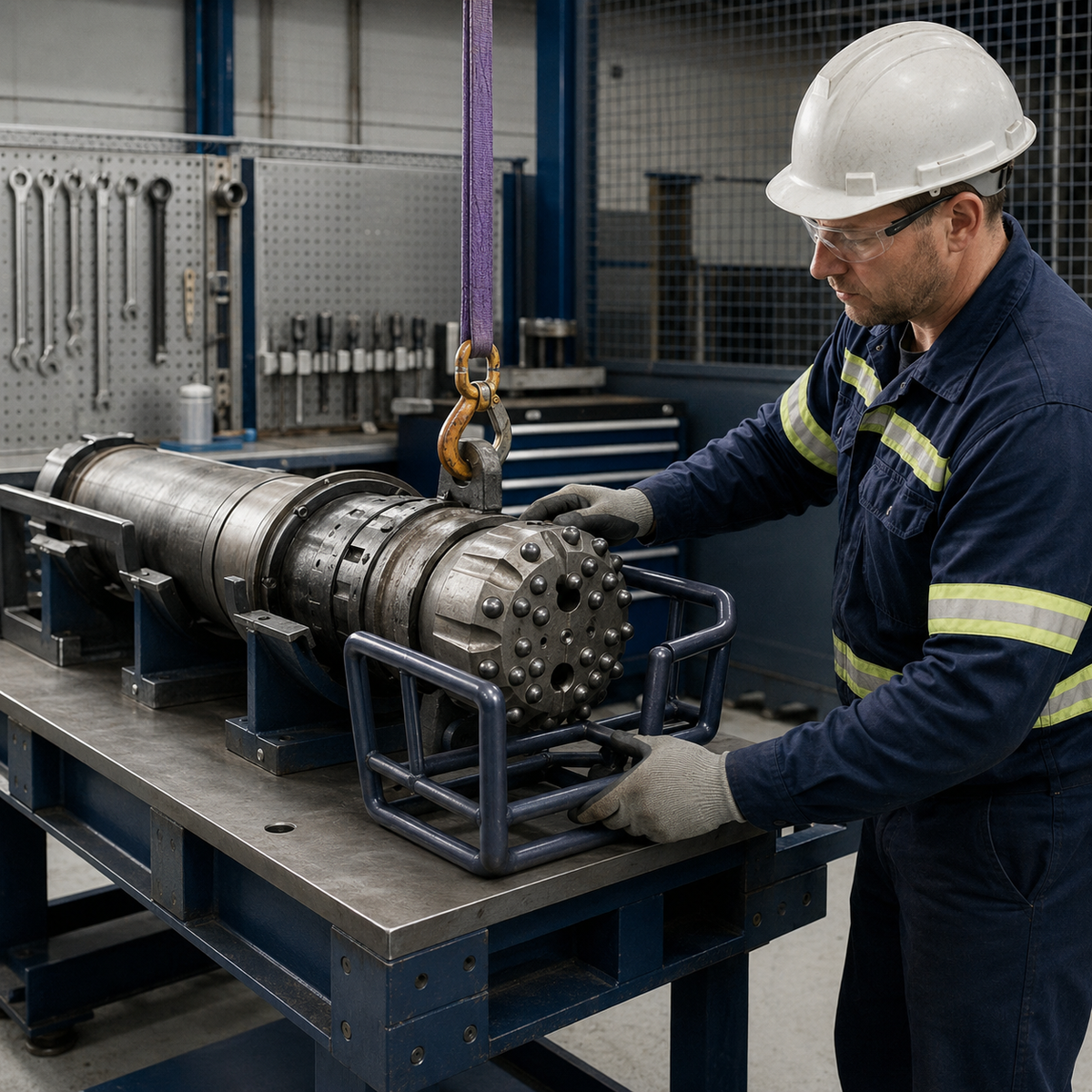

To change a DTH drill bit safely, isolate and depressurize the drill string, move the hammer to a controlled service area where practical, support both the hammer and bit, and use the hammer maker’s approved breakout tools and clamping locations. Remove the chuck and retaining components without loading the wear-sleeve threads or allowing the bit to fall. Clean and inspect the chuck, bit shank, retaining parts, drive splines and piston striking face before installing an exactly compatible replacement. Hand-start the chuck, then tighten it to the model-specific procedure and torque.
This guide covers a conventional down-the-hole hammer bit change for quarry, mining, construction and water-well crews. It is a safe decision sequence, not a substitute for the service manual for the exact hammer model. Thread direction, retaining-ring design, ring orientation, breakout position, lubricants, torque and discard limits are not universal.
Before changing a DTH bit: establish the service boundary
A bit change is routine maintenance only when the hammer identity and component arrangement are known. If the hammer model, bit shank, retaining system or correct service procedure cannot be confirmed, stop and quarantine the assembly. Guessing at a “similar” shank or copying the torque from another hammer can damage the chuck, prevent correct bit travel or allow parts to separate in service.
| Confirm before work | Why it matters | Stop if |
|---|---|---|
| Hammer maker, model and serial or asset ID | Controls the service manual, tool locations and tightening procedure | Identity is missing or the body has mixed, untraceable parts |
| Exact bit-shank designation and drawing | Drive splines, shoulder, retaining groove and air path must match together | Only the nominal bit diameter is known |
| Foot-valve or valveless arrangement | Affects the bit and hammer air system | The replacement differs from the approved configuration |
| Retaining-ring and seal arrangement | Controls bit retention and axial movement | Parts are missing, distorted, cracked or cannot be oriented from the manual |
| Approved breakout and tightening method | Prevents local sleeve damage and thread abuse | The only proposed method uses heat, welding or uncontrolled impact |
Work on a level surface with exclusion space around the component. Isolate the compressor and drill controls, bleed all trapped pressure, disconnect the hammer from any energy source, and verify zero pressure before loosening any threaded joint. Use rated lifting equipment for the actual component mass. A suspended hammer or bit must never be supported by hands or by an improvised prop.
Tools, parts and documents to prepare
- The current service manual and parts diagram for the exact DTH hammer.
- A rated lifting device, sling and service cradle or bit basket appropriate to the component mass.
- The OEM-specified breakout bench, wrench flats, chuck tool or other approved holding method.
- Clean trays for retaining components, seals and fasteners in removal order.
- Lint-free wipes, a non-damaging cleaning method and adequate lighting.
- The specified rock-drill oil, spline lubricant and thread compound. Do not assume one grease is correct for every location.
- New retaining parts and seals when the manual requires replacement rather than reuse.
- Measuring tools and the maker’s wear limits when the bit, chuck or hammer components must be assessed.
Do not begin if the service manual is unavailable or if the necessary support and breakout equipment cannot be arranged. OEM service material consistently emphasizes controlled support, correct tools, eye and hand protection, and keeping personnel clear of heavy components.
How to change a DTH drill bit step by step
1. Identify and clean the assembly
Record the hammer model, current bit-shank designation and any asset number before parts are separated. Wash or wipe loose cuttings and abrasive dust from the chuck end so contamination cannot enter the hammer during disassembly. Photograph the original arrangement if the retaining system is unfamiliar, but use the parts diagram—not the photograph alone—to determine reassembly.
2. Isolate, depressurize and stabilize
Shut down the drill according to the site lockout procedure. Confirm that the air line and hammer contain no residual pressure. Move the hammer to a workshop or designated service area where practical. Place the body in an approved cradle and support the bit independently so neither component can roll, swing or drop when the chuck releases.
3. Break the chuck loose only at approved locations
Fit the specified breakout tooling to the chuck and hammer body at the locations identified by the manufacturer. Keep clamps and wrenches off threaded or thin-walled areas unless the service manual explicitly permits them. Apply controlled torque while the bit remains supported. Do not weld a bar to the wear sleeve, heat the sleeve, or strike it repeatedly with a sledgehammer. These shortcuts can distort the body, alter heat-treated material or damage threads that were still serviceable.
If the chuck will not release with the approved method, stop. Escalate the assembly for workshop inspection rather than increasing impact or heat. Seized threads, deformation or previous cross-threading may require a controlled repair decision.
4. Unscrew the chuck and capture the retaining parts
Once the joint is free, continue removal under control. Hand-unscrew the chuck when possible while the bit remains supported. Capture retaining rings, O-rings or other retention parts as the assembly opens. A missing or damaged retaining seal can allow retaining pieces to move out of position, so do not treat it as a cosmetic item.
Some hammer families use split rings with a model-specific orientation; other designs differ. Do not assume the two faces are interchangeable. Keep parts in order and compare them with the current parts diagram.
5. Remove the bit without side-loading the splines
Align the bit with the hammer axis and slide it out under lifting control. Avoid levering against the chuck threads or dragging a heavy shank across the spline edges. If the bit will not move freely after the approved retaining parts are removed, stop and investigate burrs, mushrooming, packed debris or spline damage.
6. Clean and inspect every load-carrying interface
Remove old grease and abrasive contamination before judging condition. Inspect the used bit shank and the replacement bit, not just the carbide face. Examine the chuck threads and drive splines, the retaining groove and rings, any O-ring or seal, the wear-sleeve thread, and the visible piston striking face. Use the model-specific dimensions and wear limits; appearance alone cannot validate a borderline component.
7. Verify the replacement bit as a complete interface
Match the exact approved shank—not only hole diameter or a familiar trade name. Confirm spline form and count, shank length, shoulder and striking-end geometry, retaining groove, foot-valve or valveless design, face style, button layout and flushing arrangement. PerfoMax’s active DTH drill bit selection page explains the information needed to compare the complete interface before an RFQ.
For more detail, use the published DTH bit shank compatibility guide. A bit that enters the chuck is not necessarily a compatible bit.
8. Lubricate the correct surfaces with the correct product
Apply only the lubricant and amount specified for the hammer. Spline lubrication, chuck-thread compound and in-service rock-drill oil perform different jobs. Keep lubricant away from surfaces that the manual requires to be clean or dry. Excess grease can trap abrasive debris; too little or the wrong compound can promote galling and difficult future breakout.
9. Install retaining components in the specified arrangement
Fit serviceable or new retaining parts exactly as shown in the model diagram. Replace flattened, cut, cracked, permanently stretched or deformed seals and rings. Never grind a ring to make it fit. Confirm that the ring is seated in the correct groove and that no part is trapped between mating faces.
10. Hand-start the chuck and tighten to the manual
Engage the chuck threads by hand for several turns. It should start squarely without binding. If resistance appears immediately, back off and check alignment, thread damage, contamination and part arrangement. Do not pull a cross-threaded chuck into place with a power tool.
Use the specified bit basket or holding method and tighten to the exact maker’s procedure. Torque, thread direction and wrench position vary by design, so this guide intentionally gives no universal number.
11. Verify movement and perform a controlled return to service
With the assembly still isolated, check that the bit has the axial movement specified by the manual and that the retaining system captures it correctly. Confirm the chuck is fully seated, tools are removed and guards are restored. Reconnect under the site procedure, establish the correct lubrication supply, and perform the maker’s low-risk commissioning check from a safe position. Stop for abnormal air leakage, restricted movement, metallic impact, oil starvation or unexpected vibration.
DTH bit-change inspection points
| Component | Look for | Action boundary |
|---|---|---|
| Bit shank and striking end | Cracks, mushrooming, spalling, burrs, fretting, uneven spline wear | Remove from service when the maker’s defect or wear limit is reached |
| Chuck splines and threads | Rounding, galling, chipped edges, displaced metal, cross-threading | Measure where specified; do not reuse a cracked or badly galled chuck |
| Retaining ring and groove | Cracks, distortion, wear steps, poor seating, damaged groove | Replace questionable retention parts; investigate groove damage |
| Retaining O-ring or seal | Cuts, flattening, hardening, stretching, missing sections | Replace to the parts list; never omit it because the metal ring “looks secure” |
| Piston striking face | Chipping, cracks, heavy pitting, off-center contact pattern | Stop and inspect the hammer internally when damage is evident |
| Wear sleeve and chuck-end thread | Distortion, cracks, thread pullout, wrench or impact damage | Escalate; do not restore shape with heat or uncontrolled blows |
The published chuck and wear-sleeve inspection guide provides a deeper condition-assessment sequence. If damage suggests an internal air-cycle or piston problem, review how the piston, chuck, bit and air cycle interact before replacing parts in isolation.
Common DTH bit replacement mistakes
- Selecting by diameter alone. Hole diameter does not define the shank, retention or air interface.
- Working on a pressurized assembly. Residual energy can move heavy components without warning.
- Letting the bit hang from the chuck. An unsupported bit can fall as the retaining system opens.
- Using heat, welding or repeated heavy blows. These methods can damage the sleeve, threads and heat-treated structure.
- Mixing old parts or reversing an asymmetric ring. Retaining designs are model-specific.
- Using one lubricant everywhere. Threads, splines and the hammer air circuit may require different products.
- Starting the chuck with power. Hand-starting is the simplest cross-threading check.
- Reusing damaged retaining components. Their failure can release the bit or allow destructive movement.
Information to include in a replacement-bit RFQ
- Hammer manufacturer, exact model and any current parts-manual revision.
- Existing bit-shank code plus a dimensioned drawing or clear shank photographs.
- Required bit diameter, face style, button layout and flushing arrangement.
- Foot-valve or valveless configuration.
- Rock type and condition, including abrasiveness, fractures and water.
- Target hole diameter, depth and straightness requirement.
- Rig and compressor operating range supported by the equipment manuals.
- Requested spare retaining rings, seals and chuck-related service parts.
This information lets a supplier check the mechanical interface and application together. It also reduces the risk of receiving a bit that matches the nominal diameter but not the hammer.
Frequently asked questions
Can a DTH bit be changed on the drill rig?
Only when the site procedure and hammer manual permit it and the assembly can be isolated, depressurized and fully supported. A controlled workshop or service bay is preferable when practical because it improves cleanliness, lifting control and inspection. Never loosen the chuck while the hammer remains connected to a live air source.
What should I do if the DTH chuck will not break loose?
Confirm the correct thread direction, breakout point and approved tool for that exact model. Re-establish support and controlled torque. If it still will not release, stop and escalate. Do not add heat, weld on leverage, or strike the wear sleeve repeatedly; seizure or thread damage needs a repair decision.
Can I reuse DTH bit retaining rings?
Follow the maker’s parts and service instructions. Reuse is unsafe when a ring is cracked, distorted, heavily worn or outside its limit, or when the manual specifies replacement. Replace its associated seal when required. Do not assume ring orientation or interchangeability across hammer families.
How do I know a replacement DTH bit shank is compatible?
Verify the exact approved shank designation and drawing. Compare drive splines, shoulder and striking geometry, retaining groove, foot-valve arrangement, shank length and air passages—not only diameter or whether the bit slides into the chuck.
Should the chuck threads and bit splines use the same grease?
Not necessarily. Chuck threads may require an anti-galling thread compound, while splines and the hammer air circuit can have different lubrication instructions. Use the products and quantities specified for the hammer model and site temperature; never substitute by color or appearance.
Replacement-bit support from PerfoMax
If a used bit is rejected or a new size is planned, send PerfoMax the hammer model, exact shank information, bit diameter, face and flushing requirements, and drilling conditions. Start with the DTH drill bit selection page so the shank, retention features and application are checked as one system before quotation.
Technical references
- Numa: DTH hammer technical manual archive
- DTH hammer operation and service manual
- Hardrock HDDP service manual
Manual examples verify the recurring principles in this guide: isolate pressure, support heavy parts, use approved breakout tools, inspect retaining and striking components, clean and lubricate correctly, hand-start threads, and apply the model-specific tightening procedure. The exact hammer manual always controls.
