DTH Hammer Anatomy: How the Piston, Chuck, Bit, and Air Cycle Work

Quick answer: a pneumatic down-the-hole (DTH) hammer sits directly behind the drill bit at the bottom of the hole. Compressed air travels down the drill pipe, drives a piston inside the hammer, and the piston repeatedly strikes the bit shank. The drill string supplies rotation and feed while the same air system also helps carry cuttings away from the hole bottom.

That basic principle is simple, but the terminology is often not. Buyers may hear backhead, top sub, check valve, piston, wear sleeve, chuck, bit shank, foot valve and tubeless used in the same discussion. Some names overlap between manufacturers, while some parts are not present in every hammer design. This guide explains the functions that matter without pretending that one exploded diagram represents every DTH hammer on the market.

1. What Makes a DTH Hammer Different?

The defining feature is where percussion happens. In DTH drilling, the hammer enters the borehole and works immediately behind the bit. Mincon describes pneumatic DTH drilling as using high-pressure air to move a piston up and down so the piston strikes the bit against the rock, while the drill string rotates. Sandvik likewise describes DTH hammers as delivering intensive impact power with low energy loss.

For terminology purposes, think of the DTH system as four linked functions:

This is why a DTH hammer is not the same thing as a DTH bit, and why neither component can be specified correctly without considering the drill pipe, compressor and rig.

2. The Main DTH Hammer Parts and What They Mean

Exact component names and layouts vary by manufacturer and hammer family. Epiroc notes that its newer DTH 5 range deliberately reduces the number of parts, which is a useful reminder that a “standard parts list” should never be used as a substitute for the actual service manual or controlled drawing.

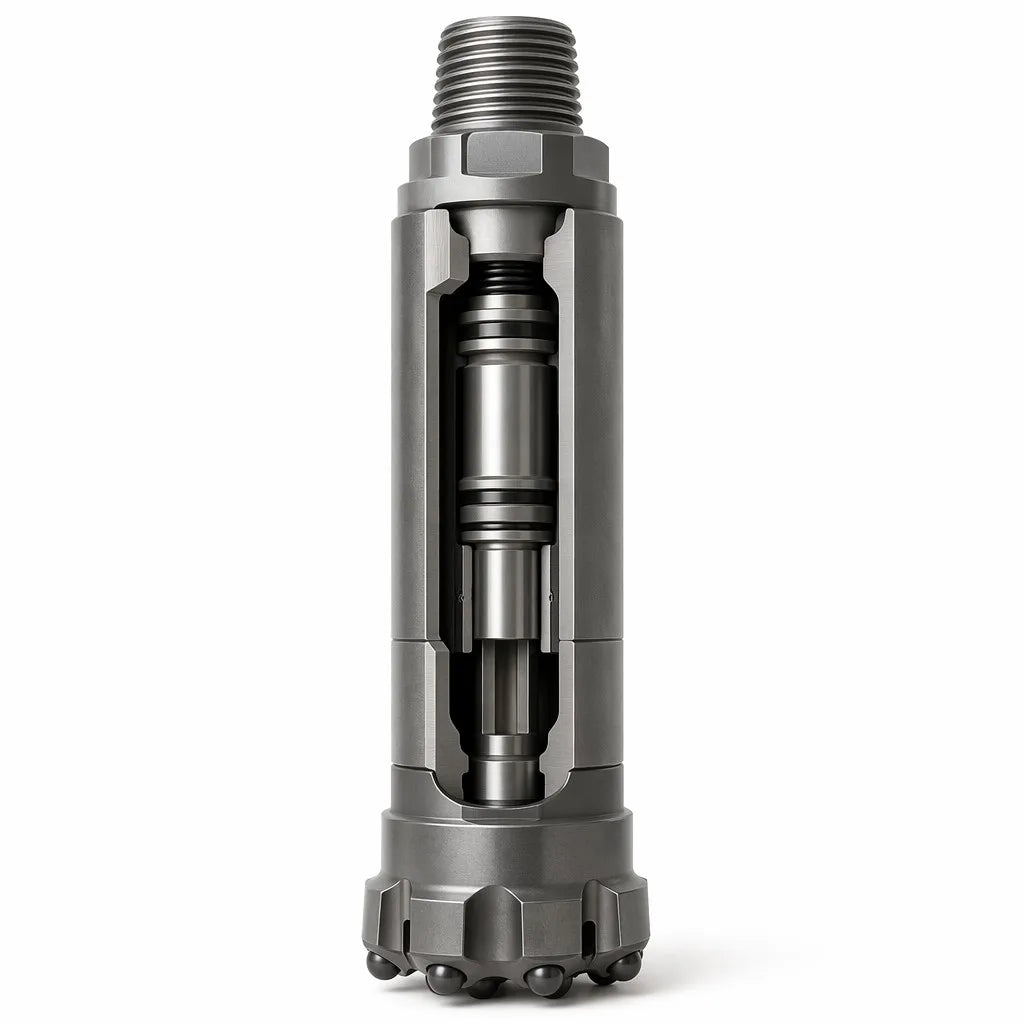

Backhead or top sub

The upper end of the hammer connects to the drill pipe through the backhead or top sub. This is the mechanical connection to the drill string and the air-entry path into the hammer. The thread at this end is a drill-string connection, not the same thing as the bit shank at the lower end.

Mincon’s 4-inch MP-series data makes this distinction visible: the same hammer family lists a standard backhead thread separately from the supported bit-shank family. For a buyer, that means “2 3/8 API Reg backhead” and “DHD340 shank,” for example, describe two different interfaces on opposite ends of the hammer.

Check valve

Many pneumatic DTH hammers include a check valve near the air-entry side. Its role is to allow normal forward airflow while helping prevent water and debris from moving back into the hammer or drill string when compressed-air supply is interrupted. The exact valve construction varies by design.

Do not confuse the check valve with the foot valve or blow tube associated with some bit/hammer systems. They serve different locations and functions.

Piston

The piston is the primary moving impact component. Compressed air creates a pressure difference that accelerates the piston through its stroke. At the forward end of the cycle, the piston strikes the impact surface of the DTH bit shank directly.

This direct piston-to-bit impact is central to the DTH concept. It is also why piston condition, internal clearances, lubrication and correct airflow matter so much to hammer performance—even though those maintenance topics belong in a separate maintenance guide rather than a terminology article.

Internal cylinder, control tube or air distributor

The piston cannot reciprocate unless airflow is switched between the spaces acting on its opposite sides. Different hammer architectures accomplish this in different ways. A typical hammer may use an internal cylinder, control tube, distributor, machined air passages, or a combination of these features to time the pneumatic cycle.

The important buyer-level concept is that “valved,” “valveless,” “foot-valve,” and “tubeless” are not interchangeable terms. A hammer can eliminate a separate airflow-control valve yet still use a bit with a foot valve; another design can use a tubeless bit. Always use the manufacturer’s exact architecture when discussing replacement parts.

Wear sleeve or outer casing

The wear sleeve is the outer body around the hammer internals. It is exposed to abrasive contact with the borehole and therefore acts as both a structural housing and a wear component. Manufacturers may use different names or service limits for this part, so replacement decisions should follow the model-specific manual rather than a generic diameter rule.

Chuck, driver chuck or driver sub

The chuck is the lower hammer component that interfaces with the drill bit shank. A technical explanation published by GMD describes the splined connection between driver chuck and bit as the feature that transmits rotation to the bit, while allowing the piston to strike the bit shank directly.

This leads to an important terminology distinction: the chuck is a hammer part; the shank is the matching geometry on the drill bit. They must match, but they are not the same component.

Bit retaining ring or stop ring

The retaining system keeps the bit captured in the hammer while still allowing the axial movement required for drilling and blow transfer. Exact retaining-ring and spacer designs vary. Treat the service manual, not an internet parts diagram, as the controlling reference for disassembly or replacement.

DTH drill bit and bit shank

The bit is the rock-breaking tool at the bottom of the system. Its head diameter, face, carbide-button arrangement and flushing layout affect drilling behavior, while its shank must match the hammer chuck and internal interface. PerfoMax’s current DTH drill bit selection page therefore treats shank, diameter, face and button/flushing configuration as separate specification fields.

3. How the DTH Hammer Air Cycle Works

The exact port timing differs by hammer design, but the functional cycle can be understood in four stages.

1. Air enters the hammer. Compressed air travels from the compressor through the rig and drill pipe into the hammer backhead.
2. The piston is driven through a power stroke. The hammer’s internal air-routing geometry directs pressure so the piston accelerates toward the drill bit.
3. The piston strikes the bit shank. Impact energy transfers directly into the bit, whose carbide buttons fracture the rock while the rig continues controlled rotation and feed.
4. The piston returns and spent air exhausts. The pneumatic circuit redirects pressure for the return stroke. Exhaust air continues toward the bit and hole bottom, contributing to cuttings removal.

That cycle repeats continuously while the hammer is operating. It is more useful to understand the energy path—air → piston → bit shank → carbide buttons → rock—than to memorize one manufacturer’s port diagram.

4. Foot Valve, Blow Tube, Tubeless, Valved and Valveless: Do Not Mix These Terms

This is one of the most common terminology traps in DTH procurement.

Mincon’s current 4-inch hammer range illustrates the foot-valve distinction directly: some configurations list “Yes,” while MC-style configurations list “No.” Therefore a replacement order should name the exact hammer model/shank and foot-valve condition rather than asking for a generic “4-inch DTH bit.”

5. Hammer Size, Hole Diameter, Shank and Backhead Thread Are Four Different Things

These terms are often compressed into one sentence during commercial discussions, but they answer different questions:

• Hammer size/class: the nominal hammer family, often discussed in inches.
• Hole or bit diameter: the actual cutting diameter required at the rock face.
• Bit shank: the lower mechanical interface that must match the hammer chuck/internal design.
• Backhead thread: the upper connection between hammer and drill pipe.

They are related, but not interchangeable. Mincon’s 4-inch MP-series, for example, lists hammer outside diameters around the 4-inch class while supporting bit diameters from 110 to 130 mm and multiple shank families. That does not create a universal selection rule; it simply shows why “4-inch hammer” is incomplete procurement information.

The same system logic applies above the hammer. PerfoMax’s current 76 mm DTH drill pipe page separates pipe outside diameter from the API connection and warns that compatibility requires checking the rotary head/saver sub, hammer top-sub connection and the complete drill string.

6. A Buyer’s DTH Hammer Terminology Checklist

Before requesting a hammer, bit, replacement part or complete DTH setup, record these fields in plain language:

• drill rig and rotary-head model;
• compressor pressure and available airflow;
• target hole diameter and depth;
• current hammer brand/model, if replacing equipment;
• hammer size/class;
• backhead/top-sub thread;
• bit shank family;
• foot-valve or tubeless requirement;
• bit diameter, face and button/flushing configuration;
• drill-pipe outside diameter, wall/length and connection;
• rock formation and application;
• part number or controlled drawing when ordering internal spares.

If you do not know one of these terms, a clear photo of the nameplate, current bit shank, backhead connection and existing drill-string components is often more useful than guessing from nominal size.

7. What This Anatomy Guide Does—and Does Not—Tell You

This article explains the functional anatomy and vocabulary of a pneumatic DTH hammer. It does not provide a universal assembly order, torque value, wear limit, piston clearance, lubrication rate or spare-part interchange chart. Those items are model-specific and should come from the manufacturer’s service documentation or the controlled quotation/drawing for the exact hammer.

For current PerfoMax scope, use the DTH Tools collection as the system entry point. It covers DTH hammers, bits, pipes and compatible components by drilling conditions and rig setup. When the exact specification is open, the safest starting information is the rig, compressor, target hole and rock condition rather than a guessed hammer code.

Frequently Asked Questions

What is the difference between a DTH hammer and a DTH bit?

The hammer is the pneumatic percussion tool containing the piston and internal air-routing system. The bit is the replaceable rock-cutting component that receives piston impacts and carries carbide buttons. The bit shank must match the hammer chuck and internal interface.

Is the DTH hammer chuck the same as the bit shank?

No. The chuck is part of the hammer. The shank is the matching splined or otherwise specified connection geometry on the bit. Commercial discussions sometimes shorten both to the shank “system,” but the physical parts are different.

Is a DTH foot valve the same as a check valve?

No. In typical terminology, the check valve is a non-return component near the hammer air-entry side, while the foot valve or blow tube is part of certain hammer-bit airflow architectures near the bit interface. Not all hammers use a foot valve.

Does “valveless DTH hammer” mean “tubeless DTH hammer”?

Not necessarily. “Valveless” describes how the internal pneumatic cycle is controlled; “tubeless” describes whether the hammer-bit system operates without a foot valve/blow tube. Always verify the exact hammer design rather than treating the terms as synonyms.

Why is a hammer’s inch size not enough for an RFQ?

Because hammer class does not uniquely define the bit diameter, shank family, backhead thread, foot-valve condition, airflow requirement or drill-pipe connection. A usable RFQ needs the complete system interfaces and operating conditions.

PerfoMax DTH System Inquiry

PerfoMax’s current DTH scope includes DTH hammers, drill bits, drill pipe and related system components. Review the DTH Tools collection, then send the rig, compressor, hole target, rock condition and any existing hammer/bit references for configuration review before quotation.
