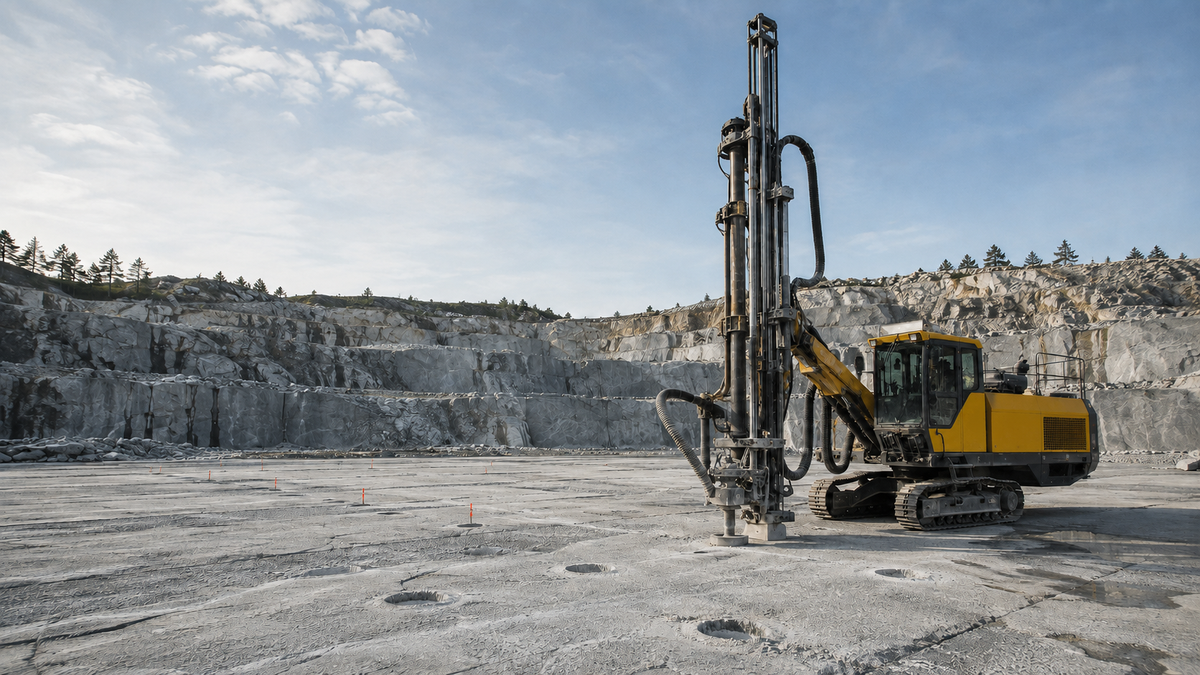

Hole deviation and hole straightness are related, but they are not the same measurement. A blast hole can be straight yet miss its planned toe because the collar was placed incorrectly or the feed beam started at the wrong inclination or azimuth. A hole can also start on the correct collar and direction but curve inside the rock. Buyers, drillers and blasting teams therefore need to separate four questions: where the hole started, which direction it started, how its path changed with depth, and where its toe actually finished.
This distinction matters whenever burden, spacing, casing clearance, breakthrough position or final-hole accuracy has a practical tolerance. Treating every error as “hole deviation” hides the cause and makes corrective action harder. The most useful report compares the designed and actual collar coordinates, starting vector, surveyed path, depth and toe position—not a single percentage without a definition.
Hole Deviation vs Hole Straightness: The Direct Answer
Hole deviation is the difference between a planned hole and the actual drilled hole. Depending on the report, it may refer to an angular difference, a horizontal or three-dimensional position difference, a percentage of hole length, or the full difference between two trajectories. The term is incomplete unless the reference, unit and calculation method are stated.
Hole straightness describes whether the actual borehole follows a straight line. A straight hole has little curvature, but that does not prove that it follows the planned line. If the rig collars 200 mm away from the design point and then drills a perfectly straight hole, straightness may be good while positional accuracy is poor.
Alignment normally describes the starting direction of the feed or hole. It needs two components: inclination and azimuth. Inclination describes the tilt relative to the stated vertical or horizontal reference; azimuth describes the compass direction in the horizontal plane. A correct inclination with the wrong azimuth still sends the toe sideways.
Toe offset is the difference between the planned and actual endpoint. It is often the most commercially important result because it changes the real burden and spacing at depth, but toe offset alone cannot show whether the cause was collar placement, starting angle or in-hole curvature.
Four Errors That Should Not Be Combined
| Accuracy question | What is compared | Typical unit | What it can reveal |
|---|---|---|---|
| Collar-position error | Actual collar coordinates versus design coordinates | mm or m | Marking, surveying or rig-positioning error before drilling begins |
| Collar-direction error | Actual starting inclination and azimuth versus the design vector | degrees | Feed-beam alignment, setup or reference-direction error |
| In-hole deviation or curvature | Actual direction and position at successive depths versus the expected path | degrees, mm/m, %, or 3D coordinates | Path changes caused by ground, drilling parameters, tooling, support or measurement effects |
| Toe-position error | Actual toe coordinates versus design toe coordinates | mm or m in 2D or 3D | The combined outcome of collar, direction, depth and path errors |
Depth error is a fifth check that should be recorded separately. A hole can finish on the correct projected line but be too short or too long. For blast holes, depth and subdrill influence floor control and charge length; for casing or anchoring work, depth can control whether the hole reaches the required horizon.
Why a Small Angle Error Can Create a Large Toe Offset
For a simplified straight hole with a constant angular error in one plane, the lateral offset caused by that angle is approximately:
lateral offset = hole length × tan(angle error)
A 12 m hole started 1° away from the planned direction would therefore have an idealized angular offset of about 0.21 m at the toe. The same angle over 24 m produces about 0.42 m. This calculation is useful for understanding scale, but it is not a substitute for a borehole survey. It assumes a straight path, one error plane, an accurate collar and the correct reference convention.
Real holes may curve through several planes. An inclination error and an azimuth error can act together, while changes in rock structure may alter the path at depth. Adding collar-position error to the angular effect produces the total positional difference. A reporting system should therefore retain the underlying coordinates rather than reducing everything to one angle.
Planned Line, Actual Line, and Reference Convention
A planned hole is a three-dimensional line or trajectory defined by a collar coordinate, direction and length. The actual hole is reconstructed from field measurements. Before comparing the two, confirm that both use the same coordinate system and the same angle conventions.
- Vertical reference: Is inclination measured from vertical, from horizontal, or as a signed dip?
- Azimuth reference: Is direction referenced to grid north, true north, magnetic north or a local quarry baseline?
- Depth reference: Is reported depth measured along the hole or as vertical depth?
- Position reference: Are collar and toe differences reported in plan view, sectional view or full 3D distance?
- Sign convention: Which direction is positive for dip, bearing and coordinate differences?
Two reports can contain correct numbers and still disagree if their reference conventions differ. A degree value without the zero direction and measurement plane is not enough for acceptance or troubleshooting.
How Blast-Hole Deviation Is Measured
Collar coordinates can be checked with site surveying methods or rig-positioning systems. Feed inclination and azimuth may be read from the rig, an alignment instrument or a site survey. Those checks describe setup, but they do not necessarily prove the path below the collar.
A post-drilling deviation survey lowers or pushes a measurement probe through the borehole and records orientation at selected depths or continuously. Accelerometers can establish inclination relative to gravity; magnetometers or gyroscopes may contribute directional information. The instrument, centralizer, deployment method, rough hole wall and data-processing method all affect the result. The meaningful specification is the accuracy and repeatability of the complete measurement system in the actual hole—not only the sensor’s laboratory rating.
Measurement while drilling data can help identify changing ground or drilling response, but machine-side inclination and azimuth do not automatically equal the actual trajectory of the open hole. When toe position or charge clearance is critical, the required survey method and acceptance tolerance should be agreed before drilling.
What “Deviation Percentage” Might Mean
A deviation percentage is not universal. One supplier may divide toe offset by measured hole length. Another may report a change in direction over a stated interval. A dashboard may calculate the percentage of collars that fall inside an XY tolerance. These are different metrics.
Before accepting a percentage, ask:
- What is the numerator: angular change, lateral offset, 3D offset or number of noncompliant holes?
- What is the denominator: drilled length, vertical depth, design length or total holes?
- Is collar error included or excluded?
- Is the value measured at the toe, at every survey station or as a maximum?
- Which coordinate and angle convention is used?
A good report keeps raw collar, survey-station and toe data available so the summary can be audited.
Variables That Change Hole Accuracy
| Variable group | Examples to record | Why it matters |
|---|---|---|
| Rock mass | Joints, bedding, foliation, faults, alternating hard and soft bands | The bit may follow weaker planes or deflect at boundaries |
| Rig setup | Bench level, mast support, collar location, initial inclination and azimuth | Setup error shifts the entire planned path before in-hole effects begin |
| Drill string | Method, rod or pipe diameter, stiffness, length, coupling condition and support | Bending, joint play and unsupported length can reduce directional control |
| Bit condition | Gauge, face profile, button wear, symmetry and diameter | Uneven or under-gauge wear can change cutting behavior and clearance |
| Operating parameters | Feed, rotation, percussion, flushing and collaring sequence | Parameters influence bit stability, cuttings removal and drill-string bending |
| Measurement system | Probe type, centralizer, interval, calibration, repeat run and processing | Apparent deviation can include survey uncertainty |
The priority is not to blame one component from a toe-offset number. First separate setup error from path curvature, then compare repeated holes under known conditions. For corrective operating checks, see the published guide on reducing top-hammer hole deviation. For quarry front rows, also review collar position and deviation near a free face.
Common Misunderstandings That Create Bad Decisions
- “The hole is straight, so it is accurate.” Straightness does not correct an off-pattern collar or wrong starting vector.
- “The mast angle proves the toe position.” Mast alignment establishes the start; it does not measure in-hole curvature.
- “One deviation percentage is comparable across suppliers.” The calculation boundary and reference must match.
- “The survey probe accuracy is the total system accuracy.” Centralization, deployment, calibration and hole condition also matter.
- “Toe offset identifies the root cause.” The endpoint shows the outcome, not whether the cause arose at the collar or below it.
- “A tighter tolerance is always better.” Tolerance should follow the application, risk, survey capability and achievable drilling process.
What to Confirm Before a Drilling-Tool RFQ
PerfoMax can review a drilling-tool inquiry more effectively when the required hole result and current system are described together. Send the following information where relevant:
- application: quarry blast holes, underground production holes, construction holes, anchors, drains or another duty;
- drilling method: DTH, top hammer, pneumatic hand-held or air-leg drilling;
- planned hole diameter, measured depth, inclination and azimuth convention;
- required collar-position, starting-angle, straightness and toe-position tolerances as separate values;
- rock strength information plus joints, bedding, fractures and hard/soft transitions;
- rig or rock-drill model, hammer size, rod or pipe system, thread, length, bit type and current gauge;
- air or water flushing arrangement and observed cuttings return;
- survey method, station interval, repeatability evidence and sample trajectory data;
- photos of the setup, representative worn tools and any recurring deviation direction.
Do not request a “straight-hole bit” as a standalone cure. Tool geometry, drill-string stiffness, system compatibility, ground conditions and operating setup interact. A matched review starts with the complete system and a defined acceptance result.
Frequently Asked Questions
Can a borehole be straight but still be wrong?
Yes. A hole can follow a straight line from an incorrect collar or at an incorrect inclination or azimuth. Its straightness may be good while its toe position is outside tolerance.
Is hole deviation measured in degrees, millimetres or percent?
All three are used, but they describe different things. Degrees describe direction, millimetres or metres describe positional offset, and percent is meaningful only when its calculation is defined.
What is the difference between inclination and azimuth?
Inclination describes tilt relative to a stated vertical or horizontal reference. Azimuth describes the direction of that tilt in the horizontal plane. Both are needed to define a three-dimensional hole direction.
Does a rig’s mast-angle reading measure the actual hole path?
It measures or indicates the starting alignment of the feed, subject to calibration and setup. It does not by itself measure changes in the hole direction after the bit enters the rock.
What data is needed to investigate repeated toe offset?
Start with design and actual collar coordinates, starting inclination and azimuth, actual depth, survey stations, toe coordinates, rock-structure notes, tool condition and drilling parameters. Repeated holes are more useful than one isolated result.
Define the Error Before Changing the Tool
Hole deviation is not one defect. It is the combined result of collar position, starting direction, in-hole trajectory and depth. Separating those components prevents a straight but misplaced hole from being confused with a correctly collared hole that curves in the rock.
If you are matching drilling tools to a defined hole-accuracy problem, send PerfoMax a request for review with the hole plan, current drill string, ground description and survey evidence. The next step should be based on the measured error mode—not on a single unexplained deviation value.
