H22 Tapered Drilling in Fractured Rock: Collaring, Flushing, Bit Jamming, and Hole Control

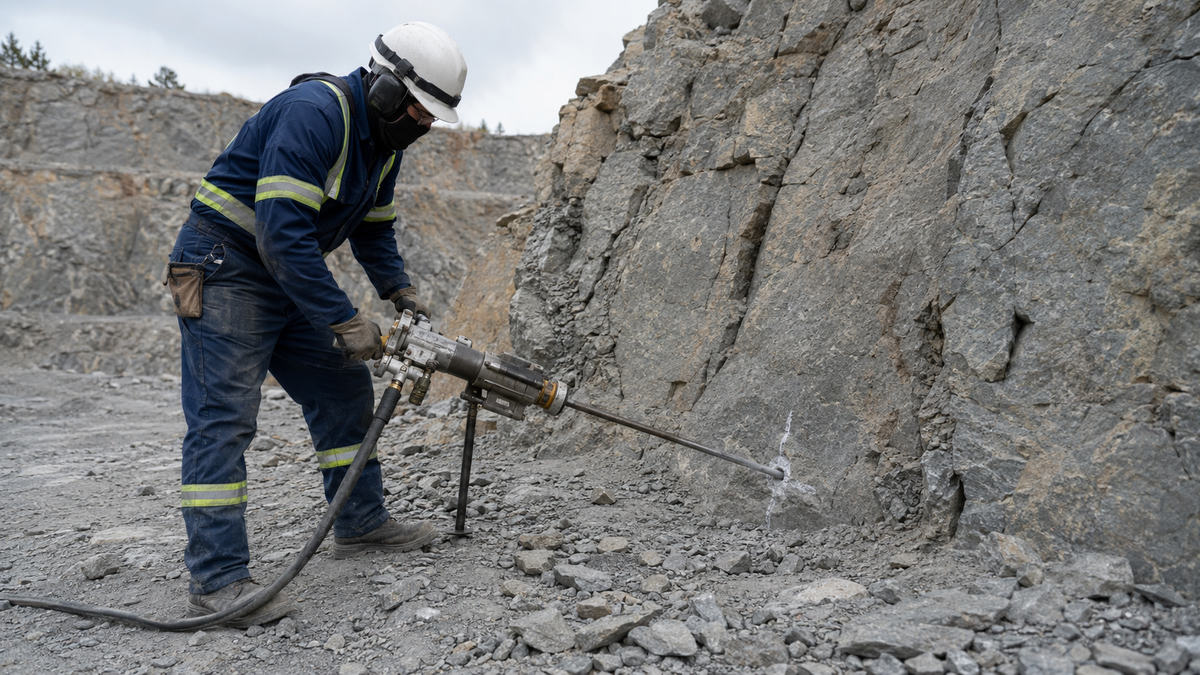

Operator aligning an H22 tapered pneumatic rock drill against a fractured quarry rock face

H22 tapered drilling can work in fractured rock, but the operator must treat collar stability, cuttings return, rod alignment and withdrawal resistance as changing conditions—not fixed settings. Open joints, weathered seams and voids can make the bit wander, interrupt flushing or trap loose fragments behind the bit. Start on the most competent available patch, establish a short straight collar with the controls recommended for the exact drill, and stop to reassess when the drilling response changes suddenly. This guide applies to handheld pneumatic rock drills using compatible H22 tapered drill steel; it does not replace the drill manufacturer's operating instructions, site risk assessment or ground-control plan.

Decision boundary: Fractured rock is not simply “hard rock with more cracks.” A hole may pass from a competent block into an open joint, crushed seam or water-bearing plane within a few centimetres. If the hole repeatedly collapses, the collar cannot be stabilized, or the required depth and straightness cannot be maintained safely, change the hole location or drilling method rather than forcing the H22 system.

Why fractured rock changes H22 drilling behavior

In intact rock, the bit normally meets continuous resistance and cuttings return is comparatively consistent. In fractured ground, the cutting face and annulus can change abruptly. A joint may guide the bit sideways; a void may cause a sudden penetration jump; loose chips may fall behind the skirt; and flushing air or water may escape into a crack instead of carrying cuttings to the collar.

These effects matter to a tapered system because the drill, H22 rod, taper connection and bit act as one impact-and-rotation path. Side loading or repeated binding can disturb that path. The correct response is not automatically “more feed” or “more impact.” It is to identify the ground signal, unload the drill safely, restore cuttings transport, and confirm that the rod and bit remain serviceable.

Observed condition Likely interpretation Operator response
Bit walks during the first part of the hole Weak collar surface, sloping joint or poor initial alignment Stop before a crooked collar develops; choose a more competent point or re-establish alignment using the drill manual's collaring procedure.
Penetration suddenly accelerates Open joint, void or very weak seam Reduce loading, keep control of the drill and watch the cuttings return before proceeding.
Cuttings return weakens or disappears Flushing loss into a fracture, blocked passage, packing or supply problem Stop advancing. Check the flushing supply and hose, then unload, flush and retract according to the exact machine procedure.
Rod vibration or visible whip increases Misalignment, uneven bit contact, bent steel or binding Release the load and inspect alignment and drill steel; do not use the rod as a lever.
Withdrawal resistance increases Loose chips falling behind the bit, wall collapse or packed cuttings Avoid forceful side-to-side bending. Restore flushing and use the approved withdrawal sequence.

Pre-drill checks: map the condition before choosing the setup

A useful fractured-rock check is short and practical. It should identify the features that can redirect the bit or interrupt flushing. Record the intended hole angle, visible joint direction, open cracks, soft seams, wet areas and the most competent collar patch. Scaling and ground support remain site responsibilities; never drill beneath loose ground that has not been made safe.

  • Collar competence: Is the first contact point solid enough to guide the bit, or is it a loose edge?
  • Joint orientation: Will the intended hole cross a dominant joint at a shallow angle, increasing the chance of deflection?
  • Void or weathered seam: Is there a visible cavity, clay-filled plane or crushed zone along the likely path?
  • Water condition: Could natural water alter cuttings return, visibility or hole-wall stability?
  • Escape route and hose control: Can the operator step away safely without the air or water hose pulling the drill off line?

Confirm the complete interface before starting: drill shank specification, H22 rod shank length, taper angle, bit socket and flushing path. “H22” identifies the hexagonal steel size; it does not, by itself, prove that every rod, bit and drill will fit together. Use drawings, confirmed taper information and trial assembly. If you are specifying consumables, review the active H22 taper button-bit range and submit the drill model, rod details, taper and required bit diameter with the inquiry.

Controlled collaring with an H22 drill steel held square to a jointed rock surface
A stable collar and straight drill-steel alignment reduce the chance of a joint steering the bit at the start.

A controlled operating sequence for fractured ground

1. Choose the collar, then stabilize the drill

Prefer a competent patch that gives the operator a balanced stance and a straight load path. Keep the rod aligned with the planned hole axis. Do not compensate for a poor collar by pushing the drill sideways; lateral leverage can bend the steel, enlarge the collar irregularly and disturb the taper connection.

2. Establish a short, straight collar

Use the exact drill manufacturer's low-energy or collaring procedure where one is provided. The objective is not maximum penetration—it is a round, controlled entry that will guide the bit when full drilling begins. If the bit repeatedly slips into a crack, stop and move the collar rather than deepening a crooked start.

3. Increase drilling energy only after the collar is stable

Feed, percussion, rotation and flushing must remain balanced for the machine and ground. Excessive feed can make a bit bind across an uneven fracture. Too little feed can allow bouncing and poor energy transfer. There is no universal pressure, feed-force or rotation setting for all H22 drills, so use the model's operating instructions and compare the response with a known stable hole.

4. Read cuttings return continuously

Cuttings return is a process signal. A steady return suggests that the flushing path and annulus are open. A sudden reduction can mean that flow has escaped into a joint, the hole is packing, or the supply has changed. A surge of coarse chips after crossing a crack can indicate local break-out. Stop advancing before assuming that more flushing alone will solve the problem.

Water and rock cuttings returning from an H22 tapered drill hole in fractured rock
Changes in cuttings return can reveal flushing loss, packing or a newly intersected fracture.

5. Cross a fracture without parking the loaded bit

When penetration changes suddenly, keep physical control of the drill and reduce the load. Do not leave the bit heavily loaded at the bottom while flushing is interrupted. Follow the machine manual to unload, flush and retract. Re-enter only after the hole clears and the rod turns and advances without abnormal resistance.

6. Withdraw before a small restriction becomes a trapped string

At planned intervals—and whenever return deteriorates—clear the hole using the approved procedure. The correct interval depends on depth, hole angle, chip size, flushing medium and fracture condition. A rigid time or depth rule is less useful than watching return and withdrawal resistance.

Bit choice: use the fracture condition, not one universal rule

No single H22 bit profile is automatically best for every fractured formation. The choice also depends on diameter, rock abrasivity, drill output, taper compatibility, availability and the operator's ability to keep the hole clean. Treat the following as a shortlisting guide, then confirm the bit with the supplier and conduct a controlled field trial.

Bit style Why it may be considered What to verify
Button bit Multiple contact points and carbide inserts can provide a stable cutting pattern and wear resistance. Diameter, face design, flushing openings, carbide condition and exact taper match.
Cross bit Often considered for broken or crack-developed formations where a cross-shaped cutting edge suits the local rock response. Supplier application evidence, gauge wear, flushing clearance and whether the profile controls or follows joints in the actual formation.
Chisel bit Simple geometry can be economical in suitable rock and small-hole work. Whether the cutting edge tends to follow discontinuities or wear unevenly in the target ground.

For a deeper comparison, see Button vs Cross vs Chisel H22 Tapered Bits. Do not switch profiles and change operating variables at the same time during a field trial; otherwise the cause of an improvement or failure will be unclear.

How to respond to bit jamming

A jam is a symptom, not a diagnosis. In fractured rock, common mechanisms include packed fines, loose chips behind the bit, local hole collapse, bit wedging across a joint, a bent rod or loss of flushing. The safest useful sequence is controlled and model-specific:

  1. Stop advancing and release feed pressure without losing control of the tool.
  2. Shut down or isolate energy as required by the drill manual and site procedure before hands approach the steel or retainer.
  3. Check the external air/water supply, hose condition, couplings and visible restrictions.
  4. Use only the approved flush-and-withdraw procedure. Do not hammer or pry the rod sideways.
  5. If the bit remains trapped, stop and escalate. Record hole angle, depth, ground change, return behavior and actions already attempted.

A steel recovered from a jam should be cleaned and inspected before reuse. Look for bend, mushrooming, abnormal contact marks at the taper, cracks, damaged flushing passages, gauge loss and uneven carbide wear. A loose or damaged taper is a separate problem; use the checks in H22 Tapered Drill Bit Keeps Coming Loose rather than reseating a suspect component repeatedly.

Inspection of an H22 tapered drill rod and compact button bit after drilling fractured rock
Clean and inspect the rod taper, bit socket, carbide and flushing path after abnormal binding.

Hole-control checks and abandonment criteria

Fractured rock can deflect a small-diameter hole even when the collar looks acceptable. Compare the actual collar angle with the drilling plan, observe whether the rod tracks consistently, and measure completed holes where straightness matters to the blast, split line or anchor pattern. A faster hole is not a better hole if its endpoint or burden is wrong.

Stop and change location or method when any of the following persists after a controlled correction:

  • the collar cannot be stabilized without unsafe side loading;
  • cuttings return cannot be restored;
  • the hole repeatedly collapses or traps the bit;
  • rod whip, bending or abnormal vibration continues;
  • the hole direction falls outside the site's acceptance limit; or
  • ground conditions differ materially from the drilling plan.

Do not improvise a deeper or larger hole simply to bypass the problem. Required depth, diameter, straightness and ground support may call for a different drill string, drilling system, casing approach or engineered stabilization.

Common mistakes that increase risk and tool cost

  • Treating every crack as the same: open joints, soft seams and tightly healed fractures affect the bit differently.
  • Forcing a poor collar: maximum feed at the surface can lock in deviation before the hole is established.
  • Using the rod as a pry bar: side bending can damage drill steel and does not remove the underlying blockage.
  • Advancing after return disappears: this can compact cuttings and make recovery harder.
  • Changing bit, pressure and technique together: an uncontrolled trial produces no reliable purchasing evidence.
  • Assuming H22 means universal compatibility: shank length, taper, socket and flushing configuration still require confirmation.

RFQ and field-trial information to send the supplier

A supplier can recommend more responsibly when the inquiry describes the ground and the existing interface. Include:

  • rock type plus photos of joints, weathered seams and representative cuttings;
  • handheld drill make/model and confirmed shank specification;
  • H22 rod length, shank length, taper angle and flushing configuration;
  • current bit type, diameter and socket/taper details;
  • hole angle, target depth and acceptable straightness;
  • air and flushing arrangement measured at the machine under load where your procedure permits;
  • failure pattern: collar wander, return loss, jam depth, withdrawal resistance or abnormal wear;
  • trial quantity and acceptance measures such as holes completed, meters drilled, jam events, deviation and discard condition.

Use one baseline and change one variable at a time. Record the ground zone for each test hole; otherwise a bit tested in competent blocks may be unfairly compared with one tested through crushed seams. For a quotation against confirmed dimensions, send the checklist through the PerfoMax request-a-quote page.

Frequently asked questions

What H22 bit is best for fractured rock?

There is no universal best profile. Button, cross and chisel bits can each be appropriate under different jointing, abrasivity, diameter and drill-output conditions. Confirm taper compatibility first, shortlist the profile from supplier application evidence, then run a controlled trial in representative ground.

Why does an H22 bit jam in cracked rock?

Common causes include loose fragments falling behind the bit, packed cuttings, local wall collapse, wedging across a joint, loss of flushing or bent drill steel. Stop advancing, follow the drill manual's unload/flush/withdraw sequence and inspect the recovered components before reuse.

Why did cuttings return suddenly disappear?

Flushing may have escaped into an open fracture, the passage may be blocked, the hole may be packing, or the external supply may have changed. Treat the loss as a warning signal: stop penetration, check the supply and clear the hole using the approved procedure.

How can hole deviation be reduced in fractured rock?

Start on the most competent available collar point, establish a short straight collar, keep the rod aligned, avoid side loading and watch for sudden changes as the bit crosses joints. If direction remains outside the site's tolerance, relocate the hole or use a more suitable method.

When should the operator abandon the hole?

Abandon or escalate when the collar cannot be stabilized, return cannot be restored, collapse or trapping repeats, abnormal rod movement persists, or the hole no longer meets the site's direction and safety limits. Recovering one hole is not worth damaging the drill string or exposing the operator to uncontrolled stored energy.

Specify the complete H22 interface

Fractured-rock performance depends on the system: drill output, H22 steel, taper connection, bit profile, flushing and operator procedure. PerfoMax can review the supplied drill model, rod and taper details, target diameter and ground description, then match the inquiry to an active H22 bit route without assuming interchangeability. Review H22 taper button bits or submit the application for a compatibility review and quotation.

Technical basis: Operating principles in this guide are consistent with OEM documentation for handheld pneumatic surface rock drills, including Atlas Copco guidance on built-in flushing for hole cleaning and jam avoidance and its H22 × 108 mm RH 658 L interface information. Always follow the current manual supplied for the exact drill and local site rules.
