If an H22 tapered drill bit repeatedly loosens, stop drilling and diagnose the connection before another bit is lost in the hole. The most common fault zones are a mismatched taper system, incomplete seating, dirt or moisture between the mating surfaces, worn or damaged contact areas, and operating conditions that rock or unload the joint. The correct remedy depends on which fault is present; driving the bit harder onto an unknown or damaged taper can make removal difficult without restoring a reliable fit.
This guide covers the small-hole tapered rod-and-bit connection used with handheld or air-leg rock drills. It does not apply to threaded top-hammer tools, integral drill steel, DTH bits, or machine-tool Morse tapers. Use the exact rod, bit and rock-drill documentation as the authority for taper designation, installation method and service limits.
What a loose tapered drill bit is telling you
A tapered bit is not retained by threads. Its socket seats on the male taper at the end of the drill rod, creating a friction fit over the intended contact area. The connection must transmit repeated percussion and rotation while the bit is loaded against the rock. If contact is incomplete or unstable, the bit may spin on the taper, move axially, produce metallic fretting marks, lose drilling efficiency or separate when the rod is withdrawn.
“Loose” can describe several different observations. Identify the symptom before changing parts:
| Observation | Likely fault zone to check first | Why the distinction matters |
|---|---|---|
| Bit can be removed by hand before drilling | Wrong taper, incomplete installation, contamination or obvious damage | The joint may never have developed the intended contact. |
| Bit seats initially but loosens after collaring | Contact pattern, alignment, feed and surface condition | Side loading or poor contact may disturb the joint during the least stable part of the hole. |
| Bit rotates or rattles on the rod | Stop immediately; inspect both mating surfaces | Continued movement can polish, score or deform the connection and complicate diagnosis. |
| One bit is loose on several rods | Bit socket or wrong bit specification | A repeated result with known-good rods points toward the bit. |
| Several bits are loose on one rod | Rod taper condition or wrong rod specification | A repeated result with known-good bits points toward the rod. |
| Bit is secure but penetration is poor | Bit wear, flushing, air supply, rock condition and operating setup | Low penetration alone does not prove that the taper is loose. |
Before inspection: isolate the drill and protect the hole
Stop percussion and rotation, shut off and isolate the air or other energy source, release stored pressure, and secure the rock drill before touching the drill steel. Follow the equipment manufacturer’s lockout, removal and personal-protective-equipment instructions. A loose bit can detach unexpectedly, and a tool left in an unstable hole can move when load is removed.
If the bit has already separated in the hole, do not continue drilling blindly. Record the hole depth, orientation and ground condition, then use the site’s approved recovery method. This article focuses on preventing repeated loosening, not on improvised fishing operations.
1. Verify that the rod and bit belong to the same taper system
H22 describes the hexagonal drill-steel body size; it does not by itself prove that every H22 rod and every tapered bit will mate correctly. Tapered rock-drilling tools are supplied in different taper-angle systems, and the bit socket must match the rod taper. Bit diameter, bit style and the rock drill’s shank requirements are separate checks.
Use purchase records, product drawings, legible markings where provided, or supplier confirmation to identify both components. Do not infer the taper angle from appearance alone. A mismatch may touch at only a narrow band instead of across the intended surface. That limited contact can feel tight at first yet slip, rock or release under percussion.
For a fuller pre-purchase check, see the published 7°, 11° and 12° H22 taper compatibility guide. If the shank, rod and bit specification is still uncertain, use the H22 × 108 mm drill-steel compatibility guide before combining parts.
2. Clean and dry both mating surfaces
Rock dust, grit, corrosion residue, oil and water can prevent full seating or change the friction at the interface. A small hard particle can hold the bit off the taper and concentrate contact in one area. Abrasive fines trapped in the joint can also create scoring as the bit moves under impact.
With the equipment isolated, remove loose debris using the cleaning method approved for the site and tool supplier. Wipe the male taper with a clean lint-free cloth. Inspect and clean the female socket without damaging its surface. Ensure both surfaces are dry before reassembly unless the tool manufacturer explicitly specifies another preparation.
Do not automatically grease or oil the taper because other parts of the rock drill require lubrication. Rock-drill lubrication and taper-interface preparation are different questions. Adding lubricant to a friction-fit joint can change its holding behavior and can hide contamination. Follow the rod-and-bit manufacturer’s instructions.
3. Install the bit by the approved seating method
A bit pushed onto the rod only by hand may not be fully seated. Conversely, uncontrolled heavy blows can damage hardened surfaces, mushroom the steel or make a mismatched connection appear temporarily secure. The installation method must come from the tool supplier or site procedure for that specific system.
Check that the bit enters straight and does not rock during initial placement. Use only the approved seating tool and procedure. Do not strike hardened steel directly with an unsuitable steel hammer, and do not start percussion while holding or touching the bit. After installation, verify retention in the manner specified by the manufacturer before positioning the drill at the face.
If the same trained operator uses the same approved method but one component combination repeatedly fails, treat that pattern as diagnostic evidence. Do not keep increasing installation force.

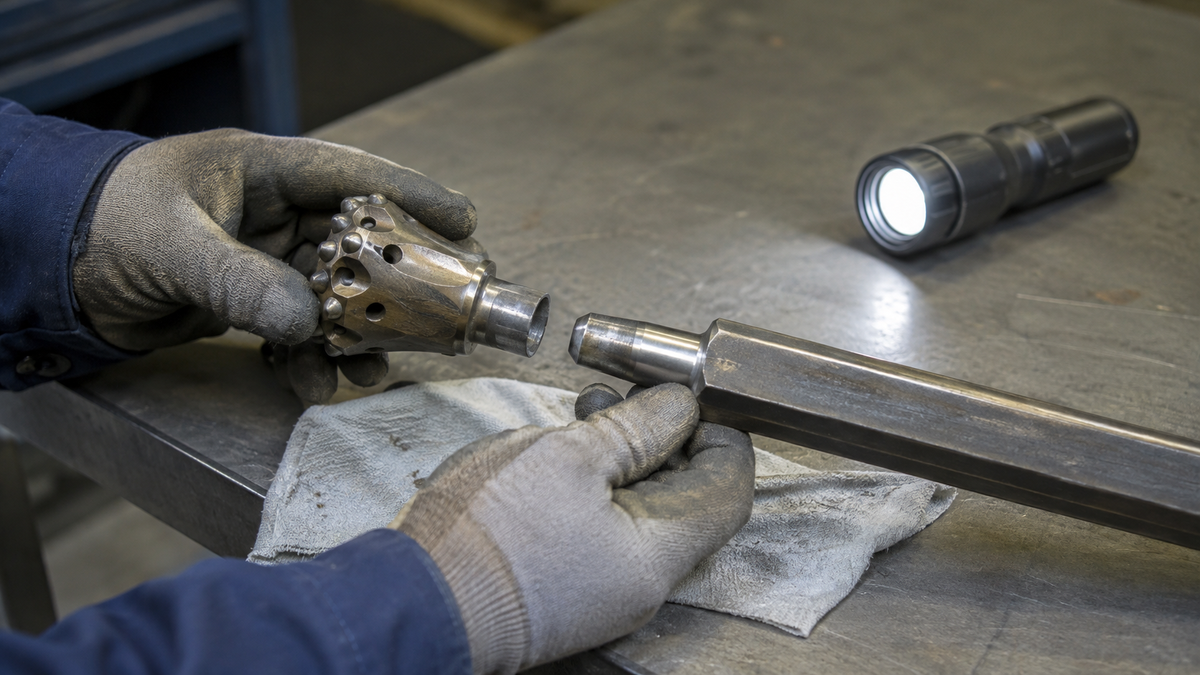

4. Inspect the contact pattern and surface condition
Clean surfaces should be examined under good light. Compare the male taper and female socket for uneven polishing, circumferential movement marks, scoring, burrs, pitting, corrosion, local deformation or a distinct contact band at only one end. These signs do not provide a universal numeric wear limit, but they reveal where the joint has actually been touching.
A shiny surface is not automatically acceptable. Polishing caused by repeated slipping can reduce the stable grip and may accompany loss of the original geometry. Likewise, a new-looking component can still be the wrong taper. The useful question is whether a verified matched pair seats consistently and shows even, stable contact according to the supplier’s inspection criteria.
Do not grind, file, weld, heat or reshape a hardened taper in the field unless an approved repair specification expressly permits it. Removing material by eye can change the angle and contact length. When damage is visible or fit remains unstable, quarantine the suspect component and replace it with a known-correct part for the comparison test.
5. Use a controlled substitution test
The fastest way to separate a bit fault from a rod fault is a controlled test with traceable, known-good components. Change only one variable at a time:
- Establish a reference pair. Select a documented matching rod and bit in serviceable condition.
- Repeat the approved cleaning and seating procedure. Do not compare a clean pair with a contaminated pair.
- Test the suspect bit on a known-good matching rod. If loosening follows the bit, inspect or quarantine the bit.
- Test a known-good matching bit on the suspect rod. If loosening follows the rod, inspect or quarantine the rod.
- Record the result. Note part identification, operator, hole condition and where movement first appeared.
Never perform a substitution test with an unverified taper angle. Also avoid mixing many used parts until something “feels tight”; that hides the fault and can damage the reference components.
6. Check operating conditions that can disturb a sound connection
If a verified, clean and correctly seated pair loosens only during drilling, examine how the load reaches the joint. The following conditions can create rocking, intermittent unloading or abnormal side force:
- Unstable collaring. Starting at full force on an uneven or inclined face can let the bit skate and load the rod sideways.
- Poor alignment. A rock drill, rod and hole axis that are not aligned can bend the drill steel and rock the taper connection.
- Incorrect feed. Too little feed can allow bouncing and blank impacts; excessive feed can stall rotation or bend the rod. Use the rock-drill manual and observed drilling response.
- Worn chuck or shank interface. Excessive movement at the rock-drill end can be transmitted through the rod and should not be mistaken for a bit-only fault.
- Inadequate flushing. Regrinding cuttings, blocked flushing passages or packed material can raise torque and disturb drilling. Confirm that the flushing path is clear and operated within the equipment specification.
- Forced withdrawal. Pulling a loaded or misaligned rod from a binding hole can place abnormal extraction force on the bit connection.
- Worn cutting structure. A severely worn or damaged bit can require abnormal force and create vibration. Evaluate the bit face as well as the socket.
Diagnostic sequence for a bit that keeps coming loose
- Stop and isolate the rock drill at the first sign of movement.
- Record which bit, rod, drill and hole produced the symptom.
- Confirm the rod and bit taper designations from reliable documentation.
- Clean and dry both mating surfaces using the approved method.
- Inspect for uneven contact, polishing, scoring, burrs, corrosion and deformation.
- Seat the bit using the documented procedure and correct tools.
- Check retention before restarting.
- Collar carefully and observe alignment, feed, rotation and flushing.
- If it loosens again, stop before the surfaces are further damaged.
- Run one-variable substitution tests with known-good matching parts.
- Quarantine the component that the fault follows.
- If no component-specific pattern appears, inspect the rock drill chuck, operating setup and hole conditions with qualified personnel.
Common mistakes that make diagnosis harder
- Assuming every H22 bit fits every H22 rod. The hex designation does not replace taper-angle verification.
- Using impact force to overcome a mismatch. A wrong or damaged connection does not become correct because it is driven on harder.
- Lubricating the taper by habit. Follow the interface instructions instead of extending rock-drill lubrication practices to the bit joint.
- Continuing after the bit starts spinning. Movement can erase useful contact evidence and accelerate damage.
- Changing the bit, rod, pressure and operator technique together. The symptom may disappear without identifying the cause.
- Reworking a hardened taper by eye. Filing or grinding can create a new geometry and a new failure mode.
- Ordering from diameter alone. Hole diameter, bit style, H22 body, taper angle and mating component all need confirmation.
What to record before ordering replacement H22 bits
A technically useful inquiry should allow the supplier to verify the complete interface rather than guess from a photo. Include:
- rock-drill model and required shank size;
- rod body designation, shank dimensions, total length and taper designation;
- bit type, nominal diameter, taper designation and flushing arrangement;
- clear photos of the rod taper, bit socket, bit face and any markings;
- whether the fault follows one bit, one rod or several combinations;
- rock type and whether the loosening occurs during collaring, steady drilling or withdrawal;
- air, feed and flushing setup referenced to the rock-drill manual;
- condition of the drill chuck and rod shank;
- quantity, destination country or port, and whether a matched rod-and-bit sample is required.
PerfoMax currently lists H22 taper button bits in the 30–40 mm range and an active H22 × 108 mm tapered drill rod with an 11° connection option. These links confirm available commercial routes, not automatic compatibility with an existing drill string. Send the exact interface data before ordering.
Frequently asked questions
Why does an H22 tapered drill bit fit at first and then come loose?
The bit may have incomplete or uneven contact even though it initially feels tight. A taper mismatch, contamination, polished or scored surfaces, unstable collaring, poor alignment or repeated unloading can then make the joint move under percussion. Stop and inspect before the movement damages both parts.
Does H22 mean the taper angle is 11°?
No. H22 identifies the hexagonal drill-steel body dimension, while taper angle is a separate connection specification. Verify both the rod and bit designation; do not infer the taper solely from H22.
Should I grease the rod taper so the bit is easier to remove?
Do not apply grease or oil unless the rod-and-bit manufacturer explicitly instructs it for that interface. A taper joint relies on controlled contact and friction. Lubricant can change holding behavior and trap abrasive contamination.
Can I keep drilling if the bit only moves slightly?
No. Stop and isolate the drill. Continued movement can polish or score the contact surfaces, reduce energy transfer and increase the chance of losing the bit in the hole.
How can I tell whether the bit or rod is worn?
Inspect both components, then use known-good matching parts in a one-variable substitution test. If the symptom follows one bit across serviceable rods, the bit is suspect; if several serviceable bits loosen on one rod, the rod is suspect. Use supplier wear criteria where available.
Confirm the complete H22 connection before replacing parts
A loose tapered bit is a connection-system problem until testing proves otherwise. Verify the taper designation, clean and inspect both surfaces, use the approved seating method, and test with one known-good component at a time. If a replacement is needed, provide the rock-drill, rod, taper, bit, hole and operating information through the Request a Quote page so PerfoMax can review the match before quotation.
Bottom line: do not solve repeated H22 bit loosening with more impact or guesswork. Preserve the evidence, isolate the variable and replace only the component or setup that fails the controlled check.
