DTH Retrac Bit vs Standard Bit: Skirt Design, Back Reaming, and Selection

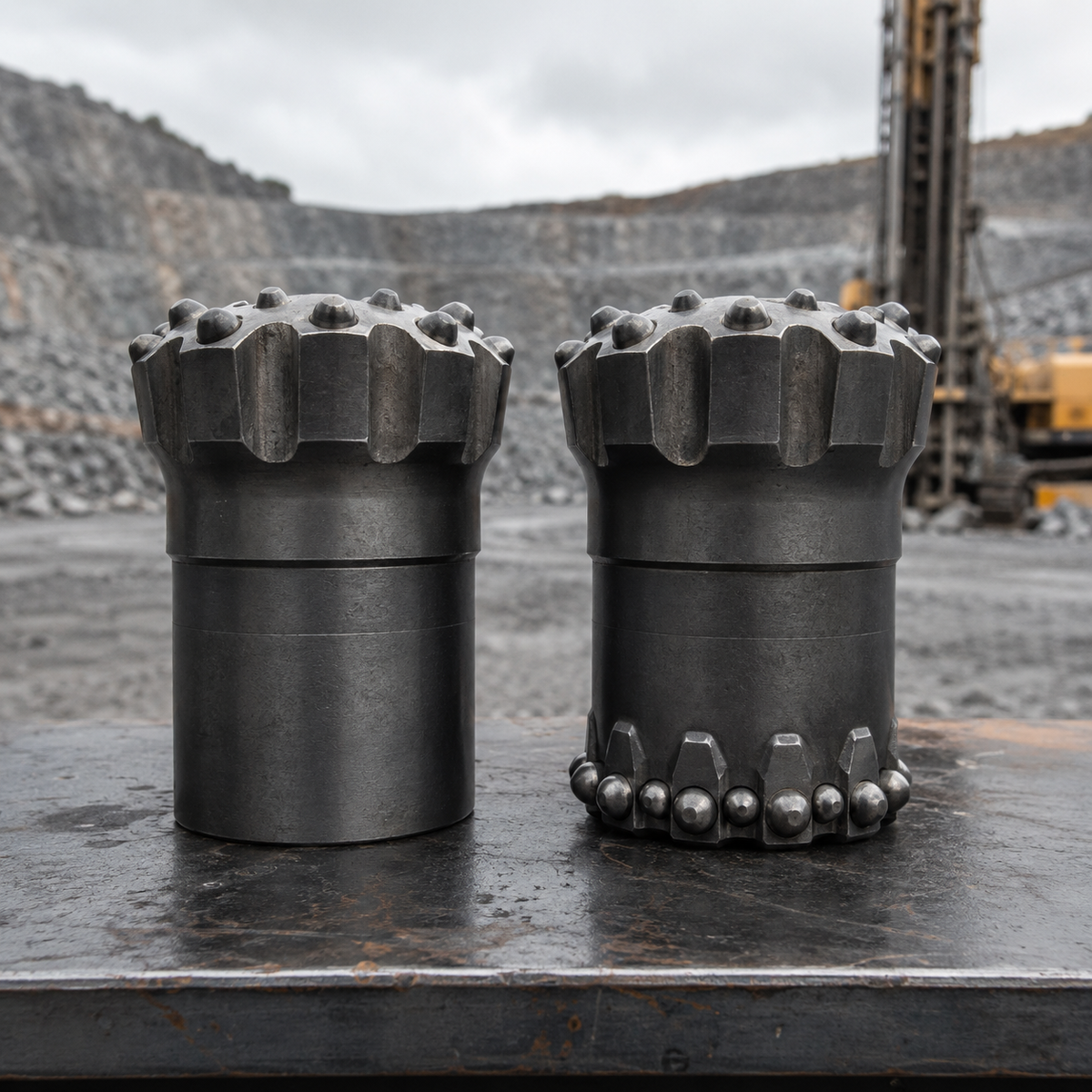

Standard and retrac-style DTH drill bits compared on a quarry inspection bench

Direct answer: choose a conventional DTH bit when the hole stays open and the drill string withdraws normally. Consider a retrac-style skirt or optional rear-facing back-reaming buttons when broken, soft or collapsing material repeatedly catches the bit during controlled pullback. The feature is a retrieval aid, not a universal upgrade: it does not replace correct shank matching, face selection, flushing, gauge control or a safe stuck-tool procedure.

Terminology varies between suppliers. Some use retrac bit for a stepped or relieved skirt; others describe back-reaming buttons as an option added behind the gauge row. Do not approve a bit from the name alone. Compare the supplier drawing with the exact hammer, retention system, finished-hole requirement and the minimum clearance in the drilling assembly.

Standard skirt and rear-facing back-reaming button features on DTH bits
A standard skirt and a back-reaming configuration solve different pullback problems; the final geometry must be confirmed on the controlled drawing.

What “Standard,” “Retrac” and “Back Reaming” Mean

The cutting face is the end of the bit that carries face and gauge buttons. The skirt is the steel body immediately behind that cutting zone. In a conventional design, the skirt is relatively simple and has no rear-facing carbide cutters. A retrac-style design changes the skirt profile to create more withdrawal clearance, and some configurations add carbide buttons oriented to act on obstructions as the bit is withdrawn.

That distinction is separate from three other decisions:

  • Face design: flat, concave, convex or another supplier-specific face controls how the leading face engages rock and manages cuttings.
  • Button shape: spherical, ballistic and other profiles change the contact and wear behavior at the cutting face.
  • Shank interface: drive splines, striking shoulder, retaining features, foot-valve or tubeless architecture and critical lengths determine whether the bit fits the hammer.

A bit can therefore have a concave face, spherical buttons, a specific hammer shank and an optional back-reaming feature at the same time. Calling the entire design simply “retrac” can hide these independent choices.

Selection point Conventional DTH bit Retrac-style or back-reaming option
Primary buyer job Drill a stable hole with a simple, verified bit body Reduce pullback obstruction risk in difficult ground
Skirt behind gauge Usually smooth, without rear-facing cutters May be relieved, stepped or fitted with rear-facing buttons
Best evidence Normal withdrawal and repeatable hole condition Documented catching, bridging or burial during withdrawal
Main limitation Can catch where the wall breaks in behind the bit Adds geometry and wear points that must be checked
Compatibility basis Exact hammer and shank drawing, retention arrangement, diameter, clearances and ordered configuration

When a Back-Reaming DTH Bit Is Directionally Appropriate

The strongest reason to specify rear buttons is a repeated retrieval problem, not a general belief that more carbide is better. Drill King lists back-reaming buttons as a DTH bit enhancement intended to help prevent burying, particularly in softer formations. In the field, the relevant conditions may include:

  • fractured or blocky rock that sheds pieces after the face passes;
  • soft seams or weathered bands that squeeze, smear or fall into the annulus;
  • short blast holes where the string is withdrawn frequently;
  • collar damage or an irregular upper interval that catches the gauge area on exit;
  • cuttings fallback after an air interruption or incomplete hole cleaning;
  • a documented need to condition a local obstruction during an approved withdrawal procedure.

The presence of fractured ground does not automatically select the option. If the real cause is insufficient cuttings return, a worn under-gauge bit, a bent pipe, poor collar alignment or an incorrect operating sequence, changing the skirt may only mask the fault. Review the complete hole and tool history first. For the operating boundary in broken ground, use the published DTH drilling in fractured rock guide.

DTH bit withdrawing through fractured rock during a controlled pullback
Rear-facing buttons may help condition a local ledge during withdrawal, but pullback settings and permitted actions come from the exact rig and hammer procedures.

When the Standard Bit Is the Better Choice

A conventional bit remains the logical baseline when holes are stable, return is reliable and the bit comes out without abnormal resistance. It has a simpler body, fewer rear carbide elements to inspect and a more straightforward quotation. Adding a retrieval feature without a defined problem can increase cost and create a false sense that the bit will solve every unstable-hole condition.

Prefer the standard configuration when:

  • competent rock stays open after the bit passes;
  • the current bit withdraws smoothly across representative holes;
  • hole cleaning is reliable and no recurring fallback is recorded;
  • the supplier does not offer a controlled, compatible rear-button drawing for the required shank;
  • casing or a different overburden method is needed because the hole cannot support itself;
  • the proposed feature would reduce clearance elsewhere in the assembly.

A back-reaming bit is not a casing system and cannot stabilize a continuously collapsing interval. If the wall repeatedly closes around the hammer or pipe, the method needs engineering review rather than a more aggressive withdrawal tool.

A Six-Step DTH Retrac Bit Selection Workflow

  1. Identify the hammer exactly. Record manufacturer, model, nominal class and serial or drawing reference. Photograph the existing bit shank and retaining arrangement if identification is uncertain.
  2. Lock the shank interface before discussing the skirt. Confirm drive splines, striking shoulder, retaining features, foot valve or tubeless configuration, and every controlled length and diameter required by the hammer supplier.
  3. Define the finished-hole requirement. State target diameter, tolerance, hole depth, inclination, straightness requirement and any casing or tool that must pass through the hole. Nominal inch class is not enough.
  4. Describe the actual pullback failure. Record the depth, formation, return condition, point of resistance, whether the bit or hammer was buried, and what the approved recovery procedure revealed.
  5. Review the complete proposed envelope. Compare leading gauge diameter, skirt outside diameter, rear-button sweep, hammer wear-sleeve diameter, retaining system and any casing restriction.
  6. Run a controlled trial. Keep the rig, hammer, operator procedure and representative ground as consistent as practical. Compare drilling time, withdrawal time, abnormal resistance, tool wear, downtime and hole acceptance—not penetration rate alone.

The PerfoMax DTH drill bit selection page is the correct commercial route for this review. Its current ordering logic starts with the exact hammer-shank drawing and requires diameter, rock fracture condition, face, buttons and flushing to be approved together.

Compatibility Checks That Must Appear on the Drawing

Drawing or RFQ item Why it matters Common purchasing error
Hammer make, model and bit-shank designation Controls the driving and striking interface Buying by hammer “inch class” only
Foot-valve or tubeless architecture Changes the internal bit and hammer interface Assuming the same shank name guarantees the same internal arrangement
Gauge diameter and tolerance Controls the leading cut and finished-hole basis Treating catalog diameter as the accepted hole diameter
Skirt outside diameter and profile Controls withdrawal clearance and body guidance Accepting the word “retrac” without dimensions
Rear-button quantity, orientation and sweep Defines what can contact an obstruction on pullback Counting buttons without checking their cutting envelope
Hammer wear-sleeve and chuck envelope Confirms the bit does not create an incompatible step or restriction Reviewing the bit in isolation
Face, button and flushing arrangement Controls leading-face engagement and cuttings removal Letting the skirt decision override the actual rock and air system
Controlled drawing revision Connects quotation, inspection and delivered lot Approving from a generic photo

For the shank interface, read the DTH bit shank compatibility guide. For the independent face decision, see the DTH bit face design guide. Gauge and clearance are covered in DTH bit diameter versus finished-hole diameter.

Common Mistakes That Increase Tool-Loss Risk

  • Treating “retrac” as a face profile. Face, skirt and shank must be specified separately.
  • Ordering by diameter and photo. Two visually similar bits can have incompatible shoulders, splines, retention features or internal architecture.
  • Using rear buttons to compensate for poor hole cleaning. Packed cuttings must be diagnosed through air delivery, annular space, flushing condition and operating procedure.
  • Assuming rear buttons make withdrawal unlimited or safe. Rotation, percussion, pullback force and allowed reaming actions are equipment- and site-specific.
  • Ignoring the rest of the assembly envelope. A feature that clears the borehole can still conflict with a casing shoe, chuck, wear sleeve or reduced section.
  • Continuing after abnormal resistance. Escalating force without a recovery plan can damage the bit, hammer, pipe, rig or hole.
  • Comparing only purchase price. Evaluate accepted holes, stuck-tool events, retrieval time, wear and downtime over a representative trial.

Inspection and Wear Points for Rear-Button Designs

Inspect a clean, depressurized bit in a controlled service position. Use the supplier’s rejection limits; do not invent a field wear limit from a photograph. Check:

  • rear buttons for loss, cracks, flats, asymmetric wear or movement;
  • the steel pockets around the rear buttons for wash, cracking or impact damage;
  • skirt scoring, taper wear and local deformation;
  • gauge buttons and measured bit diameter;
  • splines, striking shoulder and retaining surfaces;
  • flushing holes and channels for obstruction or erosion;
  • the hammer chuck, wear sleeve and retention components for matching wear;
  • whether the delivered geometry still matches the approved drawing and lot record.

Do not weld the skirt, replace carbide informally or build up a worn surface without a manufacturer-approved repair process. Percussive tools store and transfer high cyclic energy; an uncontrolled repair can create a fracture hazard.

DTH bit gauge, skirt and shank measurements prepared for supplier matching
Measure the complete interface and skirt envelope; a generic catalog image cannot approve compatibility.

What to Send in a DTH Retrac Bit RFQ

  • rig and DTH hammer manufacturer, exact model and operating manual reference;
  • current bit manufacturer, part number, shank designation and clear photos;
  • controlled shank drawing or a complete dimensional inspection when the drawing is unavailable;
  • foot-valve or tubeless configuration and retention arrangement;
  • target finished-hole diameter, tolerance, depth, angle and straightness requirement;
  • rock description, fracture or weathering condition and the interval where pullback becomes difficult;
  • compressor and working air basis, pipe outside diameter and flushing arrangement;
  • description of stuck, buried or obstructed pullback events and the verified root cause;
  • requested standard, relieved-skirt or rear-button configuration;
  • skirt OD, rear-button sweep and assembly-clearance requirements;
  • inspection, drawing revision, marking, packaging and trial-quantity requirements.

The quotation and attached controlled drawing should define the ordered configuration. Website images are orientation aids, not acceptance criteria. The broader DTH drill bit RFQ checklist helps procurement teams capture the complete bit rather than only the skirt option.

Frequently Asked Questions

Is a DTH retrac bit the same as a concave or drop-center bit?

No. Concave and drop-center describe the leading face geometry. Retrac usually refers to the skirt or withdrawal-clearance concept, and back-reaming buttons are rear-facing cutters. A supplier can combine these features, so each must appear separately on the drawing.

Will a retrac-style bit fit any hammer of the same diameter?

No. Hole diameter does not identify the shank. The bit must match the exact hammer interface, including splines, shoulder, retention and foot-valve or tubeless design. Confirm the controlled drawing before substitution.

Do back-reaming buttons drill the hole while pulling out?

They can act on a local obstruction during an approved withdrawal procedure, but they are not permission to apply arbitrary rotation, percussion or pullback force. Follow the exact rig, hammer and site procedure; stop when resistance is abnormal.

Can a standard DTH bit be converted by adding rear buttons?

Do not convert a finished percussive bit informally. Button pockets, steel sections, heat treatment and carbide retention are engineered together. Purchase a supplier-controlled configuration whose drawing and material process cover the rear-button feature.

How should a quarry compare standard and back-reaming bits?

Run a documented trial in representative ground with the same verified hammer and controlled operating procedure. Record accepted-hole quality, drilling and withdrawal time, pullback resistance, stuck-tool events, wear, fuel or air conditions and total downtime. A selection is justified by the operating problem it solves, not by one short penetration-rate reading.
