A DTH bit’s nominal diameter is the starting dimension, not a guarantee of the finished hole at total depth. Select the bit from the project’s usable-hole requirement, then verify the compatible hammer and shank, the permitted bit-diameter range, gauge wear, rock behavior, flushing, deviation, and any casing or installation clearance. A bit that is correct on the purchase order can still produce an unacceptable hole if those conditions are not controlled.
This guide is for mines, quarries, drilling contractors, distributors, and procurement teams that must translate a required blast hole, borehole, anchor hole, or casing program into a DTH bit specification. It does not give a universal oversize allowance: the designer, casing supplier, drilling contractor, and equipment manufacturers must define the actual tolerance for the project.
DTH bit diameter vs finished hole diameter: three dimensions to keep separate
| Dimension | What it means | How it is verified | Why it can differ |
|---|---|---|---|
| Nominal bit diameter | The ordered or catalog diameter of a new DTH bit | Supplier drawing, part number, and incoming measurement | Manufacturing tolerance and configuration must match the order |

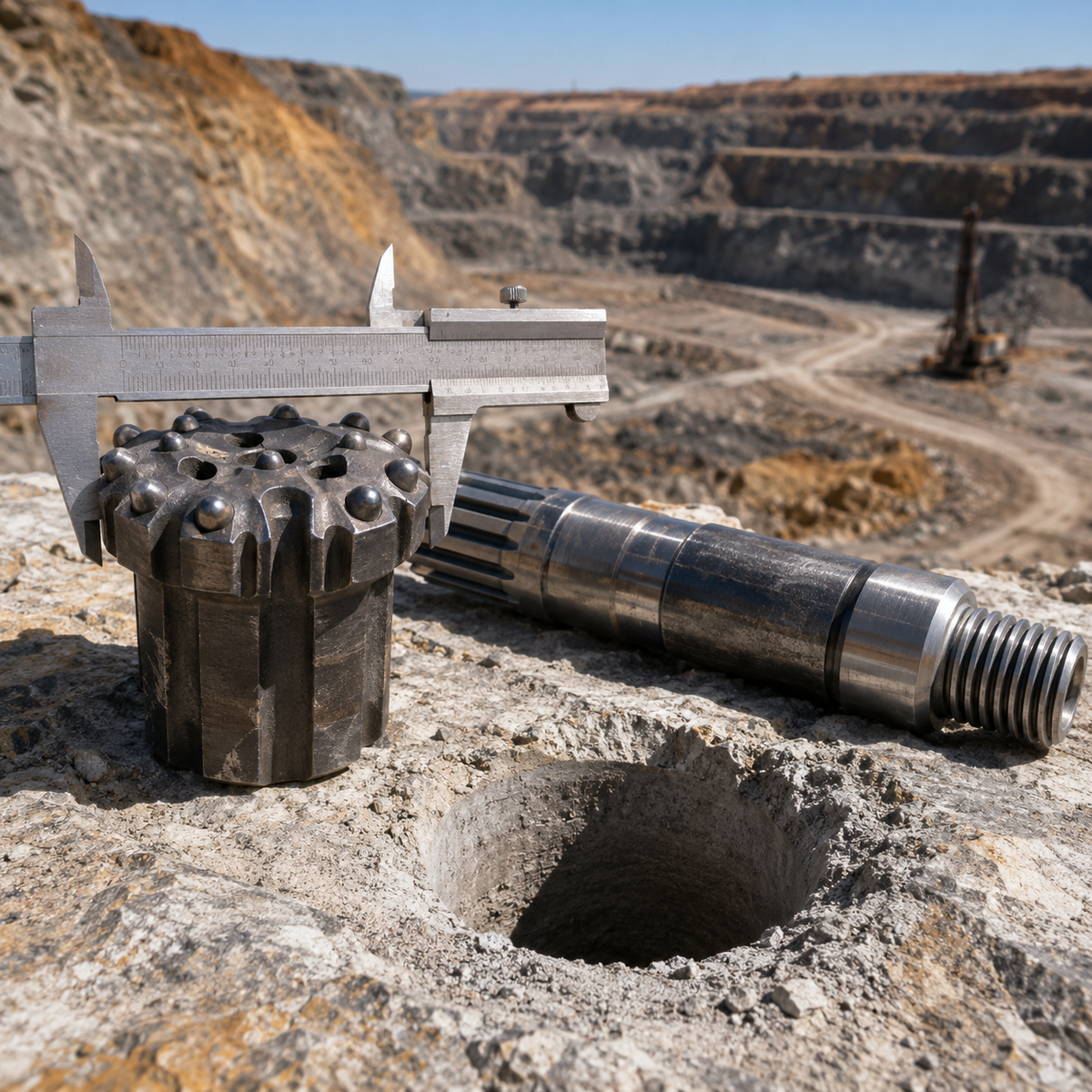

| Measured bit gauge | The actual maximum cutting diameter across the outer gauge row | Approved caliper, ring gauge, or site measuring method | Gauge-button and body wear reduce it during service |
| Finished-hole diameter | The usable bore diameter at the location and depth specified by the project | Project-approved downhole or installation verification method | Rock breakage, collapse, deviation, flushing, reaming, and wear affect the result |
The key decision is therefore not “Which bit equals the target number?” It is “Which compatible bit and operating plan can maintain the required usable hole within the project’s tolerance?”
Start with the acceptance requirement, not the available bit
Write down what must pass through, fit inside, or be achieved by the hole. A blast-hole specification may prioritize charge design and pattern control. A water-well or foundation hole may need to accept casing, screen, grout, or another installed component. An anchor hole may have a minimum annulus for grout. The controlling dimension can be very different even when the nominal hole numbers appear similar.
Questions that define the real target
- Is the requirement a nominal design diameter, a minimum usable diameter, or an allowed diameter range?
- At which depth or interval must it be achieved: collar, full depth, casing seat, or competent-rock socket?
- Must casing, screen, anchor, explosive cartridge, instrumentation, or another component pass through?
- Is straightness or deviation tolerance part of acceptance?
- How will the finished hole be measured or demonstrated?
- Who has authority to accept a reamed, cleaned, or redrilled hole?
If these answers are missing, increasing the bit diameter is guesswork. An oversized bit may increase air demand, torque demand, cuttings volume, cost, and deviation risk without solving collapse or casing-alignment problems.
Use a selection gate instead of a single diameter rule
| Selection gate | Evidence required | Do not proceed when |
|---|---|---|
| Project geometry | Required usable hole, tolerance, depth, angle, and installed-component dimensions | The target is only described as “about” a size |
| Hammer compatibility | Exact hammer model, bit shank, foot-valve/tubeless arrangement, and approved bit range | Only the hammer’s nominal inch class is known |
| Air and rig capacity | Compressor pressure/flow, rotary torque, pullback, pipe, and hole-cleaning capability | The larger bit is outside the rig or compressor envelope |
| Gauge retention | New-bit gauge, wear inspection method, and change/regrind criteria from the supplier | No one measures gauge during the job |
| Ground response | Rock strength, abrasiveness, fractures, cavities, swelling/collapse risk, and water | A diameter allowance is copied from a different site without validation |
| Field acceptance | Measurement method, frequency, records, and corrective-action authority | Only the collar is checked for a full-depth requirement |
When casing or another component must pass through the hole
Casing clearance is a system requirement, not simply “bit diameter minus casing outside diameter.” The project may need room for couplings, shoes, centralizers, gravel pack, grout, weld beads, connectors, eccentricity, and the effects of hole deviation. The controlling external dimension may be larger than the plain casing body.
Confirm the casing system drawing and identify its maximum running outside diameter. Then define the minimum acceptable hole at the depth where that component must pass. The casing or drilling-system supplier should provide the required annular clearance and any special reaming or overburden method. Do not invent a universal percentage.
Also check whether competent rock, fractured ground, or unconsolidated overburden controls the installation. A larger conventional DTH bit cannot stabilize a collapsing interval. Where simultaneous casing, ring-bit, eccentric, or other overburden systems are required, treat them as a separate engineered system.
Match bit diameter to the exact DTH hammer and shank
One hammer model can often accept more than one bit diameter, but the permitted range is model-specific. The bit must have the correct splined shank, strike face, retention arrangement, air passages, and foot-valve or tubeless configuration. A diameter that looks suitable does not make an incompatible shank usable.
OEM data illustrates why the model matters. Mincon publishes distinct minimum and maximum bit sizes for its 3-inch, 5-inch, and 6–7-inch DTH hammer ranges, together with supported shanks and foot-valve arrangements. Epiroc likewise lists a recommended hole-size range and shank style for its COP Gold series. These are manufacturer examples, not interchangeable selection tables.
Compatibility information to record
- Hammer manufacturer, exact model, serial-number range, and manual revision.
- Shank family and any manufacturer-specific suffix or generation.
- Foot-valve, tubeless, or other internal arrangement.
- Minimum and maximum approved bit diameter for that hammer variant.
- Bit retention parts and required assembly dimensions.
- Backhead thread, drill-pipe connection, and available annular space around the hammer.
For the shank identification step, use the published DTH Bit Shank Compatibility Guide. If hammer class is still undecided, review 4-Inch vs 5-Inch DTH Hammer Selection before fixing the bit diameter.
Check whether the rig and air system can support the selected diameter
A larger head breaks more rock and creates more cuttings. That changes the demand on air flow, flushing velocity, rotation, torque, feed, pullback, and pipe handling. The compressor must supply the hammer at the working pressure and flow after losses through hoses, couplings, lubricators, drill pipes, and the full hole depth.
Do not assume that a bit within the hammer’s mechanical diameter range will perform correctly with the compressor already on site. Ask the hammer supplier for air-consumption data at the intended pressure, then verify the rig and compressor configuration. Poor cuttings return can recut material, increase back pressure, accelerate wear, and make a hole unusable even when the bit is new.
Pipe outside diameter and internal bore also matter. The pipe needs suitable annular clearance for return air and cuttings, while its bore must support the hammer’s air demand. Use the DTH Drill Pipe Diameter Selection Guide as a separate system check.
Gauge wear changes the cutting diameter during the job
The outer gauge row establishes the maximum cutting envelope. Abrasive rock, high peripheral speed, recutting, poor flushing, uneven rotation, and contact with broken ground can wear gauge buttons and the bit body. As gauge reduces, the later part of a hole can become tighter than the collar drilled by a new bit.
Do not use a generic Internet wear limit. The bit supplier should specify how to measure gauge and when to regrind, rotate out, rebuild if supported, or retire the bit. Record the new-bit baseline from the actual delivery lot. Use the same calibrated measuring method at defined intervals and compare results with the project’s minimum usable-hole requirement.
A repeatable gauge-control routine
- Identify the bit by part number, shank, nominal diameter, and lot or serial marking where provided.
- Clean the gauge area using the approved safe method.
- Measure at the defined locations with a calibrated tool or ring gauge.
- Inspect for asymmetric wear, flat-spotted or broken buttons, body wash, cracks, and blocked flushing holes.
- Record drilled meters, rock interval, operating settings, and measured gauge.
- Apply the bit supplier’s regrind and retirement criteria plus the project’s minimum-hole requirement.
Why the finished hole can be larger or smaller than the bit
Rock does not always break exactly at the steel envelope. A fractured or weathered zone may overbreak and create a locally larger, irregular hole. Swelling, loose material, clay seams, unstable walls, or cuttings beds can reduce the usable opening after the bit passes. Hole deviation can prevent a long rigid component from running even when local diameter is adequate.
Flushing changes the result as well. Efficient return flow removes chips and keeps the bit working on fresh rock. Restricted air, poor annular velocity, water inflow, or blocked passages can leave material in the hole. Repeated redrilling or reaming may enlarge some intervals while failing to correct a dogleg or collapsing zone.
This is why the selection process must include ground conditions and the acceptance method. The bit diameter controls the cutting envelope; it does not control every geotechnical behavior after the bit moves on.
How to verify the first holes before committing the full lot
- Incoming check: confirm drawing, part number, shank, nominal diameter, gauge measurement, face design, button layout, and flushing arrangement.
- Controlled trial: drill representative ground with recorded compressor, hammer, pipe, operating settings, and bit identity.
- Gauge trend: measure the bit before and after the trial using the agreed method.
- Hole verification: measure or test the usable hole at the depth and geometry required by the project—not only at the collar.
- Installation trial: where appropriate and safe, confirm that the specified casing or component can be run without forcing or damaging it.
- Release decision: approve the specification, adjust the system, or investigate the ground and drilling method before ordering the production quantity.
Common selection mistakes
- Equating nominal bit size with guaranteed finished-hole size. Wear and ground response are ignored.
- Choosing from hammer inch class alone. Exact model, shank, variant, and approved diameter range are missing.
- Adding arbitrary oversize for casing. Couplings, shoes, deviation, and installation method are not considered.
- Increasing diameter without checking air and cuttings return. The hole-cleaning system becomes the constraint.
- Checking only a new bit. No gauge-retention plan exists for the full hole or campaign.
- Measuring only at the collar. The accepted interval at depth remains unverified.
- Copying a tolerance from another formation. Different abrasiveness, fractures, water, or collapse behavior changes the result.
DTH bit diameter RFQ checklist
| Information group | What to send |
|---|---|
| Required hole | Nominal and minimum usable diameter, tolerance, depth, inclination, straightness requirement, and acceptance method |
| Installed component | Casing or component drawing, maximum running OD, couplings/shoes, required annulus, and installation method |
| Ground | Rock type, strength data if available, abrasiveness, fractures, cavities, loose intervals, clay, and water |
| Hammer | Manufacturer, exact model, serial range, shank, foot-valve/tubeless arrangement, and approved bit range |
| Air and rig | Compressor pressure/flow, altitude, hose layout, rig torque/pullback, and pipe OD/ID/length |
| Bit | Nominal diameter, face, button shape/layout, flushing holes, new-bit gauge tolerance, and wear criteria |
| Quality control | Measurement tool, sampling frequency, trial-hole plan, traceability, and release authority |
Frequently asked questions
Is DTH bit diameter always equal to finished-hole diameter?
No. It defines the nominal cutting envelope of the bit. Actual usable hole diameter can change with manufacturing tolerance, gauge wear, rock breakage, collapse, flushing, deviation, and measurement location.
Can the same DTH hammer use several bit diameters?
Often yes, but only within the approved range for the exact hammer variant and compatible shank. Check the hammer manufacturer’s data; do not infer compatibility from nominal inch class alone.
Should a casing hole always use a bit slightly larger than the casing?
The hole generally needs project-defined clearance, but “slightly larger” is not a specification. Confirm the largest running OD, couplings and shoes, required annulus, deviation allowance, ground stability, and the casing-system supplier’s method.
How should gauge diameter be measured on a worn DTH bit?
Use the bit supplier’s approved measuring locations and tool. Measure the true outer gauge envelope after safe cleaning, record the result against the new-bit baseline, and inspect for uneven wear or damaged buttons.
When is changing to a larger bit the wrong solution?
It is the wrong first response when the real problem is incompatible shank, insufficient air, poor cuttings return, hole deviation, collapsing ground, an unsuitable casing method, or an unverified acceptance requirement.
Send the complete hole-and-system requirement
PerfoMax can review a DTH bit request when the buyer provides the required usable hole, hammer model and shank, compressor and drill-pipe data, rock conditions, casing or installed-component dimensions, and the planned gauge-control method. Review the active DTH drill bit selection range, then request a quote with the RFQ checklist above. Final compatibility should be confirmed against the actual hammer and project documents before production release.
