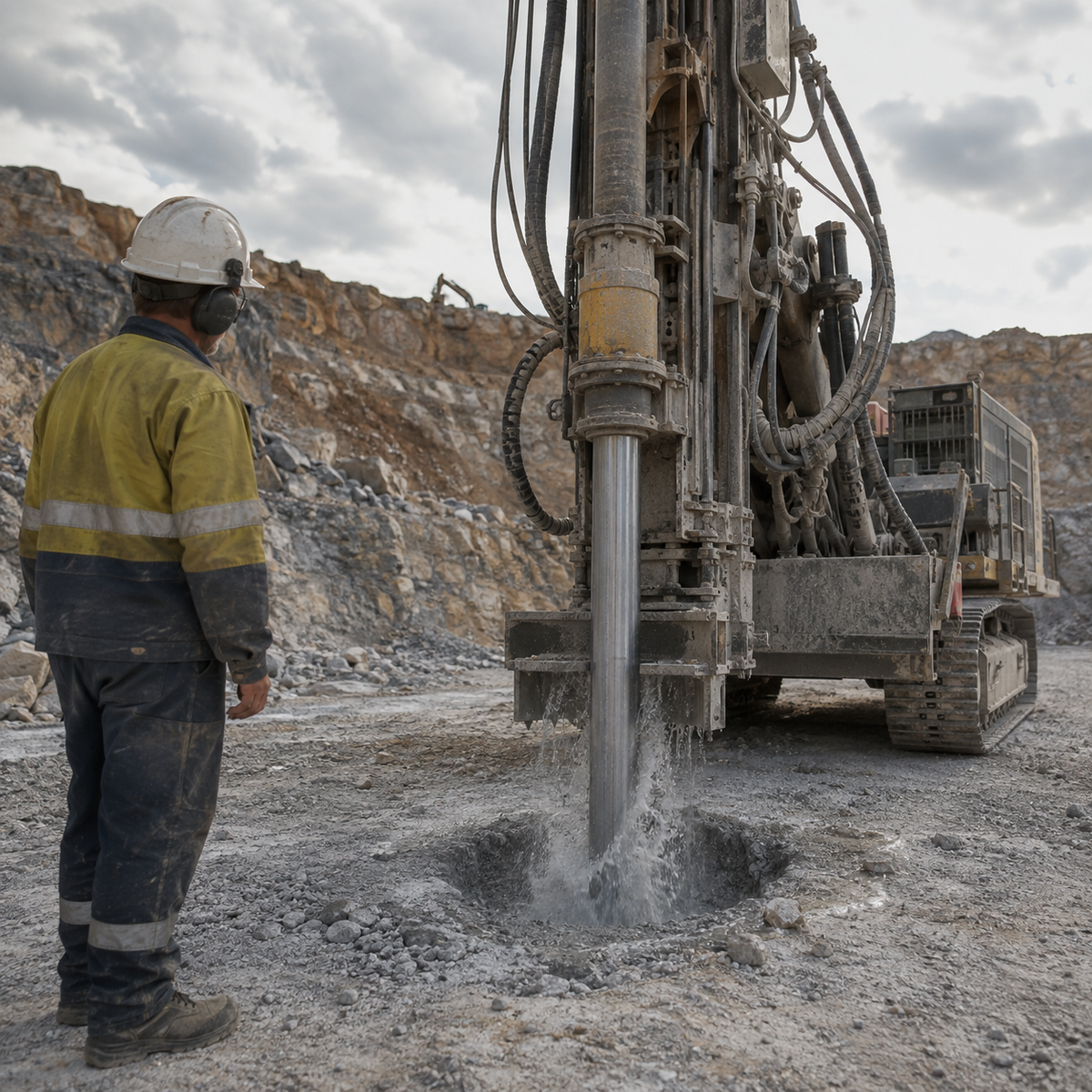

Direct answer: DTH annular velocity is the average upward speed of the return air in the ring-shaped space between the drill pipe and the borehole wall. It is also called uphole velocity, return velocity or bailing velocity. The value helps a drilling team screen whether the available airflow and the pipe-to-hole geometry can transport cuttings away from the bit.
It is not a stand-alone guarantee of hole cleaning. The calculation assumes a known flow through a known open area. Real holes can be enlarged, fractured, wet, inclined, irregular or partly blocked; compressor free-air delivery is not automatically the same as the air volume acting at every downhole section. Use the calculation to expose mismatches, then confirm the hammer manufacturer’s airflow requirements and observe actual returns.
What “Annulus” and “Annular Velocity” Mean in DTH Drilling
The annulus is the space outside the drill pipe but inside the borehole. In a centered, circular hole, its cross-sectional area equals the hole area minus the pipe area. Annular velocity is volumetric airflow divided by that open return area.
This distinction matters because airflow and velocity are not the same quantity:
- Airflow describes a volume rate, commonly expressed as CFM or m³/min.
- Annular area depends mainly on the actual hole diameter and the outside diameter of the component occupying the hole.
- Annular velocity describes how quickly that air volume moves through the remaining area, commonly expressed as ft/min or m/s.
With the same airflow, a larger open annulus produces a lower average velocity. With the same hole and pipe diameters, more effective return flow produces a higher calculated velocity. This is why “the compressor has enough CFM for the hammer” and “the hole can carry its cuttings” are related but separate checks.
DTH Annular Velocity Formula
For a simplified circular annulus, the metric calculation is:
V = 21,220.66 × Q ÷ (D² − d²)
- V = average annular velocity in m/s
- Q = effective return-air volume in m³/min
- D = actual borehole diameter in mm
- d = drill-pipe outside diameter in mm
For imperial inputs:
V = 183.35 × Q ÷ (D² − d²)
- V = average annular velocity in ft/min
- Q = effective return-air volume in CFM
- D = actual borehole diameter in inches
- d = drill-pipe outside diameter in inches
Both expressions come from the same geometry: velocity equals volumetric flow divided by annular cross-sectional area. Keep the units exactly as stated. Do not insert m³/min into the imperial equation or use pipe inside diameter in place of outside diameter.
Worked Example: 115 mm Hole, 76 mm Pipe
Assume a circular 115 mm borehole, a 76 mm drill-pipe OD and an effective return flow of 10 m³/min at the section being considered. The arithmetic is:
- Square the hole diameter: 115² = 13,225.
- Square the pipe OD: 76² = 5,776.
- Subtract to represent the annulus: 13,225 − 5,776 = 7,449.
- Calculate: 21,220.66 × 10 ÷ 7,449 ≈ 28.5 m/s.
This 28.5 m/s result is a hypothetical geometry calculation, not a recommendation. It does not prove that the hammer receives its required pressure and flow, that the hole remains 115 mm at depth, or that wet and dense cuttings will be lifted. It is useful because it makes the assumptions visible and allows alternatives to be compared on the same basis.
| Changed input | Calculated effect if other inputs stay constant | Practical caution |
|---|---|---|
| Larger actual hole diameter | Larger annular area and lower average velocity | Washout, cavities or gauge changes can make nominal bit diameter misleading |
| Larger pipe OD | Smaller annular area and higher average velocity | Clearance, coupling OD, hammer OD, handling and pressure loss must still be checked |
| Higher effective return flow | Higher average velocity | Do not exceed the hammer, rig or bit maker’s permitted operating envelope |
| Air lost into fractures | Less flow remains in the intended return path | Compressor output at surface may look normal while collar returns weaken |
Which Diameter Belongs in the Calculation?
Use the diameter that represents the return section being analyzed. A drilling string is not one uniform cylinder. The bit, hammer, drill pipe, couplings and wear sleeves may have different outside diameters, while the borehole can change with gauge wear, reaming, washout or formation failure.
For a quick procurement screen, the nominal bit diameter and drill-pipe OD are common starting inputs. For a field diagnosis, measure or estimate the actual hole and identify the most relevant outside diameter at each section. A coupling larger than the pipe body can create local restrictions; a hammer body may occupy more area near the bottom; an enlarged interval may create a low-velocity zone even when the nominal calculation looks acceptable.
The published PerfoMax guide DTH Drill Pipe Diameter Selection: Match Pipe OD to Hole Size, Hammer and Air Flow covers the broader mechanical and compatibility decision. Annular velocity is one calculation inside that decision, not a reason to choose the largest pipe that can physically enter the hole.
Why Compressor FAD Is Not Automatically the Formula Input
Compressor brochures commonly state free-air delivery (FAD) at defined reference conditions. That rating is valuable for comparing air packages, but the flow that returns through a borehole can differ because of:
- altitude and ambient temperature;
- compressor condition and control setting;
- pressure losses through hoses, swivels, drill pipes and connections;
- leaks at joints or surface plumbing;
- hammer operating pressure and its air-consumption curve;
- choke or bypass configuration approved for the hammer;
- air escaping into fractures, cavities or porous ground;
- water injection, foam or natural groundwater changing the return mixture.
If only nameplate FAD is available, label the result as a preliminary screen. For a troubleshooting calculation, use the best defensible effective flow at the section and operating condition of interest. Document how it was derived. A false-precision answer from an uncorrected catalog number is less useful than a range with transparent assumptions.
What the Simple Formula Does Not Predict
| Missing factor | Why it changes hole cleaning | Field evidence |
|---|---|---|
| Cuttings size, shape and density | Large, dense or plate-like fragments require different transport conditions from fine dry dust | Collect representative returns instead of describing all debris as “rock chips” |
| Water and sticky fines | The return becomes a multiphase mixture; mud rings or packed cuttings can form | Watch moisture, torque, return consistency and material adhering to the pipe |
| Hole inclination | Cuttings can settle on the low side and the drill string may be eccentric | Compare inclined and vertical holes under the same air package |
| Irregular or fractured hole wall | Local area and leakage change along the hole | Note sudden loss of returns, cavities, depth intervals and oversize sections |
| Cuttings generation rate | A fast penetration rate can produce material faster than the system removes it | Compare penetration with return mass and cleaning time |
| Transient operation | Rod changes, startup, shutdown and cleaning cycles are not steady-state flow | Record when settling or packing occurs, not only full-drilling conditions |
Some industry guides publish broad bailing-velocity bands. Treat those as starting references, not universal limits. The required value depends on the hammer, bit, hole, ground, medium and operating method. The hammer or rig manufacturer’s current manual and site evidence take precedence over a generic table.
How to Use Annular Velocity in a Field Check
- Identify the system. Record hammer model, bit shank, bit diameter, hammer OD, pipe OD/ID, coupling OD and pipe length.
- Confirm the air basis. Record compressor model, stated FAD, working pressure, altitude, shared demand and any booster or water-injection arrangement.
- Measure the geometry. Use actual pipe OD and the best available actual hole diameter, not a remembered catalog size.
- Calculate a range. Use low and high defensible return-flow estimates if exact downhole flow is unavailable.
- Observe returns. Note cuttings size, moisture, delay, pulsing, loss into fractures and whether the hole cleans before rod changes.
- Compare by depth. A surface test does not reveal leakage, pressure loss or enlargement in a deeper interval.
- Change one approved variable. If the OEM procedure allows an adjustment, record the before-and-after result rather than changing airflow, penetration and water simultaneously.
Common Annular-Velocity Mistakes
- Using pipe ID in the annular-area term. Return air flows outside the pipe, so pipe OD is the geometric input.
- Using nominal bit size as the actual hole everywhere. Wear, reaming and washout change the return area.
- Equating pressure with volume. Bar or psi alone cannot calculate annular velocity.
- Using compressor displacement instead of verified FAD. Ratings with different reference bases are not interchangeable.
- Ignoring couplings and hammer OD. Local geometry varies along the string.
- Treating a high calculated value as automatically better. Excessive local velocity can increase erosion, while a leak can leave a misleadingly strong surface number.
- Trying to solve compatibility with one equation. Thread, shank, feed, pipe strength, hammer airflow and rig handling remain separate gates.
Information to Confirm Before a DTH Pipe RFQ
For a pipe or drill-string inquiry, send enough information to calculate the annulus and verify compatibility:
- hammer brand/model and required bit shank;
- bit diameter and expected actual hole range;
- drill-pipe OD, ID, length, wall thickness and thread;
- coupling or upset outside diameter where applicable;
- compressor FAD, operating pressure and altitude;
- hole depth, inclination and whether drilling is dry, wet or foam-assisted;
- rock, fractures, water inflow and typical cuttings;
- current symptoms: weak returns, re-grinding, blocked ports, slow penetration or stuck string.
PerfoMax’s active 76 mm DTH drill pipe with API 2-3/8 REG connection provides a current commercial reference for buyers evaluating this pipe class. Confirm thread, length, wall, hammer connection and the full drill-string geometry before ordering; the 76 mm OD alone does not establish compatibility.
Frequently Asked Questions
Is annular velocity the same as compressor airflow?
No. Airflow is a volumetric rate. Annular velocity is that rate divided by the open return area between the pipe and hole.
Should I use bit diameter or measured hole diameter?
Use the diameter that best represents the section being analyzed. Bit diameter is useful for an initial screen; a field diagnosis should account for gauge wear, enlargement and irregular zones.
Can a larger drill pipe improve cuttings return?
A larger OD reduces annular area and raises the calculated velocity at the same flow, but it also changes clearance, weight, handling, coupling geometry and compatibility. It is not an automatic upgrade.
Why does the calculation look adequate while returns remain poor?
The assumed flow or geometry may be wrong, air may be escaping, cuttings may be wet or dense, or material may be settling in an inclined or enlarged section. Inspect the assumptions and the actual return behavior.
Does annular velocity tell me what compressor to buy?
It supplies one requirement. The compressor must also meet the hammer’s pressure and air-consumption curve under site conditions, with allowance for losses and the intended operating configuration.
Technical References
- Hardrock Drills: bailing-velocity definition, geometry and drilling effects
- The Driller: DTH pipe-to-hole geometry and cuttings evacuation
- Epiroc SmartROC D60: example of published DTH hole range and compressor FAD as whole-rig inputs
