API 2-3/8 REG vs IF Threads: DTH Drill Pipe Compatibility Guide

Short answer: API 2-3/8 REG and API 2-3/8 IF are different rotary-shouldered connection designs. The shared “2-3/8” nominal label does not make their pin and box threads interchangeable. A DTH drill pipe, saver sub or hammer top sub must match the complete connection designation, thread geometry, pin/box end, shoulder, bore and applicable gauge requirements. If the existing string is marked only “2-3/8,” stop and identify the connection before ordering or attempting make-up.

This distinction matters because a mismatched connection can appear close enough to start by hand yet fail to reach correct shoulder contact. Forcing it can damage two components at once and leave the site with an unusable pipe string. The safest purchasing rule is simple: never approve a replacement from nominal size alone.

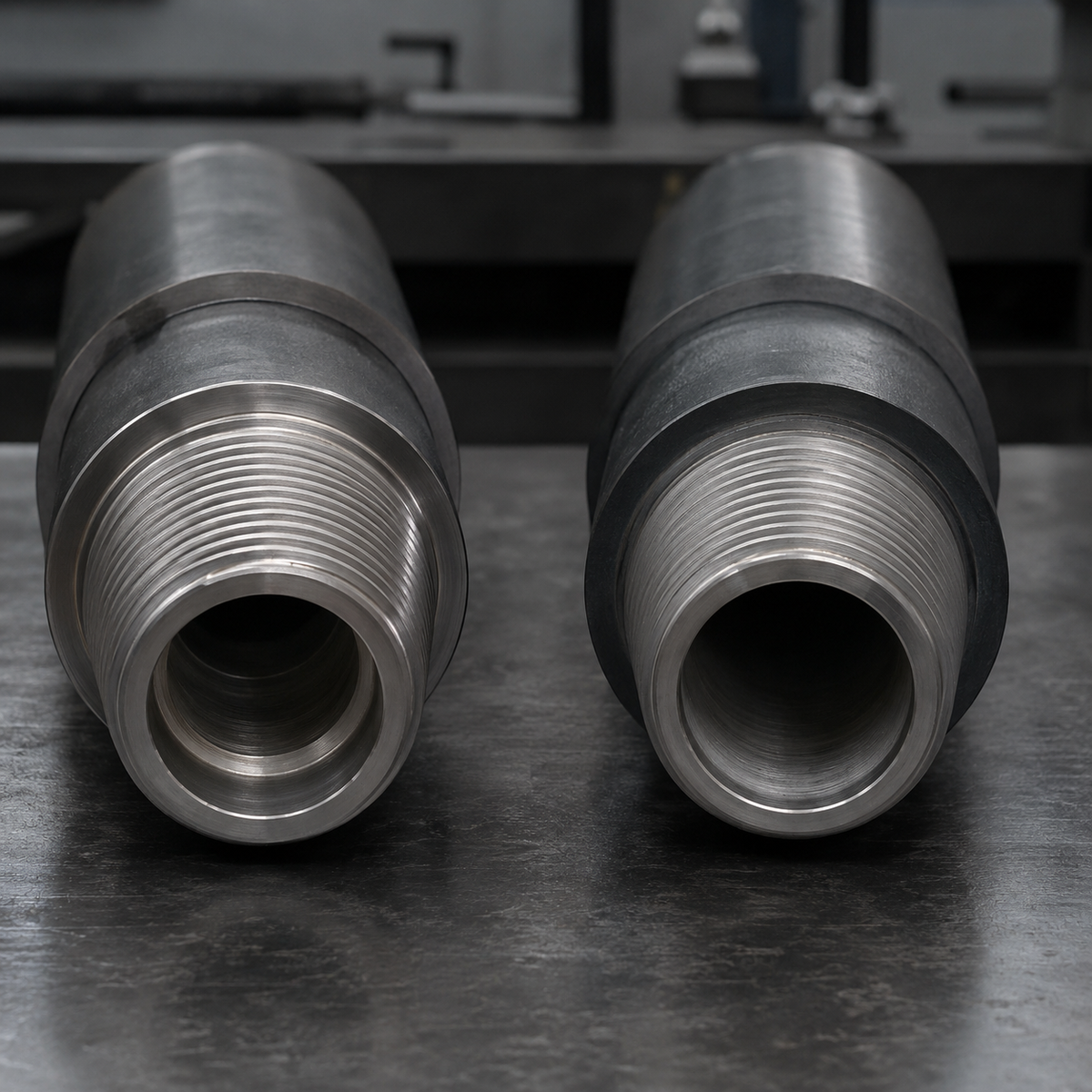

API 2-3/8 REG vs IF: the practical difference

These descriptions explain the selection logic; they are not a dimensional standard. API Specification 7-2 covers threading and gauging of rotary-shouldered connections, and the controlled edition, purchaser drawing and supplier inspection agreement should govern the actual connection. Legacy names, cross-references and workshop shorthand can create additional ambiguity, so the purchase order should preserve the exact designation used by the approved equipment documents.

Why the same nominal size can mislead a DTH buyer

In everyday purchasing language, “2-3/8 thread” is often treated like a single universal connection. It is not. The nominal number may appear in more than one thread family, while the finished thread has family-specific pitch, taper, form, gauge plane, pin length, shoulder relationship and bore geometry. Pipe outside diameter is another separate variable.

That creates four common false assumptions:

• Same nominal label means same thread: the missing suffix is precisely what distinguishes REG from IF.
• Same pipe OD means same ends: pipe bodies with similar outside diameters can carry different tool joints.
• A few hand turns prove compatibility: partial engagement does not prove correct form, taper or shoulder contact.
• A photo is enough: photos help screen candidates, but worn crests, perspective and scale can hide decisive differences.

If two connection families are close enough to confuse visually, that is a reason to increase verification—not permission to test them under torque.

Match the whole DTH connection chain

A replacement drill pipe is compatible only when every adjacent interface and operating constraint is resolved. Build a one-line connection map before requesting a quote:

Do not use an improvised coupling to solve a REG/IF mismatch. A purpose-designed crossover or replacement top sub may be possible in some systems, but it introduces its own thread pair, length, outside diameter, bore, shoulder, wrenching and load requirements. It must be selected as an engineered drill-string component, not as a field workaround.

How to identify an unknown 2-3/8 connection

1. Quarantine the component. Do not make it up to a known-good pin or box merely to see whether it fits.
2. Record its position. Note whether it came from the rotary head, saver sub, pipe, crossover or hammer top sub. Photograph the complete component before focusing on the thread.
3. Capture all markings. Record manufacturer, model, part number, thread text, pipe OD, serial or batch references and rotation direction where marked.
4. Clean without removing evidence. Remove grease and loose contamination using the approved maintenance method. Do not grind, chase or polish a suspect thread before identification.
5. Inspect pin or box condition. Galling, rolled crests, impact damage, corrosion or a belled box can distort measurements and invalidate a fit trial.
6. Measure a defined set. A competent inspector should record thread pitch, taper, relevant diameters at defined locations, pin or box length, shoulder dimensions and bore through the connection. Also confirm right- or left-hand orientation rather than assuming.
7. Compare with controlled data. Use the equipment manual, approved drawing or applicable specification—not an unlabeled internet image.
8. Confirm with the correct gauges. The matching working plug or ring gauge and documented gauging procedure provide stronger evidence than calipers alone.

Field measurements are useful for narrowing the candidates. They are not a substitute for the specified gauge inspection when connection conformance is part of purchase acceptance.

What a supplier should verify before confirming interchangeability

Ask the supplier to return a compatibility statement that identifies both mating components, not merely the proposed pipe. A useful response should state:

• the exact thread family and nominal designation on each end;
• pin or box orientation and thread hand;
• the controlled drawing or specification reference and revision;
• the gauge type and inspection record available for the production lot;
• shoulder and bore requirements relevant to the mating component;
• pipe OD, wall/bore, length and wrench-flat arrangement;
• whether a crossover, saver sub or alternative top sub is required; and
• any limitation where the supplier cannot confirm the customer’s rig or hammer interface.

“Compatible with 2-3/8” is not a satisfactory technical answer. “API 2-3/8 REG box × pin, checked against the named drawing and gauge plan, for the confirmed mating connections” is much closer to an auditable purchase definition.

PerfoMax 76 mm pipe: where it fits—and where it does not

The active PerfoMax 76 mm DTH drill pipe is currently defined as a 76 mm pipe with API 2-3/8 REG box × pin ends. Its listed inquiry lengths are 1,000, 1,500, 2,000 and 3,000 mm. Wall and bore are selected against the required airflow, torque, depth and customer drawing.

That page is not an offer for API 2-3/8 IF, and it should not be treated as a replacement solely because the current pipe or hammer is described as “2-3/8.” Before quotation, PerfoMax needs the exact rotary-head or saver-sub connection, hammer top-sub connection, current pipe definition and duty conditions.

For adjacent checks, see the published guides to API REG thread-size compatibility and DTH hammer backhead thread compatibility.

Replacement decision table

Common ordering mistakes

• Writing only “2-3/8 thread” on the RFQ.
• Using pipe OD as a substitute for the tool-joint designation.
• Copying a connection name from the hammer bit shank, which is a different interface.
• Assuming all equipment from one region or brand uses the same connection.
• Approving a new pipe because it begins to screw into a worn box.
• Ignoring pin/box orientation when specifying a crossover or saver sub.
• Leaving the governing drawing and standard edition undefined.
• Accepting a supplier’s “equivalent” statement without gauge or dimensional evidence.

RFQ checklist for API 2-3/8 REG or IF pipe

• Complete connection name, including REG or IF.
• Pin × box arrangement and thread hand.
• Rig model and rotary-head/saver-sub lower connection.
• Hammer model and exact top-sub/backhead upper connection.
• Existing pipe drawing, part number and clear photos of both ends.
• Pipe OD, wall thickness or required bore, and effective length.
• Wrench-flat dimensions and handling constraints.
• Hole diameter, target depth, ground conditions and drilling direction.
• Compressor output at the intended operating condition.
• Rig torque and pullback limits.
• Required specification/drawing revision and gauge inspection record.
• Quantity, destination, packing and spare-pipe plan.

Frequently asked questions

Can API 2-3/8 REG and 2-3/8 IF be connected?

They should be treated as incompatible connection families. The same nominal number is not evidence that the thread form, taper, gauge position or shoulder relationship matches. Use a correctly specified crossover only when the complete drill-string design approves one.

Can I identify REG vs IF from the pipe outside diameter?

No. Pipe OD is one drill-string variable, while the tool-joint connection is another. Similar pipe-body diameters can be supplied with different connections, and one connection designation can appear across more than one product configuration.

Is a caliper enough to confirm the thread?

No. Calipers and pitch gauges help narrow the candidates, but acceptance should follow the controlled dimensions and connection-specific gauging procedure. Worn or damaged threads make field measurements less reliable.

Does internal flush mean the pipe will always deliver more air?

Internal-passage geometry can affect restriction, but system performance depends on the complete bore, pipe length, number of joints, compressor delivery, leaks, hammer demand and operating pressure. Do not choose a connection suffix from one airflow claim.

What is the fastest evidence to send a supplier?

Send the rig and hammer models, a current approved pipe or top-sub drawing, exact markings, photos of both ends with a scale, measured thread data and the required pipe dimensions. A known-good gauge or part number is stronger than an unverified name used on site.

Technical references

• American Petroleum Institute: standards plan listing API Specification 7-2 for threading and gauging rotary-shouldered connections
• American Petroleum Institute: thread-gauge certification agency information for API Spec 7-2
• DrillBuilders: drill-string thread identification using multiple measured characteristics
• Sai Deepa: DTH drill-pipe configurations listing REG and IF connections separately

Confirm the connection before requesting replacement pipe

If your existing string requires API 2-3/8 REG, review the active PerfoMax 76 mm API 2-3/8 REG drill pipe. Send the mating rig and hammer connections, current-pipe evidence, required length, wall/bore, duty and inspection requirements with the inquiry. If the existing connection is IF or remains uncertain, identify it first; PerfoMax should not force a REG quotation into an unresolved interface.
