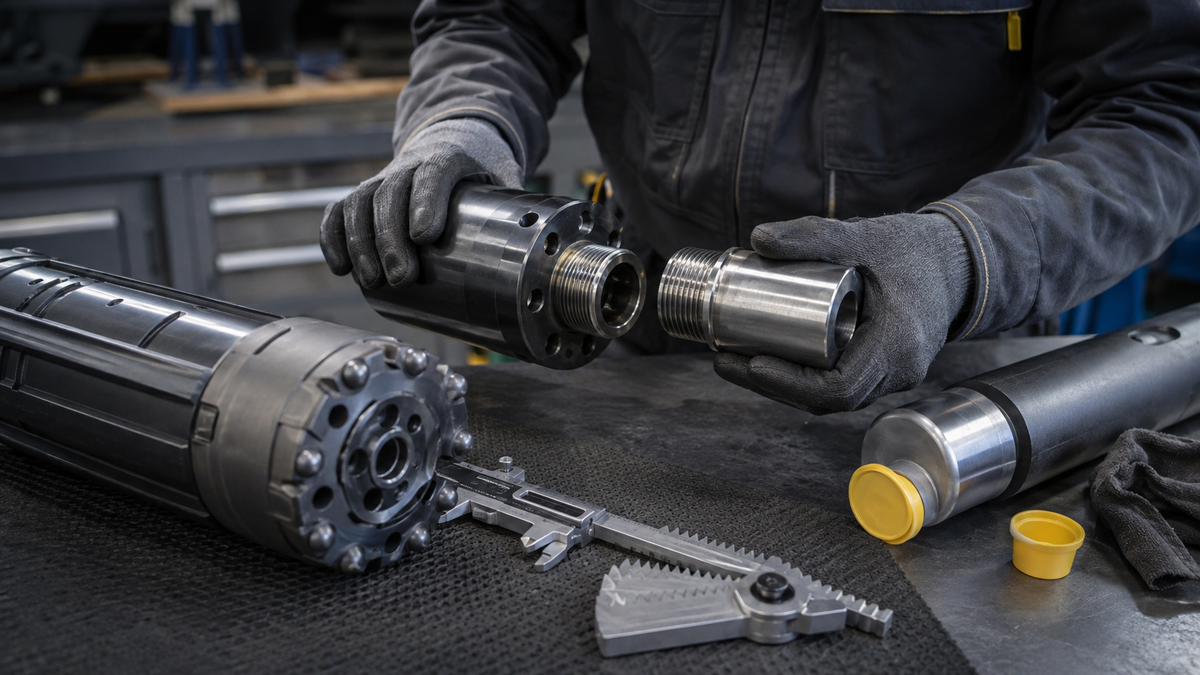

A DTH hammer backhead thread is compatible with a drill pipe only when the complete connection matches—not merely the nominal diameter. The hammer’s backhead, often called the top sub, must match the pipe connection in thread designation, form, pitch or lead, taper, pin/box orientation, shoulder geometry, engagement length, and air-bore alignment. If any of these differ, a connection may start by hand yet still carry load incorrectly, leak air, damage the first threads, or loosen in service.
Do not identify a DTH hammer connection from hammer size alone. Many modern hammers use API Regular connections, but manufacturers also publish other options, and low-pressure systems can use different square or proprietary threads. For example, PerfoMax’s current CIR90 listing specifies a T48×10 square-thread top-sub connection, while OEM data for many 3- and 4-inch high-pressure hammers commonly shows 2⅜-inch API Regular. The model and drawing control the decision.
Direct buyer rule: Before ordering a hammer, replacement backhead, drill pipe, or adapter, obtain the exact connection designation from both sides and verify the shoulder and bore. “Same outside diameter,” “same hammer class,” or “it screws in a few turns” is not a compatibility result.
Backhead, top sub, bit shank: which connection are you checking?
Three interfaces are often confused in DTH RFQs:
- Backhead or top-sub thread: the connection at the upper end of the hammer that joins the hammer to the drill pipe, sub, shock absorber, or adapter.
- Drill-pipe tool joint: the pin or box connection at each end of the pipe. The hammer-side end must mate with the top sub directly or through an approved adapter.
- Bit shank: the splined lower interface between the DTH bit and the hammer chuck. DHD, QL, SD, Mission, COP, CIR and other shank families describe this end, not automatically the backhead thread.
A hammer can therefore use one bit-shank family and a separately specified backhead connection. Knowing that a bit is “DHD340” does not, by itself, prove which pipe thread is fitted to the top sub.
What must match at the hammer-to-pipe interface?
| Compatibility item | What to confirm | Why it matters |
|---|---|---|
| Thread designation | Full standard or manufacturer name, including nominal size and series | Similar-looking connections can use different forms, dimensions, or gauges |
| Pin/box orientation | Which component carries the external pin and which carries the internal box | Two pins or two boxes cannot connect without a correctly designed sub |
| Thread profile | Crest, root, flank form, included angle, and any truncation or radius | Profile mismatch concentrates contact and damages threads |
| Pitch or lead | Axial advance per turn and whether the thread is single- or multi-start | A wrong lead can bind after only partial engagement |
| Taper or straight form | Specified taper and gauge position, or verified parallel/square form | Diameter readings at one location cannot identify a tapered connection |
| Shoulder geometry | Shoulder face position, diameter, flatness, and intended metal-to-metal contact | The shoulder often carries and stabilizes the connection after make-up |
| Engagement length | Usable thread length and runout clearance on both parts | Insufficient engagement overloads the first threads; interference prevents shoulder contact |
| Air bore | Minimum internal passage, step location, and alignment through any sub | A restricted or offset bore increases pressure loss and can disturb lubrication or flushing |
| Wrenching and handling | Approved wrench flats, breakout method, and thread-protector space | Incorrect clamping can distort or mark the connection |
Why hammer size does not prove backhead-thread compatibility
OEM product data shows common patterns, not universal conversion rules. Mincon lists 2⅜-inch API connections across several 3- and 4-inch hammer models, 3½-inch API on many 5-inch models, and more than one API size within its 6–7-inch range. Epiroc publishes a 2⅜-inch API Regular top-sub for its COP W4 2.0. Sandvik’s RH560 family lists API Regular, Cubex, and BECO connection options.
Those examples demonstrate two points. First, a known hammer size can narrow the search. Second, it cannot close the compatibility decision because options vary by model, configuration, market, and replacement history. A used hammer may also carry a non-original top sub. Read the current marking or drawing for the actual component.
PerfoMax’s live CIR90 Low-Pressure DTH Hammer for 90–130 mm Holes provides a useful counterexample to an API-only assumption: its published top-sub connection is T48×10 square thread. The specified pipe must match that interface; an API connection of a broadly similar diameter is not a substitute.
How to identify an unknown DTH hammer backhead thread
Use evidence in descending order of reliability. Do not begin by forcing a trial connection.
- Find the hammer and top-sub identity. Record maker, hammer model, serial or batch reference, top-sub part number, and any stamped connection code. Photograph the complete hammer and the marking location.
- Check the correct parts book or data sheet. Confirm whether the listed thread is standard, optional, or tied to a particular part number. Model-family catalogs are useful, but the individual configuration is better.
- Clean without altering the profile. Remove oil, rust, and debris using the approved method. Do not grind, chase, or polish the thread before identification.
- Confirm pin or box and the working shoulder. Photograph the end face square-on and from the side. Note where the mating component is intended to stop.
- Measure several features. Record major and minor diameters at defined positions, pitch or lead, thread length, shoulder diameter, face-to-gauge distance, and air bore. For tapered connections, use the correct gauge method rather than one caliper reading.
- Compare the profile with proper gauges. A pitch gauge can help screen candidates, but it does not confirm flank form, taper, gauge diameter, or shoulder position.
- Request a dimensional drawing or gauge confirmation. Send both hammer-side and pipe-side evidence to the supplier before production.
What does a correct trial fit look like?
A workshop trial can confirm documented parts, but it should not replace identification. Clean and inspect both connections, lubricate only as the service procedure requires, and start make-up by hand. Stop immediately if the connection rocks, crosses, tightens abruptly, develops an uneven gap, or fails to reach the specified shoulder condition.
| Observation | Possible meaning | Decision |
|---|---|---|
| Starts freely and advances evenly | Pitch and lead may be compatible | Continue only to the documented gauge or shoulder check |
| Stops after a few turns | Wrong lead, taper, profile, damaged thread, or runout interference | Do not apply a wrench; separate and inspect |
| Thread reaches depth but shoulder remains open | Wrong engagement length, gauge position, shoulder geometry, or incomplete make-up | Compare drawing and gauge dimensions |
| Shoulder touches on one side | Face damage, runout, bent component, or non-concentric connection | Reject the fit pending measurement |
| Shoulder closes but air bore is stepped or offset | Hydraulic/air-path incompatibility despite mechanical make-up | Use the correct component or engineered adapter |
| Visible crest damage or metal pickup | Cross-threading, profile mismatch, contamination, or poor handling | Quarantine and assess both mating parts |
Final make-up torque, lubricant, shoulder condition, and breakout procedure are model-specific. A torque value copied from a different thread size or connection family is not reliable.
Can an adapter solve a DTH hammer thread mismatch?
An engineered adapter or crossover sub can connect different interfaces, but it creates a new component that must be checked as part of the drill string. It is not permission to join two unidentified threads.
Confirm both end connections, material and heat treatment, shoulder design, wall thickness, air-bore diameter, outside diameter, overall length, wrenching features, rated operating load, and compatibility with the rig’s handling system. The adapter must not create an external step that interferes with hole clearance or an internal restriction that undermines delivered airflow.
Also consider stack length and runout. An unnecessary chain of short adapters adds joints, potential leakage paths, handling time, and bending locations. Where practical, specifying the correct hammer top sub or pipe connection is cleaner than building a permanent adapter stack.
Common ordering mistakes
- Writing only “for 4-inch DTH hammer” without the hammer model and top-sub thread
- Confusing the DTH bit shank name with the backhead connection
- Calling any tapered rotary-looking connection “API” without the complete designation
- Assuming 2⅜-inch API Regular and 2⅞-inch API Regular are interchangeable because both are API
- Matching outside diameter while ignoring pitch, taper, gauge position, and shoulder
- Ordering pin/box orientation from memory instead of photographs or drawings
- Approving an adapter without checking bore restriction, outside clearance, and overall length
- Using a damaged sample as the only production master
For a more focused comparison of two common pipe designations, see DTH drill-pipe thread compatibility: 2⅜ API REG vs 2⅞ API REG. For airflow consequences beyond the connection itself, use the DTH drill-pipe wall thickness and bore guide.
RFQ checklist for hammer, top sub, pipe, or adapter
- Hammer manufacturer, exact model, nominal size, serial/batch reference, and operating pressure class
- Current top-sub or backhead part number and complete thread designation
- Pin/box orientation at the hammer, pipe, rig, shock absorber, and adapter interfaces
- Drill-pipe outside diameter, inside diameter, wall thickness, length, and both-end thread details
- Dimensioned end photographs with a scale and clear shoulder view
- Thread profile, pitch/lead, taper or straight form, engagement length, and gauge data
- Shoulder diameter and position, air-bore diameter, outside clearance, and wrench flats
- Expected pressure, airflow, torque, pullback, hole diameter, depth, and drilling direction
- Whether a direct connection, replacement top sub, or crossover adapter is requested
- Required inspection evidence: drawing approval, thread gauges, dimensional report, trial make-up, and traceability
Pre-use acceptance checks
- Compare received markings and part numbers with the approved drawing and purchase order.
- Inspect thread protectors, crests, roots, shoulders, bore, and wrench flats for shipping damage or corrosion.
- Verify pin/box orientation and gauge results for both mating parts.
- Check that the shoulder condition and engagement match the approved assembly—not merely that the parts turn together.
- Confirm the air path is clean, concentric, and free of an unintended restriction.
- Record the accepted master connection or gauge so later replacement orders use the same control basis.
- Make up and commission the string using the hammer, pipe, and rig manuals.
Frequently asked questions
Is a DTH hammer backhead thread the same as the bit shank?
No. The backhead or top sub connects the hammer to the drill pipe. The bit shank is the splined interface at the lower end of the hammer. Both must be specified, but one does not automatically identify the other.
Can two 4-inch DTH hammers use different top-sub threads?
Yes. A size class may have a common standard connection, but optional and proprietary configurations exist. Confirm the exact hammer model, top-sub part number, and current component marking.
Can calipers identify an API Regular thread?
Calipers can support screening, but they cannot confirm the entire connection. API identification also depends on thread form, taper, pitch, gauge position, and shoulder details. Use the correct gauges or an approved drawing.
What if the pipe screws into the hammer but the shoulders do not meet?
Stop. Partial thread engagement without the specified shoulder condition can overload threads or indicate a different gauge position, runout, or profile. Do not pull the gap closed with operating torque.
Should I change the hammer top sub or use an adapter?
Choose the solution that preserves the correct load path, air bore, outside clearance, handling length, and service support. A model-approved replacement top sub may be simpler; an engineered crossover is useful when multiple verified interfaces must be retained.
Specify the complete DTH connection before purchase
DTH hammer backhead-thread compatibility is a drawing-and-gauge decision. Start with the hammer model, then verify the installed top sub, drill-pipe connection, shoulders, and air passage as one interface. If your application fits PerfoMax’s published CIR90 scope, review the active CIR90 hammer and include the required T48×10 pipe-side connection in the RFQ. For other hammer classes, send the same evidence so the commercial route can be checked without assuming a thread from nominal hammer size.
