Chisel, moil and retainer
B87C configuration review
Match the exact body, shank, collar and retainer geometry.
Tip shape alone does not determine compatibility.
Pneumatic Pick / Breaker
B87C Pneumatic Breaker
Model:B87C
Selected configuration:Configuration to be confirmed
Selected reference:Configuration required
100 J-class heavy-duty breaker for reinforced concrete and hard rock
B87C is a 39 kg heavy-duty pneumatic breaker for reinforced concrete, rock, pavement and other high-load demolition. Its approximately 100 J impact-energy class and long-stroke mechanism are intended for jobs where breaking productivity matters more than low tool weight.
- Approx. 100 J impact-energy class is built for reinforced concrete and hard-rock demolition
- 39 kg operating mass supports high-load breaking productivity
- Simple pneumatic construction suits mining and civil-engineering job sites
Request a Configuration-Based Quote
Send the exact model, breaking material, working direction, tool shank, compressor output, hose setup, quantity and delivery country.
At a Glance
B87CModel / family identity
Pneumatic Pick / BreakerProduct type
Technical Specifications
| Model / family identity | B87C |
|---|---|
| Product type | Pneumatic Pick / Breaker |
| Operating system | Compressed-air impact breaking/chipping; this is not a rotary hole-drilling system. |
| Working tool | Specify moil, chisel or other tip form and working/overall length. |
| Retention interface | Match shank cross-section and dimensions, collar and retainer geometry. |
| Work requirement | Identify material, removal/breaking task, direction, access and intended duty. |
| Air-line configuration | Specify pressure and delivered flow, inlet thread, hose/coupling and lubrication arrangement. |
| Weight — model reference | 39 kg. Hebei Shenli B87C catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Overall length — model reference | 686 mm. Hebei Shenli B87C catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Working pressure — model reference | 0.63 MPa. Hebei Shenli B87C catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Impact-energy reference — model reference | 100 J ±10%. Hebei Shenli B87C catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Typical published impact-frequency reference — model reference | At least 16.5 Hz. Hebei Shenli B87C catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Order configuration | The accepted quotation identifies the exact configuration, part/drawing revision, quantity and supplied items. This page is a configuration enquiry. |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Compressor and air-line equipment
B87C configuration review
Check delivered pressure/flow, hose bore, inlet and coupling standard.
Use the data sheet for the quoted model and configuration.
Pneumatic Impact Design
Working end selected for the task
The retained tool transfers the body’s impact into the material.
Buyer value
A task-specific moil or chisel enquiry can identify the required tool form as well as the body.
Selection condition
Material and access must suit the selected duty and working tool.
Complete air-line specification
Pressure and flow reach the breaker through the hose and couplings.
Buyer value
Recording the site arrangement supports a usable body-and-air-system match.
Selection condition
Do not infer actual output from a model number or nominal compressor rating.
Configuration-specific quotation
The B87C enquiry is identified by its catalog model/family and the requested connection, application and supply scope.
Buyer value
The written offer can return a reviewable part/configuration identity and itemized supply list.
Selection condition
A model or page reference is not itself a complete order code; approve the offered configuration before ordering.
Application Scenarios
- Material breaking or chipping selected to the identified tool duty
- Road, construction, stone or mining removal enquiries after matching the material and work position
- Fleet replacement enquiries with the exact model and existing tool dimensions
Confirm Before Ordering
Configuration Inputs
- Exact model and revision
- Material and removal/breaking task
- Working direction and access
- Tool shank shape and dimensions
- Retainer and collar geometry
- Moil/chisel/blade shape and length
- Available pressure and air flow
- Air inlet and hose/coupling
- Lubrication requirements
- Body-only/tooling/spares supply scope
- Quantity, destination, required delivery window and inspection/packing requirements
Operating Limits
- A model number is not a guaranteed weight, impact energy or universal chisel size.
- OEM or cross-model tool/spare interchangeability requires part or dimensional verification.
Quality and Pre-Shipment Checks
01
B87C identity and configuration check
Acceptance requirement: compare the offered item with the approved model/part/drawing revision.
This is an order-inspection requirement, not a completed inspection result or certification statement.
Agree checks covering exact model and revision; material and removal/breaking task; working direction and access; tool shank shape and dimensions before order release.
02
Interface and functional evidence
Acceptance requirement: agree the relevant dimensional and, where applicable, functional verification for the quoted configuration.
No test outcome or universal performance figure is claimed. The test arrangement and pass criteria must be tied to the actual offered item.
Use the agreed pneumatic pick / breaker drawing/data sheet and record the relevant connection, fit or operating conditions.
03
Supply, quantity and packing reconciliation
Acceptance requirement: match each delivered line item to the approved supply scope and packing list.
The required marks, protection and document scope must be written in the order.
Check item identification, quantity, visible condition and the agreed packaging/documentation.
Supply Scope, MOQ and Delivery
Minimum Order QuantityRequest a quotation for the required quantity and B87C configuration.
Lead TimeThe quotation states dispatch timing after the configuration, quantity and supply scope are agreed.
Available Supply Configurations
- Identified pneumatic body; inclusion and quantity must be stated in the quotation.
- Shank-matched working tools only as listed; inclusion and quantity must be stated in the quotation.
- Hose, couplings, lubricator and spare parts only as listed; inclusion and quantity must be stated in the quotation.
Export Packing
Specify destination, transport method and required marks. Agree item separation, surface/connection protection and packing-list details for the B87C supply.
Warranty and After-Sales
Request warranty and wear-part terms with the quotation. For B87C support, send the order reference, exact part/model identification, the affected component and operating conditions so the supplied configuration can be identified.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and itemized packing list: agree required content with the order.
Origin, inspection, test or transport documents: state destination/project requirements before quotation; availability must be confirmed for the offered configuration.
Frequently Asked Questions
What is the B87C impact energy?
The commonly published B87C reference is approximately 100 J per impact.
What air pressure does the B87C use?
The standard model reference is 0.63 MPa working pressure.
How much air does the B87C consume?
Published B87C references commonly specify up to approximately 55 L/s.
What is the common B87C shank size?
32 × 152 mm is a widely documented B87C shank reference. For replacement tools, confirm the shank and retainer on the actual supplied breaker because alternate versions exist.
How heavy is the B87C?
The standard B87C model reference weight is 39 kg.
What applications suit the B87C?
Typical applications include reinforced-concrete demolition, road and pavement breaking, foundation work, mining and quarry rock breaking, and frozen-ground removal.
What should I send for a B87C quotation?
Send the material to be broken, working position, required chisel, compressor pressure and airflow, hose length, quantity and destination. For replacement orders, include the current shank dimensions or interface photos.
Required Air and Tool Interfaces
Use a chisel or moil matched to the supplied shank and retainer. Plan the compressor around 0.63 MPa and up to approximately 55 L/s; 32 × 152 mm is a common shank reference, but replacement tools should be checked against the actual breaker.
Ready to Confirm the Configuration?
Request a Quote for B87C
We will confirm the body, working-tool shank, retainer, air supply, lubricator, hose fittings, spare parts and export packing.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence

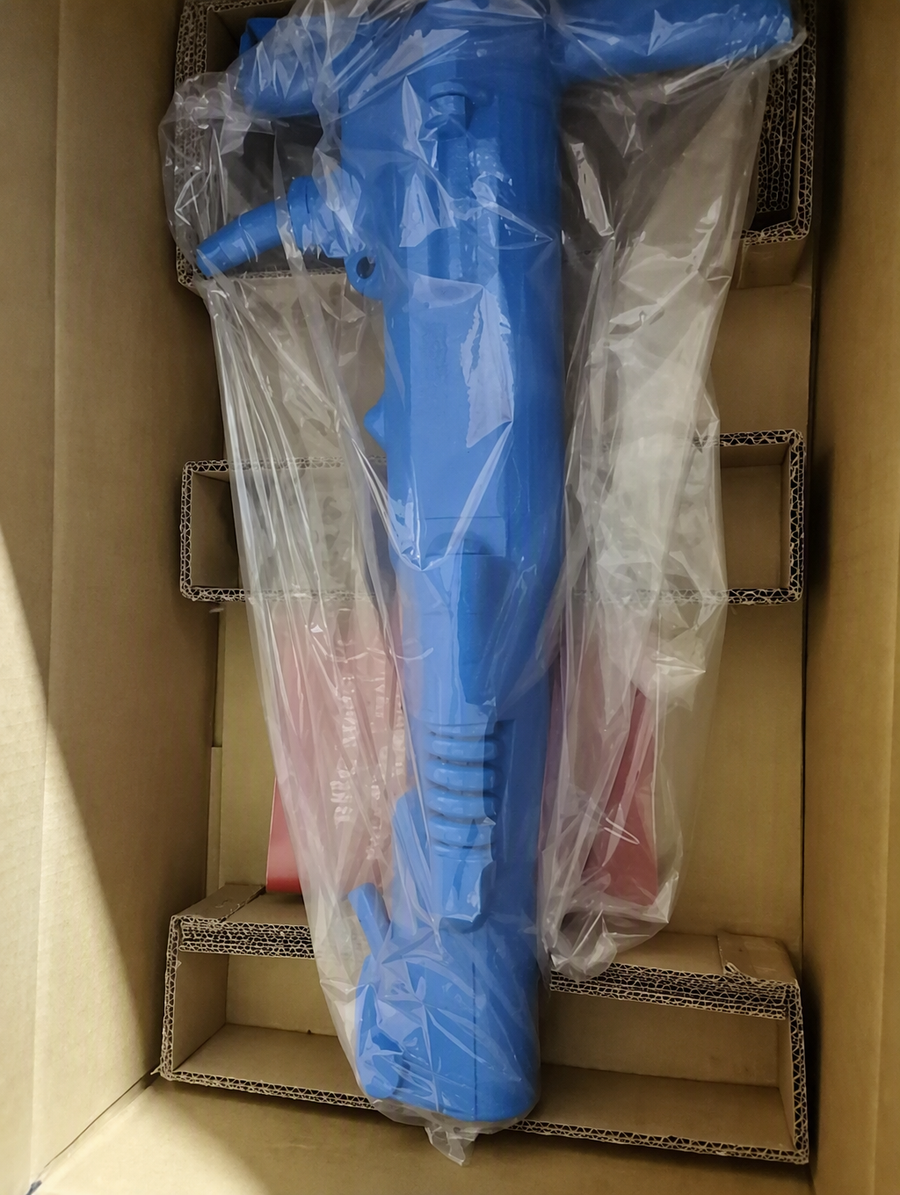

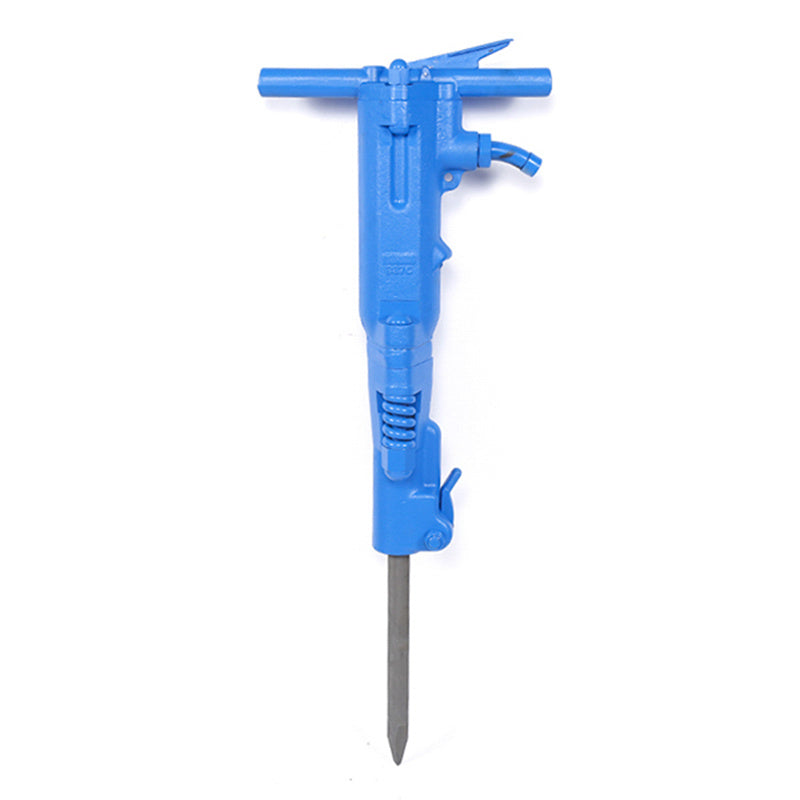

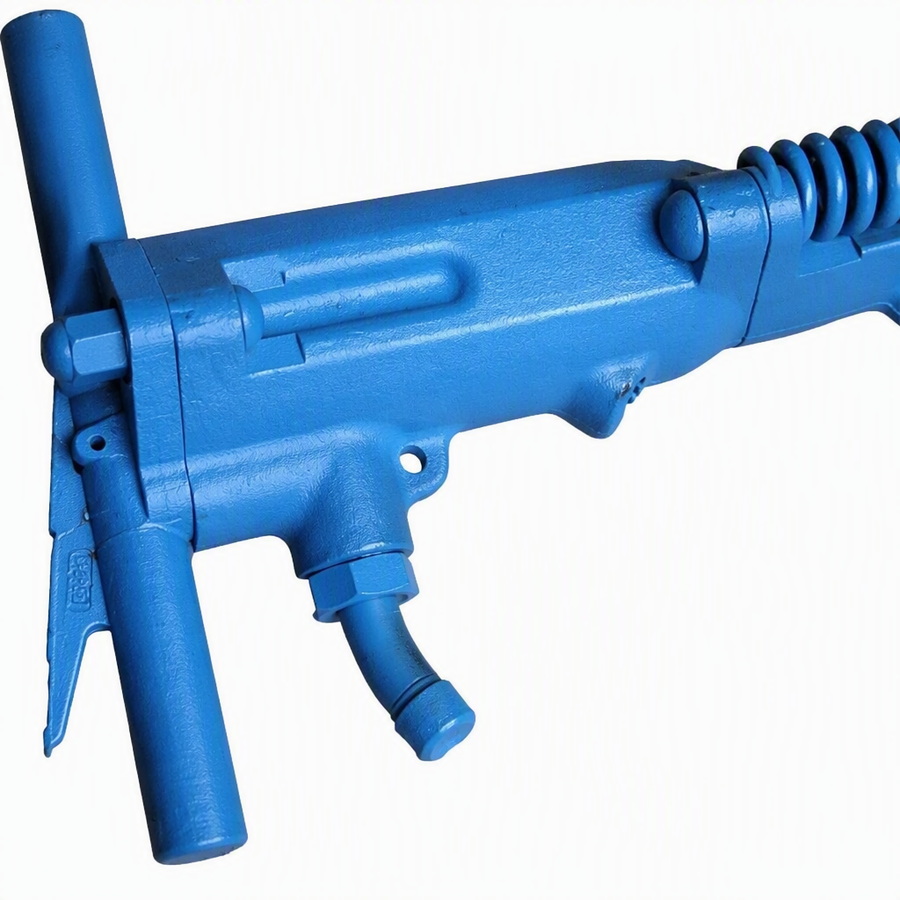

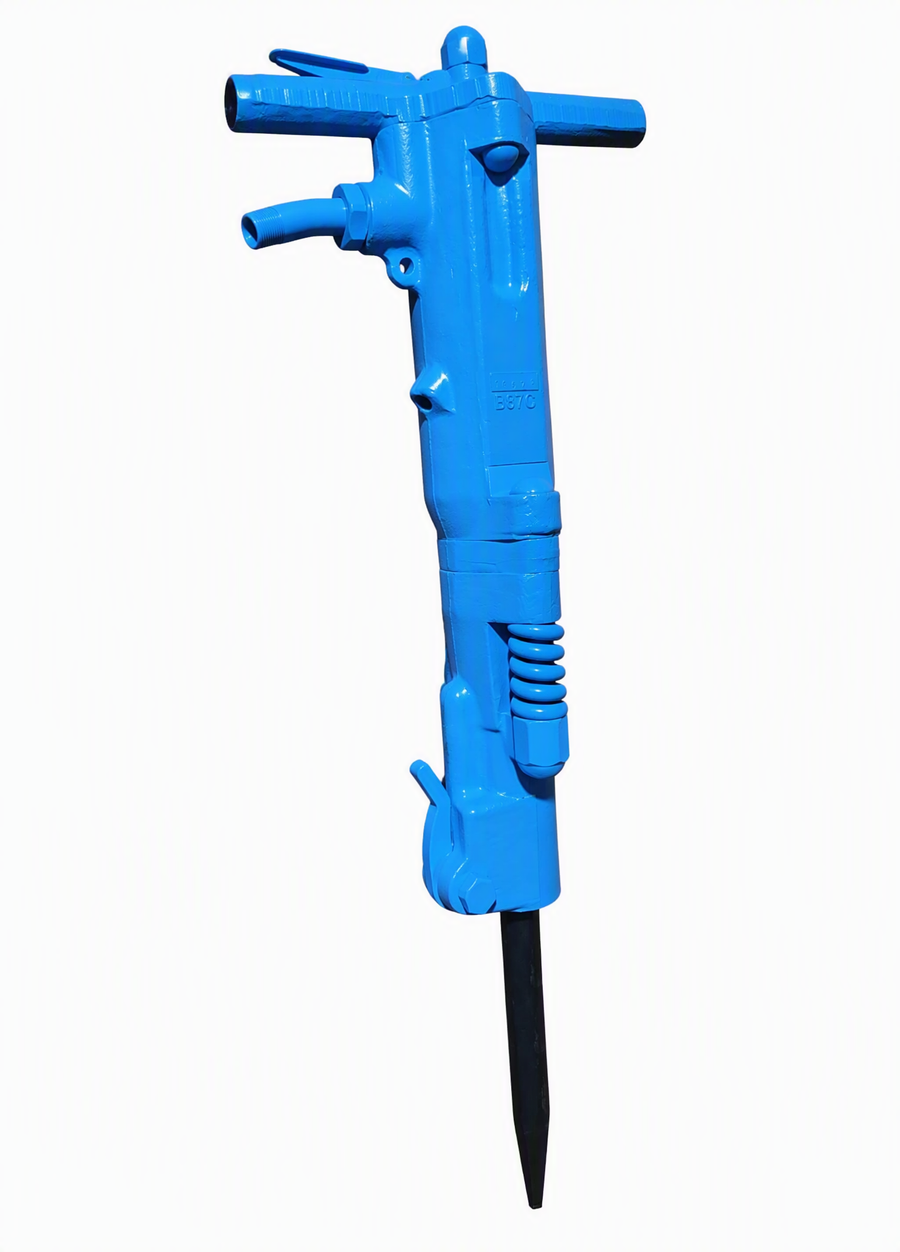

Product, Component, Configuration and Packing Views
B87C is a 39 kg heavy-duty pneumatic breaker for reinforced concrete, rock, pavement and other high-load demolition. Its approximately 100 J impact-energy class and long-stroke mechanism are intended for jobs where breaking productivity matters more than low tool weight.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
