Pneumatic Pick / Breaker

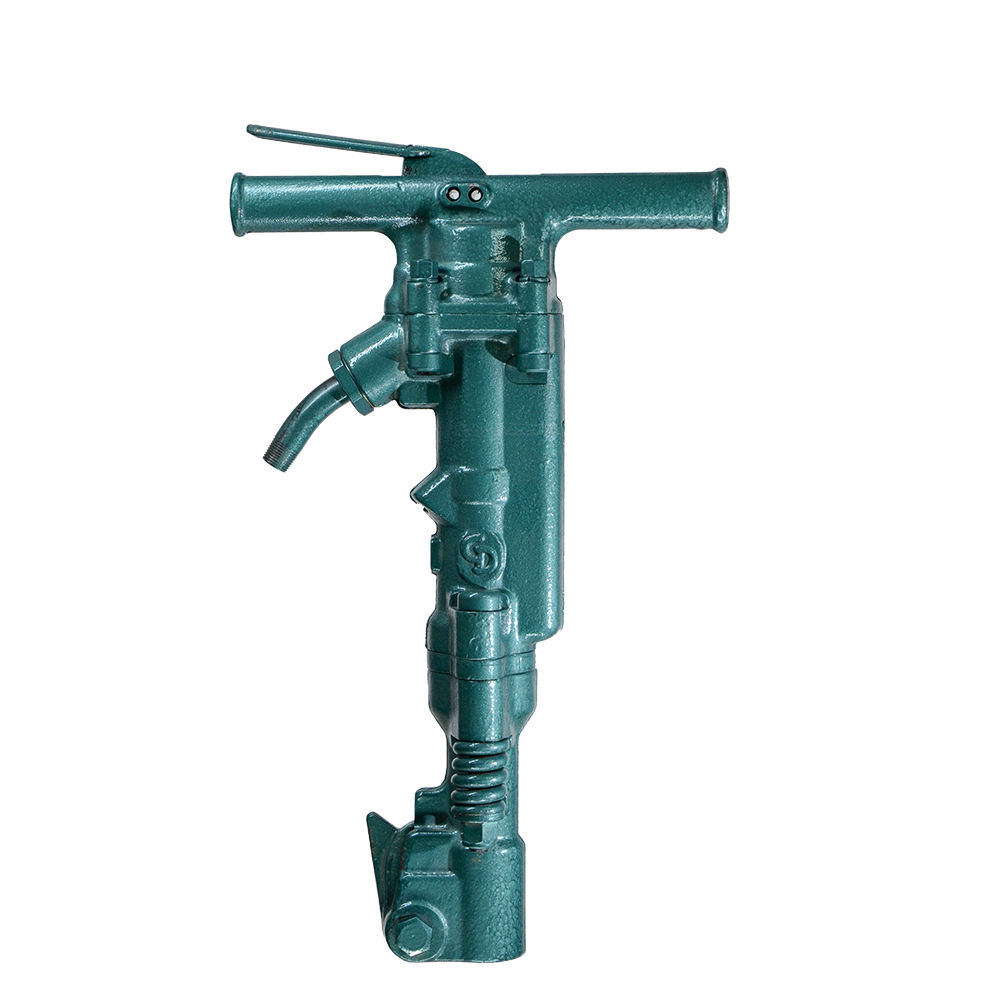

B47 Pneumatic Breaker
Model:B47
Selected configuration:Configuration to be confirmed
Selected reference:Configuration required
21.5 kg medium-duty breaker balancing impact power and portability
B47 is a 21.5 kg medium-duty pneumatic breaker for concrete, asphalt, frozen soil and soft rock. Its approximately 76 J impact-energy class gives stronger breaking performance than a light pick while remaining easier to handle than 39–42 kg heavy breakers.
- 21.5 kg body balances maneuverability with medium-duty breaking power
- Approx. 76 J impact-energy class suits concrete, asphalt and soft-rock work
- Lower mass than B87C/TPB90-class breakers improves handling for general demolition
Request a Configuration-Based Quote
Send the exact model, breaking material, working direction, tool shank, compressor output, hose setup, quantity and delivery country.
At a Glance
B47Model / family identity
Pneumatic Pick / BreakerProduct type
Technical Specifications
| Model / family identity | B47 |
|---|---|
| Product type | Pneumatic Pick / Breaker |
| Operating system | Compressed-air impact breaking/chipping; this is not a rotary hole-drilling system. |
| Working tool | Specify moil, chisel or other tip form and working/overall length. |
| Retention interface | Match shank cross-section and dimensions, collar and retainer geometry. |
| Work requirement | Identify material, removal/breaking task, direction, access and intended duty. |
| Air-line configuration | Specify pressure and delivered flow, inlet thread, hose/coupling and lubrication arrangement. |
| Weight — model reference | 21.5 kg. Hebei Shenli B47 catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Overall length — model reference | 550 mm. Hebei Shenli B47 catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Impact frequency — model reference | 1,400 blows/min. Hebei Shenli B47 catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Air-hose inner diameter — model reference | 19 mm hose. Hebei Shenli B47 catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Tool shank — model reference | R25 × 105 mm tool shank; verify the exact retainer and supplied version. Hebei Shenli B47 catalogue comparison only; not a PerfoMax supplied specification, fitment approval or operating instruction. |
| Order configuration | The accepted quotation identifies the exact configuration, part/drawing revision, quantity and supplied items. This page is a configuration enquiry. |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Compressor and air-line equipment
B47 configuration review
Check delivered pressure/flow, hose bore, inlet and coupling standard.
Use the data sheet for the quoted model and configuration.
Pneumatic Impact Design
Working end selected for the task
The retained tool transfers the body’s impact into the material.
Buyer value
A task-specific moil or chisel enquiry can identify the required tool form as well as the body.
Selection condition
Material and access must suit the selected duty and working tool.
Complete air-line specification
Pressure and flow reach the breaker through the hose and couplings.
Buyer value
Recording the site arrangement supports a usable body-and-air-system match.
Selection condition
Do not infer actual output from a model number or nominal compressor rating.
Configuration-specific quotation
The B47 enquiry is identified by its catalog model/family and the requested connection, application and supply scope.
Buyer value
The written offer can return a reviewable part/configuration identity and itemized supply list.
Selection condition
A model or page reference is not itself a complete order code; approve the offered configuration before ordering.
Application Scenarios
- Material breaking or chipping selected to the identified tool duty
- Road, construction, stone or mining removal enquiries after matching the material and work position
- Fleet replacement enquiries with the exact model and existing tool dimensions
Confirm Before Ordering
Configuration Inputs
- Exact model and revision
- Material and removal/breaking task
- Working direction and access
- Tool shank shape and dimensions
- Retainer and collar geometry
- Moil/chisel/blade shape and length
- Available pressure and air flow
- Air inlet and hose/coupling
- Lubrication requirements
- Body-only/tooling/spares supply scope
- Quantity, destination, required delivery window and inspection/packing requirements
Operating Limits
- A model number is not a guaranteed weight, impact energy or universal chisel size.
- OEM or cross-model tool/spare interchangeability requires part or dimensional verification.
Quality and Pre-Shipment Checks
01
B47 identity and configuration check
Acceptance requirement: compare the offered item with the approved model/part/drawing revision.
This is an order-inspection requirement, not a completed inspection result or certification statement.
Agree checks covering exact model and revision; material and removal/breaking task; working direction and access; tool shank shape and dimensions before order release.
02
Interface and functional evidence
Acceptance requirement: agree the relevant dimensional and, where applicable, functional verification for the quoted configuration.
No test outcome or universal performance figure is claimed. The test arrangement and pass criteria must be tied to the actual offered item.
Use the agreed pneumatic pick / breaker drawing/data sheet and record the relevant connection, fit or operating conditions.
03
Supply, quantity and packing reconciliation
Acceptance requirement: match each delivered line item to the approved supply scope and packing list.
The required marks, protection and document scope must be written in the order.
Check item identification, quantity, visible condition and the agreed packaging/documentation.
Supply Scope, MOQ and Delivery
Minimum Order QuantityRequest a quotation for the required quantity and B47 configuration.
Lead TimeThe quotation states dispatch timing after the configuration, quantity and supply scope are agreed.
Available Supply Configurations
- Identified pneumatic body; inclusion and quantity must be stated in the quotation.
- Shank-matched working tools only as listed; inclusion and quantity must be stated in the quotation.
- Hose, couplings, lubricator and spare parts only as listed; inclusion and quantity must be stated in the quotation.
Export Packing
Specify destination, transport method and required marks. Agree item separation, surface/connection protection and packing-list details for the B47 supply.
Warranty and After-Sales
Request warranty and wear-part terms with the quotation. For B47 support, send the order reference, exact part/model identification, the affected component and operating conditions so the supplied configuration can be identified.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and itemized packing list: agree required content with the order.
Origin, inspection, test or transport documents: state destination/project requirements before quotation; availability must be confirmed for the offered configuration.
Frequently Asked Questions
How much does the B47 weigh?
The established B47 model weight is 21.5 kg.
What impact performance does the B47 provide?
Current references consistently place the B47 around the 76 J impact-energy class and about 21–21.6 Hz, commonly expressed as roughly 1,400 blows per minute.
How much air does the B47 consume?
Published references vary from about 23 to 28 L/s. Use this range for preliminary compressor matching and confirm the supplied configuration in the quotation.
What shank size does the B47 use?
25 × 108 mm is the common B47 configuration. Replacement tooling should still be matched to the actual retainer and shank on the breaker.
What working air pressure does the B47 use?
Use approximately 0.5 MPa as the preliminary working-pressure reference.
What applications suit the B47?
The B47 is suited to concrete demolition, road and asphalt breaking, frozen-soil excavation, soft-rock breaking and general construction or utility work.
What should I send for a B47 quotation?
Send the material to be broken, working position, required chisel, compressor pressure and airflow, hose length, quantity and destination. For replacement orders, include current shank dimensions or interface photos.
Required Air and Tool Interfaces
Match the chisel to the supplied retainer and shank; 25 × 108 mm is the common reference. Use about 0.5 MPa working pressure and 23–28 L/s air demand as preliminary compressor-matching values, then account for hose losses.
Ready to Confirm the Configuration?
Request a Quote for B47
We will confirm the body, working-tool shank, retainer, air supply, lubricator, hose fittings, spare parts and export packing.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence

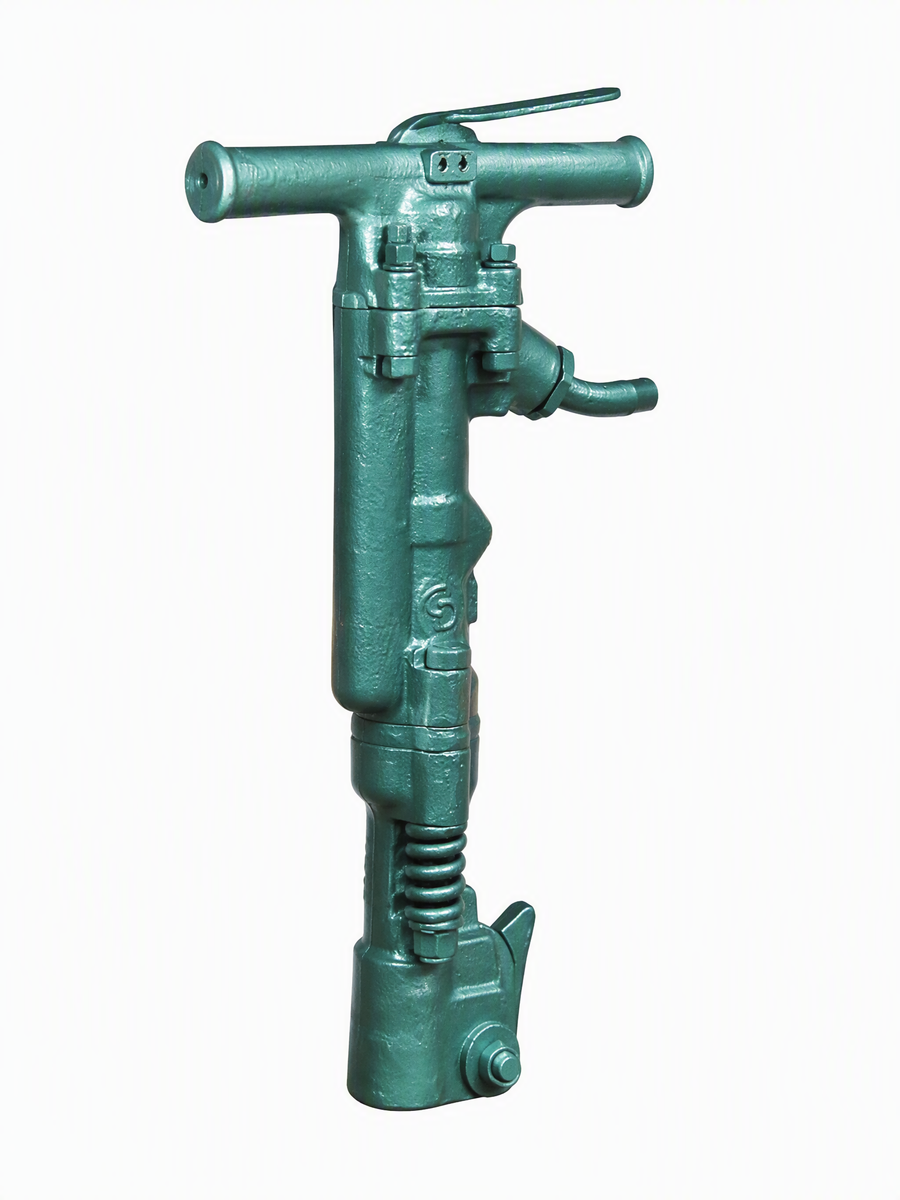

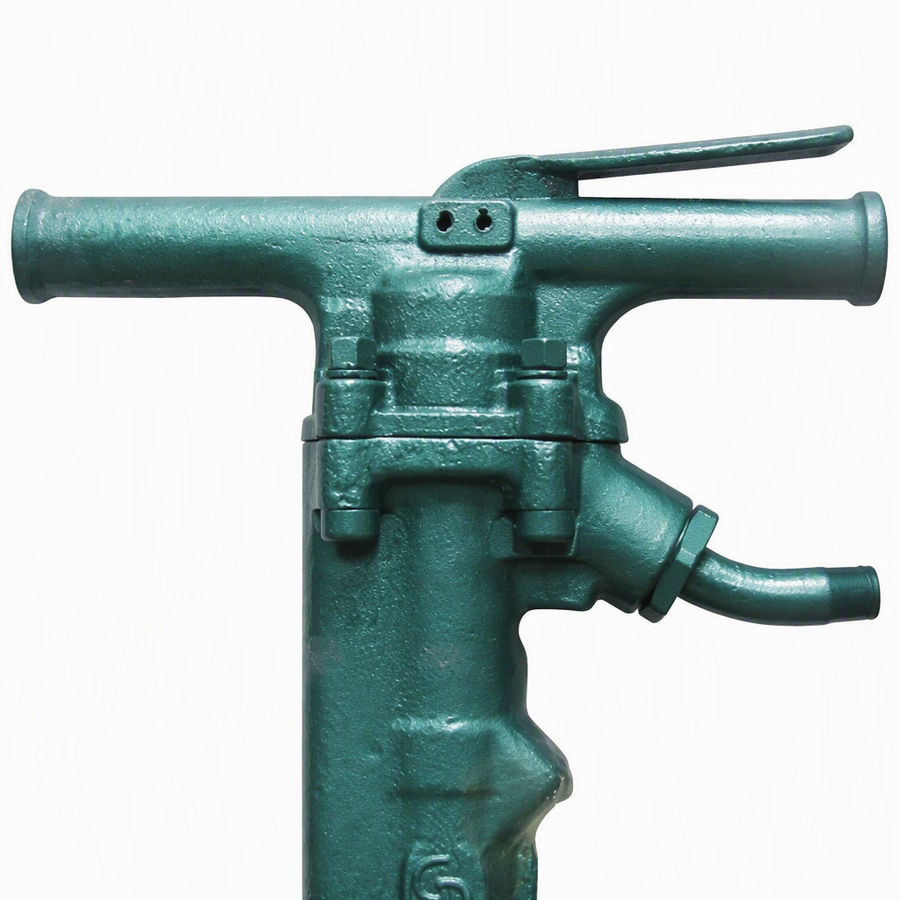

Product, Component, Configuration and Packing Views
B47 is a 21.5 kg medium-duty pneumatic breaker for concrete, asphalt, frozen soil and soft rock. Its approximately 76 J impact-energy class gives stronger breaking performance than a light pick while remaining easier to handle than 39–42 kg heavy breakers.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
