Direct answer: a useful dimensional inspection report for rock drilling tools identifies the exact item and drawing revision, lists each controlled characteristic with its nominal value and tolerance, records the actual result, identifies the sample and production lot, and shows which measuring equipment was used. It should also state how nonconforming results were handled. A page that says only “PASS” is weak evidence because the buyer cannot check the tolerance, margin, revision, sample, or measurement basis.
For imported drill rods, DTH pipes, bits, hammers, pneumatic rock drills, couplings, shank adapters, and breaker tools, agree the report before production. Characteristics, sample size, method, format, and approval point must come from the purchase order, controlled drawing, specification, and inspection plan—not a generic supplier template.
What a Dimensional Inspection Report Proves—and What It Does Not
A dimensional inspection report is objective evidence of measured characteristics on identified samples at a stated production stage. When its traceability is intact, it lets a buyer compare delivery evidence with the controlled requirement and decide whether the lot can proceed, needs clarification, or must be held.
It does not automatically prove material chemistry, heat treatment, internal features that were not inspected, assembly performance, air consumption, impact energy, fatigue life, wear life, penetration rate, or suitability for a particular rock condition. It also does not prove every piece was measured when the report covers only a sample.
Those claims require separate linked records. Treat the dimensional report as one layer in the acceptance file alongside the purchase order, approved specification, material and process evidence, functional tests, packing list, and any required third-party report.
Minimum Fields Buyers Should Require
| Report field | Why the buyer needs it | Weak alternative |
|---|---|---|
| Supplier, report number, issue date, and approval | Establishes document identity and controlled responsibility. | An undated worksheet or screenshot. |
| PO line, product/model, part number, and drawing/specification revision | Connects results to the ordered configuration. | Only “drill rod” or another broad name. |
| Production lot and sample identifiers | Shows which population and pieces the results represent. | No match to tags, markings, or packing records. |
| Characteristic or drawing reference | Lets the reviewer locate the feature without guessing. | Unnumbered rows such as “size OK.” |
| Nominal value, units, and upper/lower tolerance | Defines the acceptance interval. | An actual value with no requirement. |
| Actual result for each sample | Shows margin to the limit and variation. | Pass/fail only, unless attribute gauging was agreed. |
| Method or equipment ID | Supports review of suitability and calibration status. | “Measured by QC” with no reference. |
| Result and exception disposition | Separates conformity from deviation, rework, or rejection. | Overwriting an out-of-tolerance value. |
Start With the Controlled Requirement
Review the drawing or specification before the measured values. Confirm the part number, revision, units, general tolerances, notes, datums, surface condition, and any specified gauge or functional requirement. If the report used an obsolete revision, good-looking values do not make it acceptable.
Each row should point to an unambiguous characteristic. A balloon number, drawing dimension, specification clause, or controlled code can provide the link. The purpose is to prevent two people from interpreting “thread diameter,” “rod length,” or “bit size” differently.
Pay attention to asymmetric tolerances. In an illustrative, non-product-specific example, a nominal dimension of 100.00 mm with +0.10/-0.05 mm tolerance has limits of 99.95 to 100.10 mm. A result of 100.04 mm is inside those stated limits. Showing the requirement and actual value lets the reviewer reproduce the conclusion.
Actual Values Are Better Than a Bare PASS
A pass/fail result can be appropriate for a true attribute check, such as an agreed GO/NO-GO thread gauge, visual requirement, or feature-presence check. It is usually not enough for a variable dimension measured numerically.
Actual values show whether results sit well inside the tolerance or near a limit, whether samples vary, whether the reported digits are plausible for the equipment, and whether data appear copied. They can also reveal a change after first-article approval.
Do not infer process capability from a small shipment report. Capability requires a defined process, sufficient data, stable conditions, and an agreed statistical method. The report can highlight questions; it is not automatically a capability study.
Match the Instrument to the Characteristic and Tolerance
The instrument name alone does not prove fitness for purpose. Range, resolution, calibration status, condition, method, fixturing, technique, part temperature, cleanliness, surface finish, and feature geometry can affect the result.
| Characteristic | Possible method | Buyer review question |
|---|---|---|

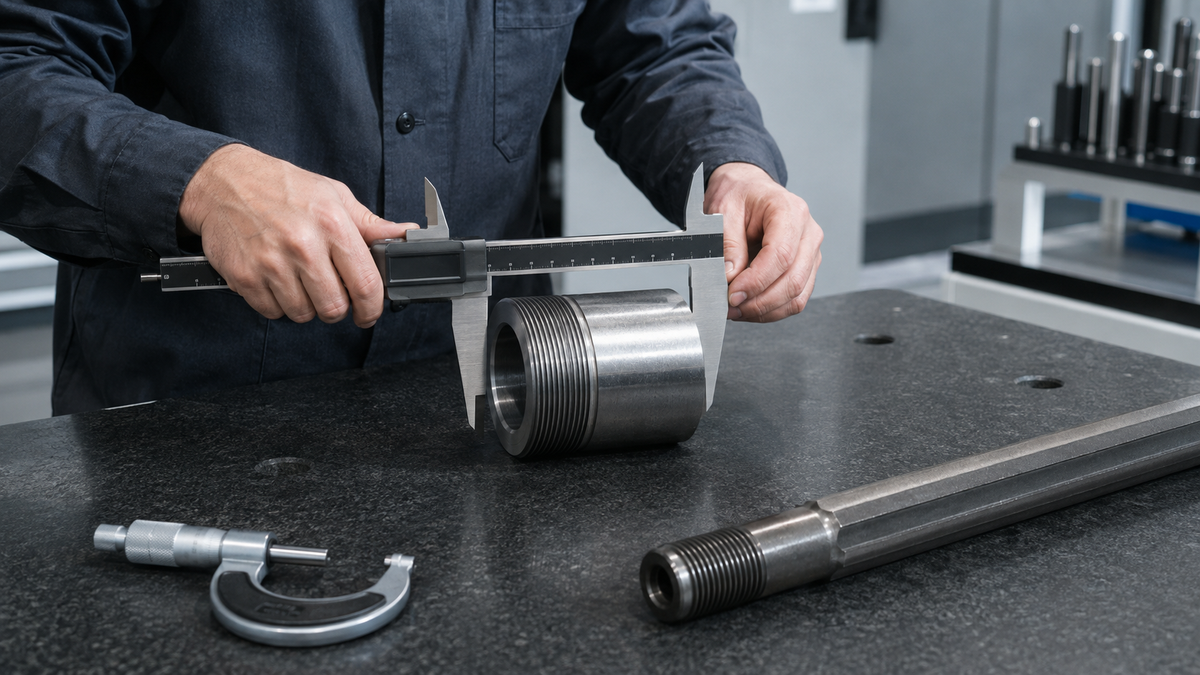

| Outside diameter | Caliper or outside micrometer, depending on tolerance and geometry. | Is the instrument suitable for the required uncertainty and contact condition? |
| Overall length | Bench, tape, caliper, height system, or fixture, depending on size and tolerance. | Were the reference points and support conditions defined? |
| Thread acceptance | Specified plug/ring gauge, optical measurement, or controlled thread-metrology method. | Does it verify the required thread system, not merely outside diameter? |
| Straightness or runout | Defined supports, datum, indicator, rollers, CMM, or fixture. | Are span, datum, rotation, and evaluation rule stated? |
| Complex geometry | CMM, optical system, template, or dedicated fixture. | Does the method match the drawing datum scheme? |
| GO/NO-GO fit | Controlled master or functional gauge. | Are gauge identity and acceptance rule recorded? |
The UK National Physical Laboratory’s dimensional metrology good-practice guide covers traceability, uncertainty, common errors, checking to specification, and measurement techniques. Its CMM measurement-strategy guide notes effects from cleanliness, loading and alignment, temperature, surface finish, geometry, and point selection. Define the method where the decision is sensitive; do not demand costly metrology without a risk-based reason.
Calibration Identity Is Necessary but Not Sufficient
For critical measurements, the report should identify the instrument or gauge so its controlled status can be traced. Buyers commonly need an equipment ID and confirmation that calibration or verification was valid on the inspection date. The certificate itself can be supplied when the contract requires it.
NIST defines metrological traceability as a property of a measurement result related to a reference through a documented, unbroken chain of calibrations, with each link contributing to measurement uncertainty. NIST also warns that merely using a calibrated instrument does not automatically make a result traceable or fit for purpose. The system and uncertainty still have to suit the need. See the NIST metrological traceability policy and FAQ.
Check that the equipment ID is present, its status was valid, its range covers the value, its resolution supports the reported digits, and any gauge, master, fixture, or software version is controlled. For critical decisions, ask whether the measurement uncertainty is small enough for the tolerance.
Do Not Ignore Measurement Uncertainty Near a Limit
Every measurement is an estimate. Far from both limits, an appropriate method may make the decision straightforward. Close to a limit, measurement uncertainty and the agreed decision rule can materially affect the conclusion.
The JCGM 106 guide from BIPM addresses uncertainty in conformity assessment. ILAC’s G8 guidance addresses decision rules and conformity statements. Agree how uncertainty is considered for critical or near-limit results instead of assuming every supplier uses the same rule.
Do not demand an uncertainty value on every routine shop-floor row without technical justification. Define which characteristics are critical, what method is acceptable, when uncertainty must be reported or available, and how boundary results are handled.
Sampling and Lot Traceability Must Be Visible
State the production lot and identify the inspected pieces or positions. If five rods were measured, the report should not imply that every rod received full inspection. The sampling plan, lot definition, selection method, and acceptance rule belong in the purchase specification or inspection plan and should be referenced.
Traceability should connect the report to markings, bundle or pallet labels, travelers, and the packing list. One shipment may contain several production or heat-treatment lots; a combined report must preserve those relationships.
Sampling is not a substitute for process control. For higher-risk characteristics, buyers may require first-article approval, increased sampling, piece-level inspection, a functional gauge, or independent witnessing.
Product-Specific Characteristics to Consider
| Product group | Possible controlled characteristics | Boundary |
|---|---|---|
| Top-hammer rods and couplings | Length, diameter, thread-gauge result, alignment, coupling dimensions, straightness, and marking. | Dimensions do not prove heat treatment or fatigue life. |
| DTH drill pipes | Length, tube and joint dimensions, thread gauge, straightness, bore/wall where specified, and welded-joint geometry. | Weld quality and leakage need separate evidence when required. |
| Drill bits | Diameter, shank identity, spline/interface dimensions, button layout, flushing holes, and gauge condition. | Diameter alone does not prove carbide or button-retention control. |
| Hammers and pneumatic drills | Critical bores, pistons, splines, chucks, mating interfaces, clearances, and marks. | Assemblies also need suitable functional checks. |
| Breaker tools and picks | Length, shank geometry, retaining features, tip geometry, and mating fit. | Impact life also depends on material, process, application, and operation. |
How to Handle an Out-of-Tolerance Result
Never ask a supplier to hide or replace an unfavorable result. Preserve the original value and show the disposition: segregation, remeasurement under an approved method, rework, resampling under an agreed rule, deviation request, authorized use-as-is approval, or rejection.
- Hold the affected sample and lot.
- Confirm requirement, units, revision, datum, and transcription.
- Check instrument status, setup, environment, and method.
- Repeat only under a defined procedure; do not average away a failure.
- Assess whether other pieces or characteristics could be affected.
- Document nonconformance and disposition with responsible approval.
- Update the report without deleting the audit trail.
If the exception changes an interface or buyer requirement, schedule pressure is not technical approval. Submit the deviation before shipment when the contract requires buyer authorization.
Common Red Flags in Supplier Reports
- No drawing revision: results may use the wrong requirement.
- Only “PASS” on numerical rows: margin and variation cannot be reviewed.
- Identical actual values across samples: data may be rounded, copied, or from an attribute check.
- Excess decimal places: resolution and measurement capability may be confused.
- No units or mixed units: the comparison can be wrong.
- No equipment ID: method and calibration status cannot be traced.
- No lot or sample identity: the report cannot be tied to the shipment.
- Values on a limit with no decision rule: uncertainty treatment is unclear.
- Failures overwritten: the audit trail and disposition are missing.
- One report reused for several shipments: it may not be delivery-specific evidence.
RFQ and Purchase-Order Checklist
- Product/model, drawing number and revision, specifications, and units.
- Dimensions, interfaces, datums, gauges, and special characteristics to report.
- First-article, in-process, final, or pre-shipment inspection stage.
- Lot definition, sample size, selection, and acceptance rule.
- Whether actual values, attribute results, or both are required.
- Approved methods or method-submission requirements.
- Equipment identity, calibration-status evidence, and uncertainty needs.
- Decision rule for near-limit results.
- Nonconformance, deviation, rework, resampling, and approval workflow.
- Report language, format, timing, retention, and packing-list link.
- Any third-party witness or release hold point.
For a new or changed item, combine this requirement with the first article inspection approval process. At receiving, use the report as an input to—not a replacement for—the buyer’s incoming inspection and stock-release checks.
Frequently Asked Questions
Is a certificate of conformity the same as a dimensional inspection report?
No. A certificate of conformity declares that the delivery meets stated requirements. A dimensional report records requirements, measured or gauged results, samples, methods, and related evidence.
Must every dimension show an actual value?
Not always. Variable measurements are normally more useful with actual values. True attribute checks, such as an agreed GO/NO-GO gauge or visual requirement, may use pass/fail. Define the method by characteristic.
Should the supplier send every calibration certificate?
Not automatically. The report should identify equipment sufficiently to verify controlled status. Certificates can be required for critical tools. More PDFs do not compensate for an unsuitable method.
What should happen when a result is close to a limit?
Apply the agreed decision rule and consider uncertainty where material. Confirm the method and equipment before accepting, rejecting, or remeasuring.
Can one generic report cover every shipment?
No. A sample report can demonstrate format before ordering, but final evidence needs links to the actual configuration, lot, inspected samples, and shipment.
Request the Right Inspection Evidence
When requesting PerfoMax drilling tools, provide the model, interfaces, drawing or specification, critical dimensions, tolerances, lot and sampling rules, report format, and approval points. Availability and measurement scope must be confirmed for the specific order. Send PerfoMax your RFQ and dimensional-inspection requirements for a focused pre-order review.
