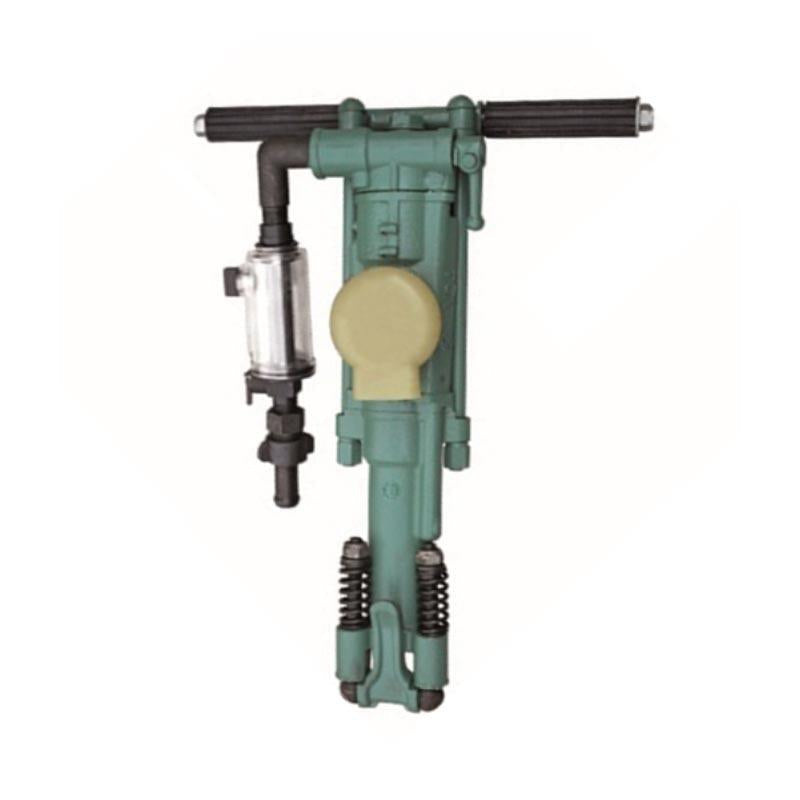

When a pneumatic rock drill runs outside the hole but slows or stops as soon as drilling load is applied, the motor is not necessarily the first suspect. The load exposes weaknesses that a no-load test cannot show: pressure may collapse at the tool, cuttings may not clear, feed may be excessive, the drill steel may bind, or internal wear may reduce usable impact and rotation.
The practical objective is to identify which boundary changes when the bit enters the rock. Avoid repeated free-running or prolonged stalled operation. Isolate energy before handling the steel or checking the chuck, and follow the manufacturer’s test procedure.
Separate the symptom into five systems
| System | Evidence to collect under load | Typical question |
|---|---|---|
| Compressed air | Dynamic pressure at the tool inlet, hose condition, other tools sharing the line | Does pressure fall only when demand rises? |
| Flushing | Water or air delivery and visible cuttings return | Are cuttings accumulating around the bit? |
| Feed | Air-leg or operator feed response, collaring condition, tool angle | Is the bit being forced faster than it can cut? |
| Drill string | Bit wear, shank fit, straightness, coupling condition and hole binding | Does a known compatible steel change the symptom? |
| Drill body | Hammering, rotation, heat, exhaust and lubrication evidence | Does the tool lose one function before the other? |
A field diagnosis sequence
1. Confirm that “runs free” is a limited observation
A no-load run confirms only that air reaches the tool and some mechanisms move. It does not prove the available airflow, pressure stability, impact energy or rotation under drilling load. Record what the tool actually does: does impact stop, rotation stop, or do both fade together?
2. Measure supply performance at the tool
Check the pressure at the tool inlet while the drill is operating under the approved test condition. A compressor gauge far upstream cannot reveal every hose, coupling, manifold or shared-demand loss. Compare hose ID, length, fittings and simultaneous tool demand with the specified system.
3. Restore the cuttings path
Verify the selected flushing method, supply path and visible return. A bit that is recutting trapped cuttings or binding in an uncleared hole can make a healthy drill appear weak. Do not add water or air blindly where ground conditions, back pressure or discharge create a hazard.
4. Reduce uncontrolled feed and check alignment
Excessive feed can stall rotation, bend the steel or wedge the bit. Too little feed can cause poor energy transfer and unstable collaring. Check the operator technique or air-leg response, tool angle and support before changing internal parts.
5. Inspect the compatible drill string
Examine the bit, shank, chuck contact, rod straightness and coupling interfaces. Use only a known compatible replacement for comparison. A different rod or bit that happens to fit physically is not proof of correct compatibility.
6. Escalate with evidence
If supply, flushing, feed and drill string are controlled but the symptom remains, document the tool behavior and send it for model-specific internal inspection. Avoid replacing valves, pistons or rotation parts without confirming the exact variant and service criteria.
Decision record for maintenance or replacement
The useful outcome is not “tool weak.” Record whether the problem follows the drill, the hose branch, the air leg, the steel or the hole. If several tools fail on the same branch, investigate the system. If one tool fails on a known-good setup, the tool becomes the stronger suspect. If the symptom follows one rod or bit, inspect the drill-string interface.
RFQ fields
- Drill model, suffix, serial or asset number
- Hole direction, diameter, depth and rock condition
- Bit, rod, shank and coupling specification
- Compressor and distribution arrangement
- Hose ID, length and coupling type
- Dynamic tool-inlet reading under the approved condition
- Flushing method and return condition
- Whether impact, rotation or both stop first
- Photos or video of the setup and symptom
Review replacement options in Rock Drills and Hand-Held Pneumatic Rock Drills, then Request a Quote with the completed fault record.
FAQ
Why does the drill work outside the hole but not in rock?
The drilling load increases air demand and exposes restrictions, poor flushing, excessive feed, binding or internal wear that may not appear during a free run.
Should I replace the piston first?
Not without model-specific evidence. A supply or drill-string problem can produce the same complaint, and uncontrolled parts replacement makes diagnosis slower.
Is compressor pressure at the receiver enough?
No. It does not show every downstream loss. The relevant measurement is at the tool under the approved operating test.
