If a pneumatic breaker will not start or will not produce any repeated blows, diagnose the air path before opening the tool. Confirm that usable compressed air reaches the breaker, then check the operating lever, inlet and exhaust passages, lubrication condition, moisture or icing, and working-tool seating. Only after those external checks pass should a qualified technician inspect the internal valve, piston and cylinder. The exact model manual remains the authority for pressure, hose size, oil, disassembly and wear limits.
This guide addresses a complete no-start or no-cycle condition: the breaker is silent, vents air without hammering, gives one movement and stops, or works briefly before freezing. A breaker that cycles normally but feels weak has a different diagnostic path; see our guide to pneumatic breaker weak blows.
First identify what “will not start” means
Do not begin by naming a failed part. Begin with the observable response. Two operators may both say “no impact” even though one tool receives no air and the other passes air continuously through its exhaust. Those symptoms point to different parts of the system.
| Observed response | First checks | Do not assume yet |
|---|---|---|
| No sound, no exhaust and no movement | Isolation valve, compressor output, regulator, hose, coupling and operating lever | Do not assume the piston is seized until air delivery is verified |
| Air escapes steadily but the tool does not cycle | Throttle travel, exhaust restriction, lubrication condition, valve movement and correct assembly history | Do not increase supply pressure to force a start |
| One click or one blow, then silence | Airflow under demand, hose restriction, moisture, valve sticking and piston freedom | Do not treat a static gauge reading as proof of adequate flow |
| Starts after warming, then stops in cold service | Separator, drain practice, hose condensate, exhaust icing and oil suitability for the conditions | Do not thaw the tool with an open flame |
| Tool cycles only when the chisel is pushed or repositioned | Correct shank, retainer, chuck wear and the model’s start condition | Do not grind or modify the shank to make it fit |
Record the symptom before disconnecting anything. A short video showing the hose, coupling, operator control and exhaust behavior is often more useful to a service technician than the statement “breaker not working.”
Safety boundary before diagnosis
Shut the air supply, isolate the line, depressurize the hose and verify that stored pressure is gone before disconnecting a coupling, removing the chisel or touching the exhaust area. Secure the working tool so it cannot fall or eject. Wear the personal protective equipment required by the site and by the breaker manufacturer.
Do not probe the inlet or exhaust with compressed air connected. Do not place hands near the chisel end during a test. Internal disassembly can release retained components and may change critical fits; it belongs to trained service personnel using the correct model drawing, tools and replacement parts.
Use an external-to-internal diagnostic sequence
1. Verify the air source and the entire delivery path
A compressor can show pressure at its receiver while the breaker still receives inadequate air when the throttle is opened. Check the path as a system: compressor outlet, isolation valve, water separator, regulator, lubricator, hose, couplings and tool inlet. Look for a closed valve, damaged hose lining, a crushed section, undersized temporary hose, contaminated coupling or a regulator that drops sharply under demand.
Compare the complete setup with the exact breaker manual. Pressure, hose bore and air consumption are model-specific. Testing at a higher pressure than the manufacturer allows is not a valid diagnostic shortcut and can create a safety risk.
If another known-good breaker of the same air requirement runs correctly on the same line, the evidence shifts toward the suspect tool. If the suspect breaker works on a verified line, the original supply path is the more likely cause. Change one variable at a time and document it.

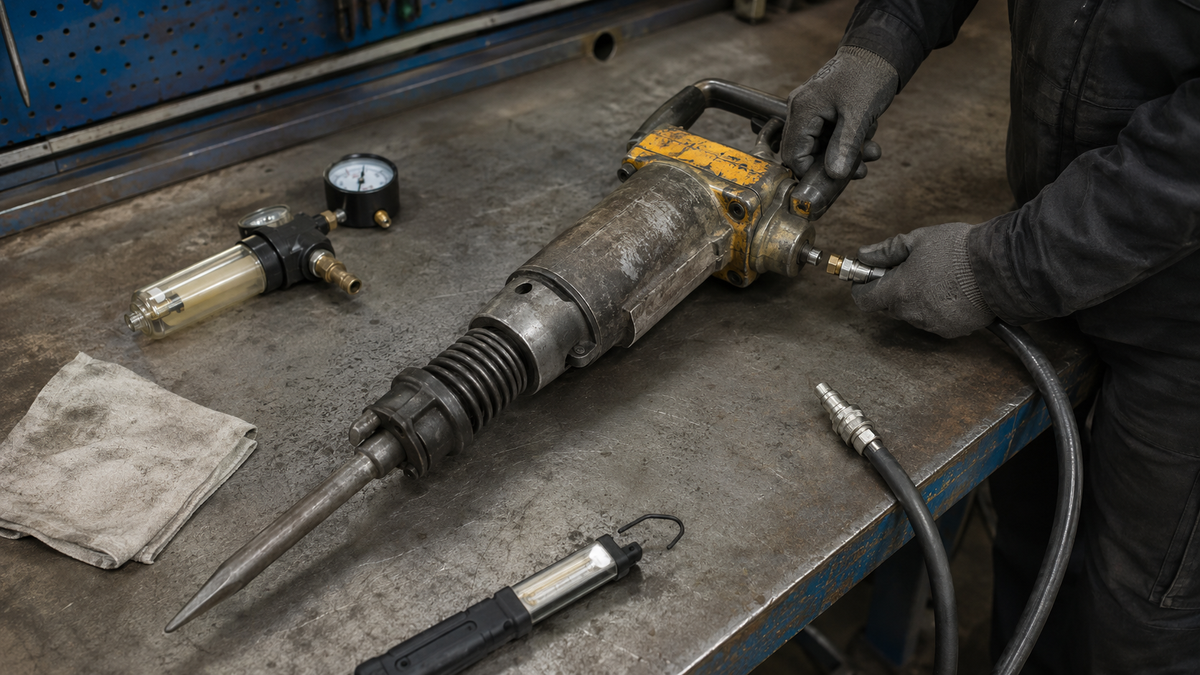

2. Check coupling engagement and inlet condition
With the system isolated and depressurized, confirm that couplings fully engage and that seals are not displaced. Inspect the hose end for loose particles or deteriorated inner lining. Debris released from a hose can enter the breaker and obstruct an air passage or interfere with valve movement.
Inspect only what the manufacturer permits from the exterior. Do not drive wire, drills or improvised tools into the inlet. If contamination is visible beyond an accessible screen or fitting, move the breaker to controlled service rather than pushing debris deeper.
3. Inspect the operating lever, throttle and external controls
Confirm that the operating lever moves through its intended travel and returns normally. A bent lever, damaged linkage, packed dirt or an incorrectly assembled handle can prevent the throttle from opening even when the air line is healthy. Compare the movement with a known-good unit of the same model if available.
If air escapes as soon as the hose is connected, stop and isolate the tool. That behavior can indicate a throttle that is not closing, an internal valve problem or incorrect assembly after repair. Treat it as evidence, not as a reason to hold the lever harder.
4. Inspect the exhaust route without defeating safeguards
The piston and valve cannot cycle correctly if exhaust air cannot leave as designed. Check the accessible exhaust area for packed dust, frozen moisture or damage. Some designs use mufflers, covers or ports that must remain in their specified condition. Do not remove a silencer or guard and then operate the breaker as a permanent “fix.”
A plugged passage inside the housing cannot be confirmed safely from the outside. If the external exhaust is clear but the tool passes air abnormally or refuses to cycle, record the behavior and refer the unit for model-specific internal inspection.
5. Confirm the lubricant, feed method and oil condition
Pneumatic breakers rely on the lubricant specified by the manufacturer. Too little lubrication can increase friction and wear; unsuitable, contaminated or degraded oil can leave deposits that interfere with moving parts. Excess oil is not a universal cure and can mask the real fault.
Check that the line lubricator is installed in the correct orientation, contains the specified oil and actually feeds under operating conditions. If the model uses manual lubrication, follow its manual rather than copying a drop count from another tool. Note the oil brand and grade used, how the tool was stored, and whether the problem began after a lubricant change.
If gummy residue or mixed oil is suspected, do not flush the tool with an unapproved solvent. Arrange controlled cleaning and inspection using the service procedure for that exact model.
6. Check moisture and freezing in cold or humid service
Compressed air cools as it expands through the breaker. Water carried through the line can condense or freeze at restrictions and exhaust points, producing an intermittent no-start condition. The pattern matters: a tool that starts warm, slows, then stops with visible frost is different from a tool that is completely silent in a dry workshop.
Drain the compressor and separator according to site procedure, check the bowl and hose for water, and verify that cold-weather preparation matches the OEM instructions. Move an isolated tool to an approved warm area for inspection. Never use a torch, open flame or uncontrolled heat on the breaker or hose.
7. Confirm the chisel, retainer and chuck relationship
Some breaker designs start only when the working tool is correctly positioned against the work. Confirm the correct shank form and dimensions from the breaker manual or approved parts list. Inspect the retainer for correct engagement and the chuck for visible wear or damage.
Do not confuse “will not cycle” with a chisel that is physically jammed. If the working tool cannot be removed after isolation, follow the separate guide for a pneumatic breaker chisel stuck in the chuck. Never weld, grind or hammer a mismatched shank into service.
8. Escalate to internal valve, piston and cylinder inspection
Once air delivery, controls, exhaust, lubrication, moisture and tool seating are verified, internal causes become more credible. Depending on the design, these can include a stuck or damaged valve, a piston that does not move freely, contamination in air passages, incorrect orientation after repair, damaged seals or wear in the cylinder and related parts.
Internal inspection must use the correct exploded view and service instructions. Parts that look similar across models may have different dimensions, porting or orientation. Keep removed components in sequence, photograph markings, and do not mix parts from two units. Measure only against the OEM limit or an agreed supplier specification; visual judgment alone is not an acceptance standard.
Diagnostic matrix for workshop control
| Test result | Most useful next action | Evidence to keep |
|---|---|---|
| No air at the disconnected tool end after the approved line test | Trace valve, regulator, hose and coupling restrictions | Line configuration, gauge location, hose and coupling photos |
| Air reaches tool; lever does not open normally | Inspect external lever and throttle linkage; move to service if internal | Lever travel video and handle condition |
| Air passes continuously; no cycling | Isolate, check accessible exhaust and lubrication history, then inspect valve assembly | Exhaust behavior, oil used and last service record |
| One movement then stop | Compare flow under demand, check moisture and valve/piston freedom | Known-good line comparison and temperature |
| Failure follows cold exposure and improves after approved warming | Correct water separation, draining and cold-weather preparation | Ambient condition, frost location and separator contents |
| Problem began immediately after overhaul | Verify part identity, orientation, seals and assembly sequence | Exploded view revision, replaced parts and technician notes |
Run a controlled confirmation test
- Define the symptom. Record whether the tool is silent, vents continuously, gives one movement or stops only in cold service.
- Restore a verified baseline. Use the correct working tool, specified lubricant and an air line known to meet the exact model requirement.
- Change one variable. Swap one hose, coupling or known-good compatible tool at a time. Do not change pressure, oil and working tool together.
- Stop on abnormal behavior. Uncontrolled leakage, damaged retention, unusual heating or mechanical binding requires isolation.
- Document the result. Keep the setup, test duration, observations and technician name with the unit.
This sequence prevents a temporary restart from being mistaken for a root-cause repair. It also makes supplier or warranty communication faster because the evidence shows which part of the system was eliminated.
Common troubleshooting mistakes
- Increasing pressure before verifying the manual. More pressure can hide a restriction briefly while creating additional risk.
- Reading pressure only at the compressor. The useful condition is delivery at the breaker under demand.
- Adding unknown oil or solvent. Mixing products can create deposits or damage materials.
- Blowing debris deeper into the inlet. External contamination should be removed by an approved method, not driven into passages.
- Operating with guards, mufflers or retainers removed. A diagnostic shortcut must not defeat a safety component.
- Replacing the piston first. The air path, throttle, moisture and valve condition should be verified before parts are ordered.
- Mixing parts between similar breakers. Similar appearance does not prove interchangeability.
Evidence to send for service or an RFQ
Provide the supplier or repair team with enough information to identify the unit and reproduce the fault:
- breaker manufacturer, complete model designation and serial number where available;
- photos of the nameplate, inlet, coupling, handle, retainer, chuck and working-tool shank;
- exact symptom and when it began, including temperature or moisture conditions;
- compressor, hose, regulator, separator and lubricator configuration;
- lubricant brand and grade, plus recent maintenance or overhaul history;
- known-good comparison test and what changed;
- exploded-view or parts-list revision used for any previous repair;
- required quantity, destination, delivery timing and whether a service kit or individual parts are requested.
For model and drawing details before ordering, use the pneumatic breaker spare-parts RFQ checklist. Clear identification is more reliable than ordering by a generic part name such as “valve” or “piston.”
Frequently asked questions
Why does air reach the breaker but it still will not hammer?
Air at the hose does not prove that the throttle opens, the exhaust is clear or the internal valve and piston can cycle. Verify lever travel, accessible inlet and exhaust condition, correct lubrication and moisture first. If those pass, qualified internal inspection is the next step.
Can a blocked exhaust stop a pneumatic breaker from cycling?
Yes. The percussion cycle depends on air entering and leaving the tool through designed passages. Packed debris, damage or icing at an exhaust restriction can prevent normal cycling. Inspect only accessible external areas and follow the model service procedure for internal passages.
Can the wrong oil make a breaker valve stick?
Unsuitable, contaminated or degraded lubricant can contribute to deposits and poor movement. Use only the oil and feed method specified for the exact breaker and conditions. Do not use an unapproved solvent flush as a shortcut.
Why does the breaker stop in cold weather?
Moisture in compressed air can condense or freeze as air expands through the tool. Check separator performance, draining, hose water and the manufacturer’s cold-weather instructions. Temperature-dependent symptoms and visible frost are useful evidence, but internal wear can coexist with icing.
When should the valve and piston be opened for inspection?
After safe external checks confirm the correct air supply, control operation, exhaust condition, lubricant, moisture management and working-tool fit. Disassembly should be performed by trained personnel with the correct manual, parts identification and measurement criteria.
Prepare a model-specific troubleshooting request
A no-start breaker should be diagnosed as an air-system and machine-system problem, not treated as an automatic piston failure. If you are specifying breakers, picks or service support for quarry, mine or construction use, review PerfoMax concrete breaking solutions and send the model, air setup, working-tool shank, symptom evidence and required quantity through the request-a-quote page. Because current product listings must not be forced into an unverified match, the team can confirm the appropriate commercial route from your actual application and equipment data.
