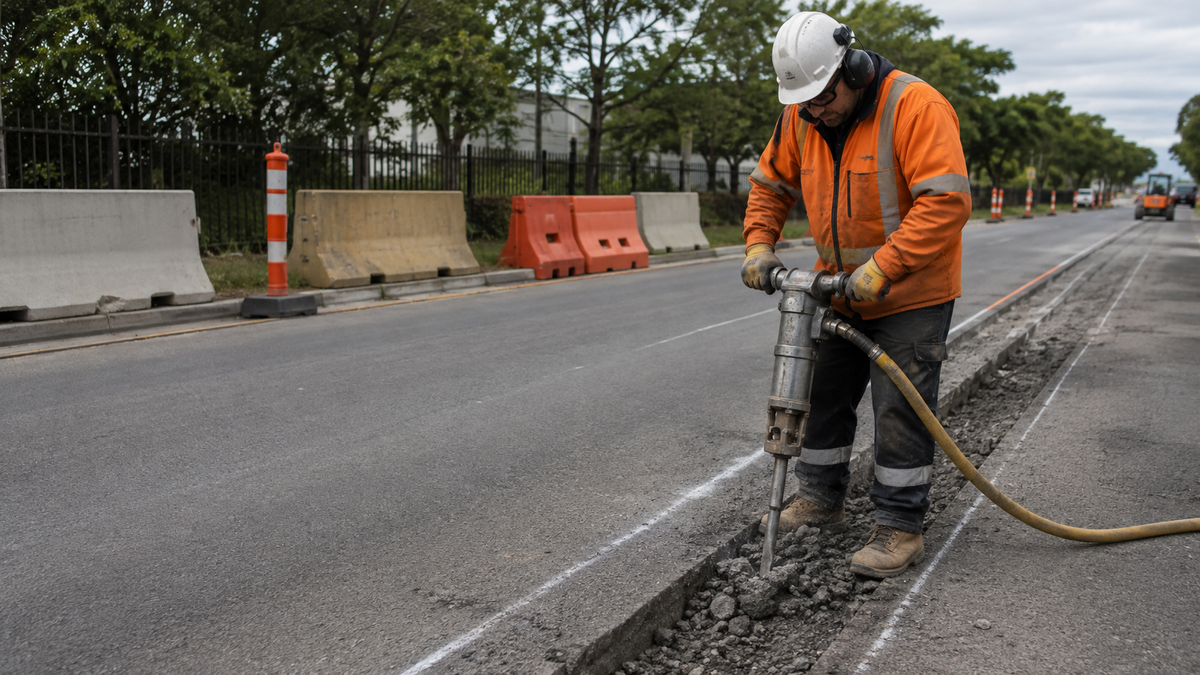

For asphalt trenching, a pneumatic breaker works best after the route, utility limits, pavement boundaries, and dust controls have been established. The usual objective is not to pulverize a wide area. It is to open a controlled strip: saw-cut or otherwise define the edges where the specification requires it, break inward from those boundaries, keep the tool close to its intended working position, and stop before the breaker enters an unverified utility zone or unstable excavation.
The breaker, chisel, compressor, hose, and work method must be treated as one system. A powerful tool with the wrong chisel shank, inadequate delivered airflow, poor lubrication, or an uncertain buried-service plan can damage the pavement, increase vibration, or create a serious site hazard.
Scope and safety boundary: This guide covers work planning, pneumatic-breaker setup, asphalt breakout, and purchasing inputs. It does not replace utility locating, traffic-control design, excavation protection, exposure assessment, or the breaker manufacturer’s instructions. A competent person must set the safe approach distance and excavation method for buried services, structures, and local ground conditions.
When is a pneumatic breaker suitable for asphalt trenching?
A hand-held pneumatic breaker is a reasonable choice when the opening is relatively narrow or local, the work area can support the operator and air line safely, and the pavement can be broken without unacceptable vibration or damage to adjacent assets. It is commonly considered for repair openings, service connections, short utility crossings, valve or cover access, and edge trimming after a controlled cut.
It is not automatically the best method for every trench. The pavement structure, opening length, required edge quality, traffic window, buried-service uncertainty, noise limits, and reinstatement specification can justify a different approach.
| Site condition | Breaker role | Method check |
|---|---|---|
| Short, narrow repair opening | Controlled breakout inside marked boundaries | Confirm breaker class, tool profile, access, and debris handling |
| Clean reinstatement edge required | Break material after the boundary has been cut | Use the project’s saw-cut and edge-preparation specification |
| Long, continuous trench | Possible secondary or trimming tool | Compare a saw, planer, excavator attachment, or other mechanized method |
| Unknown or congested buried services | Do not use as the locating method | Locate, mark, expose, and verify by the approved safe-digging procedure |
| Weak edge, voided base, or undermined pavement | High risk of uncontrolled breakback | Review pavement support and excavation sequence before impact work |
| Sensitive structures or occupied spaces nearby | Vibration, noise, and exhaust may govern | Use the project’s monitoring limits and alternative-method review |
Plan the opening before the breaker starts
The most important decisions are made before air reaches the tool. Begin with the approved work package, not an assumed trench line. Confirm the route, finished opening dimensions, pavement-layer information, traffic-control zone, spoil location, water or vacuum dust-control method, and how the opened area will transition into excavation and reinstatement.
- Verify buried services. Review current records, arrange the required utility locating, mark the surface, and use the prescribed non-destructive exposure method where the utility position or depth must be proved.
- Check the pavement structure. Asphalt thickness, underlying concrete, bound base, granular base, patches, voids, and previous trenches change how the surface breaks.
- Define the stopping boundary. Mark where powered impact work must stop and where hand tools, vacuum excavation, or another approved method takes over.
- Protect the work zone. Separate the operator, hose, compressor, debris, pedestrians, and vehicles according to the traffic and site plan.
- Plan drainage and housekeeping. Water used for dust control, loose fragments, and slurry must not create slip, traffic, environmental, or drain-entry problems.
A paint line is only a visible guide. It does not prove the position of a buried service, the stability of the pavement edge, or the safe depth for a breaker.
Use cut lines to control the asphalt edge
Where the reinstatement specification requires a straight, sound boundary, saw cutting normally establishes the edge more reliably than a breaker alone. The breaker then removes material from inside the cut rather than trying to create the finished edge by impact.
- Confirm the approved trench width and route against the utility plan and reinstatement detail.
- Mark both boundaries and any no-impact or hand-exposure zones.
- Complete the specified cutting process with its own guarding, dust, slurry, and traffic controls.
- Start the breaker inside the waste area, not directly on the edge that must remain sound.
- Create manageable fragments and remove them frequently so the operator can see the working face.
- Approach the final edge gradually; do not use the chisel as a lever against the retained pavement.
- Inspect for cracks, raveling, undermining, unexpected layers, or movement before continuing deeper.
If the asphalt tears far beyond the line, the tool repeatedly disappears into a void, or the base begins to move, stop and review the method. More impact energy is not a cure for a poorly supported edge.
Choose the working tool for the task—not by name alone
An asphalt cutter, flat chisel, narrow chisel, and moil point create different stress patterns. The correct choice depends on whether the immediate job is cutting a boundary, splitting a slab-like section, loosening a compacted zone, or trimming an edge. Just as important, the complete shank geometry must match the breaker’s chuck and retainer.
| Tool profile | Typical role in asphalt work | Main limitation |
|---|---|---|
| Asphalt cutter or wide blade | Opening or trimming a linear path in suitable pavement | Not a substitute for a specified saw-cut finish; wide blades can bind |
| Flat or narrow chisel | Splitting and peeling material from a defined edge | Can be damaged by excessive prying or side loading |
| Moil point | Starting a break or concentrating impact in a stubborn local area | Produces less edge control and can penetrate suddenly into weak layers |
| Clay spade | Excavation in compatible soil after pavement removal | Not the normal choice for cutting intact asphalt |
Do not order a chisel only as “for a 30 kg breaker” or by a familiar model family. Record the shank section, size across flats or diameter, insertion length, collar or guide dimensions, retainer type, overall length, and working-end profile. For broader selection context, see the published guide on choosing a pneumatic breaker for concrete and rock.
Control the breaker without forcing or levering it
Use the tool only in the positions approved by its manufacturer. For conventional paving-breaker work, this commonly means a stable, near-vertical operating position with both hands on the handles and the tool end seated on the material before the throttle is opened. The exact permitted angle belongs to the supplied operating instructions.
- Let the impact mechanism do the work; excessive body weight does not correct low air delivery or a blunt tool.
- Keep the chisel from being trapped between large pieces. Reposition before it binds.
- Avoid using the chisel as a pry bar. Side loading can bend the tool, damage the chuck, or destabilize the operator.
- Use short, controlled passes and work inward from the boundary rather than chasing long uncontrolled cracks.
- Shut off and isolate the air before changing tools, clearing a jam, checking the retainer, or leaving the breaker unattended.
Repeated bouncing can indicate poor seating, an unsuitable profile, hard underlying concrete, incorrect feed, or excessive chuck clearance. Sudden penetration can indicate thin pavement, a void, weak base, or an unexpected opening. Both are reasons to pause and identify the condition.
Verify the complete compressed-air system
A breaker needs the manufacturer’s required pressure and airflow at the tool while it is operating. Compressor nameplate capacity alone does not prove that condition. Hose inside diameter, total length, couplings, filters, a water separator, elevation, leaks, and simultaneous tools all affect delivered performance.
Before the shift, inspect the hose and couplings, check the hose-restraint arrangement required by the site and supplier, verify the lubricator and approved oil, confirm the tool retainer functions, and check chuck wear with the manufacturer’s method. Atlas Copco’s maintenance guidance specifically emphasizes hose and coupling condition, lubrication, retainer function, and chuck wear as routine checks.
| Symptom | Possible system cause | First check |
|---|---|---|
| Weak impact | Low inlet pressure, restricted flow, leak, or internal wear | Measure pressure at the tool under load and compare with the manual |
| Slow or irregular blows | Water contamination, poor lubrication, icing, or restriction | Check air quality, lubricator delivery, hose, and ambient conditions |
| Excessive vibration or rattle | Worn chuck, loose retainer, damaged tool, or poor seating | Stop, isolate, and inspect with the supplier’s wear criteria |
| Tool keeps sticking | Side loading, unsuitable profile, trapped fragments, or bent shank | Change the break sequence and inspect tool straightness and fit |
Control dust, noise, vibration, and exhaust
Asphalt contains mineral aggregate, and pavement layers or repairs may contain concrete or other silica-bearing materials. Impact work can therefore create respirable dust even when the surface looks like “only asphalt.” Use the project’s material assessment and exposure-control plan.
As a United States example, OSHA’s construction silica Table 1 lists jackhammers and handheld powered chipping tools. Where that rule applies, one specified option is a continuous stream or spray of water at the point of impact; another is a commercially available shroud and dust-collection system operated to the manufacturer’s instructions. Required respiratory protection changes with location and duration. NIOSH reported that a low-flow water spray reduced measured jackhammer dust exposure by 70–90% in its evaluation, but a local risk assessment still has to address slurry, visibility, nearby electrical hazards, and the actual material.
Noise and hand-arm vibration also need task-specific controls. Use declared vibration and sound data from the exact breaker configuration, maintain the tool, plan exposure time under applicable rules, and select hearing and other PPE through the site assessment. Compressed-air exhaust must not discharge debris or mist toward the operator or another worker.
Know where breaker work must stop
A pneumatic breaker is a demolition tool, not a utility locator. Do not use it to “find” a pipe or cable. When work approaches the site’s tolerance zone or the verified service depth is uncertain, stop powered impact work and change to the approved exposure method.
Pavement removal also does not complete the excavation risk assessment. Once the opening becomes an excavation, soil conditions, water, traffic loads, adjacent structures, access and egress, spoil placement, and protective systems become separate controls. OSHA’s trenching eTool is one regulatory example of this distinction; local law and the competent person’s plan govern the actual site.
Stop work immediately for an unmarked line, unexpected duct or slab, gas odor, arcing, water inflow, ground movement, loss of edge support, unexplained void, or any conflict between site conditions and the permit.
Common asphalt trenching mistakes
| Mistake | Why it causes loss | Better control |
|---|---|---|
| Breaking directly on the finished boundary | Creates ragged edges and cracks in retained pavement | Establish the specified cut and work from inside the waste strip |
| Starting before utilities are verified | Powered impact can damage hidden services | Complete locating, marking, and approved exposure steps first |
| Choosing a tool by breaker weight only | Shank or retainer mismatch can eject or damage the tool | Match the complete interface drawing |
| Using the chisel as a lever | Adds side load to the tool, chuck, and operator | Create smaller fragments and reposition |
| Assuming compressor pressure equals tool pressure | Hose losses can leave the breaker under-supplied | Check delivered pressure under load |
| Ignoring the excavation transition | Pavement controls do not address cave-in, water, or access hazards | Hand over to the approved excavation plan and competent person |
What to send in an RFQ for an asphalt trenching breaker system
A useful inquiry describes the job and the interfaces, not just a preferred model name:
- asphalt thickness, underlying layer, opening width, total length, and required edge finish;
- outdoor, indoor, roadside, confined, or noise-sensitive location;
- vertical, angled, or restricted working position allowed by the task;
- compressor delivered airflow and pressure, altitude, hose ID, hose length, and simultaneous loads;
- current breaker manufacturer, exact model, nameplate photo, and operating manual revision;
- chisel shank section, dimensions, insertion length, collar, retainer, and working profile;
- dust-control method, water availability, slurry constraints, and applicable exposure rules;
- inspection documents, spare tools, lubricator, hoses, couplings, restraints, packing, and delivery destination.
PerfoMax should not guess a breaker or chisel interface from a family name. Send the verified application, air-system, and tool-interface details to PerfoMax for a configuration review and quotation pathway.
Frequently asked questions
Should asphalt be saw-cut before jackhammering?
When the specification requires a straight, durable reinstatement edge, saw cutting normally defines the boundary more precisely. The breaker then removes material inside that boundary. Follow the project detail because pavement type, traffic class, and reinstatement rules differ.
Which chisel is best for asphalt trenching?
An asphalt cutter or wide blade can suit linear cutting in compatible pavement; a flat or narrow chisel can split and peel material; a moil point can start a stubborn local break. The working profile and the complete shank-retainer interface must both match the task and breaker manual.
Can a pneumatic breaker be used near buried utilities?
Only within the approved safe-digging plan and outside any powered-tool exclusion or tolerance zone. Utility records and surface marks do not prove exact depth. Use the required locating and non-destructive exposure method before powered impact approaches a service.
Why does the breaker feel weak even when the compressor gauge looks normal?
The gauge may be reading at the compressor rather than at the operating tool. Long or undersized hoses, restrictive couplings, leaks, filters, elevation, and other simultaneous tools can reduce delivered pressure and airflow.
Is water spray always required when breaking asphalt?
Requirements depend on the material, exposure assessment, tool system, location, and jurisdiction. Asphalt aggregate or underlying concrete can contain silica. Where OSHA Table 1 applies to silica-containing material, specified jackhammer controls include water at the impact point or a qualifying shroud and dust collector, with respiratory requirements determined by the rule.
