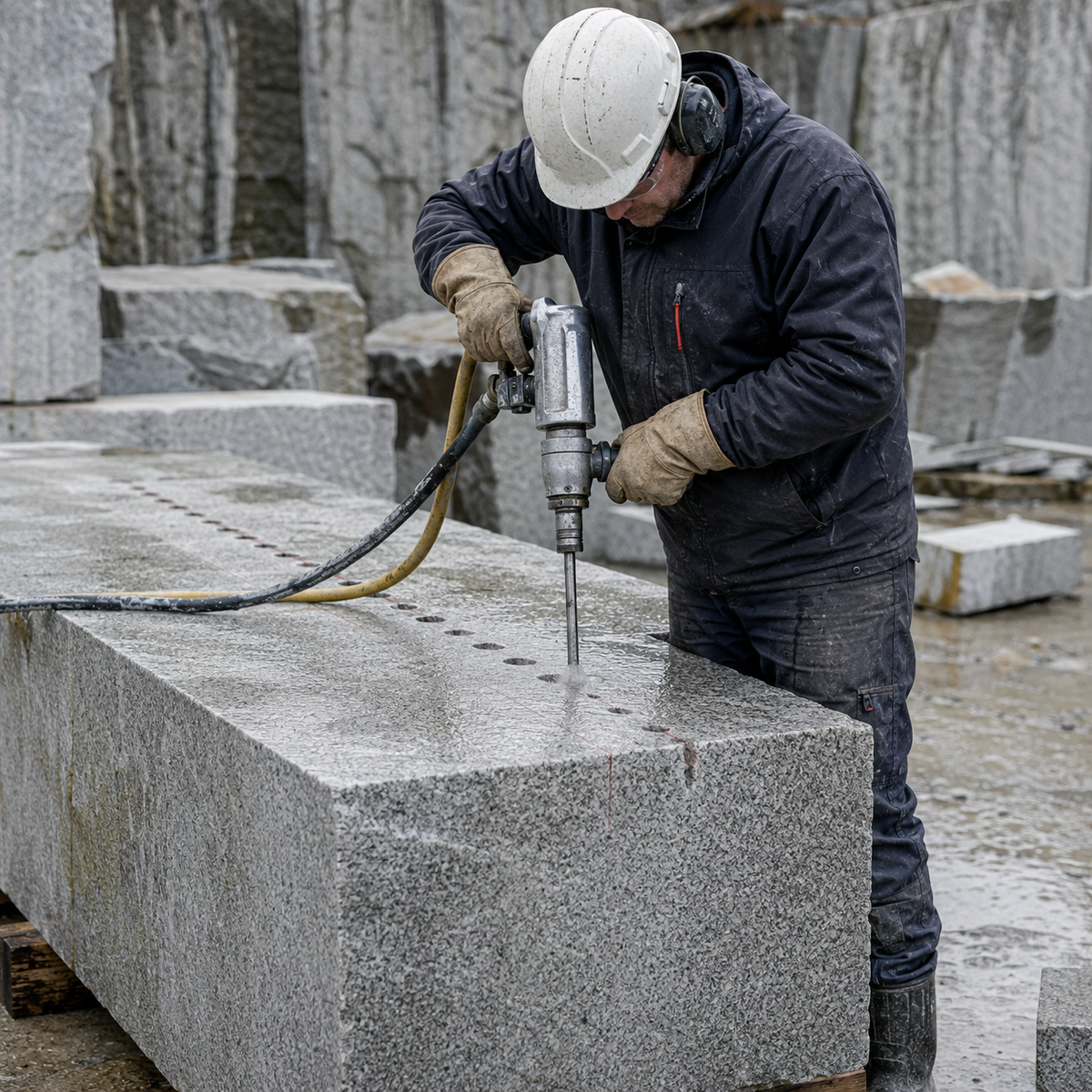

Short answer: a hand-held pneumatic rock drill with an H22 tapered drilling system can make plug-and-feather holes in competent granite when the required hole diameter falls within the available bit range and the operator can keep every hole straight, clean and consistently aligned. The wedge set—not the drill steel—should determine the finished hole diameter. Hole spacing and depth are then adjusted to the stone, wedge length, block thickness, free faces and required split quality; there is no universal spacing that is correct for every granite block.
This guide is for quarry crews, stone yards, contractors and distributors evaluating a compact drilling setup for controlled granite splitting. It explains the application boundary, the variables that change the answer and the information to confirm before ordering H22 bits or plug-and-feather tools.
What plug-and-feather splitting does
A plug-and-feather set consists of one central wedge (the plug) and two curved shims (the feathers). The pair is inserted into a drilled hole with the feather faces oriented so the expanding force acts across the intended split line. When several sets are loaded progressively, tensile stress develops between the holes until the stone separates.
The method can produce a controlled split without blasting, but it does not make the stone predictable. Granite varies in grain, mineral structure, weathering and hidden fractures. Existing bedding, seams or microcracks can redirect the split. Treat the marked line as a planned stress path, not a guarantee.
When an H22 pneumatic rock drill is a practical choice
A hand-held pneumatic rock drill is most useful when the work calls for a row of relatively short holes and the site has adequate compressed air, safe footing and room to control the drill. H22 tapered steels and detachable tapered bits offer a compact field-serviceable drilling system commonly used in stone and construction work.
This setup is directionally appropriate when:
- the stone is stable, accessible and can be supported against movement;
- the required wedge-hole diameter matches an available H22 tapered bit after allowance for actual drilled-hole condition;
- the operator can collar each hole accurately and hold a consistent angle;
- flushing can clear cuttings without creating an uncontrolled water, dust or slurry hazard; and
- the split is non-critical and the consequences of an off-line break are understood.
Choose a guided, mounted or engineered drilling method when hole parallelism is critical, the holes are long, the workpiece is unstable, access forces an unsafe posture, or a failed split could damage a structure or endanger people. Reinforced concrete, unknown buried services, suspended blocks and blasting work are outside the boundary of a basic stone-splitting procedure.
The variables that change hole diameter, spacing and depth
| Variable | Why it matters | What to confirm before drilling |
|---|---|---|
| Plug-and-feather set | The set is designed for a particular hole diameter and usable hole depth. | Manufacturer or supplier instructions, nominal set diameter, wedge length and required clearance. |
| Actual drilled hole | Bit wear, runout, collar damage and cuttings can change the effective fit. | Test-hole diameter, straightness, cleanliness and whether the feathers seat without forcing. |
| Stone structure | Grain, seams, weathering and existing fissures can help or divert the split. | Visible grain direction, soundness, previous break behavior and hidden-risk indicators. |
| Block geometry | Thickness, edge distance and available free faces influence the stress path. | Desired split plane, supported area, edge condition and where the separated pieces can move. |
| Required result | A rough production break and a finish-sensitive split have different tolerances. | Acceptable edge loss, dimensional allowance and whether a trial section is available. |
| Drill control | Crooked or non-parallel holes load the wedges unevenly and encourage an irregular crack. | Operator access, guide or square, stable stance and the ability to repeat angle and depth. |
Choose the plug-and-feather set before the drill bit
The correct sequence is simple: select the wedge set for the job, read its hole requirement, then match the bit and drill steel. A bit described as “H22” only identifies the drilling-system connection; it does not prove compatibility with a particular plug-and-feather set.
PerfoMax currently lists H22 tapered button bits in 30–40 mm sizes. That range is a possible drilling route only when the actual wedge-set requirement falls inside it and the bit taper matches the drill steel. Confirm the marking and dimensions of the existing steel rather than assuming that all tapered components interchange. For the matching logic, see the published H22 tapered button bit size guide.
Do not deliberately drill undersize and drive the set by force. An undersize or crooked hole can jam the feathers, concentrate stress at the collar and damage tools. An excessively loose hole can reduce support and make the set behave inconsistently. Make a test hole in representative material and verify the fit before completing the full line.
Plan the split line around the stone—not a copied spacing chart
Inspect all accessible faces before marking. Look for natural fissures, grain direction, weathered bands, previous drill holes and weak edges. Decide where both pieces can move after separation and how they will be restrained. Mark a straight line on the drilling face, then transfer the intended plane to adjacent faces where possible so off-angle holes are easier to detect.
Hole spacing should come from the wedge-set supplier’s procedure and a trial on representative stone. Closer spacing can increase control but also adds drilling time and may weaken a narrow edge. Wider spacing reduces drilling but asks each set to influence more stone. Stone thickness, edge distance, the number of free faces and natural weakness all change the result, so a spacing copied from a different block is not a specification.
Set hole depth from the wedge’s working length and the intended split plane. The hole must be deep enough for the feathers to seat and work as designed, yet deeper is not automatically better. Blind holes also need a clean bottom and room for debris. Do not through-drill unless the chosen method explicitly calls for it and the exit face, support and breakout risk have been assessed.
H22 plug-hole drilling workflow
- Isolate and support the stone. Keep people away from the projected split path and from any area where a released piece could roll, slide or fall.
- Inspect the pneumatic system. Check the drill, retainer, hose, couplings, lubricator and controls in accordance with the drill manufacturer’s instructions. Depressurize before connecting, adjusting or clearing equipment.
- Verify the complete interface. Confirm H22 steel geometry and taper, bit diameter, bit condition, wedge-set hole requirement and available depth. Replace visibly damaged, cracked or deformed components.
- Mark and reference the hole line. Use a straightedge, square or simple guide. Add depth marks to the steel if the drill manufacturer and site procedure allow it.
- Collar gently. Start with controlled feed so the bit establishes a clean seat on the mark. Full impact on an unstable collar encourages wandering and chipped edges.
- Hold a consistent axis. Correct small alignment errors early. Do not bend the steel to pull a wandering hole back onto the line.
- Maintain effective flushing. Clear cuttings continuously using the drill’s approved flushing arrangement. Reduced penetration, rising dust, unusually hot steel or packed cuttings are reasons to stop and inspect.
- Reach the planned depth without forcing. If the tool binds, stop, unload and clear the hole. Never use uncontrolled side leverage on the steel.
- Clean and check every hole. Remove sludge and loose chips, confirm depth and inspect the collars. Test the wedge-set fit in a representative hole before loading the whole row.
Load the wedge sets progressively
Follow the plug-and-feather supplier’s procedure. In the common arrangement, the two feathers are inserted first and oriented consistently across the desired split plane; the plug is then placed between them. Load the row in a controlled sequence, returning across the line in stages rather than fully driving one wedge while the others remain loose.
Listen and watch for crack development, but keep hands, face and body out of the split path. Stop if a set bends, a collar breaks away, the crack runs toward an unsafe face or the block begins to move. A heavier hammer or more force is not a substitute for correcting hole fit, alignment, support or spacing.
Qualify a trial row before releasing the production pattern
A successful single hole proves only that the drill can make a hole. Before repeating the pattern across saleable stone, qualify a short trial row on representative material and record the complete drill–hole–wedge interface. The site’s competent person must define the acceptance limits; do not copy an unverified diameter, depth or spacing from another wedge set or stone.
| Trial gate | Evidence to record | PASS condition | Hold or corrective action |
|---|---|---|---|
| 1. Controlled input | Stone type and condition, visible grain/joints, block geometry, free faces, split objective and authorized wedge-set instructions | The trial represents the intended production stone and the separation path can be controlled | HOLD if the stone is unstable, unsupported, structurally uncertain or the released pieces cannot move safely |
| 2. Complete interface identity | Drill model, H22 steel dimensions and taper, bit type and measured condition, wedge-set identity, stated hole requirement and wedge length | Every interface is known and the available bit is compatible with the wedge supplier’s stated hole range | Do not infer compatibility from “H22” or nominal diameter alone; resolve missing or conflicting data before drilling |
| 3. Collar and axis | Marked collar positions, reference line or guide, drilling direction and observed deviation | Collars remain on the reference and the holes stay within the site-defined angular and positional tolerance | ADJUST the support, guide or collaring method; CHANGE METHOD if manual control cannot repeat the required plane |
| 4. Finished hole | Actual depth, representative diameter or fit check, collar condition, straightness, cleanliness and flushing result | Each hole reaches the planned depth, is clear of packed cuttings and accepts the set without forcing or excessive looseness | HOLD the row for an undersize, oversize, crooked, blocked or damaged hole; correct the cause rather than driving the wedge harder |
| 5. Progressive loading | Feather orientation, loading sequence, abnormal tool movement, early collar cracking and emerging crack path | Sets remain seated and the crack develops progressively along the intended plane under the approved procedure | STOP for tool ejection risk, unstable movement, unexpected crack direction or a damaged set; clear the area before reassessment |
| 6. Split result | Final break path, surface damage, edge loss, incomplete separation, tool damage and any off-line fracture | The result meets the defined production allowance without creating an uncontrolled condition | ADJUST only one controlled variable at a time; CHANGE METHOD when repeatability or consequence cannot be managed |
Use four explicit dispositions. PASS releases only the recorded combination of representative stone, drill, steel, bit, wedge set and pattern. ADJUST AND RETEST means a controlled change is required and the production row remains unreleased. HOLD means missing data, a damaged component or an unsafe condition prevents another trial. CHANGE METHOD means a guided, mounted or engineered system is more appropriate than the current manual setup.
Copy-ready plug-and-feather trial record
Site / block / date: Stone type, visible grain, joints and weathering: Block dimensions, support and available free faces: Intended split plane and acceptable result: Drill model and asset ID: H22 steel dimensions, length and taper: Bit type, nominal size, condition and measured check: Plug-and-feather set supplier / ID: Supplier-stated hole diameter and usable depth: Planned collar line, hole direction, depth and spacing: Guide or alignment reference used: Actual collar positions and hole depths: Finished-hole fit / straightness / cleanliness observations: Feather orientation and loading sequence: Crack initiation and final break path: Tool, collar or surface damage: Disposition: PASS / ADJUST AND RETEST / HOLD / CHANGE METHOD Approved production limits: Responsible person / signature:
The trial record is not a universal pattern design. It preserves the evidence needed to repeat an accepted setup, investigate a failed split and give a supplier enough information to check the drill–steel–bit interface.
Common problems and the first checks
| Symptom | Likely checks | Do not do |
|---|---|---|
| Wedge set will not seat | Hole diameter, packed cuttings, crooked hole, damaged feathers, insufficient depth. | Drive harder into an undersize or blocked hole. |
| Crack starts at one collar only | Uneven loading, poor edge distance, collar damage, non-parallel holes. | Continue loading beside an unstable broken collar. |
| Split wanders off line | Stone grain or fissure, inconsistent angle/depth, excessive spacing, unsupported geometry. | Assume spacing alone caused the deviation. |
| Drill bit binds or penetration drops | Flushing, cuttings, bit wear, steel alignment, air supply and lubrication per drill manual. | Lever the running drill sideways. |
| Feathers or plug deform | Wrong hole fit, misalignment, excessive local force, damaged tool. | Reuse a visibly deformed set without inspection. |
When to stop and change the method
Stop the job and obtain competent engineering or specialist support when the stone cannot be stabilized, the split could affect a structure, the block is suspended or on a slope, the work is near utilities, the required plane is safety-critical, or the stone contains conditions that cannot be inspected with reasonable confidence. Larger or deeper production patterns may justify a guided drill, drill rig, wire saw, hydraulic splitter or another controlled method.
Also stop when the available H22 bit cannot meet the wedge supplier’s hole specification. Substituting a “close” diameter or an uncertain taper transfers the risk into the hole and the wedge set. Correct procurement is cheaper than recovering a jammed set or losing the split line.
RFQ checklist for H22 bits used on plug-and-feather holes
- stone type and a clear description of the splitting application;
- plug-and-feather manufacturer, model, nominal diameter, length and required hole specification;
- required finished hole diameter and planned depth;
- photo and measured dimensions of the H22 drill-steel taper;
- current bit type, face design and diameter, if replacing an existing item;
- rock-drill make/model and the manufacturer’s approved steel range;
- flushing method and available air supply at the drill;
- block geometry, desired split plane and typical site access;
- trial quantity before production supply; and
- packing, documentation and spare-bit requirements.
If the choice is between common tapered bit profiles, the published guide to button, cross and chisel H22 tapered bits explains the practical comparison. The wedge-set hole requirement remains the controlling compatibility check for this application.
Frequently asked questions
Can any H22 bit drill holes for feathers and wedges?
No. H22 describes the shank/steel system, not the required hole diameter. The bit must match the steel taper and produce the hole specified for the actual plug-and-feather set.
What spacing should I use for plug-and-feather holes in granite?
Use the wedge supplier’s starting procedure and confirm it with a trial in representative stone. Granite structure, block thickness, edge distance, free faces, wedge length, hole accuracy and required finish all affect spacing. A single universal number is not defensible.
Should the holes be vertical?
They should be consistent with the intended split plane. Vertical holes are common on a horizontal drilling face, but the required angle depends on the geometry. The critical point is that the row is aligned and the holes are parallel enough to load the same plane.
Why does a plug-and-feather set get stuck?
Common causes include an undersize hole, a crooked hole, packed cuttings, insufficient depth, a damaged set or excessive uneven loading. Depressurize drilling equipment, stabilize the work and use the tool supplier’s safe removal procedure rather than forcing the set.
Is a pneumatic rock drill always better than a rotary drill?
No. A pneumatic percussive drill can be effective in hard stone and field conditions, but the best method depends on hole diameter, depth, accuracy, access, available power/air, dust and water controls, and production volume. Guided or mounted equipment may be preferable when repeatability is the main constraint.
Technical references
- Kansas Geological Survey: building-stone quarrying and plug-and-feather method
- European Commission Joint Research Centre: dimension-stone extraction methods and resource efficiency
- The Stone Trust: practical guide to feathers and wedges
Confirm the hole system before ordering
Start with the plug-and-feather set, representative stone and the drill steel already on site. If the required diameter is within PerfoMax’s listed range, review the H22 taper button bits, 30–40 mm and send the wedge specification, steel dimensions, drill model and application details with your inquiry. PerfoMax can then respond against the stated interface and use case instead of relying on a generic H22 label.
