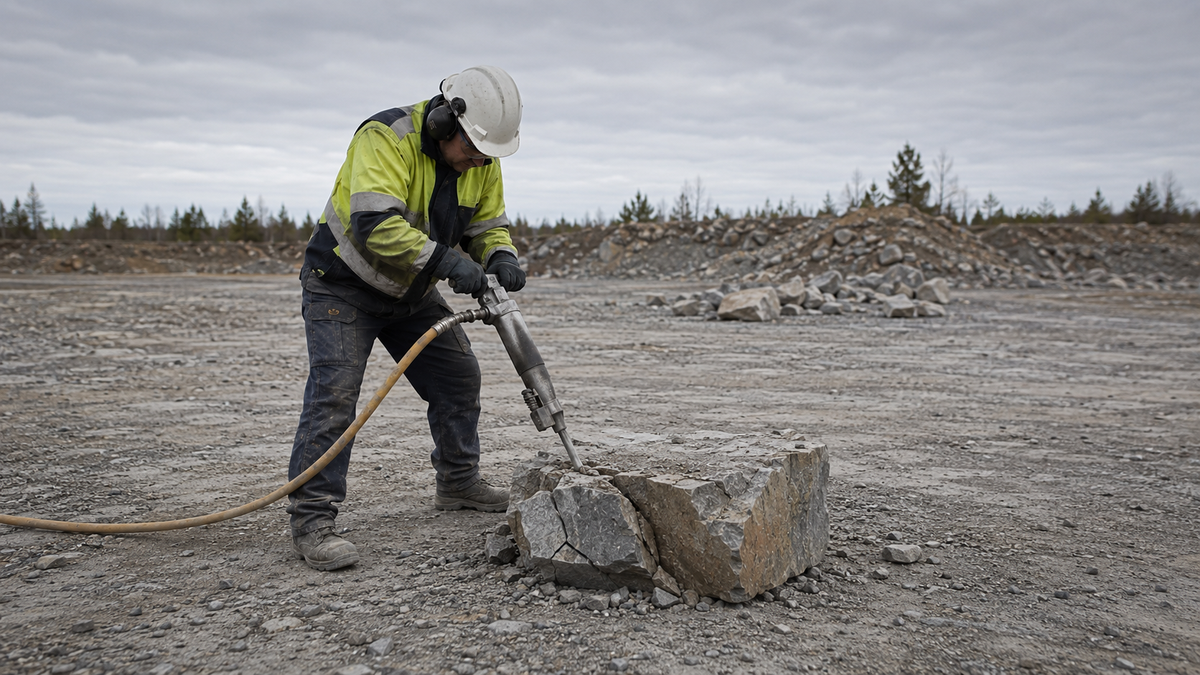

Yes—a handheld pneumatic breaker can break quarry rock, but only inside a practical application window. It is most useful for smaller loose blocks, exposed edges, soft or weathered material, and rock masses that already contain joints or fractures. It is usually a poor production choice for large intact hard-rock boulders, massive in-situ rock with no free face, or jobs that require sustained high tonnage.
The correct question is therefore not simply “Is the rock hard?” It is: Can impact energy open an existing weakness and release a manageable piece within a safe, repeatable cycle? Rock structure, block size, access, air delivery and the required production rate can matter as much as the rock name.
Quick answer: when does a handheld pneumatic breaker make sense?
| Site condition | Application outlook | Buyer implication |
|---|---|---|
| Loose or partly exposed block with visible joints and a free edge | Often a credible controlled-breaking task | Confirm breaker class, chisel fit and air demand from the actual model data |
| Weathered, bedded or moderately fractured rock | More favorable because discontinuities can guide crack propagation | Inspect the rock mass, not only a laboratory strength value |
| Small trimming, scaling or secondary correction with limited access | Handheld control and portability may be valuable | Compare cycle time and operator exposure with alternative methods |
| Large intact boulder or massive unfractured face | Usually slow, uncertain and physically demanding | Evaluate a mounted breaker, splitter, drilling and blasting, or engineered pre-splitting |
| High daily tonnage or continuous production | Handheld operation is rarely the economic baseline | Mechanization and production planning should drive the method choice |
| Unstable face, unsupported overhang, unidentified services or unsafe footing | Do not start a trial | Complete a competent site risk assessment and select a safer method |
The six variables that change the answer
1. Rock mass structure: intact material versus natural weaknesses
A laboratory sample may be strong while the field block is easy to separate along bedding, joints or weathered seams. The reverse also occurs: a rock type described as “soft” may form a thick, confined and surprisingly resistant mass. Existing discontinuities create potential release planes. The U.S. Federal Highway Administration notes that hammer breaking is most effective in soft or moderately to highly fractured rock, where discontinuities help the breaking process.
Before selecting a handheld breaker, record joint spacing, orientation, weathering, infill and whether a crack reaches an exposed face. Do not assume every visible line is open or continuous. A competent geologist or site engineer should evaluate uncertain faces, especially where released material could affect a wall, slope or working platform.
2. Free face and confinement
A free face gives fractured material somewhere to move. A loose block with an exposed corner can release in smaller pieces; the same material confined inside a floor or rock face may absorb repeated impacts without separating. Start method planning at an outer edge or existing discontinuity—not at the center of a large intact mass.
This is also why a handheld breaker should not be treated as a drilling machine. It chips and fractures material through repeated impact. It does not create a controlled blast-hole pattern, and the chisel must not be used as a lever to force a crack open.
3. Block size, thickness and required fragment size
“Quarry rock” can mean a small slab requiring trimming or a multi-tonne oversize boulder. Those are not comparable tasks. Record approximate dimensions, how much material is supported by the ground, the target fragment size and how the broken pieces will be removed. As the intact section and required production increase, a handheld tool becomes less attractive even if it can eventually create surface damage.
4. Strength, toughness, abrasiveness and weathering
Uniaxial compressive strength can support a method review, but it does not establish a universal handheld-breaker limit. Toughness affects crack initiation and propagation; abrasive mineral content affects chisel wear; weathering can weaken boundaries; foliation or bedding can create directional behavior. Ask for site observations or test information where available, then validate the method with a controlled trial under the breaker manufacturer’s operating instructions.
5. Delivered air at the tool
A breaker does not operate on compressor nameplate pressure alone. The selected compressor must supply the model’s required pressure and airflow while accounting for other simultaneous users, hose length, hose internal diameter, couplings, filters and pressure losses. Confirm pressure at the tool inlet while air is flowing, using suitable test equipment and the manufacturer’s procedure. A long, undersized or leaking line can make a correctly selected breaker appear unsuitable for the rock.
Provide lubrication and moisture management exactly as required by the breaker manual. If the tool develops weak or irregular impact, use a controlled diagnostic process rather than increasing pressure beyond the manufacturer’s limit. The related guide Pneumatic Breaker Has Weak Blows explains the air-supply, lubrication, chisel-fit and wear checks.
6. Production target and operator exposure
A method can be technically possible and still be commercially wrong. Measure useful broken volume or accepted pieces per operating hour—not only whether the chisel marks the rock. Include compressor fuel or energy, chisel consumption, service time, hose handling, setup and operator rotation.
Handheld breakers expose operators to noise and hand-arm vibration. Exposure depends on the tool’s declared or measured vibration magnitude and actual trigger time. The UK Health and Safety Executive advises assessing both magnitude and duration, selecting suitable lower-vibration equipment, maintaining it and limiting long continuous exposure. A high-production task that requires prolonged trigger time is a strong signal to consider mechanization.
Where handheld pneumatic breakers are strongest in quarry work
- Secondary correction of manageable loose pieces: removing projections, reducing small oversize fragments or preparing pieces for handling.
- Working from a natural joint or exposed edge: where the rock already offers a plausible release plane.
- Soft, weathered, bedded or fractured material: after the face and fall-of-ground risks have been assessed.
- Restricted-access maintenance work: where a mounted machine cannot safely reach and handheld control has a clear operational value.
- Short, controlled tasks: where setup simplicity matters more than continuous bulk output.
These are application categories, not promises of performance. Actual suitability depends on the specific breaker, chisel, air system, rock structure and site rules.
Where the method usually reaches its limit
- Large intact granite, basalt, quartzite or similarly tough oversize pieces with no usable crack or edge.
- Massive in-situ rock where the impact point is confined and broken material cannot release.
- Primary excavation or high-tonnage production that requires predictable hourly output.
- Faces with unstable blocks, overhead hazards, unsafe access or uncertain slope behavior.
- Locations where dust, noise or vibration cannot be controlled within the site’s legal and operational requirements.
- Tasks where repeated work produces only polishing, a shallow crater, excessive chisel wear or rebound rather than crack growth.
Stopping is a technical decision, not a failure. Continuing to hammer an unsuitable point increases exposure and wear without proving that a larger handheld breaker will solve the underlying confinement or rock-structure problem.
A controlled field-trial sequence
- Define success before starting. Record the block dimensions, target fragment size, acceptable cycle time and maximum operator exposure under the site program.
- Inspect the work area. Establish stable footing, an exclusion zone, hose routing and controls for falling or flying material. Do not work under unsupported rock.
- Map the likely release path. Identify an exposed edge, weathered seam, bedding plane or verified joint. If no plausible path exists, reconsider the method.
- Verify the equipment match. Confirm breaker model, permitted working orientation, chisel type, shank dimensions, retainer condition, lubrication and required air supply from controlled documents.
- Check the air system. Inspect compressor capacity, hose ID and length, couplings, leaks, water separation and delivered pressure while flowing. Isolate and depressurize before changing connections.
- Run a short controlled trial. Start at the edge or weakness, keep the chisel aligned with the local surface and observe whether a crack propagates or useful material releases.
- Reposition rather than pry. If the point only craters or the chisel binds, stop impact, isolate the tool and choose a new point. Never use the chisel as a lever while striking.
- Apply the stop rule. End the trial if there is no meaningful crack development, air delivery cannot be maintained, tool behavior becomes abnormal, safety controls degrade or the planned exposure would be exceeded.
- Record the result. Capture rock condition, breaker and chisel identification, air readings, trigger time, useful output, wear observations and the reason for acceptance or method change.
Technique that supports crack propagation
Use the breaker only in orientations allowed by its manufacturer. Place the chisel firmly against the chosen point before applying impact and keep the breaker aligned; side loading encourages slip, binding and chisel damage. Work progressively from an edge toward the remaining mass. Allow the tool to impact—do not swing the breaker, use it to drag debris or pry while the piston is striking.
Choose the insertion tool by both application and confirmed shank compatibility. A moil point concentrates force for initiating a localized fracture, while other profiles serve different materials and removal patterns. See Pneumatic Breaker Chisel Types for the functional differences, then verify the exact shank, collar and retainer dimensions before ordering.
Blank firing, persistent rebound, unusual metallic sound, air leaks, retainer movement or rapid heating are stop signals. Isolate and depressurize the tool before inspection. Never place hands near the chisel, retainer or coupling while the line can be energized.
Dust, noise, vibration and flying-rock controls
Breaking stone can release respirable crystalline silica. OSHA identifies water spray or mist at dust-generating impact work as an engineering control and advises against cleaning surfaces with compressed air. The control method must suit the material, weather, drainage, visibility and the breaker manufacturer’s instructions. Where water is unsuitable, use an engineered alternative selected through the site exposure assessment; PPE is not a substitute for feasible engineering controls.
- Complete the site risk assessment, permits and pre-start inspection.
- Use eye/face, hearing, head, foot, hand and respiratory protection selected for measured hazards and local rules.
- Establish an exclusion zone for flying fragments and control access.
- Assess vibration using representative magnitude and trigger-time data; rotate or change the method when required.
- Keep chisels sharp and serviceable because blunt or damaged tools lengthen exposure and can increase vibration.
- Secure and protect hoses from vehicles, sharp rock, heat and uncontrolled movement.
When to change to another breaking method
| Observed result | Likely issue | Next decision |
|---|---|---|
| A crack opens from an edge and useful pieces release consistently | The rock structure and method are compatible | Continue within the approved exposure, inspection and air-supply plan |
| Only a shallow crater forms at repeated points | Intact section, toughness or confinement exceeds the practical handheld window | Review mounted breaking, splitting or a pre-drilled method |
| Impact is weak or inconsistent across all points | Possible air delivery, lubrication, fit or internal-condition problem | Stop and diagnose the tool system before judging the rock |
| Chisel wear is rapid but crack growth is poor | Abrasive rock, unsuitable tool profile or method mismatch | Review tool material/profile and alternative methods using total cost |
| Required output demands long continuous trigger time | Handheld production capacity and exposure limits are misaligned | Mechanize or redesign the work sequence |
| Rock movement becomes unpredictable or footing deteriorates | Site stability risk | Stop immediately and obtain competent geotechnical/site review |
Information to send before requesting a breaker recommendation
- Application: trimming, secondary reduction, scaling, trench correction or another defined task.
- Rock type plus photographs of fresh surfaces, weathering, bedding and joints.
- Approximate block length, width, thickness, support condition and available free faces.
- Required final fragment size and target output per shift.
- Working direction, access, floor condition, overhead hazards and space restrictions.
- Available compressor make/model, rated airflow basis, simultaneous air users and altitude.
- Hose length, internal diameter, coupling type, lubricator and measured pressure at the flowing tool inlet.
- Existing breaker model, chisel profile, shank dimensions and retainer details.
- Applicable dust, noise, vibration and local safety constraints.
Buyers can review the live Pneumatic Picks collection and the Concrete Breaking Solutions page for the current PerfoMax commercial pathway. Product selection must be based on verified site inputs rather than a rock name alone.
Frequently asked questions
Can a handheld pneumatic breaker break granite?
Sometimes, for small exposed or already fractured pieces, but “granite” alone does not answer the question. Intact section size, jointing, confinement, toughness, abrasiveness, air delivery and the production target all matter. Large intact granite boulders commonly require a more powerful or pre-drilled method.
Is rock hardness the most important selection value?
No. Strength data can help, but field breakability also depends on fractures, bedding, weathering, free faces, block geometry and toughness. Use laboratory values as inputs—not as a universal promise of handheld productivity.
Should the operator start in the center of a boulder?
Usually not. An exposed edge, corner or verified weakness offers a more credible release path. Starting at the center of a large intact mass can create a crater without freeing useful material.
Which chisel should be used for quarry rock?
A moil point is commonly considered where concentrated impact is needed to initiate a crack, but the correct choice depends on rock behavior and the intended break. The shank, collar, guide diameter and retainer must match the specific breaker before use.
How do we know when the handheld method is too small?
Use a documented trial and stop rule. Poor crack development, only superficial cratering, unacceptable cycle time, excessive wear, inability to maintain air delivery or excessive operator exposure all support changing the method rather than continuing indefinitely.
Technical basis and safety boundary
This guide uses public technical guidance including the FHWA discussion of mechanical rock breaking and discontinuities, Atlas Copco’s pneumatic-breaker application information, OSHA dust-control guidance for jackhammering stone and concrete, and the HSE guidance on controlling hand-arm vibration. It does not replace the breaker manual, a site-specific risk assessment, exposure monitoring, local law or competent geotechnical judgment.
