Direct answer: H22 and H25 tapered drill steels are different system families, not interchangeable rod sizes. The designation identifies the nominal hexagonal steel section—approximately 22 mm or 25 mm—but a safe replacement decision also depends on the rock drill's chuck or chuck bushing, shank length and collar geometry, striking-face position, taper connection, bit socket, flushing path, rod length, and the equipment maker's approved configuration. A rod that looks close can still fit loosely, fail to seat, transmit impact poorly, damage the chuck, or accept the wrong bit.
For mines, quarries, contractors, and distributors, the practical rule is simple: select the shank end from the rock drill and chuck first, then match the bit end separately. Do not choose H22 versus H25 from rock hardness alone, and do not use taper angle as the only compatibility check.

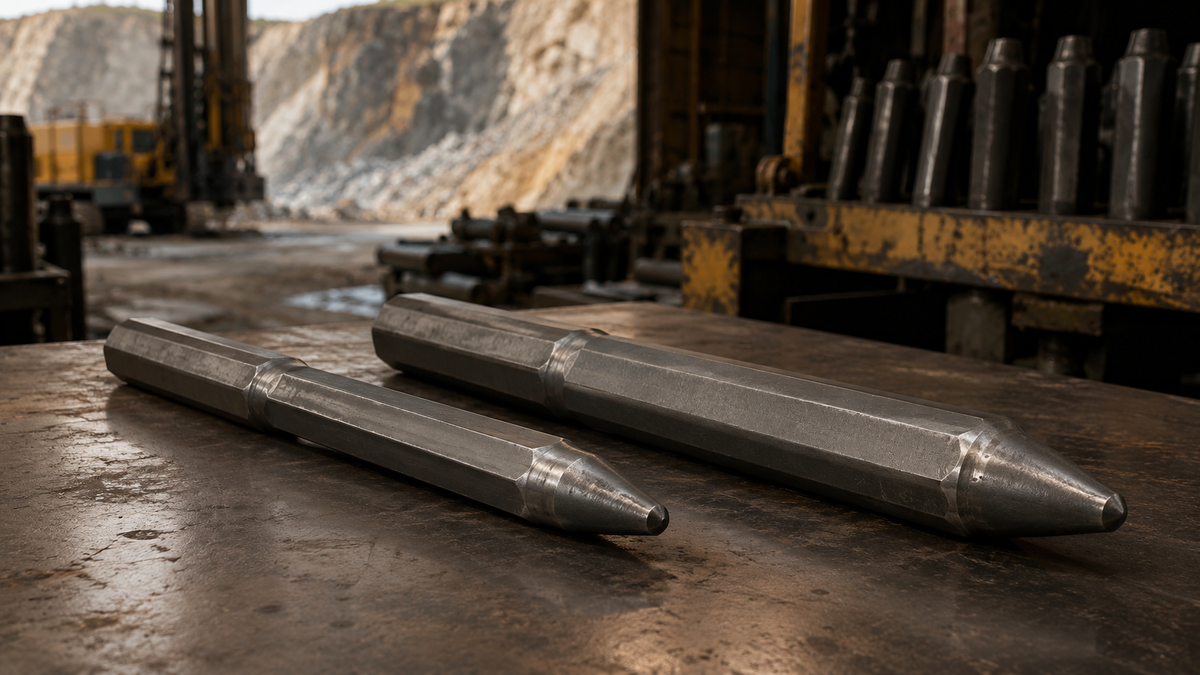

H22 vs H25 tapered drill steel: the buyer's direct comparison
H22 is the slimmer nominal hex family; H25 is the larger nominal hex family. The larger section can change mass, handling, stiffness, and the chuck components required, but those directional differences do not create a universal application boundary. Actual suitability depends on the complete drill, feed, hole, rod length, bit, and operating conditions.
| Selection field | H22 family | H25 family | Why it matters |
|---|---|---|---|
| Nominal hex designation | 22 mm hex family | 25 mm hex family | The chuck or bushing must correspond to the actual across-flats dimension and shank profile. |
| Typical system effect | Smaller, lighter nominal section | Larger, heavier nominal section | Handling and stiffness change with section, length, material, and geometry; compare supplier drawings rather than assuming performance. |
| Shank configuration | May be offered in configurations such as 22 × 108 mm | May be offered in more than one shank length or collar arrangement | The same H-family label does not guarantee the correct shank length, striking face, or collar position. |
| Chuck fit | Requires the matching H22 chuck/bushing arrangement | Requires the matching H25 chuck/bushing arrangement | An undersize shank can have excessive play; an oversize shank may not enter or move correctly. |
| Bit connection | Taper angle and end geometry must be confirmed | Taper angle and end geometry must be confirmed | H22/H25 describes the rod section, not the complete bit socket specification. |
| Replacement decision | Verify drill model, chuck, shank, taper, bit, flushing, and length | Verify the same fields independently | A previous rod, drawing, or physical sample is more reliable than a name alone. |
What H22 and H25 identify—and what they do not
In tapered drill-steel terminology, “H” refers to a hexagonal steel section and the number is the nominal size family. That information is useful for screening, but it is not a complete part number. It does not, by itself, define the full shank, taper angle, taper length, flushing hole, overall rod length, bit diameter, or bit socket.
This distinction prevents two common misunderstandings. First, a buyer may treat “H22” as if every H22 rod fits every pneumatic rock drill. In reality, the drill-side interface still requires an exact match. Second, a buyer may assume that two rods with the same stated taper angle accept the same bit. The socket depth, taper-end length, diameter progression, and manufacturing tolerances must also correspond.
For example, PerfoMax's current H22 × 108 mm tapered drill rod with an 11° connection option verifies three separate interface facts: the H22 rod family, a 108 mm striking interface, and an 11° bit connection option. Those facts should be checked against the actual rock drill and bit; they should not be generalized to an H25 system.
Check compatibility in this order
1. Identify the exact rock drill and chuck arrangement
Record the rock-drill manufacturer, complete model, and any chuck or chuck-bushing part number. If the machine has been rebuilt, do not assume the current chuck matches the original catalog configuration. Photograph the nose assembly and measure the installed component where the equipment manual permits.
The chuck controls the shank family. An H22 rod should not be trial-fitted into an H25 arrangement, nor should an H25 rod be forced into an H22 arrangement. Excess clearance can create impact misalignment and irregular wear; insufficient clearance can prevent free movement or seating. Either condition is a stop signal, not a reason to grind or modify the rod.
2. Measure across flats, not across corners
Use a suitable caliper to measure the parallel faces of the hex section. Clean dirt, rust scale, and burrs before measuring, and check more than one position. A worn sample can understate the original size, so compare the result with a drawing, an unused rod, or the chuck specification whenever possible.
3. Confirm the full shank geometry
Record total shank length, the position and diameter of any collar, the length of the hex portion that enters the chuck, and the location of the striking face. A shorthand such as “22 × 108” or “25 × 159” contains useful information but is still not a universal guarantee of interchangeability. Supplier drawings can use different reference points, so request a dimensioned sketch when switching brands.
4. Treat the taper as a separate interface
Confirm the taper angle, usable taper length, small- and large-end dimensions where available, and the matching bit-socket specification. Official Sandvik information for tapered bits, for example, distinguishes 7°, 11°, and 12° connections and multiple flushing arrangements. That is why “H22” cannot tell a buyer which taper bit to order.
A compatible H22 rod may use an 11° option while another H22 system uses a different taper. The active PerfoMax H22 taper button-bit range therefore calls for confirmation of taper, socket depth, face profile, button layout, and flushing arrangement rather than selection by hole diameter alone.
5. Check flushing as a continuous path
Confirm whether the rod has a central flushing passage, the passage size shown on the approved drawing, and how air or water reaches the bit. The rod and bit must form a clear, correctly aligned path. Do not enlarge a hole or modify a socket in the field to make unlike components fit.
6. Check rod length against the drill and working space
Overall length affects handling, feed travel, collaring control, hole straightness, and the bending load imposed by misalignment. State whether a quoted length is overall or effective. PerfoMax currently lists inquiry lengths of 600, 800, 1000, 1200, 1600, 1800, 2000, and 2400 mm for its H22 × 108 mm product, but final length, tolerance, and configuration still require written confirmation.
Why “close enough” substitution creates loss
A dimensional mismatch can appear inexpensive at purchasing stage and become costly in operation. A loose shank can move unevenly in the chuck, concentrate contact, and produce abnormal marks. An incorrect collar or striking-face position can alter how impact energy enters the rod. A mismatched taper may seat only on a narrow band, making the bit difficult to retain or remove and increasing the risk of local damage.
These symptoms can be mistaken for poor rod material, insufficient lubrication, low air pressure, or operator technique. Before changing operating settings, isolate the interface. Compare a known-correct assembly, inspect contact patterns, and check the drill maker's service guidance. Stop the machine for cracks, severe peening, a distorted chuck, persistent bit loosening, or any component that does not seat normally.
Field measurement and replacement checklist
| Item to record | How to verify | Evidence to send with an RFQ |
|---|---|---|
| Rock drill | Nameplate and equipment manual | Manufacturer, complete model, serial or configuration if relevant |
| Chuck/bushing | Part number, drawing, or careful inspection | Part number plus clear front and side photographs |
| Hex size | Across parallel flats at multiple clean positions | Caliper photograph and nominal family |
| Shank length | Use defined reference faces | Dimensioned sketch showing reference points |
| Collar and striking face | Measure positions and diameters | Close photographs and dimensions |
| Taper | Approved drawing or known matching rod/bit set | Angle, usable length, end diameters, and supplier reference |
| Bit socket | Bit drawing or unused sample | Socket depth, taper, bit type, gauge, and flushing layout |
| Rod length | Clarify overall versus effective length | Required length, tolerance, and working-space limit |
| Application | Site drilling plan | Hole diameter/depth/direction, rock condition, and flushing medium |
Common H22 vs H25 purchasing mistakes
- Choosing from rock hardness alone. Rock condition matters to the drilling system, but it cannot override the chuck and shank interface.
- Comparing only across-corner size. Hex steel is specified across flats; measuring the wrong faces can misidentify the family.
- Assuming every 108 mm shank is identical. Hex size, collar, striking face, and tolerances still need confirmation.
- Using taper angle as the complete bit specification. Socket depth, taper length, flushing, and gauge remain separate fields.
- Copying an old purchase description. Rebuilt drills, mixed inventories, and supplier shorthand can make an old line item unreliable.
- Modifying parts to force assembly. Grinding a rod, opening a chuck, or altering a bit socket removes control of geometry and heat-treated surfaces.
What to include in an H22 or H25 drill-steel RFQ
- Rock-drill manufacturer, full model, and current chuck/bushing part number.
- Required nominal hex family and measured across-flats value.
- Dimensioned shank sketch: length, collar, striking face, and insertion section.
- Taper angle and complete taper-end dimensions or an approved matching bit reference.
- Bit style, gauge diameter, socket depth, face arrangement, and flushing configuration.
- Rod length with a clear definition of overall or effective length and required tolerance.
- Hole diameter, typical depth, drilling direction, rock condition, and air/water flushing.
- Quantity, inspection requirement, packaging need, and request for a pre-production drawing when substituting brands.
For PerfoMax H22 inquiries, also confirm whether the H22 × 108 mm and 11° option matches the existing assembly. Rod weight, flushing-passage dimension, collar geometry, steel grade, heat treatment, straightness criteria, and final tolerances should be confirmed in the quotation or approved drawing. H25 or other non-H22 configurations should be treated as separate inquiries and are not implied by the current H22 product listing.
Frequently asked questions
Can an H22 rod be used in a chuck intended for H25?
No substitution should be made on the family name alone. A nominal H22 shank is smaller than H25 and is not a correct fit for an H25 chuck arrangement unless the equipment manufacturer provides a specific approved conversion with the correct components. A loose trial fit is not compatibility.
Does H25 always drill harder rock than H22?
No universal rule should be used. The larger nominal section changes the mechanical system, but drilling suitability depends on the rock drill, chuck, rod length, bit, hole requirements, alignment, feed, rotation, flushing, and site conditions. Start with the machine-approved interface, then evaluate the application.
If two rods are both 11°, will they use the same bit?
Not necessarily. The angle is one field. The taper length, end diameters, socket depth, contact band, bit gauge, and flushing arrangement must also match. Verify the rod and bit drawings or use an approved matched set.
How can I identify a worn rod when the marking is gone?
Clean it, measure the hex across flats at several positions, record the full shank and collar geometry, measure the taper with appropriate reference data, and photograph it beside a scale. Because wear can reduce dimensions, compare the sample with the chuck specification or an unused known-correct component.
What is the safest way to change from H22 to H25?
Treat it as a system change, not a rod swap. Obtain written approval for the rock drill, chuck or bushing, shank, rod, bit, flushing, feed, and operating limits. If the equipment documentation does not define an H25 conversion, do not improvise one.
Prepare a compatible H22 drill-steel inquiry
If your existing system uses H22 × 108 mm drill steel, review the PerfoMax H22 × 108 mm tapered drill rod and send the drill model, chuck details, measured shank, taper, bit socket, rod length, and application conditions for confirmation. For a broader matching workflow, see the published guides on H22 × 108 mm shank compatibility, 7° vs 11° vs 12° H22 taper compatibility, and H22 tapered drill-rod length selection.
Technical references
- Sandvik Mining and Rock Solutions: Tapered bits — taper families, bit sizes, flushing options, and application context.
- Sandvik Rock Processing Solutions: Download centre — current rock-tool catalog and document access.
Always follow the rock-drill manufacturer's operating, service, and safety instructions. This guide supports purchasing and compatibility checks; it does not replace an equipment-specific drawing or approval.
