Surface rust on newly received H22 tapered drill rods is not automatically acceptable or automatically rejectable. The buyer should quarantine the affected bundle, document the condition before cleaning, separate removable surface oxidation from scale or pitting, and inspect the taper, shank, transitions and flushing bore against the purchase specification. Acceptance must be based on the agreed drawing, surface-protection requirement and measurable damage—not color alone.
Important limit: There is no universal rust allowance for every tapered drill steel. Do not create an acceptance limit from a photograph, a generic steel standard or an unrelated product. If corrosion has produced pits, affected a contact surface, entered the flushing bore, obscured cracks or changed a controlled dimension, hold the rod for supplier or engineering review.
Fast decision: hold, clean for inspection, or escalate?
| Observed condition | Immediate disposition | Evidence needed |
|---|---|---|
| Thin orange-brown film that transfers to a clean cloth | Hold the lot and perform a controlled cleaning test on a representative area. | Before/after photographs, affected percentage, packaging condition and cleaned surface. |
| Flaking scale, rough cavities or visible pits | Do not release for drilling. Escalate for dimensional and technical review. | Close-ups with scale, location map, pit-depth method and supplier response. |
| Rust on taper, shank face or transition | Quarantine even if the affected area is small. | Part ID, drawing location, cleaned contact surface and relevant dimensions. |
| Moisture or corrosion product at the flushing bore | Keep isolated until the bore is inspected through its full accessible path. | End photographs, bore inspection record and evidence of blockage or internal attack. |
| Dry, intact protective film with no corrosion | Continue normal dimensional and quantity inspection. | Packing list, lot identity, protection method and receiving checklist. |
The safest purchasing decision distinguishes appearance from geometry. A light stain on an exposed body face is not the same problem as a small pit at a taper contact line or shank transition. Location, depth, distribution and the contractual surface requirement matter more than the total orange area.

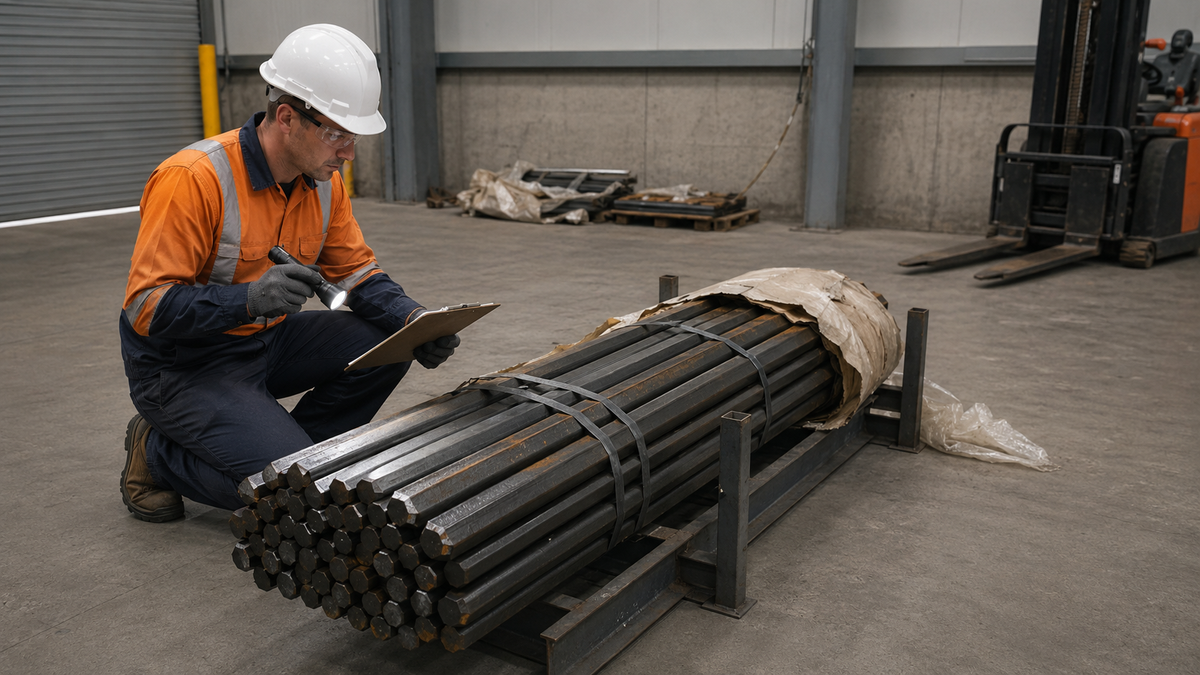

Preserve receiving evidence before opening the whole bundle
Record the container or truck condition, bundle position, wrapping, desiccant or vapor-corrosion material if specified, water marks, torn covers and damaged end protection. Photograph the shipping marks and supplier lot identity without moving loose labels to a different bundle. If several bundles are present, map which ones were nearest a door, roof leak, wet floor or condensation source.
Open only enough packaging to establish the pattern. Moisture concentrated under one tear suggests a local shipping event; widespread condensation under intact wrapping may indicate a temperature and humidity cycle or a packaging design problem. These are investigation leads, not proof of responsibility. Preserve the packaging until the claim is resolved.
Receiving inspection sequence for rusty H22 drill rods
1. Quarantine by shipment, bundle and lot
Do not mix affected rods with accepted stock. Assign a temporary hold identifier to each bundle and record the supplier lot, purchase order, quantity, nominal length and any heat or batch reference actually supplied. Keep nonconforming material physically separated so a warehouse issue does not become a field failure.
2. Sample without hiding the pattern
Select rods from the top, middle and bottom of the bundle and from both ends. If the rust pattern follows damaged packaging, include samples from the wettest and driest positions. A single attractive rod taken from the center cannot represent a shipment with localized water entry.
The sampling plan and acceptance number should be agreed in the purchase contract or inspection plan. Do not invent a sample size after the dispute begins.
3. Map the corrosion location
Separate the rod into functional zones: striking shank, chuck-contact area, body, transitions, tapered bit connection and flushing bore. Mark the location on a simple sketch or drawing. Corrosion at a load-transfer or contact surface deserves greater attention than similar discoloration on a non-contact body face because roughness and material loss can alter seating, alignment or local stress.
4. Perform a controlled cleaning test
Use the supplier-approved cleaner and a clean lint-free cloth or soft nonmetallic brush on a small representative area. Record the method, product and duration. The goal is to expose the underlying surface for inspection, not to make the rod look new.
Do not use acid, aggressive abrasive blasting, powered grinding or uncontrolled wire brushing. Those methods can remove base metal, change a controlled surface, round an edge, hide the original condition and destroy evidence needed to decide the claim. If more aggressive preparation is proposed, obtain written approval and retain an untouched reference sample.
5. Inspect the cleaned surface under controlled light
Look for cavities, rough depressions, linear marks, cracks, flaking scale and a boundary between affected and unaffected material. Use magnification appropriate to the inspection plan. Photograph perpendicular to the surface with a scale in the same plane. Oblique dramatic lighting may reveal texture, but it should not be the only image used for acceptance.
If a cavity is visible, a competent inspector should determine whether it is corrosion pitting, a manufacturing surface mark or handling damage. Visual appearance alone cannot establish pit depth.
6. Measure only with a defined method
Where the purchase specification gives diameter, across-flats, taper, straightness, shank or surface limits, use calibrated equipment and the stated method. Record instrument identification and measurement locations. A handheld caliper cannot reliably quantify every shallow pit; pit-depth measurement may require a bridge, depth instrument, surface-profiling method or laboratory examination chosen by the responsible engineer.
Do not average away a localized defect. A rod may meet the general across-flats dimension while a deep cavity remains at a critical transition.
7. Inspect the flushing bore
External cleaning does not prove the internal passage is dry and sound. Check both ends for water, corrosion product, oil condition and blockage. Use an approved bore-inspection or flow-verification method without forcing loose rust toward the rock drill. If internal corrosion cannot be assessed confidently, keep the rod on hold.
8. Decide disposition by contract and risk
Possible dispositions include accept as supplied, clean and re-protect under an agreed concession, sort the lot, replace affected rods, or reject the shipment. A concession should identify the exact rods, permitted cleaning method, reinspection, responsibility, warranty effect and traceability. Never convert a temporary supplier promise into a blanket acceptance rule for future orders.
Surface film versus pitting: the practical distinction
| Feature | Surface oxidation film | Suspected pitting or material loss |
|---|---|---|
| After gentle cleaning | Underlying surface appears continuous, subject to closer inspection. | Discrete cavities, rough depressions or missing material remain. |
| Measurement question | Does the cleaned surface meet the specified finish and dimensions? | What is the maximum depth, density and location relative to critical zones? |
| Disposition | May be considered under a written acceptance or rework rule. | Requires technical review; color removal alone is not remediation. |
| Claim evidence | Packaging moisture, before/after cleaning and affected area. | Location map, depth method, microphotographs and dimensional findings. |
ISO 8501-1 provides visual rust and preparation grades for steel substrates before painting. It can help teams use consistent visual language, but its published scope is not a product-acceptance standard for H22 drill rods. Do not label a rod acceptable merely because someone assigns it an ISO 8501 rust grade unless the purchase specification explicitly adopts a relevant method and acceptance rule.
Critical H22 rod areas to inspect carefully
- Striking face and shank: check for corrosion, impact damage, burrs and dimensional change where the rock drill transfers energy.
- Shank-to-body transition: inspect for pits, handling marks and cracks in the change of section.
- Male taper: confirm a continuous, clean contact surface without isolated cavities, embedded debris or damage that may prevent correct seating.
- Flushing entrance and bore: check for corrosion product, blockage and retained moisture.
- Hexagonal body: map the extent of oxidation and confirm straightness and across-flats requirements using the agreed method.
- Ends and packaging-contact points: look for concentrated moisture attack under wet separators, straps or damaged protective caps.
The marking “H22” describes the nominal hexagonal steel family, not the full purchase specification. Shank length, taper angle, rod length, bit match and drawing revision still require confirmation.
Build a claim package that a supplier can investigate
- Purchase order, approved drawing and surface-protection clause.
- Container, bundle and package photographs before disturbance.
- Bundle identity, lot or heat references supplied, and quantities inspected.
- Sampling locations and the number of affected rods by severity class.
- Before/after controlled-cleaning photographs of the same marked areas.
- Measurement method, calibrated instrument identity and raw results.
- Close-ups of taper, shank, transitions and flushing bore.
- Requested disposition: replacement, sorting, concession, rework or credit.
A statement such as “all rods are rusty” is difficult to act on. A mapped record—such as which bundles, which zones, which rods and what remained after approved cleaning—allows the supplier to trace packing, protection and handling variables without guessing.
Prevent corrosion after receiving
Once inspection is complete, dry accepted rods and restore the supplier-approved corrosion protection. Store them off the floor on enough aligned supports to prevent bending, protected from rain, condensation, chemical mist and salt contamination. Allow ventilation where packaging could trap moisture. Keep different lengths, tapers and lots segregated and identified.
Long-term storage instructions vary by coating and protection method. Epiroc's published equipment-storage guidance emphasizes protecting unpainted surfaces with rust inhibitor and keeping equipment dry and clean; drill-steel buyers should obtain equivalent written storage instructions for the exact product and supplied protective film.
What to specify before the next shipment
Add corrosion control to the RFQ and purchase order instead of relying on the phrase “export packing.” Specify the delivery climate and transit mode; maximum storage duration; required cleaning and protective treatment; internal-bore protection; end protection; separators that will not retain water; barrier, desiccant or vapor-corrosion requirements where needed; package integrity; lot traceability; receiving sample plan; inspection method; acceptance criteria; and the evidence required for any concession.
PerfoMax's active H22 × 108 mm tapered drill rod inquiry route covers an 11° connection option and multiple listed lengths. Buyers should submit the rock-drill model, shank requirement, rod length, taper angle, quantity, destination and packing environment so the quotation and inspection plan remain tied to one controlled specification.
Frequently asked questions
Is light surface rust acceptable on a new H22 drill rod?
It depends on the contract, location and condition after controlled cleaning. A removable film on a non-contact body surface may be handled differently from a pit on the taper or shank. Hold the lot and document the evidence before deciding.
Can I remove rust with a wire wheel and then inspect the rod?
Not without an approved procedure. Powered cleaning can remove base metal, alter a contact surface and erase evidence. Begin with the supplier-approved least-aggressive method and retain an untouched reference sample.
Does ISO 8501-1 define acceptance for drill rods?
No. Its scope concerns visual assessment of steel surfaces and preparation before paints and related products. It may provide visual terminology, but it does not by itself define whether a percussive drill rod is fit for service.
Why is pitting more serious than orange discoloration?
Pitting indicates localized material loss that remains after cleaning. Its importance depends on depth, density and location, particularly near the taper, shank, transitions or flushing bore. A competent technical review is needed when pits are suspected.
What photographs should accompany a corrosion claim?
Include the unopened package, moisture source, shipping marks, bundle map, full rod, affected zone, close-up with scale, and the same marked area before and after approved cleaning. Add measurement records rather than relying only on color photographs.
Technical references and next step
For reference boundaries and storage principles, see the official ISO 8501-1:2007 scope and status page, Epiroc long-term storage maintenance guidance, and Di-Corp's drill-rod protection and storage guidance. Apply only instructions relevant to the exact product, coating and site.
Related PerfoMax guidance covers H22 tapered drill rod pre-shipment inspection, H22 × 108 mm compatibility checks, and evidence collection after tapered rod breakage.
Need a controlled H22 rod quotation or corrosion review?
Send the rod drawing, drill model, destination, packing requirement and receiving photographs through the PerfoMax request-a-quote page. We can review specification and evidence without treating surface color alone as a pass-or-fail criterion.
