Foot-Valved vs Tubeless DTH Hammers: Compatibility and Selection Guide

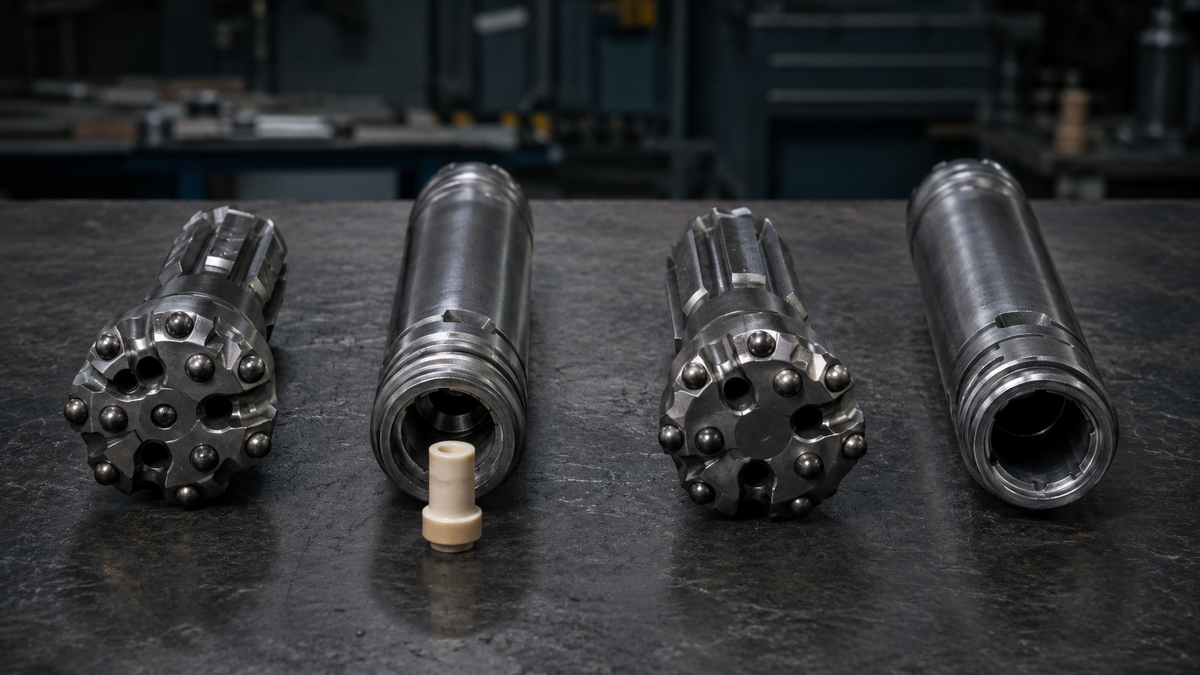

Foot-valved and tubeless DTH hammer and bit assemblies compared on a workshop bench

Short answer: a foot-valved DTH hammer and a tubeless DTH hammer are different air-path configurations, and neither is automatically the better choice. The correct configuration is the one documented for the exact hammer model, bit shank, operating pressure, and compressor. A bit that physically enters the chuck can still be wrong if its shank air passage, foot valve, or internal clearances do not match the hammer.

This distinction matters when a mine, quarry, drilling contractor, or distributor replaces a hammer or changes bit suppliers. The costly assumption is that any standard-shank bit becomes “tubeless” when its plastic tube is removed. Some OEMs approve that conversion for named hammer-and-shank combinations; others use dedicated tubeless bits or different internal parts. Treat the model documentation—not a generic shank name—as the controlling reference.

Foot-valved vs tubeless DTH hammers: the direct comparison

Decision point Foot-valved configuration Tubeless configuration
Bit-shank air component A polymer blow tube, commonly called a foot valve, is fitted in the bit shank. No foot valve is fitted; the hammer and bit air path is designed or approved to operate without it.
What must match Hammer model, shank family, valve diameter, installed height, sealing fit, and bit geometry. Hammer model, approved tubeless shank or conversion, bit geometry, and the hammer's tubeless internal configuration.
Typical service issue A cracked, loose, heat-damaged, or incorrectly installed foot valve can interrupt cycling or flushing. The plastic foot-valve failure mode is removed, but other wear, sealing, and airflow problems still remain.
Interchangeability Do not fit a tubeless bit unless the exact hammer documentation allows it. Do not remove a standard bit's foot valve unless the exact hammer/shank combination is approved.
Buying implication Include the foot-valve specification and spare quantity in the order. State “tubeless” explicitly and identify any required bit suffix, conversion kit, or internal parts.

The comparison is architectural, not a universal performance ranking. Air consumption, impact energy, frequency, water handling, and penetration rate depend on the complete hammer design and its operating point.

DTH bit shanks showing a fitted foot valve and an open tubeless air passage
A visible tube difference is useful for inspection, but it does not prove that two bits are interchangeable.

First clarify the terminology: “valveless” is not always “tubeless”

Two separate valves can be discussed in DTH drilling:

  • Internal air-distribution valve: a component or valving arrangement inside the hammer that controls the piston cycle.
  • Bit foot valve or blow tube: a polymer tube fitted in the bit shank that forms part of the exhaust and sealing path on certain hammer designs.

A hammer can be internally valve-equipped yet use no nylon blow tube. The active PerfoMax CIR90 low-pressure DTH hammer, for example, is described as valve-equipped while its current product specification states that it does not require the nylon blow tube used by some other designs. That is why the word “valveless” is too ambiguous for an RFQ. Ask instead: Does this exact hammer require a foot valve in the bit shank?

OEM naming also varies. “Tubeless,” “no foot valve,” “blow-tube-free,” and a model suffix may refer to similar purchasing intent but not necessarily identical parts. Record the manufacturer's full hammer designation, revision, and bit-shank designation.

Why removing the foot valve is not a universal conversion

There are legitimate model-specific examples of standard shanks being used with the foot valve removed. Robit lists named WH TL hammer-and-shank combinations, while Rockmore describes its T Series as using standard shank connections without blow tubes. These examples prove that conversion can be engineered and approved; they do not make the practice universal.

The foot valve influences the air seal and exhaust timing near the piston and bit shank. Removing it from a hammer that expects it can change leakage, prevent reliable cycling, weaken flushing, or create impact behavior outside the intended design. Conversely, installing a foot-valved bit in a tubeless system can obstruct the designed air path or prevent correct assembly.

Use this approval test before changing a configuration:

  1. Identify the complete hammer model and any FV, TL, DH, QL, or other suffix.
  2. Find the OEM parts list, data sheet, or written supplier confirmation for that exact model.
  3. Confirm the allowed bit-shank family and whether the foot valve is installed, removed, or absent by design.
  4. Confirm whether a conversion requires a liner, air distributor, piston, choke, or other internal part change.
  5. Inspect one controlled assembly and run a monitored field trial before releasing a bulk order.

The compatibility chain buyers should verify

Foot-valve status is only one link. A reliable replacement order confirms the entire DTH system from compressor to bit.

Interface Evidence to request Risk if omitted
Hammer identity Make, full model, size class, serial/revision where available, and manual or parts-list reference A similar-looking hammer may use different internals.
Bit shank Exact shank designation, drawing or approved reference bit, spline and shoulder dimensions The bit may enter the chuck but seat or strike incorrectly.
Foot valve Required/absent status; outside diameter, installed height, and approved material or part number when required Leakage, non-cycling, breakage, or poor flushing
Chuck and retention Chuck thread/model, retaining rings, bit-retention layout, and wear condition Excess play, difficult assembly, or unsafe retention
Air system Pressure and delivered airflow at the hammer, hose and pipe restrictions, altitude allowance A compatible assembly may still underperform.
Drill string Backhead thread, pipe connection, pipe bore, and rig connection Mechanical mismatch or excessive pressure loss
Application Hole diameter/depth, rock and fracture condition, water inflow, flushing demand The selected architecture may not suit the operating envelope.

For the bit interface in more detail, use the published DTH bit shank compatibility guide. It explains why shank name, foot-valve fit, chuck, and piston contact must be checked together.

How to compare the two architectures for a real drilling job

Start with the existing fleet, not a generic preference

If the site already has proven hammers, bits, and spares, changing architecture can multiply stock-keeping units and training requirements. Compare the expected operational gain with the cost of new bits, internal kits, reference samples, service procedures, and remote-site inventory. A design that reduces one small failure item may still be expensive if it fragments the fleet.

Match compressor delivery to the exact hammer curve

Do not infer air demand from “foot-valved” or “tubeless.” Robit's modular H Series, for example, separates foot-valved/tubeless versions from maximum-performance/high-efficiency assemblies. Those are different decision dimensions. Use the model's pressure-airflow chart and check delivered air at working pressure, not only compressor nameplate free-air delivery.

Treat wet or unconsolidated ground as model-specific evidence

Some OEM tubeless designs are promoted for water-bearing or soft, unconsolidated ground because they remove a foot-valve breakage mode and use a purpose-designed airflow arrangement. That benefit belongs to the documented model and its test conditions. For another hammer, confirm water-handling limits, flushing options, choke settings, and service instructions instead of extending the claim.

Compare service exposure, not only penetration rate

A useful decision includes time spent changing valves, cleaning the hammer, replacing liners and seals, managing water, and waiting for uncommon spares. Record drilling meters per shift together with compressor fuel, unplanned stops, bit life, hammer inspection findings, and maintenance hours.

Technician measuring DTH hammer and bit components before assembly
Verify the model, shank, mating dimensions, and required air-path configuration before assembly.

A controlled replacement and field-trial workflow

  1. Freeze the baseline. Record the current hammer model, bit code, foot-valve status, hole diameter, rock condition, air pressure, airflow estimate, and recent operating results.
  2. Approve the configuration on paper. Obtain the proposed hammer data sheet, parts list, bit-shank confirmation, and any written conversion instruction.
  3. Inspect incoming parts. Compare hammer, chuck, bit shank, retaining parts, backhead, and valve requirement with the approved order. Do not force a tight assembly.
  4. Bench-check movement and fit. Follow the manufacturer's assembly procedure and verify that the bit moves and retains correctly. Do not pressurize a partially assembled hammer.
  5. Run a limited trial. Start with a controlled number of holes in known ground using qualified operators.
  6. Log comparable measurements. Track pressure at the rig, penetration time, flushing, water inflow, abnormal vibration or sound, valve incidents, wear, and maintenance time.
  7. Inspect before scale-up. Disassemble under the approved safety procedure and check impact faces, splines, chuck, piston, liner, seals, and retention parts.

Stop the trial for non-cycling, unstable impact, unusual air leakage, poor cuttings return, overheating, metal fragments, or abnormal retention movement. Troubleshoot the system rather than increasing pressure beyond the documented limit.

Spare-parts and supply implications

A foot-valved fleet normally needs correctly sized replacement valves and a method to control installed height and fit. Tubeless systems remove that particular consumable, but they still need model-specific wear parts. The stock list can include chucks, retaining rings, O-rings, check valves, springs, liners, air distributors, pistons, backheads, and service tools depending on the hammer.

For remote sites, organize kits by complete hammer model rather than by nominal inch class. Keep approved reference photos or drawings with each kit, and quarantine unidentified valves or internal parts. The published DTH hammer spare-parts planning guide provides a broader stock-planning method.

Common selection mistakes

  • Using “valveless” without defining it. State separately whether the hammer has an internal valve and whether the bit requires a foot valve.
  • Ordering by hammer inch class alone. Size class does not define shank, backhead, airflow, or tubeless status.
  • Assuming a shared shank name guarantees conversion. Require exact model-specific approval.
  • Removing a tube to solve breakage without finding the cause. Incorrect fit, heat, debris, wear, or assembly practice may remain unresolved.
  • Mixing configurations in one parts bin. Separate and label approved foot-valved and tubeless components.
  • Comparing penetration in different ground. Use matched holes and record pressure, water, depth, and operator inputs.

RFQ checklist for a foot-valved or tubeless DTH hammer

  • Exact existing and proposed hammer make, model, size, and revision
  • Required configuration: foot-valved or tubeless/no foot valve
  • Exact bit-shank designation and reference bit code
  • Bit diameter, face design, button shape, and application
  • Backhead thread and drill-pipe connection
  • Compressor model, working pressure, and delivered airflow
  • Hole diameter, typical depth, inclination, and flushing medium
  • Rock hardness/abrasiveness, fractures, water inflow, and unconsolidated zones
  • Required conversion parts, service tools, manuals, and spare kits
  • Trial quantity, inspection records, packaging, and identification requirements

Attach photographs of the hammer nameplate, backhead, chuck, existing bit shank, and foot valve where available. If the designation is uncertain, send dimensions and a physical reference sample under an agreed inspection plan.

Frequently asked questions

Is a valveless DTH hammer always tubeless?

No. “Valveless” may describe the hammer's internal air-distribution design, while “tubeless” usually describes the absence of a bit-shank foot valve or blow tube. Ask both questions separately for the exact model.

Can I make any DTH bit tubeless by removing the foot valve?

No. Remove it only when the hammer manufacturer or a qualified supplier approves that exact hammer-and-shank combination. Some named systems allow it; others require dedicated bits or internal conversion parts.

Can a tubeless bit fit a foot-valved hammer?

Physical insertion is not proof of functional compatibility. Without documented approval, the air seal, piston cycle, impact contact, and flushing path may be wrong.

Are tubeless hammers always better in wet holes?

No universal conclusion is safe. Some purpose-designed tubeless models are recommended by their OEMs for high water volumes, but water handling also depends on airflow, internal design, flushing setup, hole condition, and operating procedure.

What information prevents the most ordering errors?

The full hammer model, exact bit-shank designation, foot-valve requirement, backhead thread, and pressure-airflow operating point prevent far more errors than nominal hammer size alone.

Prepare a configuration that can be verified

PerfoMax supports DTH hammer and bit matching within the current product range. For one active no-blow-tube example, review the CIR90 low-pressure DTH hammer; its CIR90 shank, T48×10 top-sub connection, and operating inputs must still be confirmed against the drill string and site. For another model or an uncertain replacement, send a DTH hammer RFQ with the checklist above so the configuration can be reviewed before ordering.
