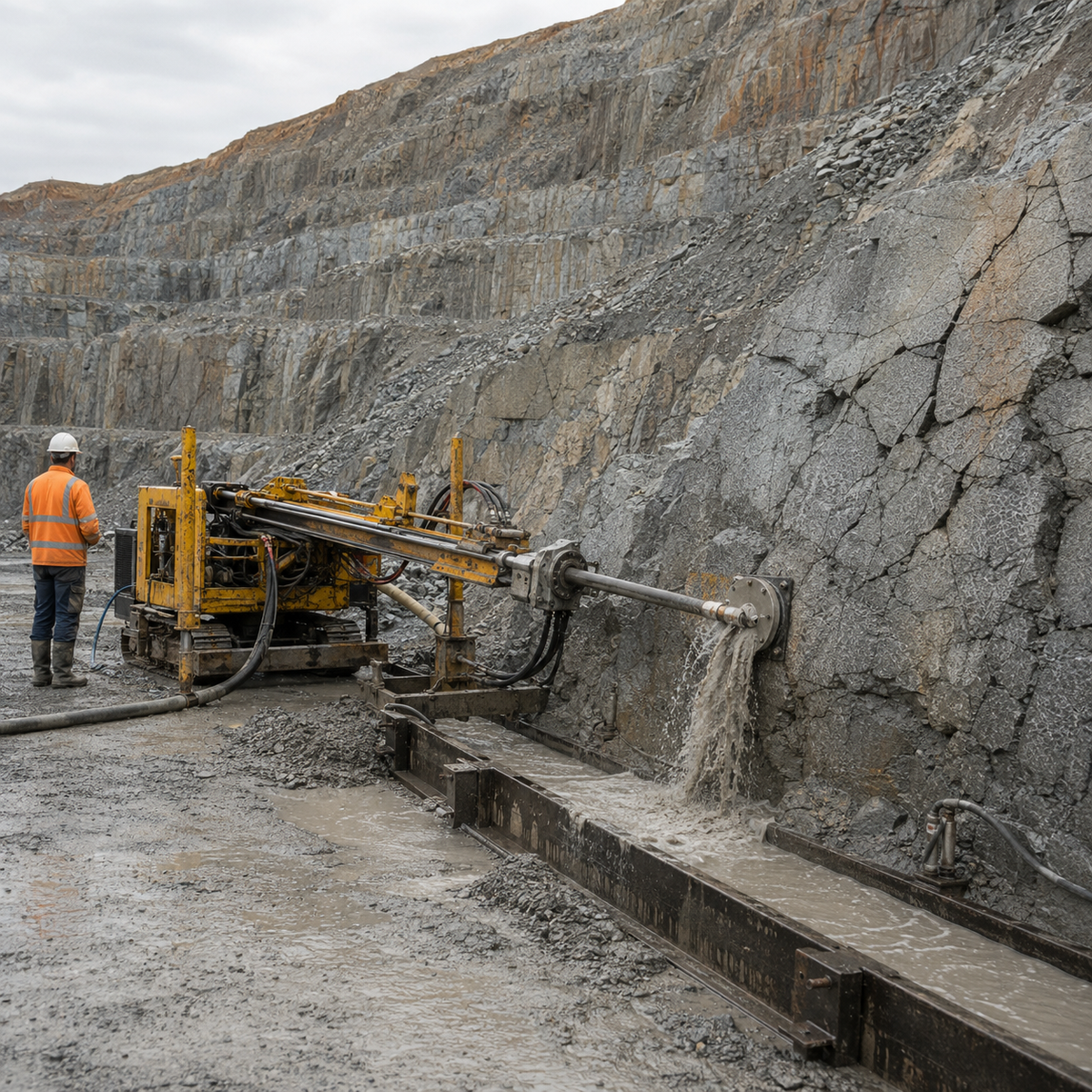

DTH Drilling for Horizontal Rock-Slope Drains: Alignment, Water Return, and Casing Limits

Direct answer: DTH drilling can be a practical way to install near-horizontal drain holes in competent or moderately fractured rock, but the drilling method does not design the drainage system. A geotechnical or hydrogeological design must first define which water-bearing discontinuities the holes should intercept, the required trajectory and tolerance, where discharge will go, and whether weak ground needs casing or a perforated liner.

For the drilling contractor, the central problem is to hold the planned line while managing cuttings and incoming water in a hole that is close to horizontal. The answer changes with fracture orientation, hole length and diameter, collar access, unsupported ground, air availability, water inflow, collapse risk, required liner and the DTH hammer/bit/pipe system. Use the rig and hammer manufacturers’ instructions for operating parameters; this guide is a planning and field-verification framework, not a substitute for the project design or site procedure.

What a Horizontal Rock-Slope Drain Must Accomplish

Horizontal drains, also called horizontal weep drains or slope drains, are used to intercept groundwater and reduce water pressure within a slope. In rock, the useful water commonly moves through fractures, joints, bedding, faults and other discontinuities rather than uniformly through intact blocks. That makes orientation a design input.

The U.S. Federal Highway Administration (FHWA) emphasizes orienting drain holes to intersect water-carrying fractures and notes that weak or highly fractured rock may require a perforated liner to keep the opening from collapsing. The practical buyer takeaway is clear: the RFQ needs structural and groundwater information, not only a hole diameter and depth.

Why DTH Can Suit Horizontal Drain-Hole Drilling

In a DTH system, compressed air drives a piston inside the hammer behind the bit. Rotation indexes the bit, while exhaust air leaves through the bit and helps move cuttings through the annulus. Because the percussion source stays at the bottom of the hole, the method can maintain useful rock-breaking performance as pipe is added.

That architecture is attractive for drain holes in hard rock, but it is not automatically suitable for every slope. The rig must be capable of stable near-horizontal feed alignment and safe pipe handling. The compressor, hammer, pipe and bit must operate as one matched system. Water inflow and a low hole angle can also make cuttings transport less forgiving than in a dry vertical hole.

Sandvik’s published DTH information treats the hammer, bit, pipes, rig air system and flushing design as a connected tool system. Apply the same principle when requesting PerfoMax tooling: do not select a hammer or bit in isolation from the rig, compressor, hole, ground and required liner.

Define the Trajectory Before Choosing Tooling

“Horizontal” is often shorthand. A drain may need a small positive gradient toward the slope so water can flow back to the outlet by gravity, but the actual inclination and azimuth are project-specific. They should be selected to cross the mapped discontinuities and connect to a protected discharge path.

Confirm these items before mobilization:

• collar coordinates, elevation and accessible working platform;
• planned inclination and azimuth in the project’s stated convention;
• target length and acceptable deviation;
• rock units and structural domains along the projected path;
• expected water-bearing intervals, pressures and flow changes;
• surface casing, full-length liner or open-hole requirements;
• finished inside diameter needed for the specified liner;
• survey or verification method and reporting intervals;
• outlet protection, sediment control and discharge destination.

Do not let a nominal pipe length become the trajectory control. The mast, feed beam and starter assembly must be aligned independently against surveyed references, then checked after setup movement or rod changes.

Match the Ground Condition to the Hole-Support Plan

“Casing required” is not a judgment that should be made only after a hole collapses. The designer and contractor should identify foreseeable unstable intervals and agree on compatible casing, liner, bit diameter and retrieval steps before work begins.

Control the Collar and First Metres

Near-horizontal holes are sensitive to collar setup because any initial error continues through the slope. Prepare and verify the working area under the site’s ground-control procedure. Do not position people or machinery beneath loose rock, unsupported overhangs or an active blasting area.

1. Survey and mark the collar and alignment references.
2. Stabilize the rig and feed so reaction forces cannot change the line.
3. Confirm starter pipe, hammer, bit and any casing shoe are straight and compatible.
4. Establish the collar using the rig manufacturer’s approved starting procedure.
5. Check inclination and azimuth once the assembly is guided.
6. Record the first return, cuttings and water observations against depth.
7. Recheck alignment after any rig movement or abnormal vibration.

Do not compensate for a poor collar by forcing the pipe sideways. That can bend components, damage threads and create a misleading trajectory that is difficult to survey or line.

Manage Flushing When Gravity Is Not Helping

In a near-horizontal hole, cuttings do not simply fall away from the bit. They must be transported along the annulus to the collar. The required air delivery depends on the hammer, bit, pipe outside diameter, hole diameter, depth, leakage, water inflow and cutting size. A compressor pressure reading at the source does not prove that the hammer receives the required flow and pressure while drilling.

Watch the return continuously:

Aggressive cycling or uncontrolled pullback can destabilize broken ground. Recovery and cleaning actions must follow the rig, hammer and site procedures. If adequate return cannot be maintained, the method or hole-support plan may need to change.

Decide Between Open Hole, Liner and Casing

The drilling tool string makes the hole; the completed drain must remain usable. FHWA guidance distinguishes uncased holes in competent rock from perforated PVC liners used where weak or fractured rock could close the opening. Caltrans construction guidance likewise treats horizontal drains as subsurface drainage assets that require inspection and correct placement in the groundwater-bearing zone.

• Open hole: may be feasible in competent rock when the design accepts the long-term stability and maintenance risk.
• Perforated liner: helps preserve a flow path through fractured or degrading rock, but its outside diameter, perforation, filter concept and installation method must be specified.
• Surface casing: protects the collar through loose material and provides a controlled outlet connection.
• Drill-and-case system: may be needed when the hole cannot remain open long enough to install a liner safely.

Before selecting the drilling diameter, work backward from the required finished liner and installation clearance. A bit that drills the nominal liner diameter is not sufficient. Allow for actual outside diameter, joints, centralizers or couplings, wall irregularity, curvature and the approved installation method.

Record What the Hole Reveals

Horizontal drain installation is also a source of groundwater and structural information. The Washington State Department of Transportation-sponsored design guidelines emphasize site characterization and iterative design. Field records should be detailed enough for the designer to compare the planned ground model with the installed hole.

Record at least:

• actual collar coordinates, elevation, inclination and azimuth;
• bit, hammer, pipe, adapter and compressor configuration;
• drilled and lined lengths;
• formation changes and representative cuttings by depth;
• fractures, voids, air losses, collapse or unusual vibration;
• first water depth and subsequent flow changes;
• cleaning, casing and liner-installation events;
• final outlet condition and initial discharge observation;
• survey results, abandoned intervals and deviations from plan.

Know When DTH Is Not the Right Method

Change or escalate the method when the hole cannot meet the project’s geometry, stability, discharge or safety requirements. Warning conditions include an inaccessible or unstable setup bench, repeated collapse, uncontrollable water and sediment, inability to maintain returns, excessive deviation, a liner that cannot pass, or ground that requires continuous casing beyond the available system.

Alternatives may include rotary methods with fluid circulation, sonic drilling, top-hammer equipment for shallow accessible holes, specialized casing-advancement systems or a redesigned drain layout. The correct comparison is not only penetration rate. Include mobilization, casing, compressor demand, water management, lost-tool risk, liner success, survey needs and the value of a maintainable drain.

Common Planning Mistakes

• Ordering by hole diameter alone. The hammer shank, bit, pipe thread, compressor and liner clearance still need confirmation.
• Calling the hole horizontal without a stated survey convention. Record inclination and azimuth unambiguously.
• Ignoring fracture orientation. A long hole that misses the water-bearing structures is not a successful drain.
• Assuming air pressure equals cleaning capacity. Available flow under load and the annular geometry matter.
• Waiting for collapse before discussing casing. Define contingencies before drilling.
• Letting water discharge across the work area. Provide a protected route and sediment control.
• Failing to log water entries by depth. That information may change later drain locations.
• Using universal feed or rotation values. Follow the actual rig and hammer instructions for the matched system.

RFQ Checklist for DTH Horizontal Drain Drilling

Send the following when requesting DTH tooling for a horizontal rock-slope drain:

• rig make/model, rotary head torque/speed range and feed/pullback capability;
• compressor rated flow and pressure, plus hose sizes and working elevation;
• planned hole diameter, length, inclination, azimuth and tolerance;
• rock strength, abrasiveness, weathering, fractures, faults, clay seams and void risk;
• expected groundwater, water pressure and discharge-control plan;
• required open-hole, surface-casing, full-casing or perforated-liner arrangement;
• liner outside diameter, joints and installation clearance;
• desired hammer size, bit shank and face only if already engineering-approved;
• drill-pipe outside diameter, length, thread and existing fleet interfaces;
• site access, working-space and pipe-handling limits;
• inspection records and photos from comparable holes, if available;
• quantity, delivery destination and spare-tool requirement.

Frequently Asked Questions

Can a standard blast-hole DTH rig drill horizontal drains?

Only if the rig is approved for the required orientation, can be stabilized safely, provides suitable pipe handling and can meet the trajectory, water-control and casing requirements. Do not infer capability from hammer size alone.

Should a horizontal drain hole rise or fall into the slope?

The project designer sets the gradient. Many gravity drains are arranged so water flows toward the outlet, but the final angle must also intersect the intended structures and fit the site geometry.

When is a perforated liner required?

Typically when the design expects weak, fractured or degradable ground to close or obstruct an open hole. The liner type and perforation must be selected by the project team, not improvised by the drilling supplier.

What causes poor cuttings return in a near-horizontal DTH hole?

Possible causes include insufficient air delivery, excessive annular area, leakage into fractures, wet or sticky cuttings, collapse, bit or flushing wear, and increasing depth. Diagnose the system before increasing settings.

Which DTH hammer and bit should a buyer specify?

Match the hole and liner clearance to the rig, compressor, rock, water, pipe and casing method. Confirm the exact bit shank and all pipe threads; a nominal hammer class is not a complete specification.

Build the Tooling Request Around the Drain Design

Start with the target fractures, hole path, support plan and discharge requirement. Then select a compatible rig, compressor, hammer, bit and pipe system that can execute that design and be verified in the field.

For current commercial options, review PerfoMax’s live DTH Tools collection and send the rig, compressor, hole, ground and liner details with your inquiry. Related Technical Guides cover DTH drilling in fractured rock and DTH drilling in water-bearing rock.
