DTH Hammer Piston Seizure: Symptoms, Causes, Inspection, and Restart Limits

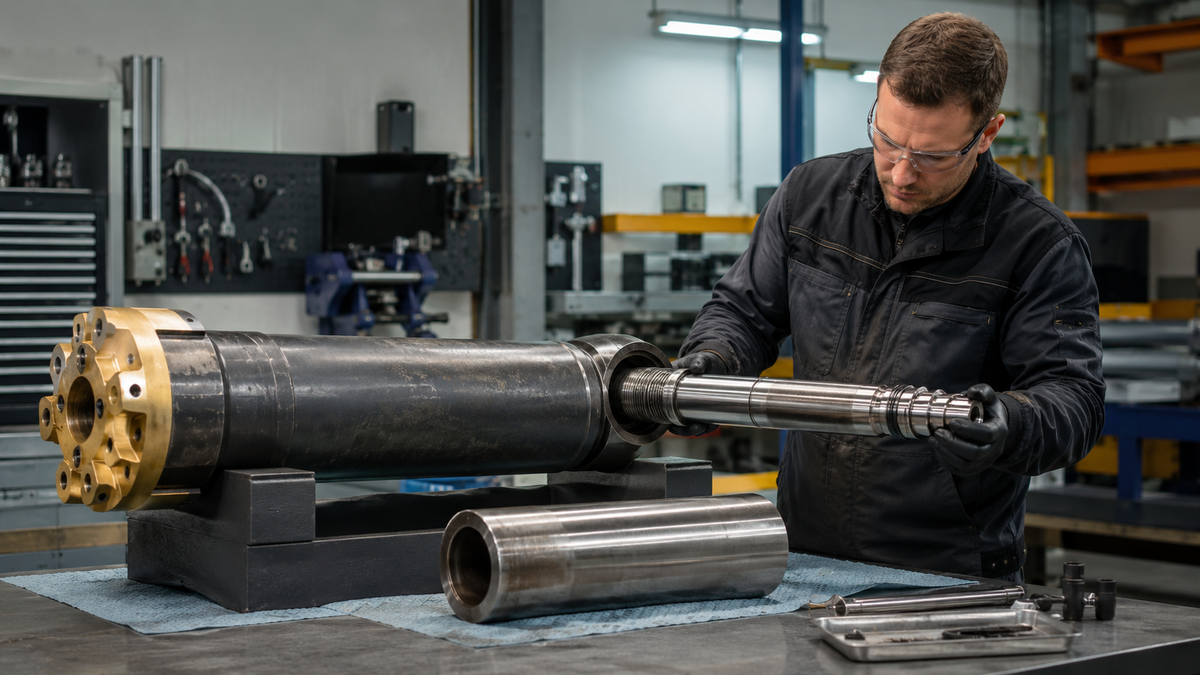

Technician inspecting a DTH hammer piston after a suspected seizure in a clean service workshop

A DTH hammer piston is seized when it can no longer reciprocate freely inside the hammer’s internal cylinder or wear sleeve. A sudden loss of impact, abnormal heat, an interrupted oil supply, and metal scoring found during teardown make seizure more likely—but “no impact” by itself does not prove it. Low delivered airflow, a bit that is not seated in its operating position, a blocked air path, or a valve fault can produce a similar field symptom.

The correct response is to stop before secondary damage turns a lubrication or contamination problem into a piston, liner, casing, and bit-end replacement. Do not compensate by increasing pressure, striking the hammer body, heating the casing, or flooding it blindly with oil. Isolate the air supply, recover the tool safely, and identify the cause before any restart.

Safety boundary: Depressurize and lock out the drill before disconnecting the hammer. Tool recovery, disassembly, measurement, and pressure testing should follow the hammer maker’s service manual and be performed by competent personnel using the specified fixtures. Never apply heat or uncontrolled impact to a pressurized or assembled hammer.

Is the DTH hammer piston actually seized?

Start with the symptom sequence, not a replacement-parts assumption. Ask what changed immediately before impact stopped: air delivery, lubrication, water injection, feed position, cuttings return, temperature, or a mechanical shock. Then separate external operating faults from internal mechanical drag.

Observed symptom Possible alternative to seizure First safe check
Air exhausts but there is no percussion Bit not in the operating position, damaged foot valve, check-valve problem, or restricted air path Stop and verify bit movement, seating, and the model-specific airflow path
Impact stopped suddenly after oil delivery was lost Internal seizure or rapid scuffing is plausible Do not restart; confirm the oiler and recover the hammer for inspection
Hammer works when lifted but stops on bottom Feed setting, bit travel, hole obstruction, or cuttings packing Check operating position and hole cleaning before condemning the piston
Restart is difficult after wet drilling or storage Water, corrosion, sludge, or dried contamination may restrict movement Inspect the air line, check valve, storage protection, and internal parts
Casing becomes unusually hot and impact weakens Lubrication loss, excessive friction, restricted exhaust, or heavy drag Shut down and document heat location, oil delivery, and operating conditions
Piston cannot move after controlled teardown Mechanical interference, galling, corrosion, debris, or casing deformation Inspect contact bands and measure parts against the correct manual

A useful diagnostic principle is that an external air-supply or seating fault can stop percussion without physically locking the piston. Conversely, a truly seized piston often leaves physical evidence: transferred metal, longitudinal scoring, smeared surfaces, heat discoloration, burrs, embedded particles, or a localized tight band.

Cutaway of a DTH hammer showing piston scoring and heat discoloration at a seizure contact band
A seizure usually develops at a contact band where lubrication, clearance, alignment, contamination, and temperature interact.

What causes a DTH hammer piston to seize?

1. Lubrication does not reach the hammer

DTH hammer manuals consistently treat a continuous supply of the correct rock-drill oil as essential. The oil reduces sliding friction, limits wear and corrosion, and helps the piston-to-cylinder sealing relationship. An empty lubricator, blocked injection point, damaged line, unsuitable oil, incorrect adjustment, or an operating condition that changes delivered airflow can leave the impact mechanism under-lubricated.

Do not use a generic oil quantity copied from another hammer. Required grade and delivery rate depend on the model, air consumption, ambient temperature, operating pressure, water injection, and the lubricant system. The supplied service manual and the actual operating setup control the answer.

2. Water or abrasive contamination enters the working surfaces

Dust, pipe scale, hose debris, rust, sludge, and drilling water can disturb the oil film or become trapped between precision surfaces. Backflow after shutdown and uncapped pipes during handling are common contamination paths. Wet drilling may require different lubrication and shutdown procedures, but those adjustments must come from the specific hammer manual.

3. Oil is present, but the condition is hydraulic lock

Too much oil can also create a start-up problem. Some service guidance warns that excessive oil may slow the piston or cause hydraulic locking. That is not the same as dry galling. Adding more oil without knowing which condition exists can hide the symptom, complicate diagnosis, and delay correction of the real cause.

4. The casing or internal bore is no longer geometrically sound

A dented casing, damaged thread, burr, distorted wear sleeve, incorrect component stack, or misaligned part can reduce running clearance. A hammer that was dropped, clamped incorrectly, assembled with dirt on a locating face, or operated with a damaged retaining component deserves a dimensional and alignment check—not just a new piston.

5. Operation continues after the first scoring begins

Early scuffing raises friction and temperature. Continued operation can transfer material, deepen grooves, damage the mating bore, and spread debris through the hammer. By the time percussion stops completely, the piston may be only one part of a larger damage chain.

Immediate field response when impact stops

  1. Stop air and feed. Do not keep cycling a hammer that has lost impact, become abnormally hot, or stopped receiving oil.
  2. Make the system safe. Isolate stored energy, follow the rig’s lockout procedure, and confirm the drill string is secure.
  3. Record the event. Note depth, rock and water conditions, delivered pressure and airflow, oiler setting, oil grade, water-injection status, sound, temperature, and the sequence immediately before the stop.
  4. Check the external supply chain. Inspect the lubricator, oil line, compressor-side filters, hoses, connections, and any evidence of restriction or water carryover.
  5. Check bit movement and seating. A bit that cannot move through its designed travel can prevent normal hammer cycling. Use only the model’s service procedure.
  6. Do not “prove” the diagnosis with more pressure. Higher energy can worsen scuffing, damage valves, or make recovery more difficult.
  7. Recover the hammer if the cause remains uncertain. A controlled workshop inspection is less expensive than running until the casing and internal bore are also damaged.

For a broader symptom tree before teardown, see the published guide to DTH hammer low penetration and no-impact troubleshooting.

Workshop teardown: what evidence should you inspect?

Cleanliness is part of the diagnosis. Open the hammer in a clean area, keep components in assembly order, and prevent grit from being introduced while parts are exposed. Use the specified tools and disassembly direction. If a component will not move with the approved procedure, stop and investigate; a sledgehammer or torch can erase evidence and create new distortion.

DTH hammer piston being inspected for scoring, galling, and heat damage on a metrology bench
Inspect both the piston and its mating bore; replacing only the visible damaged part can repeat the failure.

Inspect the piston

  • Look for longitudinal scoring, smeared or transferred metal, local polishing, heat tint, corrosion, embedded particles, chipped edges, and cracks.
  • Identify whether damage is concentrated at one band or distributed around the circumference.
  • Measure only at the positions defined by the correct service manual. Compare diameter, roundness, and wear with model-specific limits.
  • Keep suspect particles and oil residue if a supplier or failure-analysis team may need them.

Inspect the mating bore, sleeve, and casing

  • Check for matching transfer marks, grooves, high spots, corrosion, dents, and evidence of local collapse.
  • Verify straightness, roundness, and internal diameter with suitable calibrated equipment and the manufacturer’s measurement locations.
  • Inspect threaded and locating faces for burrs or debris that could alter component alignment.
  • Check the bit end, chuck, retaining parts, valves, and air passages for damage or contamination that may have preceded the seizure.
Inspection evidence Likely implication Conservative disposition
Dry, bright scoring with transferred metal Oil film loss and adhesive wear are likely Quarantine piston and mating part; trace the lubrication path before replacement
Rust, sludge, or abrasive particles Water ingress, backflow, dirty pipes, or poor storage control Clean the complete air path and correct contamination control
One-sided contact band Possible distortion, ovality, misalignment, or uneven clearance Measure bore and casing geometry; do not replace the piston alone
Blue, brown, or black heat discoloration High friction or thermal distress Treat as a serious damage indicator and follow OEM rejection criteria
No significant surface damage, but heavy oil accumulation Over-lubrication or hydraulic lock may be involved Verify the oil system and manual before controlled recommissioning
Crack, chipped edge, or out-of-limit measurement Structural or dimensional failure Replace according to the approved parts and service procedure

The published DTH hammer piston wear inspection guide provides a complementary framework for recording surface condition and dimensions without inventing universal discard limits.

Can a seized piston be freed and reused?

Sometimes a piston that only appears stuck can be cleaned and returned to service; a damaged seized piston should not be treated that way. If controlled teardown finds contamination or excess oil but no galling, heat damage, crack, burr, dimensional error, or bore damage, the model manual may permit cleaning, lubrication, reassembly, and a controlled test. That decision still belongs to the specified service criteria.

Do not polish deep scoring away by eye. The piston is a precision impact and sealing component; removing material changes clearance, surface condition, and airflow behavior. Likewise, a piston with transferred metal, heat tint, cracking, or an out-of-limit measurement should be quarantined until the manufacturer or qualified supplier confirms the disposition. Reusing the least expensive visible component can put the hammer body and drill string at greater risk.

Correct the root cause before installing replacement parts

A new piston can seize quickly if the oil never reaches it or the casing remains distorted. Close the failure loop with a short cause-and-control review:

  • Confirm the exact hammer model, serial or traceability reference, piston and casing part numbers, and revision.
  • Verify oil grade and delivery setting against the model manual, actual airflow, pressure, temperature, and water-injection condition.
  • Test that oil is reaching the hammer rather than only leaving the lubricator.
  • Inspect compressor-side air quality, water separation, hoses, couplings, pipes, caps, and stored components for contamination.
  • Check the non-return system and shutdown practice for water or cuttings backflow.
  • Confirm casing, sleeve, and locating surfaces are within the manufacturer’s dimensional limits.
  • Replace or repair every mating component that fails inspection; do not combine a new piston with an unserviceable bore.

For routine prevention, use the published DTH hammer lubrication guide to structure oil-grade, delivery, and wet-drilling checks, then apply the values specified for your hammer.

DTH hammer restart gate after a piston seizure

Restart only when every item below has a documented answer:

  1. The hammer identity and correct operation/service manual are confirmed.
  2. The piston, bore or sleeve, casing, valves, bit end, chuck, and retaining parts have been cleaned and inspected.
  3. Required measurements meet the manual’s limits, and rejected parts have been replaced with compatible components.
  4. The root cause—lubrication, contamination, hydraulic lock, deformation, assembly, or operating setup—has been corrected.
  5. The oil grade, lubricator setting, and delivery at the hammer have been proven for the actual operating condition.
  6. Bit travel and internal components move as required by the model’s assembly check.
  7. Initial commissioning follows the manual’s low-energy or partial-air procedure where specified, with close observation of sound, exhaust oil, temperature, and impact stability.

Abort the test if impact is irregular, movement remains tight, heat rises abnormally, oil delivery is not evident, or metallic debris appears. Repeating the start cycle is not a substitute for identifying the interference.

Information to send with a service request or replacement RFQ

  • Hammer model, size, serial or batch reference, supplier, and operating manual revision
  • Bit model and shank, hole diameter, hole depth, drilling orientation, rock condition, and water condition
  • Compressor model, measured delivered pressure and airflow, hose and pipe configuration
  • Rock-drill oil brand, grade, lubricator type, setting, ambient temperature, and any water injection
  • Failure timeline, operator observations, heat location, sound change, and whether oil delivery was interrupted
  • Clear photographs of the complete piston, each damage band, mating bore, valves, bit end, and recovered debris
  • Measurement table showing tools used, measurement positions, readings, and the manual limits
  • Parts already replaced and the requested scope: inspection advice, piston, internal kit, complete hammer, or compatibility confirmation

Frequently asked questions

How can I tell a seized DTH piston from insufficient air?

Insufficient delivered air can stop percussion without locking the piston. Verify the compressor-to-hammer air path, bit position, valves, and model operating requirements first. Sudden stoppage after oil loss, abnormal heat, or physical scoring found during teardown makes seizure more likely.

Can adding oil free a seized DTH hammer piston?

Do not assume so. Oil may help a dry but undamaged mechanism only under an approved procedure; it will not repair galling, casing distortion, or embedded debris. Excess oil can also create hydraulic locking. Stop, diagnose, and use the model manual.

Can a scored piston be polished and reused?

Only if the manufacturer’s service criteria explicitly allow the repair and the finished dimensions and surface condition remain acceptable. Deep grooves, transferred metal, heat discoloration, cracks, or out-of-limit measurements are conservative reasons to replace or seek formal disposition.

Why can seizure appear after wet drilling or storage?

Water can dilute or displace oil, promote corrosion, carry fine solids, or enter by backflow after shutdown. Wet-drilling lubrication, purging, non-return valve inspection, capping, and storage protection must follow the specific hammer instructions.

What should I provide before ordering a replacement piston?

Provide the exact hammer identity, existing piston and casing references, failure photos, bore and piston measurements, oil and air conditions, water-use details, and the suspected root cause. A piston selected by diameter alone may not be compatible.

Match the repair decision to the commercial route

If the inspection shows that a complete hammer is more reliable than combining new internals with a damaged body, compare the required shank, bit range, pressure class, drilling conditions, and compressor capacity before purchasing. For applications that fit its published scope, review the active CIR90 Low-Pressure DTH Hammer for 90–130 mm Holes. Send the operating data and damage evidence with your inquiry so PerfoMax can check the requested configuration without guessing at compatibility.
