Direct answer: a DTH hammer check valve is a model-specific replacement part, not a generic non-return valve. The correct replacement must match the exact hammer family and revision, valve-body geometry, seat contact, guide or bore fit, spring specification, air passage, material, and associated seals. A valve that fits under the backhead can still be wrong if it opens at the wrong travel, binds in the guide, fails to seal on the seat, or changes airflow through the hammer.
Start with the hammer manufacturer, model, size class, serial or date code, and the current illustrated parts list. Order the check valve, spring, guide, and seals by controlled part number where possible. When an equivalent is proposed, require a written cross-reference supported by dimensions, material, functional design, and a sample inspection—never by appearance alone.
Buyer rule: treat the check valve and its surrounding interfaces as an assembly. Replacing only the visible dart without confirming its spring, guide, seat, and backhead can create a leak or restriction even when the loose part looks identical.
What the DTH Hammer Check Valve Does
In a common pneumatic DTH hammer arrangement, compressed air enters through the backhead and pushes the check valve open. When supply air is shut off, the spring assists the valve toward its seat. The closed valve helps limit reverse flow of water and contamination into the hammer and drill string. The exact flow path and valve construction vary by hammer architecture.
The check valve is not the same as every other part called a “valve” in DTH drilling:
| Term | Typical location and job | Compatibility warning |
|---|---|---|
| Backhead check valve or non-return valve | Near the hammer air inlet; opens for supply air and closes against reverse flow when the supply stops. | Match the hammer model, seat, guide, spring, travel, and air-distributor interface. |
| Foot valve | At the hammer-to-bit interface in hammer systems designed around a foot valve; participates in the lower air cycle. | Match the bit shank and hammer architecture. Do not substitute it for a backhead check valve. |
| Main valve or valve chest | Part of the percussion air-distribution cycle in a valved hammer. | It is an internal timing component, not a generic backflow part. |
| Choke or metering plug | Controls bypass or flushing air on designs that provide this feature. | Do not confuse a tuning component with the check valve or alter it without the model manual. |
This terminology matters in RFQs. “DTH valve,” “hammer valve,” or “non-return part” is too ambiguous for reliable substitution. Ask the supplier to identify the part location in an exploded drawing.
Why DTH Hammer Check Valves Are Not Universal
Published DTH parts lists show how quickly the interface changes between product families. Rockmore’s data-sheet library lists configurations with rubber check valves and others with Delrin check valves, even within related tubeless hammer ranges. Rockmore’s operation-manual library separates guides by hammer family. Numa resources likewise provide model-specific manuals across multiple Patriot sizes. These are practical signals that the check valve belongs to a controlled hammer build, not a universal diameter class.
A buyer should confirm at least these compatibility layers:
| Compatibility layer | What to compare | What can go wrong |
|---|---|---|
| Hammer identity | Brand, exact model, nominal class, revision, serial/date code, and parts-manual edition. | A same-size hammer may use different internal architecture or a revised part. |
| Valve body | Overall length, major diameters, guide lands, nose/seat form, shoulders, grooves, cross-holes, and internal bore. | Binding, excess clearance, incomplete opening, poor seating, or changed airflow. |
| Spring | Free length, outside diameter, wire diameter, coil count, end form, material, and specified load/deflection. | Valve opens or closes differently, spring buckles, rubs, or reaches solid height. |
| Seat and backhead | Contact shape, surface condition, concentricity, depth, and mating material. | Reverse leakage, local damage, or a valve that never fully seats. |
| Guide or distributor bore | Bore diameter, length, clearance, air passages, and wear limit from the model manual. | The new valve may still leak or stick in a worn mating component. |
| Seals and retainers | O-ring size/material, seal location, backup rings, clips, and assembly orientation. | Internal bypass, extrusion, cut seals, or incorrect axial position. |
| Material and environment | Valve material, elastomer compatibility, water, temperature, corrosion, and drilling-fluid exposure. | Swelling, embrittlement, corrosion, erosion, or short service life. |
Identify the Exact Hammer Before Measuring the Valve
Physical measurement is a cross-check, not the first identification method. Begin with documentary evidence:
- record the complete hammer nameplate or permanent marking;
- photograph the whole hammer, backhead connection, bit end, and any serial/date code;
- obtain the current exploded drawing and parts list from the supplier or manufacturer;
- identify the check valve, spring, guide, and every associated seal by item number;
- confirm whether the manual applies to the exact model and revision;
- review any service bulletin or superseded-part cross-reference;
- keep one verified original or known-good assembly as a controlled sample.
Do not identify the hammer only as “4-inch,” “5-inch,” DHD, QL, Mission, CIR, or another broad family name. Size class, bit shank, backhead thread, and check-valve architecture are separate attributes. A cross-reference needs the full model-specific chain.

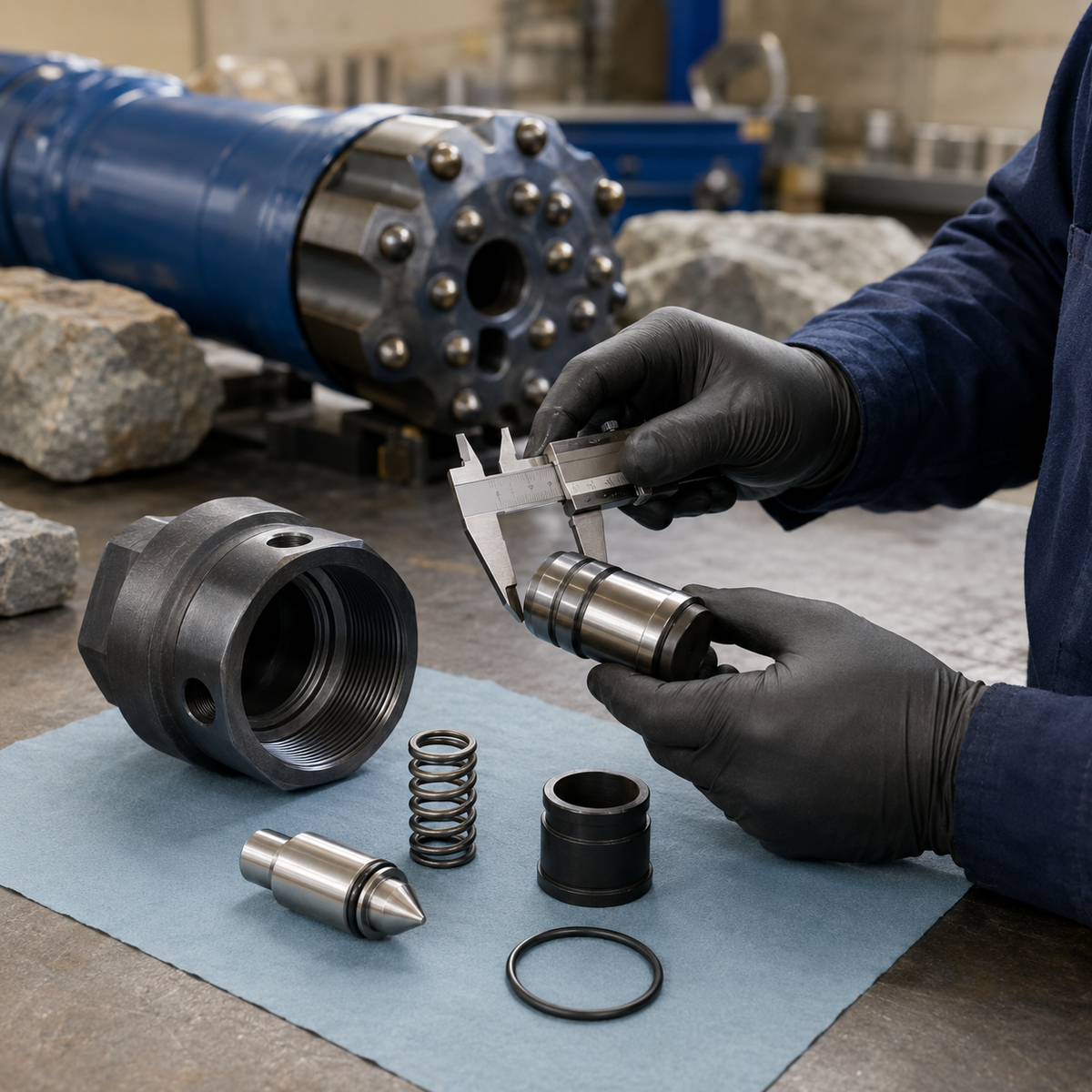

How to Compare a Proposed Check Valve Replacement
Clean and depressurize the hammer under its service procedure before disassembly. Keep parts in order and protect precision surfaces from grit. Then compare the proposed replacement against the controlled drawing and known sample.
Valve-body checks
- overall length and maximum outside diameter;
- diameters and lengths of every guide land;
- nose angle, radius, elastomer cap, or other seat-contact geometry;
- groove width, depth, and location where seals or retainers are used;
- shoulder locations that establish open and closed travel;
- air holes, flats, slots, and internal passages;
- surface finish, burrs, plating/coating, and corrosion;
- free movement in a clean, serviceable guide without excessive play.
Spring checks
- free length and outside diameter;
- wire diameter and active coil count;
- closed and ground ends, open ends, or another specified end form;
- straightness and evidence of coil rubbing;
- specified load at one or more compressed lengths;
- solid height and available installed travel;
- material or corrosion-protection requirement.
A spring cannot be approved from free length alone. Two springs with the same outside dimensions may have different wire, coil count, material, heat treatment, and load curve. Do not stretch, cut, stack, or shim a spring to imitate another part unless the hammer manufacturer provides that controlled instruction.
Seat, guide, and backhead checks
Inspect the mating parts before blaming the removed valve. A worn guide can create excessive clearance around a new valve. A damaged or contaminated seat can leak with any replacement. A backhead from a different revision may position the spring or valve differently. Use the model-specific service limits and measurement locations; do not transfer a numerical wear limit from another hammer manual.
Symptoms Are Diagnostic Clues, Not Cross-Reference Data
| Observed symptom | Possible check-valve-related cause | Other checks required |
|---|---|---|
| Water or dirty fluid appears above the hammer after shutdown | Valve not seating, damaged valve surface, weak/broken spring, worn guide, or contaminated seat. | Drilling method, water head, pipe handling, backhead seals, and shutdown procedure. |
| Air leaks at the upper hammer or backhead | Check-valve or surrounding seal does not seat correctly. | Backhead thread, O-rings, shoulder, wear sleeve, connection torque, and cracks. |
| Hammer starts slowly or behaves irregularly | Valve sticks, opens late, or restricts the inlet. | Air supply, lubrication, contamination, piston/cylinder condition, choke, and bit freedom. |
| Unexpected pressure drop | Incorrect valve geometry or restricted passage. | Compressor output, hose/pipe bore, coupling losses, regulator, leaks, and dynamic pressure. |
| New valve wears quickly | Wrong clearance, misalignment, material mismatch, or incompatible spring. | Guide bore, seat finish, dirt entry, corrosion, lubrication, and assembly sequence. |
Several faults produce the same symptom. A field observation can justify inspection, but it cannot identify a replacement part number. For a troubleshooting sequence, use the published DTH hammer backhead air-leak guide. For the component relationships, see the DTH hammer anatomy guide.
Do Not Convert the Valve into an Uncontrolled Tuning Device
Some hammer designs incorporate chokes, metering plugs, bypass holes, or optional arrangements to match flushing and compressor conditions. That does not authorize drilling, enlarging, plugging, or reshaping a check valve from another model. Any change can alter the opening force, pressure loss, reverse sealing, and the hammer’s internal air cycle.
Use only the tuning instructions, hole sizes, parts, and pressure/flow conditions supplied for the exact hammer model. If the compressor cannot support the hammer, resolve the system mismatch rather than modifying a safety- and contamination-control component by trial and error.
A Controlled Replacement-Approval Process
- Quarantine the removed assembly. Preserve valve, spring, guide, seals, orientation, and contamination evidence.
- Confirm hammer identity. Match the serial/revision to the applicable manual and parts list.
- Inspect mating parts. Verify the seat, guide, backhead, distributor, and seals are within the model’s criteria.
- Review the supplier cross-reference. Require original part number, proposed part number, drawing revision, material, and supersession basis.
- Measure the complete set. Compare all controlled dimensions and spring data, not only overall diameter.
- Check assembly freedom. Follow the manufacturer’s procedure and confirm that the valve moves and seats without force or unintended play.
- Perform the specified functional test. Use the approved workshop or rig procedure, guarding, pressure control, and acceptance criteria.
- Run a controlled field trial. Record hammer model, operating conditions, startup, leakage/backflow observations, and inspection findings after the agreed interval.
- Freeze the approved bill of materials. Keep the accepted valve, spring, seals, and reference documents tied to that hammer revision.
Do not conduct an improvised compressed-air test with loose components. Stored energy, expelled parts, and hose movement are hazardous. Testing belongs in the hammer supplier’s or responsible site’s controlled procedure.
Common Replacement Mistakes
- Ordering by hammer diameter only. Nominal class does not define the internal valve assembly.
- Calling every internal valve a check valve. Use the exploded drawing and item number.
- Reusing the old spring automatically. The spring may be fatigued, worn, corroded, or incompatible with the new valve.
- Matching only overall length and diameter. Seat geometry, guide lands, shoulders, passages, and travel also matter.
- Ignoring the mating bore and seat. A new valve cannot correct a worn or damaged interface.
- Mixing seals from a generic O-ring box. Size, material, hardness, and location need confirmation.
- Using symptom improvement as proof of equivalence. Short operation does not validate long-term seating, wear, or backflow control.
- Combining parts from several rebuild kits. Preserve the approved set by hammer model and revision.
RFQ Checklist for a DTH Hammer Check Valve
Provide the supplier with:
- hammer manufacturer, exact model, nominal size, serial/date code, and revision;
- bit-shank system and backhead thread as supporting identification;
- current manual and exploded-drawing revision;
- original check-valve, spring, guide, and seal part numbers;
- clear photographs of the complete hammer, removed parts, seat, and guide;
- controlled dimensions from the drawing or inspected sample;
- valve and spring materials or required environment compatibility;
- spring load/deflection requirement where specified;
- operating pressure/airflow range from the hammer manual;
- dry, wet, underwater, foam, or other drilling conditions;
- quantity, seal kits, spare springs, packaging, and lot-identification needs;
- requested certificate of conformity, dimensional report, or sample approval;
- whether the proposed part is original, superseded, or an equivalent cross-reference.
PerfoMax’s active CIR90 low-pressure DTH hammer is a relevant commercial route for buyers reviewing a complete low-pressure DTH hammer system. This article does not establish the CIR90 check-valve part number or interchangeability. Request the current product configuration, parts list, and replacement-kit confirmation for the actual order.
Frequently Asked Questions
Can I reuse the old spring with a new DTH check valve?
Only when the model manual and inspection criteria allow it. Confirm the spring part number, dimensions, load/deflection, condition, and compatibility with the new valve. Reusing an unidentified spring defeats the replacement check.
Are rubber and engineering-plastic check valves interchangeable?
Not automatically. Material changes can affect seat contact, wear, temperature behavior, water compatibility, mass, and required geometry. Use the exact model option or an approved supersession documented by the supplier.
Is a check valve the same as a DTH bit foot valve?
No. The backhead check valve controls reverse flow near the hammer inlet. A foot valve belongs to the lower hammer/bit interface in systems designed for it. They have different locations and compatibility chains.
Can I approve a replacement by sliding it into the guide?
No. Free movement is only one check. The valve must also match the seat, spring, travel, air passages, seals, material, and functional criteria for the exact hammer.
What should distributors stock with the check valve?
Stock the model-specific valve, matching spring, required seals, and any guide or service-kit parts identified by the manual. Keep the cross-reference and hammer revision with the inventory location so similar parts are not mixed.
Confirm the Complete Valve Assembly Before Ordering
A reliable DTH check-valve replacement begins with exact hammer identification and ends with a controlled assembly and functional check. Send PerfoMax the model, serial/revision evidence, exploded drawing, original part numbers, dimensions, drilling conditions, and required documentation. If the interface cannot be verified, source the confirmed complete hammer or manufacturer-approved rebuild kit instead of forcing an uncertain internal substitute.
