Direct answer: DTH bit gauge wear is the loss of effective diameter at the outer button row and surrounding bit perimeter. It is not just a “worn bit” appearance. Once a bit drills an under-gauge section, a fresh full-gauge replacement may bind before reaching bottom. The safe response is to measure the pulled bit, identify the wear pattern, review the hole history, and follow the approved reaming or recovery method—never force the new bit through resistance.
This guide is for quarry, mining, water-well, foundation, and drilling-service teams diagnosing DTH bit gauge wear, reduced hole diameter, one-sided outer-button wear, or a replacement bit that will not pass freely. The bit manufacturer’s drawings and wear limits, the hammer manual, and the project’s operating procedure remain authoritative.
What “gauge” means on a DTH button bit
The gauge is the maximum cutting diameter created by the outermost carbide buttons and the protected perimeter of the bit head. Face buttons crush the hole bottom; gauge buttons also cut and stabilize the hole wall. Because the gauge row travels the largest circular path and contacts both bottom and wall, its wear can differ from the center buttons.
A nominal bit diameter is the ordering size, not a measurement of the used bit. Actual service condition must be checked against the correct new-bit drawing or a recorded baseline from the same design. Different face shapes, button layouts, and gauge-protection features can place the maximum measuring points differently.
Epiroc’s DTH bit information emphasizes matching button and bit design to the job, while its percussive-bit documentation links consistent diameter to predictable hole quality. Boart Longyear’s button-bit maintenance guidance likewise treats gauge wear as a distinct pattern that can lead to binding when the gauge buttons no longer stand correctly relative to the bit body.
Why an under-gauge DTH hole creates a replacement risk
A worn bit can continue penetrating while cutting a progressively smaller hole. The drill log may show only a gradual loss of penetration or a change in rotation response. When that bit is removed and replaced with a new bit at full diameter, the new gauge may reach the narrowed section and take weight before bottom.
At that point, extra feed does not solve the geometry. Forcing, hammering, or rotating aggressively can wedge the bit, pack cuttings around it, damage the hole wall, overload the drill string, or turn a measurable wear issue into a recovery job. The correct reaming decision depends on hole depth, inclination, formation stability, casing, available tooling, and the approved site method.
How to measure DTH bit gauge wear
Measure before cleaning evidence away completely, but remove loose mud, packed cuttings, and grease that would distort the reading. Photograph the bit face, side profile, skirt, splines, and striking end first. Then use the following controlled sequence.
- Confirm the reference. Record the bit part number, nominal diameter, shank family, face design, button layout, and the OEM’s specified measuring points and wear limit. If the part number is uncertain, do not assume that the catalogue diameter alone defines the original gauge.
- Secure and clean the bit. Support it so the face and outer row can be measured without the bit rolling. Remove material from between buttons and flushing passages.
- Measure across the true maximum points. Use a suitable large caliper, gauge ring, or manufacturer-approved fixture. Keep the measuring tool square to the bit axis and contact the intended opposite gauge points—not a worn body valley or random button edge.
- Repeat at several clock positions. One reading can hide oval or one-sided wear. Record maximum and minimum readings, the positions measured, and the instrument used.

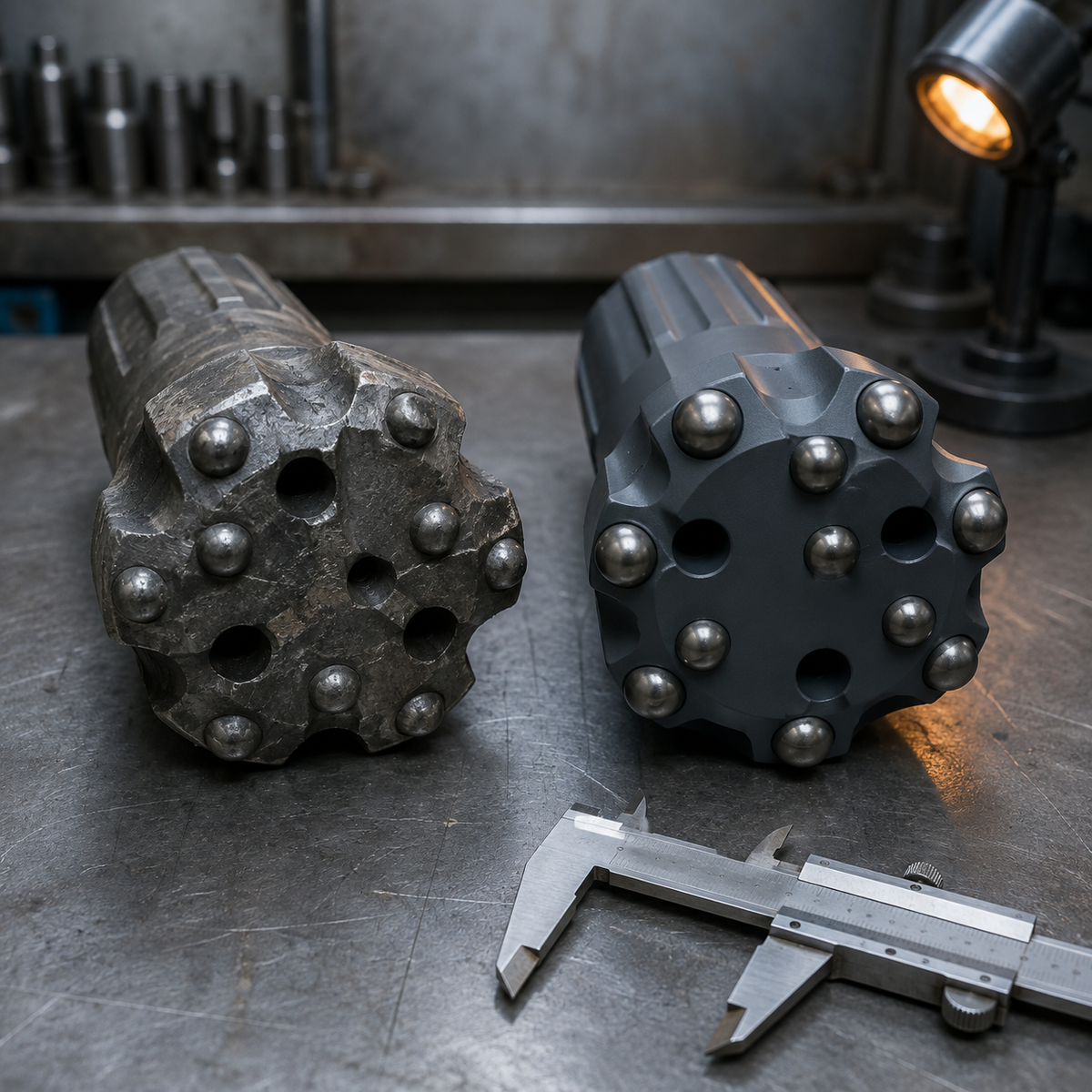

- Compare with a controlled baseline. Compare against the drawing, an unused identical bit, or a receiving-inspection record. Do not compare different face layouts as if they were identical.
- Inspect related geometry. Note gauge-button flats, carbide protrusion, body shoulder condition, missing or cracked buttons, skirt wear, spline damage, and flushing-hole condition.
| Record | Why it matters | Common measurement error |
|---|---|---|
| Original reference diameter | Establishes the correct baseline for that exact design | Using nominal size as if it were a measured new-bit value |
| Maximum used-bit diameter | Shows the largest remaining gauge | Contacting the body instead of the outer cutting points |
| Minimum used-bit diameter | Reveals ovality or one-sided loss | Taking only one convenient reading |
| Gauge-button and body condition | Separates carbide wear from steel erosion or damage | Reporting only a diameter without photographs |
| Meters, formation, and parameter history | Connects the pattern to operating conditions | Comparing bits from unlike holes without context |
Read the wear pattern before changing parameters
Gauge loss is a result; the pattern helps narrow the cause. Do not make a single-cause diagnosis from one photograph. Combine bit evidence with drill alignment, pipe condition, compressor data, cuttings return, rotation, feed, penetration trend, and formation changes.
| Observed pattern | What it can indicate | Checks before the next hole |
|---|---|---|
| Even wear around the complete gauge row | Progressive abrasive wear or normal service wear for the formation | Compare wear rate by meters, rock interval, bit design, and OEM limit |
| Gauge buttons worn faster than face buttons | Abrasive hole-wall contact, excessive surface speed, recirculating cuttings, or insufficient gauge protection | Review rotation against the manual, hole cleaning, rock abrasiveness, and bit design |
| One side smaller or more polished | Rig misalignment, collaring error, hole deviation, bent pipe, chuck wear, or persistent side loading | Check mast alignment, pipe straightness, hammer/bit guidance, and the hole trajectory |
| Steel body eroded while buttons protrude | Body wash from cuttings flow, long intervals, broken ground, or abrasive recirculation | Use the separate body-wash diagnosis; inspect flushing and button support |
| Blocked passage plus local heat or polish | Uneven flushing and repeated regrinding of trapped cuttings near part of the face | Clean passages and review compressor delivery, annular clearance, and returns |
| Cracked, chipped, or missing gauge button | Impact overload, fractured ground, excessive protrusion, embedded metal, mishandling, or retention failure | Retire or quarantine as required; inspect the hole and adjacent components before replacement |
A field diagnostic sequence that avoids unnecessary teardown
- Stop at the symptom. Record when penetration, torque, vibration, cuttings return, or hole diameter changed. Do not immediately compensate with more feed or rotation.
- Inspect the pulled bit. Measure gauge, photograph the wear, check flushing passages, and look for button or body damage.
- Check the string and guidance. Inspect drill-pipe straightness, connections, hammer chuck and bit movement, mast setup, collar condition, and any stabilizing components.
- Review delivered air and cleaning. Confirm compressor pressure and airflow at the operating condition, hose and pipe restrictions, leakage, water injection if used, annular geometry, and the quality of returns. The published DTH bit flushing guide explains how passage condition and cuttings removal affect the bit face.
- Compare operating parameters. Use the hammer and bit manufacturer’s range for rotation and feed. Compare actual settings with the formation interval where gauge loss accelerated.
- Protect the next assembly. If the pulled bit is below its allowed gauge or the hole is suspected to be narrow, follow the approved reaming and run-in method. Do not use the replacement bit as an uncontrolled gauge tool.
When to regrind, replace, or quarantine the bit
Regrinding restores carbide profile; it does not recreate lost hole diameter or repair an eroded steel body. A bit may still have grindable face buttons but no longer be acceptable at the gauge. The decision must consider the manufacturer’s minimum gauge, remaining carbide support, body condition, button integrity, shank and spline wear, and the required finished-hole diameter.
- Regrind only when button wear is within the approved reshaping range and the body, gauge, and carbide support remain serviceable. Follow the published button-bit regrinding guide and the grinder/OEM instructions.
- Replace when gauge loss reaches the manufacturer’s limit, the required hole tolerance can no longer be maintained, or the bit cannot safely be restored.
- Quarantine for technical review when wear is strongly one-sided, buttons are cracked or missing, the steel body is cracked, the shank or splines are damaged, or several bits show the same abnormal pattern.
Do not grind the outer body or gauge row merely to make a measured value look acceptable. Any restoration method must be explicitly permitted by the bit manufacturer and performed with the correct equipment.
How to slow repeat gauge loss
- Set rotation and feed from the hammer/bit guidance, then adjust only with documented formation and performance evidence.
- Maintain stable collaring and mast alignment; inspect bent pipes and worn guidance components.
- Keep flushing holes and face grooves open, and investigate weak or uneven cuttings return.
- Avoid long drilling intervals without inspection when entering more abrasive ground.
- Track gauge measurements by bit ID, meters, hole, formation, operator, and parameter range.
- Compare repeated wear patterns across several bits before changing carbide shape, face design, or gauge protection.
- Protect bits from impact during transport and storage; a chipped gauge button is not an operating wear pattern.
Rockmore’s technical discussion of percussive bits links improved cuttings channels with reduced perimeter wear, while Boart Longyear highlights excessive rotation and hard abrasive rock as contributors to gauge wear. These are useful diagnostic directions, not universal settings. The actual correction belongs to the matched hammer, bit, compressor, formation, and rig.
What to send with a DTH bit wear inquiry
- hammer brand, model, size, and required shank family;
- bit part number, nominal diameter, face design, button shape, and flushing layout;
- new/reference gauge and used-bit maximum and minimum readings;
- clear front, side, gauge-row, shank, spline, and striking-face photographs;
- hole diameter, depth, inclination, quantity, and required final tolerance;
- rock type, abrasiveness indicators, fractures, water, and formation changes;
- compressor pressure and free-air delivery, plus water or foam use where applicable;
- rotation, feed, penetration trend, meters per bit, and cuttings-return observations;
- pipe OD, connection, straightness findings, and any hammer/chuck wear;
- whether a new bit has already met resistance and at what measured depth.
FAQ
Can I identify DTH gauge wear by looking at flat buttons?
Not reliably. Button flats show carbide wear, but the effective gauge also depends on the outer cutting points and surrounding body geometry. Measure the cleaned bit at the manufacturer’s specified points and record several orientations.
Why measure both maximum and minimum diameter?
A single value can miss oval or one-sided wear. The spread between orientations helps distinguish uniform service wear from side loading, misalignment, deviation, or a damaged gauge row.
Can regrinding restore an under-gauge DTH bit?
Regrinding can restore button profile within approved limits, but it cannot add back lost carbide or steel diameter. Gauge acceptability must be assessed separately against the OEM limit and hole requirement.
What should I do if a new bit takes weight before bottom?
Stop and avoid forcing it. Confirm depth, returns, and the pulled bit’s gauge record; then use the site’s approved investigation and reaming procedure. The correct action depends on hole stability, geometry, and equipment.
Does gauge wear always mean the bit material is poor?
No. Material and design can matter, but formation abrasiveness, rotation, feed, flushing, alignment, pipe condition, and drilling interval can produce similar wear. Repeated evidence across controlled conditions is needed before assigning a supplier root cause.
Technical sources
- Boart Longyear — Check Your Buttons: Proven Tips for More Meters per Bit
- Epiroc — DTH Drill Bits
- Epiroc — Constant Hole Diameter and Percussive Bit Wear
- Rockmore International — Gauge Wear, Body Support, and Cuttings Flow
Match the replacement only after the wear evidence is complete
PerfoMax’s active DTH drill bit selection page is designed for matching by shank, diameter, face, button layout, rock, and drilling system—not nominal diameter alone. Send the measurements, photographs, hammer and compressor data, hole requirement, and wear history through the technical recommendation request. This allows the replacement discussion to address both compatibility and the operating condition that produced the gauge loss.
