Direct answer: the Cerchar Abrasivity Index (CAI) is a laboratory index used to describe how aggressively a rock surface wears a standardized steel stylus under a controlled scratch test. A higher result generally indicates a more abrasive rock–tool interaction in that test. It does not state rock strength in MPa, identify a drill-bit model, or predict an exact number of drilling metres before replacement.
For mines, quarries, contractors and procurement teams, CAI is most useful as one part of a wear-risk description. Use it with mineralogy, grain size, weathering, moisture, fractures, drilling method, bit design, operating data and actual wear records. Before comparing results, confirm that the laboratory used the same test standard, specimen preparation and reporting basis.
What the Cerchar Abrasivity Index Actually Measures

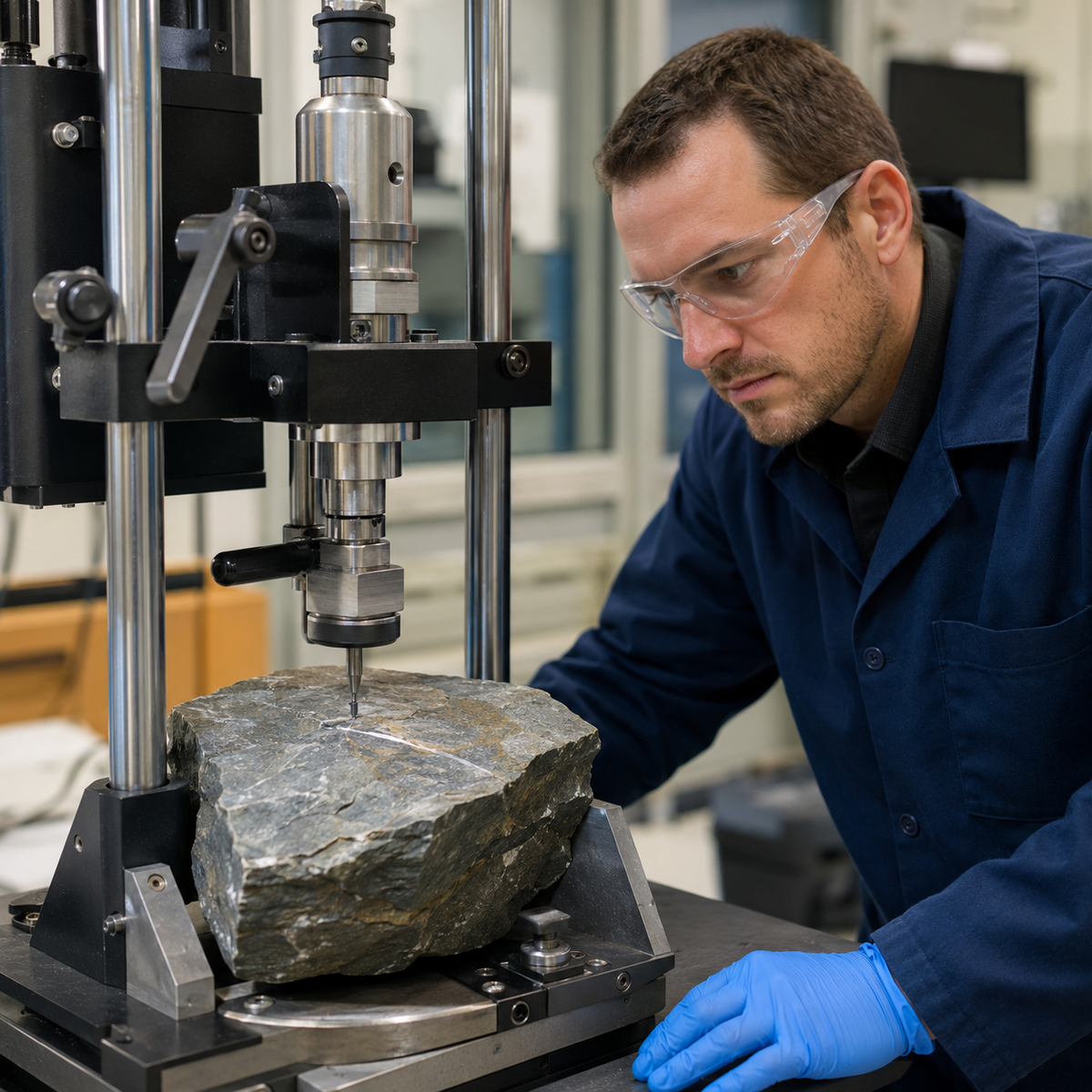

ASTM D7625-22 describes a laboratory method in which a conical steel stylus of known Rockwell hardness scratches a rock surface over a prescribed 10 mm distance. The wear on the stylus tip is then measured and used to determine the Cerchar Abrasivity Index. The current ASTM scope covers freshly broken surfaces and, where suitable broken surfaces cannot be obtained, saw-cut surfaces under the standard’s reporting and normalization provisions.
The result is an index of rock abrasiveness in a defined test. ASTM emphasizes that abrasiveness is a behavioral characteristic rather than a fundamental physical or mechanical property. That distinction is important. CAI describes the response of a particular rock specimen against a controlled steel stylus; it is not the same quantity as uniaxial compressive strength, indentation hardness, tensile strength or quartz percentage.
| Item | What it tells the buyer | What it does not prove |
|---|---|---|
| CAI result | Relative abrasivity of the tested rock under the stated Cerchar procedure | Exact drill-bit life or cost per metre |
| UCS result | Compressive strength of an intact specimen under its test method | Abrasive wear rate by itself |
| Mineralogy / petrography | Hard-mineral content, grain relationships and texture that can influence wear | Field performance without operating and geological context |
| Field wear record | Actual wear response of a defined bit, setup and interval | Transferable performance in a different tool or formation without review |
How the ASTM D7625 Test Works
The detailed laboratory procedure belongs in the current standard and the laboratory’s controlled method, but the buyer should understand the measurement chain:
- Select and identify the specimen. The sample must be traceable to a location, depth or geological unit relevant to the drilling decision.
- Prepare the test surface. ASTM’s primary basis is a fresh broken rock surface. Saw-cut surfaces may be used when a suitable broken surface cannot be produced, subject to the standard’s provisions.
- Use a controlled stylus. Stylus material, geometry and Rockwell hardness matter. ASTM D7625-22 focuses on an HRC 55 stylus basis and discusses normalization where a different stylus hardness is used.
- Apply the prescribed scratch. The stylus is moved across the rock over the controlled distance and loading conditions defined by the method.
- Measure the wear flat. The laboratory measures the worn tip and calculates the reported index from the applicable readings.
- Report the method and variability. A useful report identifies the standard edition, apparatus/procedure, surface preparation, stylus basis, individual results and summary statistics.
The test looks simple, but small procedural differences can compromise comparisons. ASTM specifically notes that stylus hardness can have a profound effect on the result. Surface preparation also matters, particularly for heterogeneous rocks in which a representative fresh broken surface is difficult to obtain.
Why Two Samples from the Same Site Can Give Different CAI Results
Rock is rarely uniform. A quarry face can cross different beds, veins, alteration zones or weathering grades. A borehole interval can contain changing grain sizes and proportions of hard minerals. One specimen may place the stylus across a hard mineral-rich band; another may cross a softer matrix.
Recent research continues to show that CAI relationships involve several mineralogical and mechanical variables. Studies published in Scientific Reports and Applied Sciences examine factors such as equivalent quartz content, UCS, tensile strength, density, brittleness and rock type. Their models also demonstrate an important limitation: a strong correlation inside one dataset does not automatically become a universal conversion for every geology.
For a purchasing decision, request enough samples to represent the actual production intervals and keep individual results visible. An average without the range can hide a short but highly abrasive band that controls bit consumption. Conversely, one extreme specimen should not automatically be treated as the entire deposit.
CAI Is Not the Same as Rock Hardness or UCS
“Hard,” “strong” and “abrasive” are often used as if they mean the same thing. They do not.
- Hardness describes resistance to indentation, scratching or deformation under a particular test.
- Strength describes failure under a defined load; UCS is one intact-rock strength test.
- Abrasivity describes a rock’s tendency to wear a contacting tool or test stylus under defined interaction conditions.
- Drillability is the practical response of the whole rock–tool–machine system, including fractures, flushing, feed, rotation and operator control.
A strong rock may be only moderately abrasive, while a rock with abundant hard mineral grains may create severe wear even when its UCS is not exceptional. For the broader distinction, read Rock Hardness vs Abrasivity in Drilling. Use CAI to add a standardized abrasivity observation—not to replace the other information.
What a Buyer Should Check on a CAI Laboratory Report
| Report field | Why it matters | Buyer check |
|---|---|---|
| Standard and edition | Methods can change and old results may use a different basis | Confirm ASTM D7625-22 or clearly identify another agreed method |
| Sample identity | Untraceable values cannot be tied to the drilling interval | Require project, location, depth/bench and geological-unit references |
| Surface preparation | Fresh broken and saw-cut surfaces require different treatment in the standard | Do not compare results if preparation is unknown |
| Stylus hardness / basis | Stylus hardness affects measured wear | Confirm the stated hardness and any normalization |
| Individual readings | Variation can be operationally important | Ask for readings, range and summary—not only one rounded value |
| Rock condition | Weathering, moisture and heterogeneity may affect representativeness | Record specimen state and any visible discontinuities or mixed lithology |
| Laboratory competence | Reliable results depend on personnel, equipment and quality control | Use a competent laboratory and include the agreed QA requirements |
Do not merge CAI values from different laboratories or historical reports until the method basis is reconciled. If only a chart or spreadsheet cell survives, treat the number as provisional until the original report is recovered.
How to Use CAI in Drill-Bit Planning
CAI can improve a tooling discussion when it is used as a boundary condition rather than a product selector. A practical workflow is:
- Define the drilling system. State DTH, top hammer, tapered tools or another method; include bit diameter, connection/shank, face design and operating equipment.
- Map CAI to geological intervals. Separate the values by rock unit, depth or bench instead of sending one site-wide average.
- Add complementary geology. Include rock type, UCS where available, mineralogy/petrography, grain size, fracture condition, weathering and water.
- Add current operating evidence. Record penetration, metres per bit, gauge loss, button wear mode, regrinding interval, breakage and flushing condition.
- Compare like with like. Evaluate candidate tools in controlled intervals with the same performance and wear-recording rules.
- Update the wear plan. Use the combined evidence to set inspection, regrinding, change-out and spare-stock intervals.
For the tool-side terminology, see Gauge Buttons vs Face Buttons. If the observed problem is cracking or button loss rather than gradual abrasive wear, use the Carbide Button Failure Guide; CAI alone cannot diagnose impact overload, poor operating practice, manufacturing defects or an incompatible bit.
Why CAI Cannot Guarantee Metres per Bit
Actual drill-bit life is influenced by variables that the Cerchar scratch does not reproduce. These include bit body and carbide design, button geometry, gauge protection, heat treatment, impact loading, rotation, feed, flushing, hole deviation, regrinding practice, connection condition and operator response. DTH and top-hammer bits also load the rock differently from the steel stylus used in the laboratory test.
Therefore, a supplier should not convert CAI into a guaranteed metres-per-bit figure without validated, comparable field evidence and agreed test conditions. A better commercial approach is to define a trial interval, inspection method and acceptance metrics. Track both production and wear: penetration rate alone can improve while bit cost per metre worsens.
Common CAI Interpretation Mistakes
- Treating CAI as a strength value. It is not measured in MPa and should not replace UCS.
- Using a single sample for a variable deposit. The result may represent only one band or mineral texture.
- Ignoring the test edition and surface preparation. Uncontrolled methods are not safely comparable.
- Comparing averages without ranges. Variability may be the operationally important finding.
- Assuming high CAI identifies a specific bit. Tool selection still requires system compatibility and field conditions.
- Blaming every button failure on abrasivity. Cracking, pop-out and body damage can have other causes.
- Promising exact life from a laboratory index. Validate cost per metre in controlled field use.
- Failing to preserve sample traceability. A number without location and lithology has limited procurement value.
Information to Send with a Drill-Bit Inquiry
- drilling method, rig and rock-drill or DTH-hammer model;
- required bit diameter, connection or shank, and current face/button design;
- CAI laboratory report with standard, sample IDs, individual readings and range;
- rock type, mineralogy/petrography, UCS and other available test data;
- bench, depth or interval represented by each sample;
- fracture, weathering and water conditions;
- current penetration rate and metres drilled per bit under defined conditions;
- photos of face buttons, gauge buttons, bit body and flushing passages at inspection;
- dominant wear or failure mode and regrinding history;
- trial quantity, acceptance metrics and required spare-stock horizon.
PerfoMax’s live Drill Bits collection is the relevant commercial pathway for a tooling review. Send the laboratory and field data together so the discussion starts from both rock abrasivity and actual system compatibility.
Frequently Asked Questions
What does CAI stand for in rock testing?
CAI stands for Cerchar Abrasivity Index. It is derived from wear on a standardized steel stylus after a controlled scratch across a rock specimen.
Is a higher CAI always worse?
A higher result generally indicates greater abrasivity in the Cerchar test, which raises wear concern. “Worse” depends on the project: tool design, drilling method, production target, inspection practice and cost per metre determine the operational consequence.
Can CAI be calculated from UCS?
Research has produced correlations and prediction models, but their validity depends on the underlying rock types and dataset. Do not replace a required CAI test with a universal UCS conversion unless a competent geotechnical basis has been established for the project.
How many rock samples are needed?
There is no universal count for every deposit. The sampling plan should represent the lithologies, weathering grades and abrasive bands that can affect the work. Ask the geotechnical specialist and laboratory to define the number and distribution for the project risk.
Does CAI tell me when to regrind a button bit?
No. CAI informs wear risk, but regrinding decisions depend on measured button shape, gauge condition, cracks, bit-body condition and the tool supplier’s limits. See the Button Bit Regrinding Guide for the field decision boundary.
Technical References
- ASTM International — ASTM D7625-22, Laboratory Determination of Rock Abrasiveness Using the Cerchar Abrasiveness Index Method
- ASTM International — Background on Quantifying Rock Abrasiveness
- Scientific Reports — Cerchar Abrasiveness Index Prediction from Rock Properties
- Applied Sciences — Data-Driven Estimation of CAI from Geomechanical and Mineralogical Characteristics
