Drill steel and bit
YO18 configuration review
Match the machine shank/chuck and the rod-to-bit connection separately.
A model label or visual similarity does not establish fit.
Pneumatic Rock Drill
YO18 Handheld Pneumatic Rock Drill
Model:YO18
Selected configuration:Configuration to be confirmed
Selected reference:PM-RD-010
YO18 configuration and quotation guide
YO18 Handheld Pneumatic Rock Drill. A compressed-air rock drill uses matched drill steel and a bit to form the hole. Select the identified tool version together with the hole requirement, air system and complete tooling connection.
- YO18: Reviewing the whole chain reduces mismatched body, steel and bit enquiries.
- The enquiry can reflect the actual site supply rather than a compressor label alone.
- Configuration, included items and acceptance basis stated in the written quotation
Request a Configuration-Based Quote
Compare all Hand-Held Rock Drills
Send the exact model or suffix, rock condition, hole diameter and depth, drilling direction, drill-steel interface, air pressure and flow, feed setup, quantity and delivery country.
At a Glance
YO18Model / family identity
Pneumatic Rock DrillProduct type
Technical Specifications
| Model / family identity | YO18 |
|---|---|
| Product type | Pneumatic Rock Drill |
| Operating system | Compressed-air rock drilling; drill steel and bit are separate matched components. |
| Tooling connection | Identify the machine shank cross-section and length, chuck fit, rod length and bit-end connection. |
| Hole selection | Specify hole diameter, depth, rock/material and drilling direction together. |
| Air supply | Use working pressure and delivered airflow at the tool; provide hose and coupling details. |
| Flushing | The selected version must support the requested flushing or dust-control arrangement; water flushing is not assumed. |
| Order configuration | The accepted quotation identifies the exact configuration, part/drawing revision, quantity and supplied items. This page is a configuration enquiry. |
| Inquiry reference | PM-RD-010 is the existing page/variant reference, not a complete order code. |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Air and flushing system
YO18 configuration review
Match inlet, hose, couplings, delivered air and any supported flushing path.
Use the supplied-version operating instructions and site arrangement.
Pneumatic Drilling Performance
Connected tooling selection
Impact passes through the drill steel to the bit.
Buyer value
Reviewing the whole chain reduces mismatched body, steel and bit enquiries.
Selection condition
Confirm both the machine interface and the bit-end connection.
Air delivery at the tool
The hose and coupling arrangement influences the air delivered by the compressor.
Buyer value
The enquiry can reflect the actual site supply rather than a compressor label alone.
Selection condition
Use supplied-version pressure and airflow requirements.
Configuration-specific quotation
The YO18 enquiry is identified by its catalog model/family and the requested connection, application and supply scope.
Buyer value
The written offer can return a reviewable part/configuration identity and itemized supply list.
Selection condition
A model or page reference is not itself a complete order code; approve the offered configuration before ordering.
Application Scenarios
- Quarry and stone-work drilling enquiries
- Construction and mining hole-drilling enquiries with verified tooling and site conditions
- Replacement-tool enquiries supported by the old model plate and connection dimensions
Confirm Before Ordering
Configuration Inputs
- Exact model and supplied revision
- Hole diameter and depth
- Rock/material and drilling direction
- Drill-steel shank cross-section and length
- Bit-end connection and rod length
- Available pressure and air flow
- Air inlet and hose/coupler size
- Water/flushing or dust-control arrangement
- Body-only or specified accessories and spare parts
- Quantity, destination, required delivery window and inspection/packing requirements
Operating Limits
- Do not treat all Y or YT models as sharing one shank or air/flushing specification.
- Air legs and accessories are included only when the exact compatible version is listed.
Quality and Pre-Shipment Checks
01
YO18 identity and configuration check
Acceptance requirement: compare the offered item with the approved model/part/drawing revision.
This is an order-inspection requirement, not a completed inspection result or certification statement.
Agree checks covering exact model and supplied revision; hole diameter and depth; rock/material and drilling direction; drill-steel shank cross-section and length before order release.
02
Interface and functional evidence
Acceptance requirement: agree the relevant dimensional and, where applicable, functional verification for the quoted configuration.
No test outcome or universal performance figure is claimed. The test arrangement and pass criteria must be tied to the actual offered item.
Use the agreed pneumatic rock drill drawing/data sheet and record the relevant connection, fit or operating conditions.
03
Supply, quantity and packing reconciliation
Acceptance requirement: match each delivered line item to the approved supply scope and packing list.
The required marks, protection and document scope must be written in the order.
Check item identification, quantity, visible condition and the agreed packaging/documentation.
Supply Scope, MOQ and Delivery
Minimum Order QuantityRequest a quotation for the required quantity and YO18 configuration.
Lead TimeThe quotation states dispatch timing after the configuration, quantity and supply scope are agreed.
Available Supply Configurations
- Identified drill body; inclusion and quantity must be stated in the quotation.
- Matched drill steel and bit if itemized; inclusion and quantity must be stated in the quotation.
- Hose, couplers, lubricator, air leg and spares only if itemized; inclusion and quantity must be stated in the quotation.
Export Packing
Specify destination, transport method and required marks. Agree item separation, surface/connection protection and packing-list details for the YO18 supply.
Warranty and After-Sales
Request warranty and wear-part terms with the quotation. For YO18 support, send the order reference, exact part/model identification, the affected component and operating conditions so the supplied configuration can be identified.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and itemized packing list: agree required content with the order.
Origin, inspection, test or transport documents: state destination/project requirements before quotation; availability must be confirmed for the offered configuration.
Frequently Asked Questions
What does this YO18 page identify?
A compressed-air rock drill uses matched drill steel and a bit to form the hole. Select the identified tool version together with the hole requirement, air system and complete tooling connection.
Does the model name establish drilling capacity?
No. Review the selected version with the hole diameter, depth, rock condition and drilling direction. Published comparison figures do not guarantee supplied-unit capacity.
Are the drill steel and air leg automatically included?
No. Specify the body, matched tooling and any air leg or accessories as separate supply items.
Which configuration details are needed for quotation?
Provide exact model and supplied revision; hole diameter and depth; rock/material and drilling direction; drill-steel shank cross-section and length; bit-end connection and rod length; available pressure and air flow. Also include air inlet and hose/coupler size; water/flushing or dust-control arrangement; body-only or specified accessories and spare parts, quantity and destination. The offer should state the exact configuration for approval.
What is included in the supply?
The quotation itemizes the supply. Typical enquiry lines are: identified drill body; matched drill steel and bit if itemized; hose, couplers, lubricator, air leg and spares only if itemized. No unlisted accessory or mating component is assumed included.
How are quantity, delivery and inspection requirements agreed?
Send the required quantity, destination and any packing or inspection requirement with the YO18 enquiry. MOQ, dispatch timing, warranty and document scope are stated in the written quotation for the agreed configuration.
Required Drill-Steel, Air and Feed Interfaces
Drill steel and bit: Match the machine shank/chuck and the rod-to-bit connection separately. Air and flushing system: Match inlet, hose, couplings, delivered air and any supported flushing path.
Ready to Confirm the Configuration?
Request a Quote for YO18
We will confirm the drill body, shank and drill-steel interface, bit connection, dry or wet setup, air leg or feed, lubricator, hose and water setup, accessories, supply scope and export packing.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence

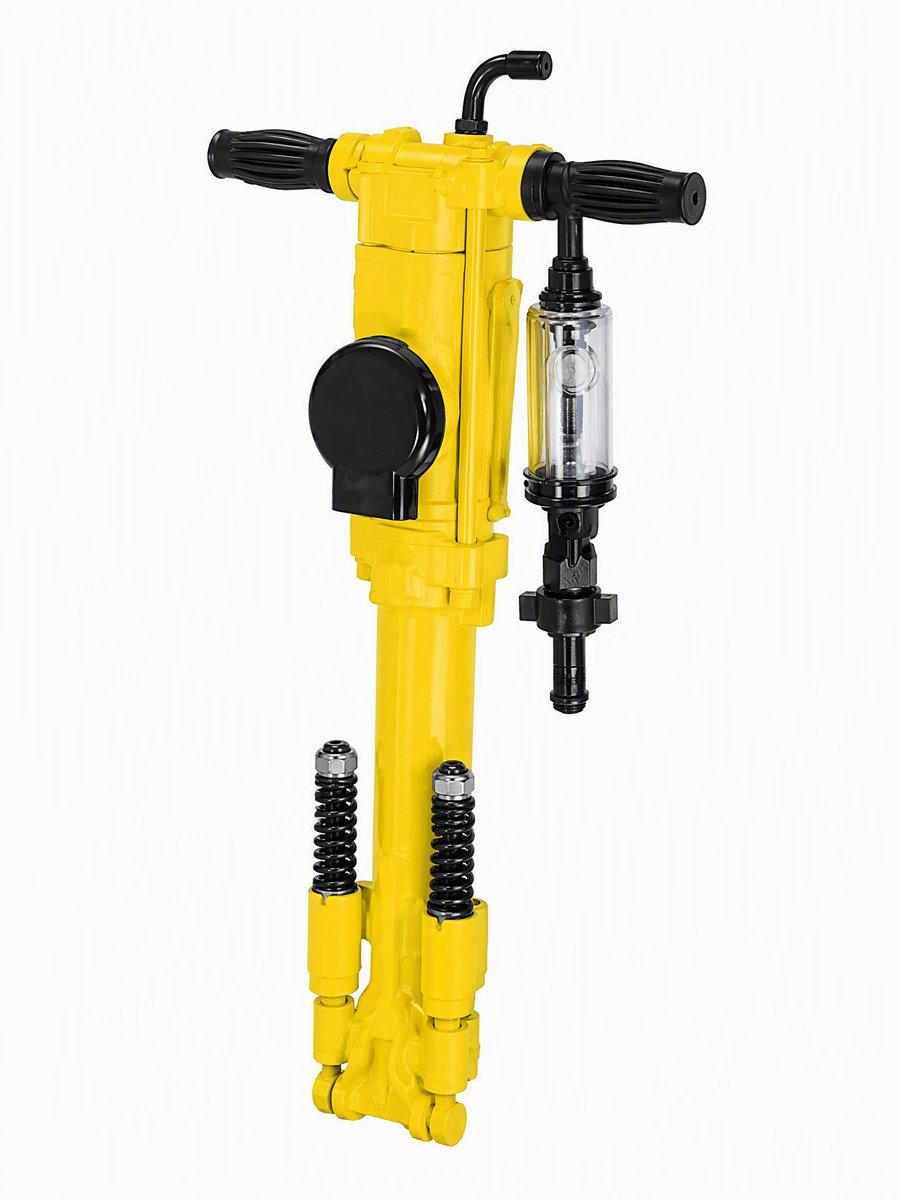

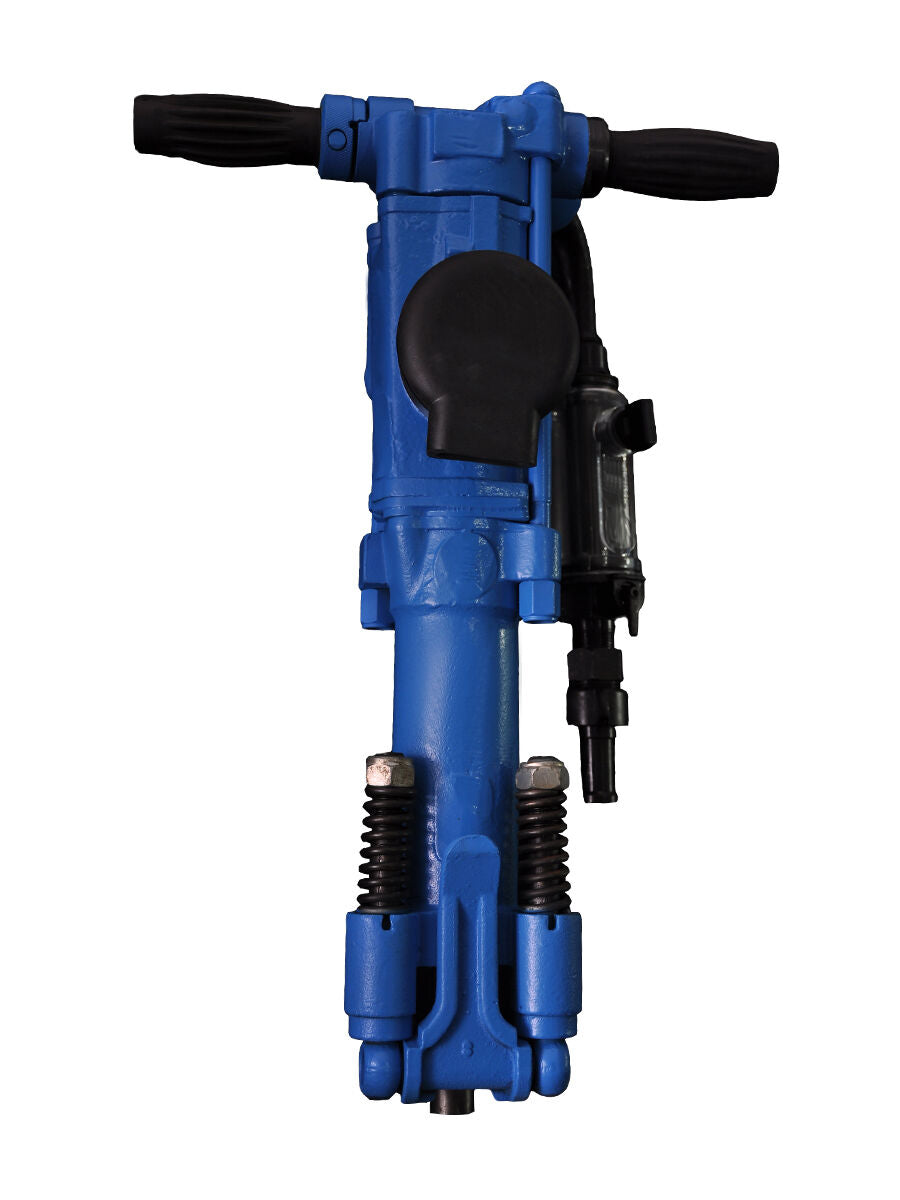

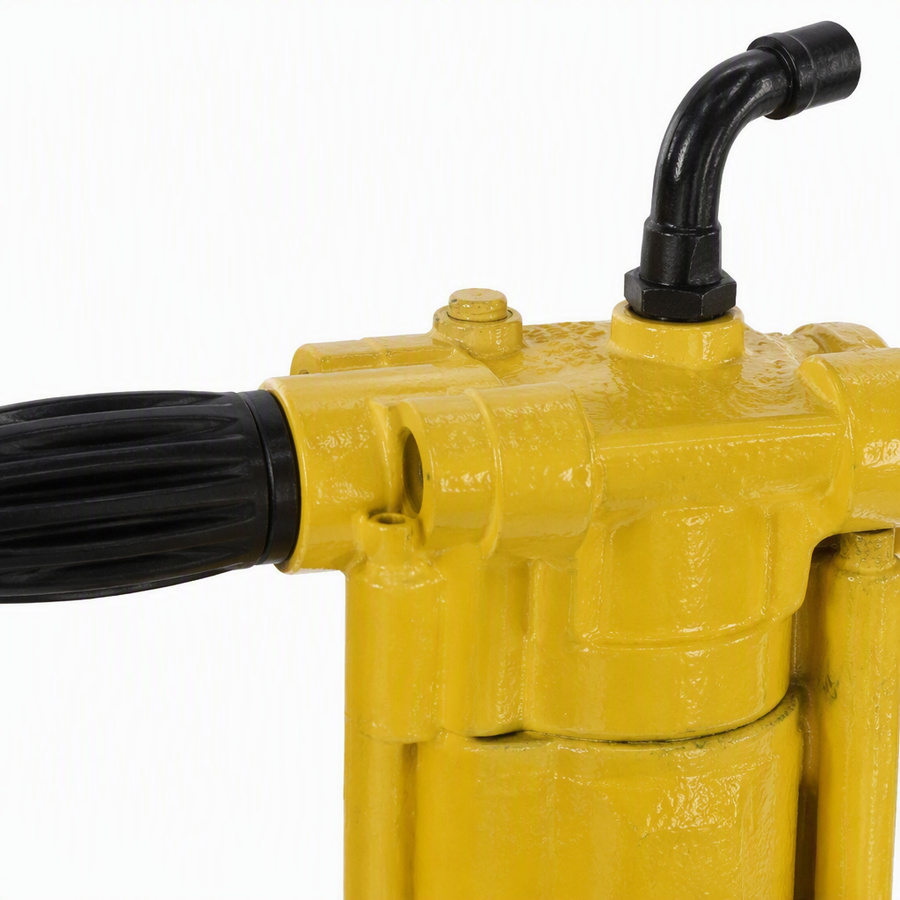

Product, Component, Configuration and Packing Views
YO18 Handheld Pneumatic Rock Drill. A compressed-air rock drill uses matched drill steel and a bit to form the hole. Select the identified tool version together with the hole requirement, air system and complete tooling connection.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
