Handheld Pneumatic Rock Drill

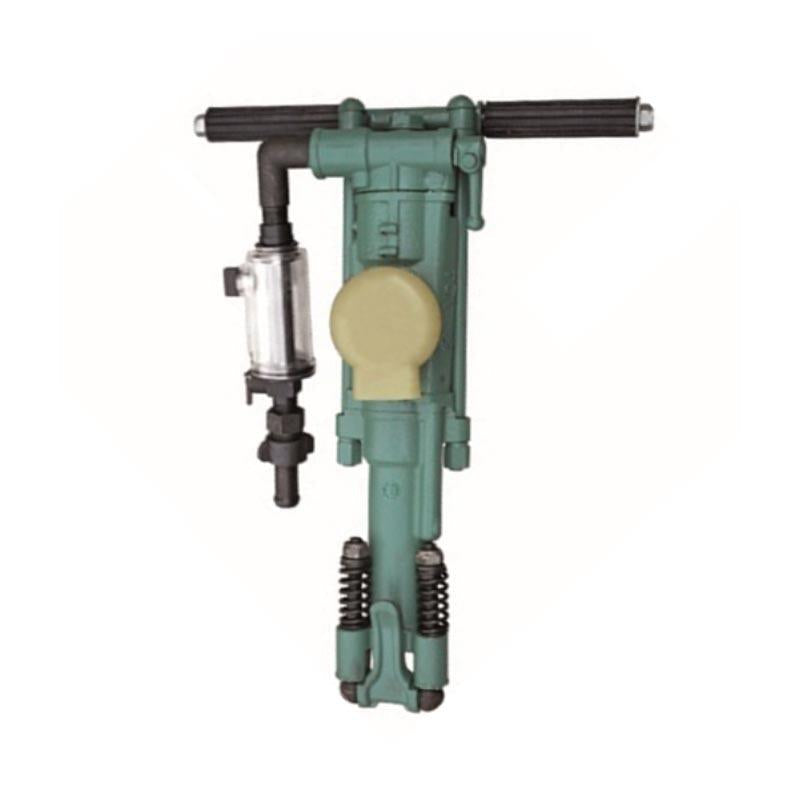

Y24 Handheld Pneumatic Rock Drill

Model:Y24

Selected configuration:Configuration to be confirmed

Selected reference:PM-RD-008

Y24 handheld pneumatic rock drill with supplier-reference H22 × 108 mm shank, 34–42 mm drilling diameter, 0.4–0.63 MPa working pressure, 24 kg weight and 604 mm length. Final configuration and commercial terms are quotation-controlled.

  • Handheld Y24 pneumatic rock-drill format
  • H22 × 108 mm supply-reference shank
  • 34–42 mm supplier-reference drilling diameter
  • 0.4–0.63 MPa supplier-reference working pressure
Request a Configuration-Based Quote Compare all Hand-Held Rock Drills

Send the exact model or suffix, rock condition, hole diameter and depth, drilling direction, drill-steel interface, air pressure and flow, feed setup, quantity and delivery country.

At a Glance

Pneumatic rock drillTool Type

Technical Specifications

Tool TypePneumatic rock drill
Drill-Steel InterfaceH22 × 108 mm reference; confirm the complete rod and bit connection before ordering
Air SystemConfirm compressor pressure, air flow, hose size and coupler arrangement

Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.

Application Scenarios

  • Mining
  • Quarrying
  • Construction rock drilling
  • Tunneling
  • Municipal rock work

Confirm Before Ordering

Configuration Inputs

  • Target hole diameter and depth
  • Rock condition and drilling application
  • H22 × 108 mm shank plus exact drill steel/bit connection
  • Available compressor pressure and air-flow capacity
  • Confirm this is the Y24 handheld configuration, not the YT24 air-leg family
  • Exact supply scope, quantity and destination

Operating Limits

  • Technical figures are scoped to the documented Y24 supplier configuration
  • Do not substitute YT24 or another Y-series model by name similarity alone
  • Final drill steel, bit and compressor matching must be confirmed before use

Supply Scope, MOQ and Delivery

Minimum Order QuantityConfirmed in written quotation
Lead TimeConfirmed in written quotation

Available Supply Configurations

  • Final packing list confirmed in the written quotation

Export Packing

Final packaging method, corrosion protection, shipping marks and accessory packing are confirmed in the written quotation.

Warranty and After-Sales

Warranty, spare-parts scope and after-sales terms are confirmed in the written quotation for the selected Y24 supply configuration.

Safety and Maintenance Notes

Confirm the exact drill steel, bit connection, hose/coupler arrangement, compressor capacity and final supplier operating instructions before use. Follow the supplied manual, site risk assessment and required PPE.

Frequently Asked Questions

What drill-steel and bit information should I provide?
Provide the shank size plus the exact drill-steel and bit connection. Shank size alone is not enough to confirm the complete tooling match.
What compressor data is needed for a quotation?
Provide available working pressure, air-flow capacity, hose size and connection details so the supplied drill configuration can be checked against the air system.
Are drill rods, bits or air legs included?
Do not assume they are included. The written quotation should itemize the drill body and every requested rod, bit, air leg, lubricator, hose, coupler or spare part.
Can a similar Y-series model be substituted by name similarity?
No. Confirm the exact model identity, interfaces and order configuration before substitution or repeat ordering.

Ready to Confirm the Configuration?

Request a Quote for Y24

We will confirm the drill body, shank and drill-steel interface, bit connection, dry or wet setup, air leg or feed, lubricator, hose and water setup, accessories, supply scope and export packing.

Request a Configuration-Based QuoteContact Our Team
  • Product-specific quotation
  • Interface confirmation
  • Export packing options
