Drill rod and coupling
T51 top-hammer drill string
Match T51 thread, shoulders, coupling and flushing path.
Do not match only by outside diameter.
Top Hammer Threaded Button Bit
T51 Threaded Button Bit
Model:T51
Selected configuration:Configuration to be confirmed
Selected reference:Configuration required
T51 top-hammer button bits for larger-hole drilling, configured by diameter, skirt, face, carbide layout and flushing.
T51 threaded button bits for matched high-capacity top-hammer drill strings, with standard and retrac configurations reviewed against hole size and ground condition.
- T51 thread-family matching
- Larger-hole standard and retrac configurations
- Configuration review for face, buttons, gauge protection and flushing
Request a Configuration-Based Quote
Send exact bit thread system and mating rod drawing; bit diameter and hole requirement; face, buttons and flushing arrangement; rock condition, drill model and operating context; quantity and delivery country. Not sure is accepted where identification is needed.
At a Glance
T51 top-hammer connectionThread system
76, 83, 89, 96, 102, 115 and 127 mm examplesIndustry-reference diameters
Standard or retrac body; other designs by reviewBit body
Technical Specifications
| Thread system | T51 top-hammer connection |
|---|---|
| Industry-reference diameters | 76, 83, 89, 96, 102, 115 and 127 mm examples |
| Bit body | Standard or retrac body; other designs by review |
| Face design | Flat, drop-center or application-specific face |
| Carbide buttons | Gauge and front buttons; profile/layout by configuration |
| Flushing arrangement | Front, side or combined flushing |
| Matched components | T51 rod, coupling and compatible shank-adapter system |
| Quotation inputs | Diameter, body, face, buttons, flushing, formation, rig and quantity |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Rock drill and shank adapter
High-capacity top-hammer system
Confirm percussion equipment, shank adapter, rod/coupling and bit as one system.
Provide current component identities when replacing another supplier.

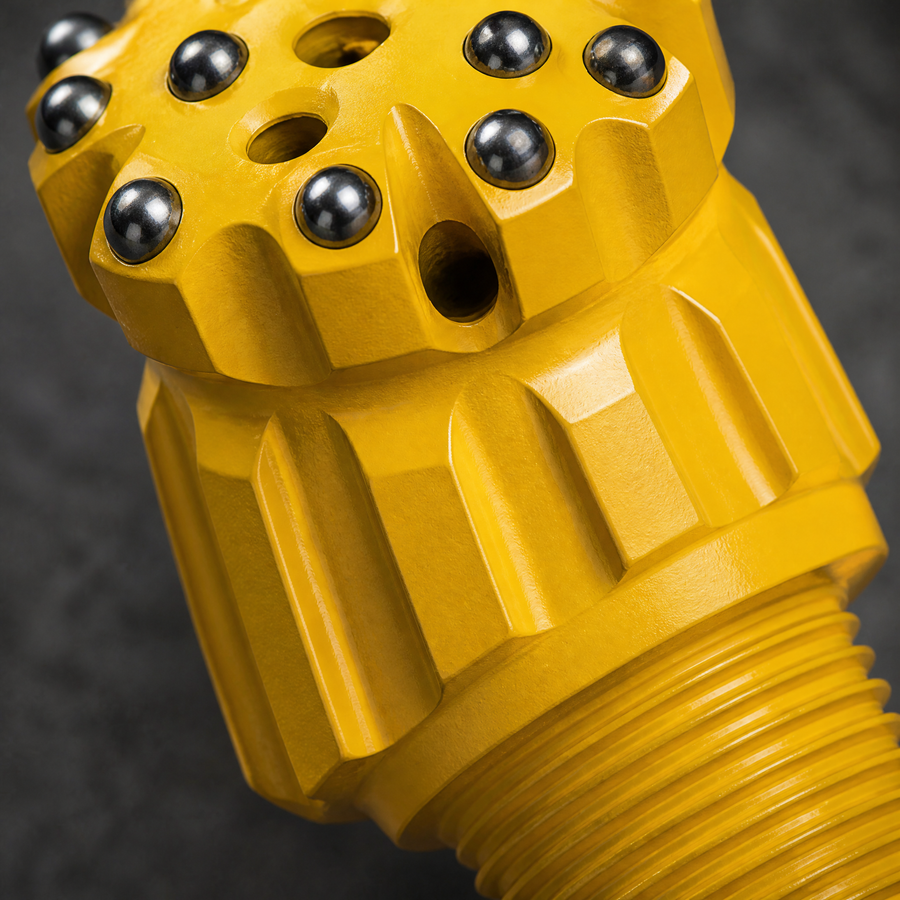

Threaded Bit Face and Connection
Large-hole T51 configuration control
Face, skirt, gauge protection, buttons and flushing are selected around the required diameter and formation.
Buyer value
Supports predictable interface matching and a configuration aligned with hole-cleaning and withdrawal demands.
Selection condition
Actual penetration and life depend on equipment condition, parameters and ground.
Application Scenarios

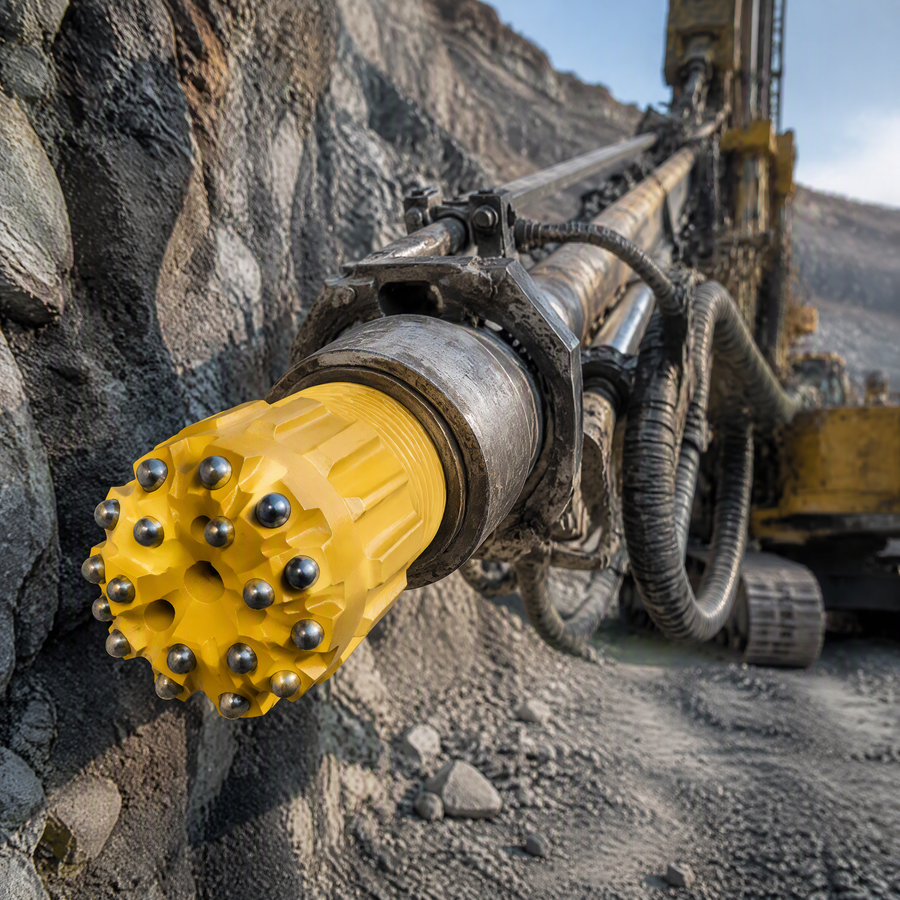

- Large-hole bench and production drilling
- Quarry and open-pit drilling
- Underground development requiring T51 drill strings
Confirm Before Ordering
Configuration Inputs
- Required hole diameter and drilling objective
- Exact T51 rod/coupling identity and rig or rock-drill model
- Face, body/skirt, button and flushing preference
- Rock hardness, abrasiveness, fracturing and hole depth
- Quantity, destination, inspection and packing requirements
Operating Limits
- Do not substitute T51 with another thread family by name or diameter alone
- Industry-reference diameters are not a PerfoMax availability promise
- Performance depends on the complete drill string, equipment condition, settings and formation
- Final configuration is controlled by the written quotation or approved drawing
Quality and Pre-Shipment Checks
01
Configuration and Visual Check
Recorded against the approved quotation or drawing when included in the order scope
Thread/connection, selected geometry, cutting structure, flushing and visible condition
Compare the finished configuration with the approved order reference and record specified dimensions and visual condition.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed by size, configuration and order quantity
Lead TimeConfirmed after configuration, quantity and delivery terms
Available Supply Configurations
- T51 Threaded Button Bit in the approved configuration
- Optional matching components or spare items when listed in the quotation

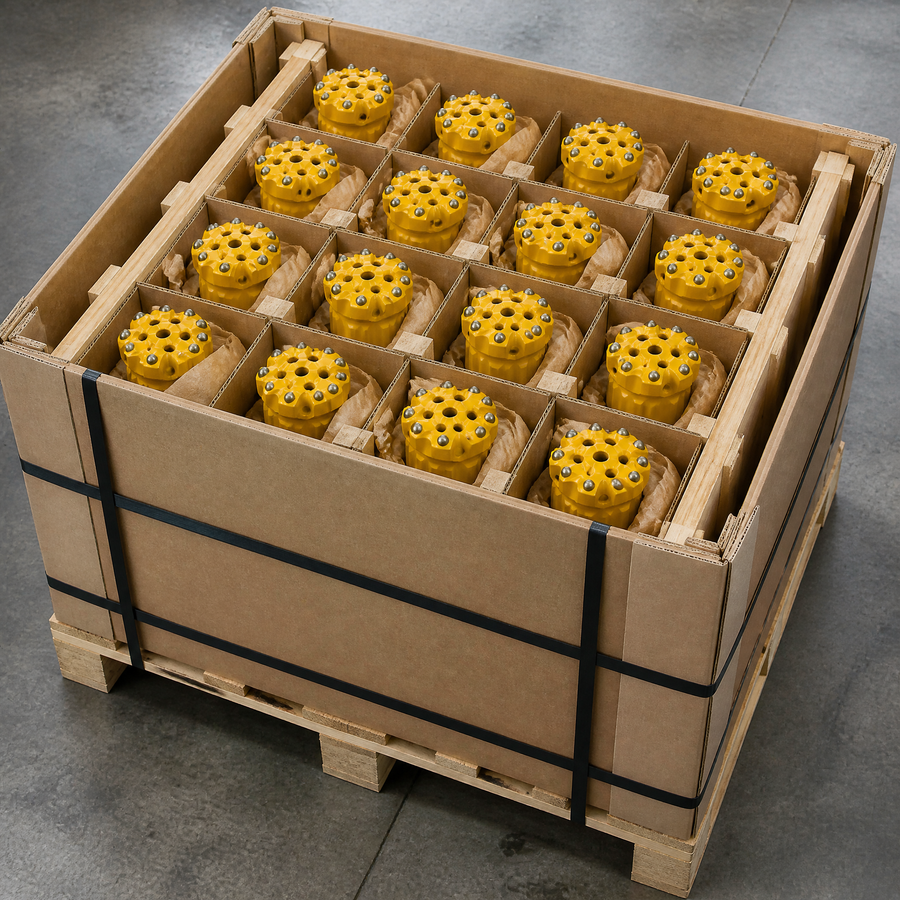

Export Packing
Corrosion protection, individual/carton packing, wooden case or pallet method and shipping marks are confirmed for the selected configuration and destination.
Warranty and After-Sales
Warranty, claim evidence, replacement review and after-sales scope are stated in the written quotation for the approved configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list
Inspection record, material/quality document or certificate when included in the quotation
Frequently Asked Questions
Which diameters are commonly seen in T51 catalogs?
Public catalog examples include drilling-bit diameters from 76 to 127 mm. PerfoMax will confirm the offered diameter and complete configuration.
Is T51 interchangeable with T45?
No direct interchangeability should be assumed. Confirm the full thread and shoulder interface and the complete drill string.
Why might a retrac T51 bit be selected?
Retrac bodies are considered where fractured ground or unstable hole walls make withdrawal and gauge management more demanding.
What operating information is needed?
Provide rig and rock-drill model, hole diameter/depth, formation, rotation/feed/percussion settings, flushing capacity and current wear pattern.
How are buttons and flushing confirmed?
They are confirmed together with face geometry, skirt and hole-cleaning requirements in the quotation or controlled drawing.
Matched Top-Hammer Threaded System
A complete T51 top-hammer system combines the rock drill and shank adapter, coupling, T51 rod, matched button bit and adequate flushing.
Ready to Confirm the Configuration?
Request a Quote for T51
Our technical sales team will review the top-hammer threaded bit requirements, resolve the selected configuration and matching components, and state the agreed supply scope and delivery terms in the quotation.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence

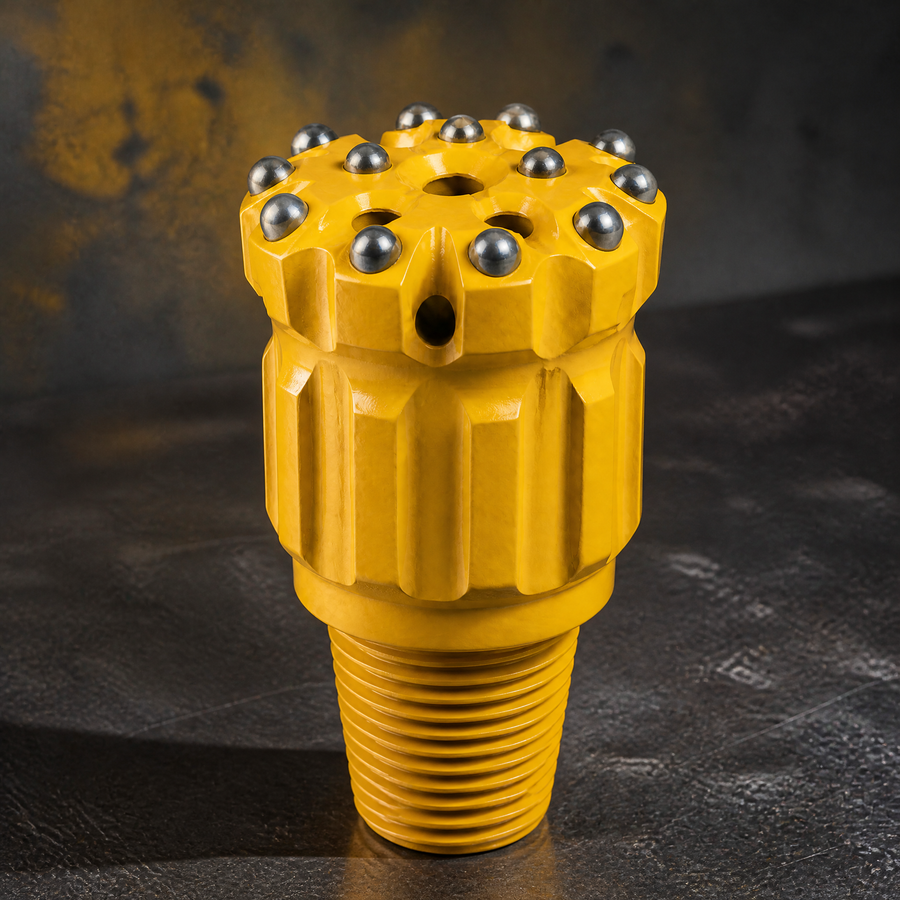

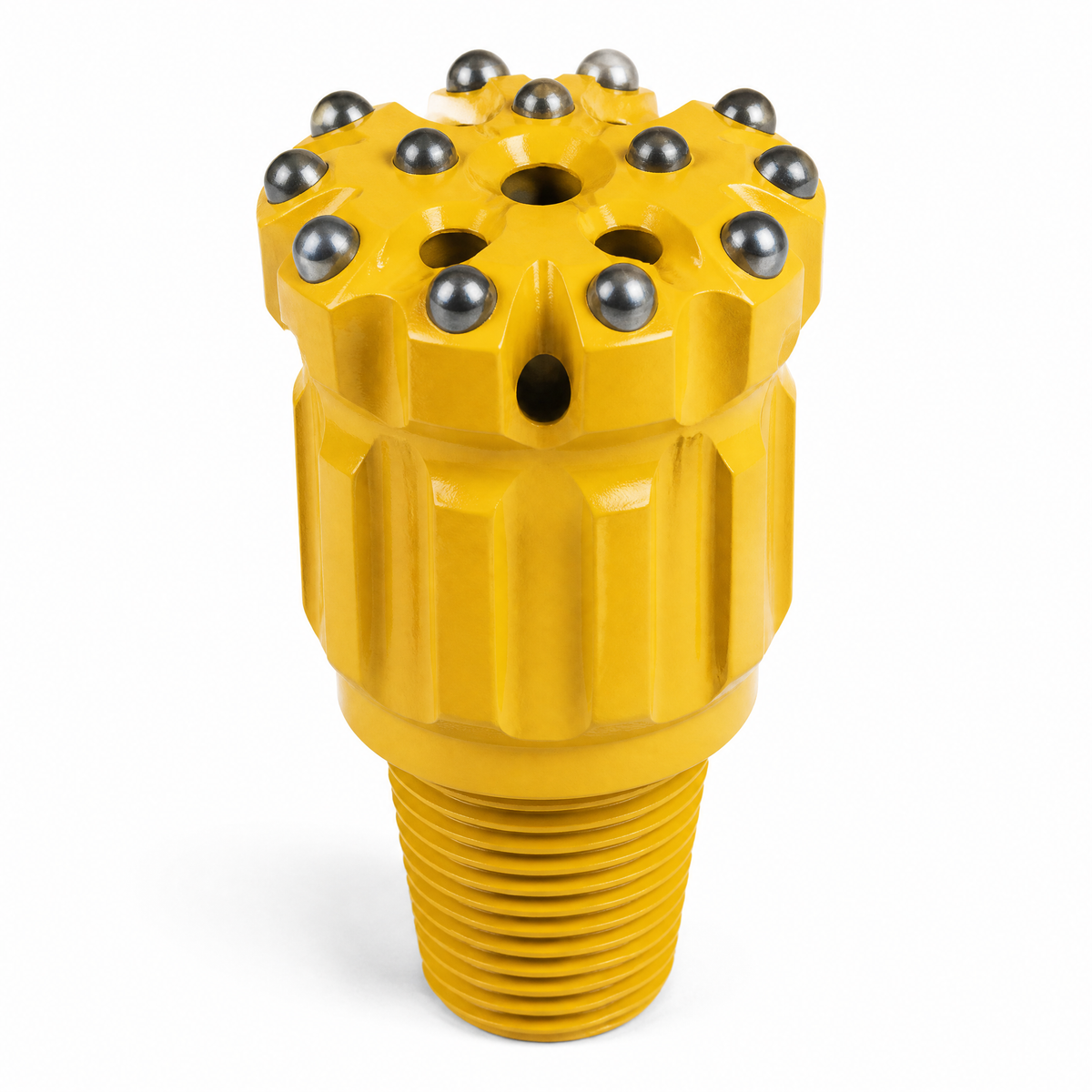

Product, Component, Configuration and Packing Views
T51 threaded button bits for matched high-capacity top-hammer drill strings, with standard and retrac configurations reviewed against hole size and ground condition.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
