Drill rod and coupling
T45 top-hammer drill string
Match T45 thread identity, shoulders, coupling and flushing passage.
Inspect used mating components before replacement.

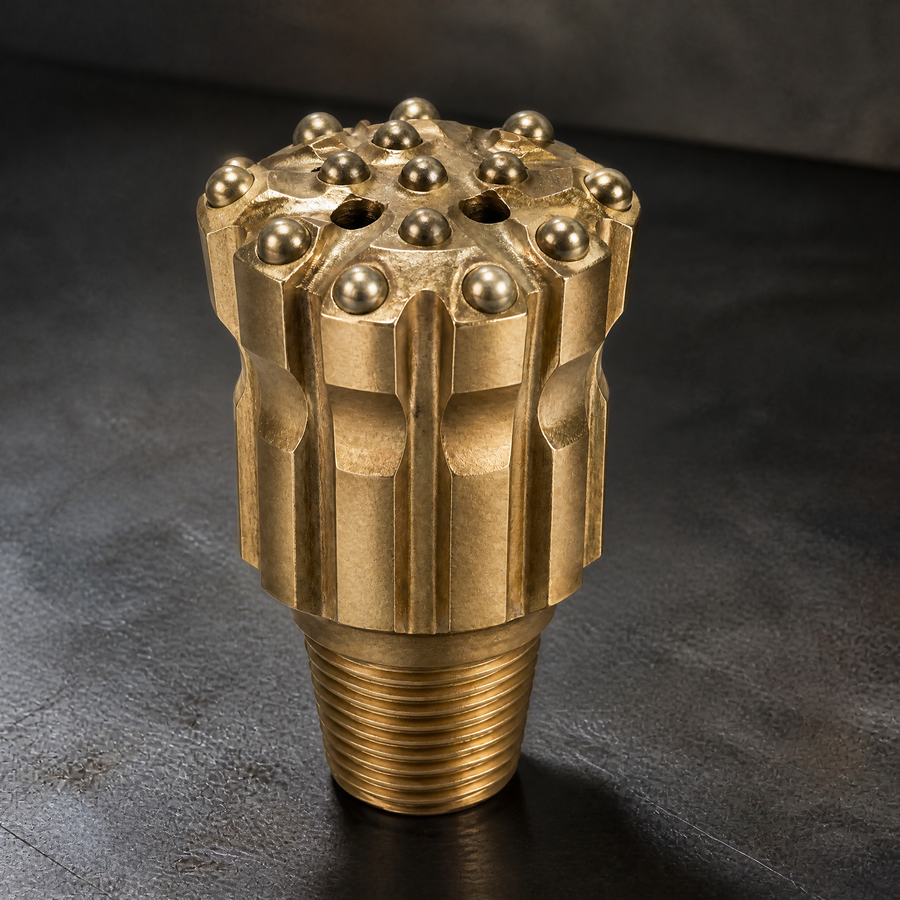

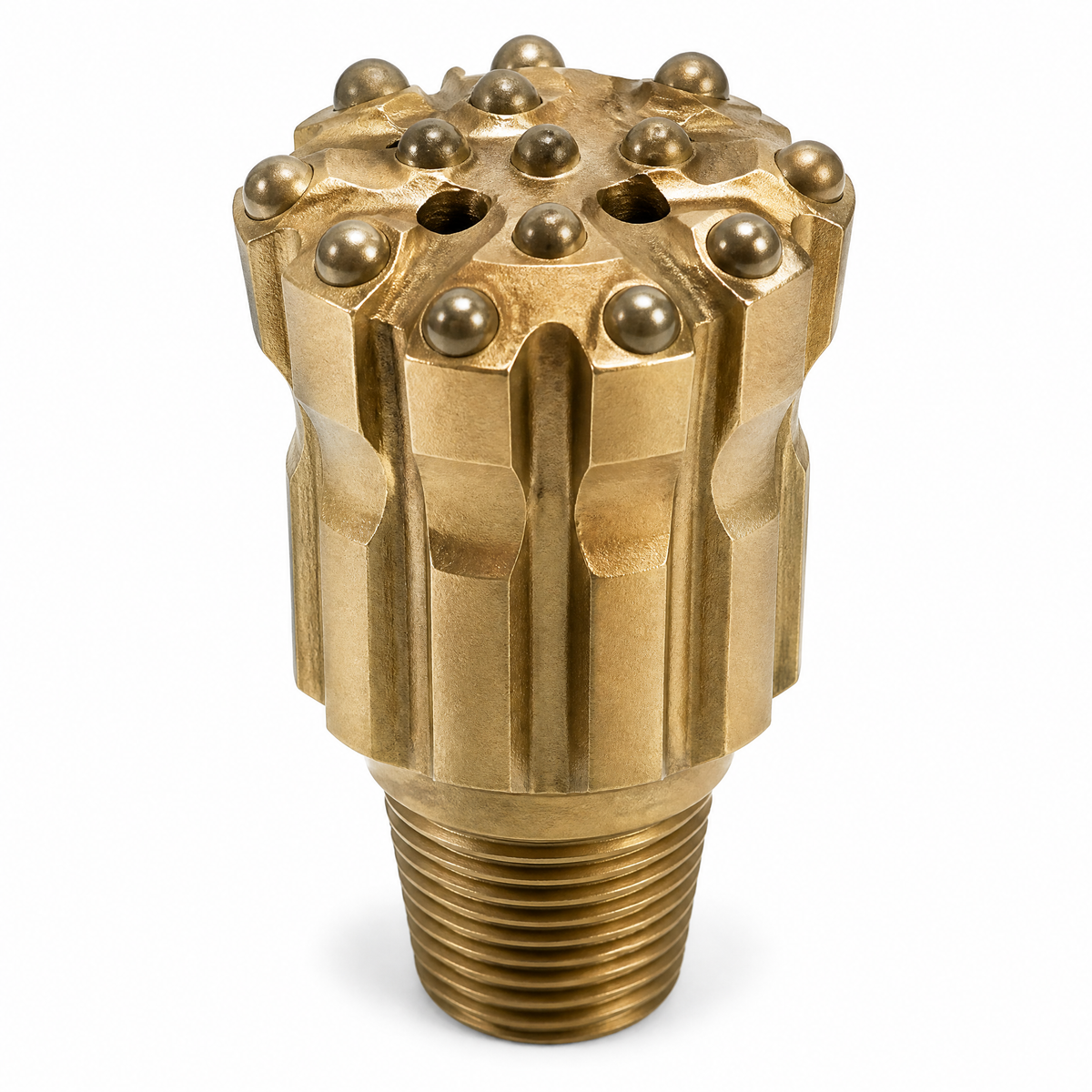

Top Hammer Threaded Button Bit
T45 Threaded Button Bit
Model:T45
Selected configuration:Configuration to be confirmed
Selected reference:Configuration required
T45 top-hammer button bits for medium-to-large hole drilling, configured by diameter, body, face, buttons and flushing.
T45 threaded button bits for matched top-hammer systems, covering standard, retrac and application-specific configurations for quarry, tunneling and bench drilling.
- T45 thread-family matching
- Standard, retrac and guide-style configuration review
- Diameter, face, button and flushing selection by application
Request a Configuration-Based Quote
Send exact bit thread system and mating rod drawing; bit diameter and hole requirement; face, buttons and flushing arrangement; rock condition, drill model and operating context; quantity and delivery country. Not sure is accepted where identification is needed.
At a Glance
T45 top-hammer connectionThread system
66, 70, 76, 83, 89 and 102 mm drilling-bit examplesIndustry-reference diameters
Standard, retrac, guide or application-specific bodyBit body
Technical Specifications
| Thread system | T45 top-hammer connection |
|---|---|
| Industry-reference diameters | 66, 70, 76, 83, 89 and 102 mm drilling-bit examples |
| Bit body | Standard, retrac, guide or application-specific body |
| Face design | Flat, drop-center or application-specific face |
| Carbide buttons | Gauge and front buttons; layout/profile by configuration |
| Flushing arrangement | Front, side or combined flushing by configuration |
| Matched components | T45 rod, coupling and compatible shank-adapter system |
| Quotation inputs | Diameter, body, face, buttons, flushing, rock, rig and quantity |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Rig-side interface
Rock drill, shank adapter and rod system
Confirm the complete string rather than the bit alone.
Adapters change the system configuration and do not make thread families directly interchangeable.

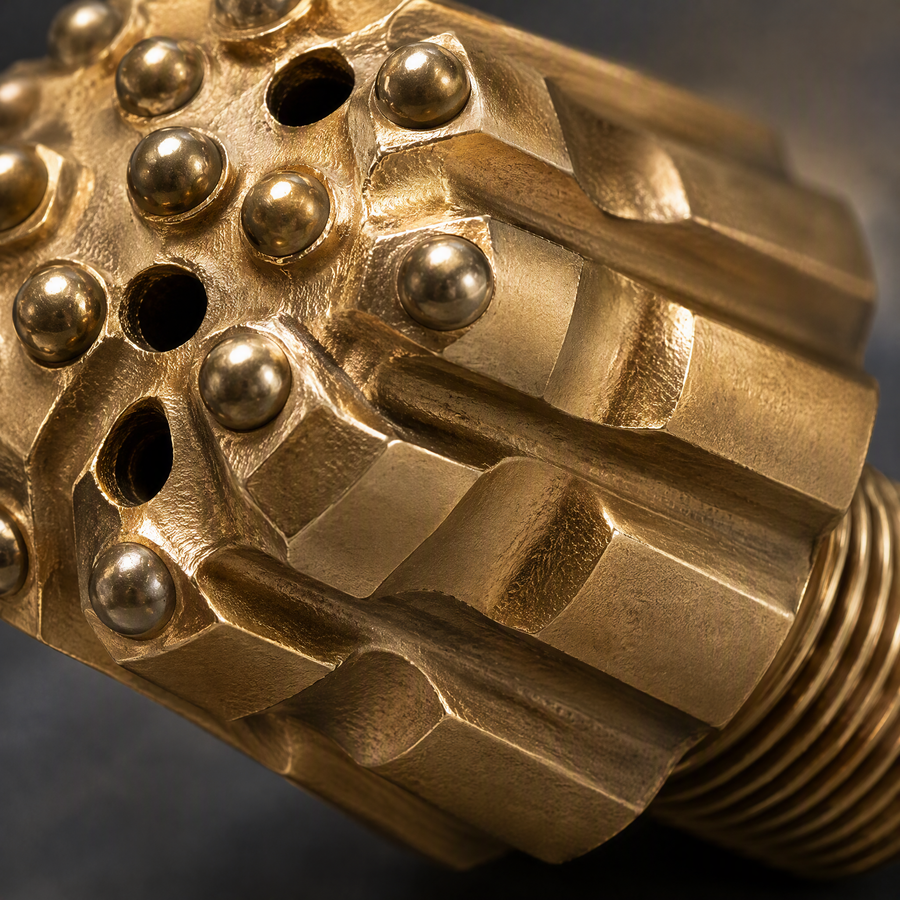

Threaded Bit Face and Connection
Balanced T45 drilling configuration
Body style, face, gauge protection, button layout and flushing are selected together.
Buyer value
Supports a configuration suited to penetration, hole control, cleaning and withdrawal priorities.
Selection condition
Final results depend on the matched drill string, operating settings and formation.

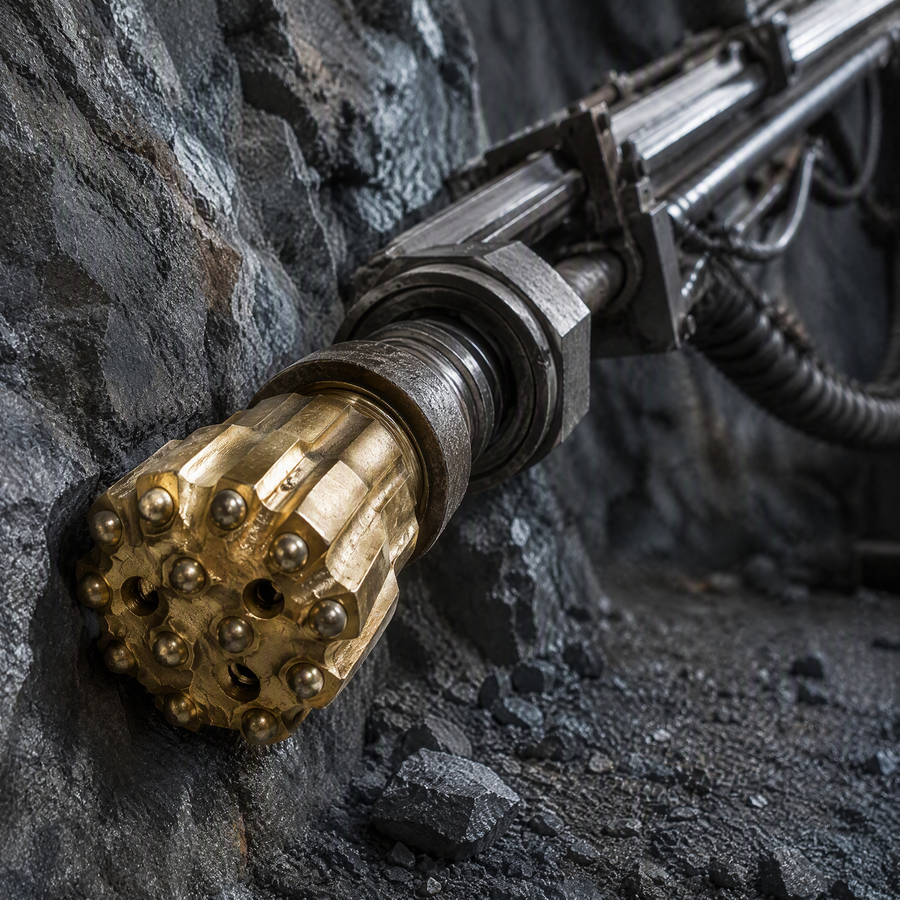

Application Scenarios
- Quarry and bench drilling
- Underground development and tunneling
- Construction drilling and production holes
Confirm Before Ordering
Configuration Inputs
- Required hole diameter and drilling objective
- Exact T45 rod/coupling identity and rig or rock-drill model
- Face, body/skirt, button and flushing preference
- Rock hardness, abrasiveness, fracturing and hole depth
- Quantity, destination, inspection and packing requirements
Operating Limits
- Do not substitute T45 with another thread family by name or diameter alone
- Industry-reference diameters are not a PerfoMax availability promise
- Performance depends on the complete drill string, equipment condition, settings and formation
- Final configuration is controlled by the written quotation or approved drawing
Quality and Pre-Shipment Checks
01
Configuration and Visual Check
Recorded against the approved quotation or drawing when included in the order scope
Thread/connection, selected geometry, cutting structure, flushing and visible condition
Compare the finished configuration with the approved order reference and record specified dimensions and visual condition.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed by size, configuration and order quantity
Lead TimeConfirmed after configuration, quantity and delivery terms
Available Supply Configurations
- T45 Threaded Button Bit in the approved configuration
- Optional matching components or spare items when listed in the quotation

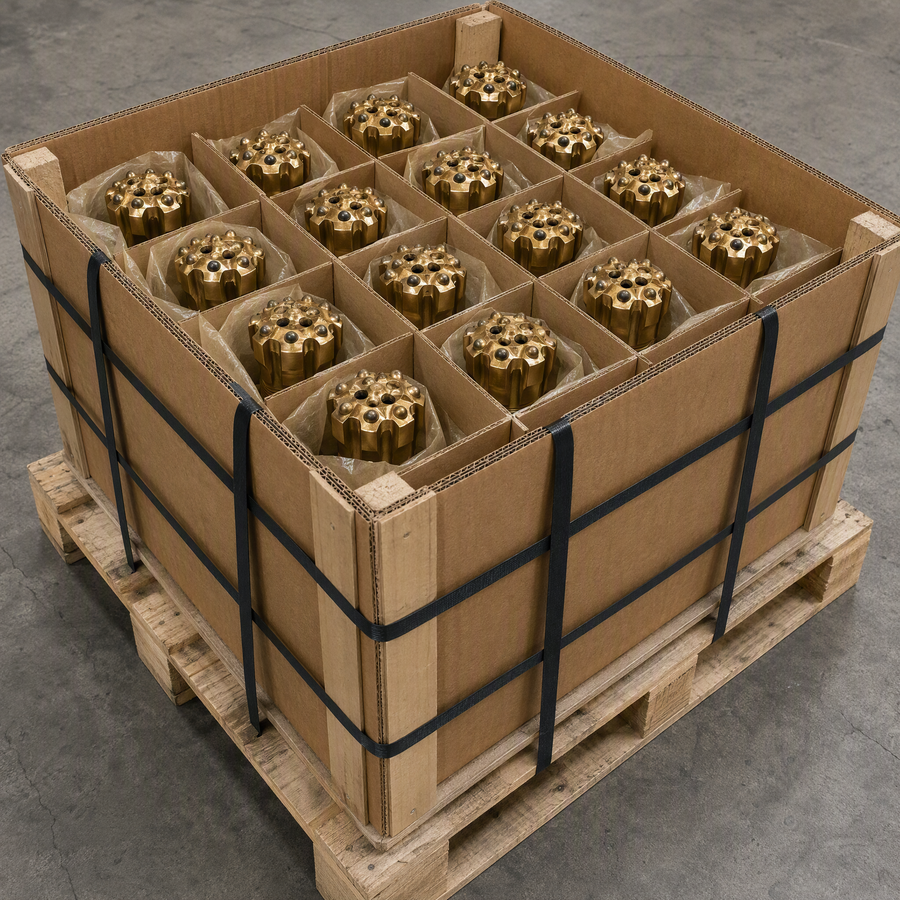

Export Packing
Corrosion protection, individual/carton packing, wooden case or pallet method and shipping marks are confirmed for the selected configuration and destination.
Warranty and After-Sales
Warranty, claim evidence, replacement review and after-sales scope are stated in the written quotation for the approved configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list
Inspection record, material/quality document or certificate when included in the quotation
Frequently Asked Questions
What diameter range is commonly referenced for T45 button bits?
Public catalog examples include 66 to 102 mm drilling bits, with larger diameters often appearing as separate reaming products. PerfoMax will confirm the offered configuration.
Can a T45 bit replace T38 or T51?
Not directly based on family name or appearance. The thread, shoulder, rod and coupling system must be confirmed.
When is a retrac body considered?
Retrac configurations are commonly reviewed where broken ground or hole-wall instability makes bit withdrawal more difficult.
Which face and button profile should I request?
Send formation hardness, abrasiveness and fracturing, hole objective, drilling equipment, flushing conditions and current bit performance.
What controls the final supplied configuration?
The accepted quotation and approved configuration reference or drawing control diameter, body, face, buttons and flushing.
Matched Top-Hammer Threaded System
A complete T45 top-hammer system combines the rock drill and shank adapter, coupling, T45 rod, matched button bit and adequate flushing.
Ready to Confirm the Configuration?
Request a Quote for T45
Our technical sales team will review the top-hammer threaded bit requirements, resolve the selected configuration and matching components, and state the agreed supply scope and delivery terms in the quotation.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence
Product, Component, Configuration and Packing Views
T45 threaded button bits for matched top-hammer systems, covering standard, retrac and application-specific configurations for quarry, tunneling and bench drilling.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
