GT60 rod and coupling
Dedicated GT60 top-hammer system
Match thread, shoulders, coupling and flushing path.
Do not substitute another 60-series connection.

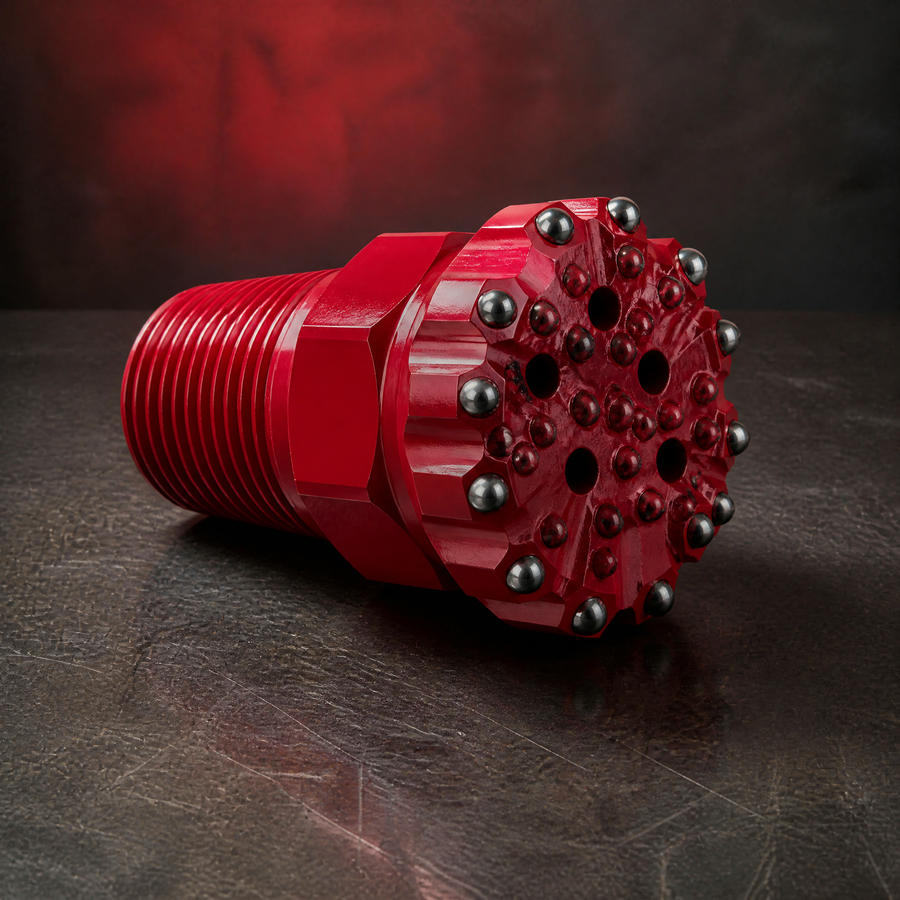

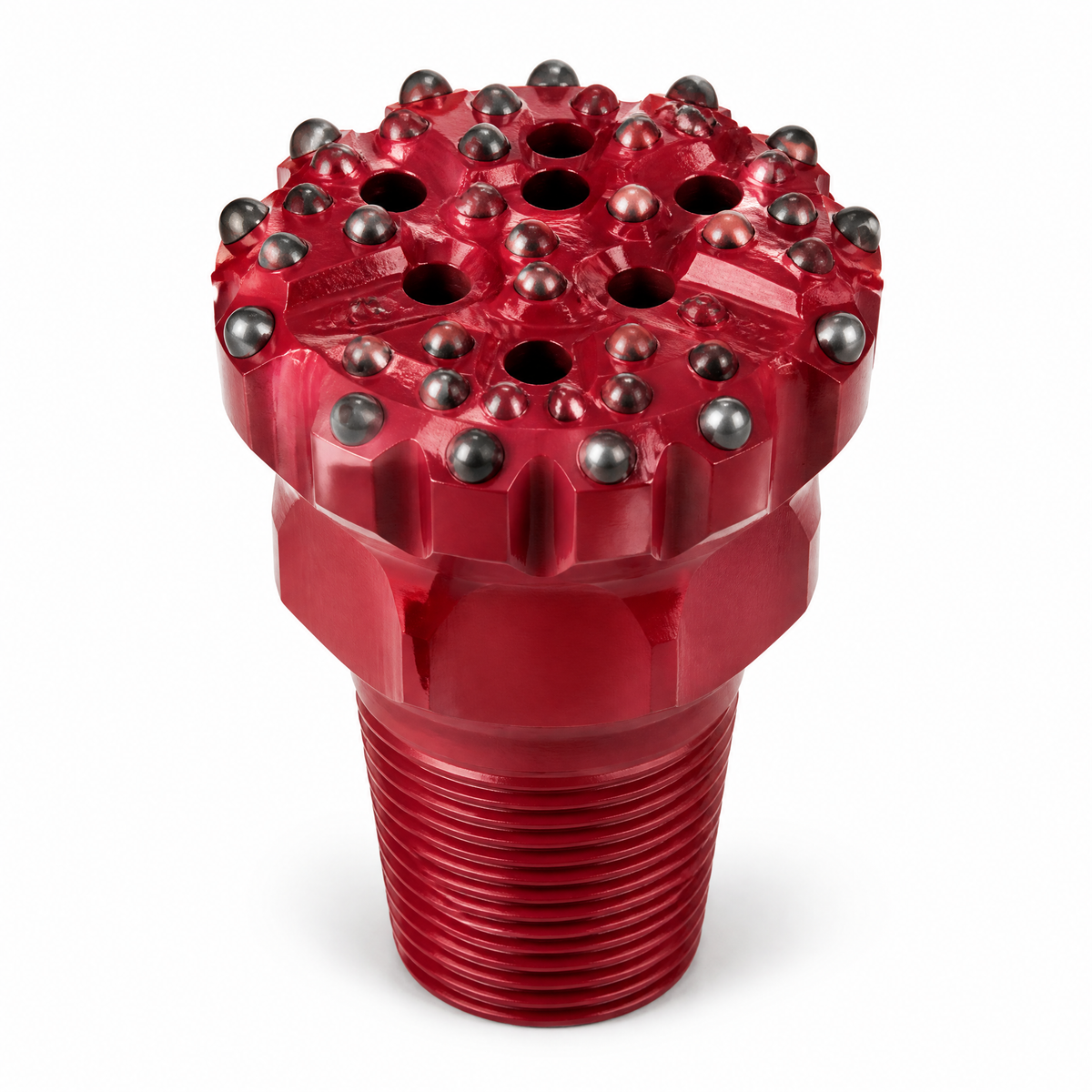

High-Capacity Top Hammer Button Bit
GT60 Threaded Button Bit
Model:GT60
Selected configuration:Configuration to be confirmed
Selected reference:Configuration required
GT60 top-hammer button bits for high-capacity large-hole drilling and matched GT60 drill strings.
GT60 threaded button bits for large-diameter top-hammer production drilling, configured by diameter, body, face, buttons, gauge protection and flushing.
- GT60 high-capacity thread-family matching
- 92–152 mm industry-reference diameter examples
- Standard and retrac configurations reviewed for large-hole drilling
Request a Configuration-Based Quote
Send exact bit thread system and mating rod drawing; bit diameter and hole requirement; face, buttons and flushing arrangement; rock condition, drill model and operating context; quantity and delivery country. Not sure is accepted where identification is needed.
At a Glance
GT60 top-hammer connectionThread system
92, 102, 115, 127, 140 and 152 mm examplesIndustry-reference diameters
Standard or retrac large-hole bodyBit body
Technical Specifications
| Thread system | GT60 top-hammer connection |
|---|---|
| Industry-reference diameters | 92, 102, 115, 127, 140 and 152 mm examples |
| Bit body | Standard or retrac large-hole body |
| Face design | Application-specific flat or drop-center family |
| Carbide buttons | Gauge and front buttons; heavy-duty layout by configuration |
| Flushing arrangement | High-capacity front/side flushing configuration |
| Matched components | GT60 rods, couplings and compatible shank adapter |
| Quotation inputs | Diameter, face, body, buttons, flushing, rig, rock and quantity |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Rock drill and shank adapter
High-capacity GT60 drill string
Confirm rock drill, shank adapter, rod/coupling and bit as a complete system.
Send current component codes or drawings for replacement work.

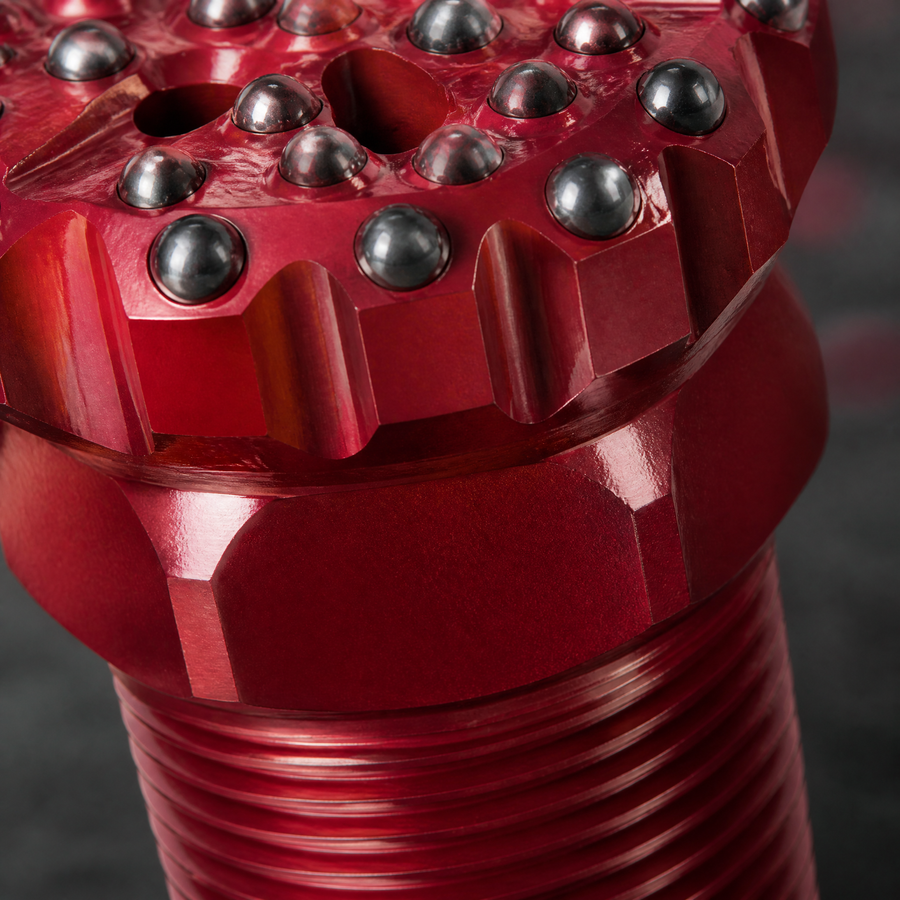

Threaded Bit Face and Connection
High-capacity large-hole design review
GT60 diameter, body mass, face, buttons and flushing are configured around high cuttings volume and production requirements.
Buyer value
Supports a controlled large-hole configuration with matched drill-string identity.
Selection condition
Rig capacity, flushing and operating discipline remain critical to results.

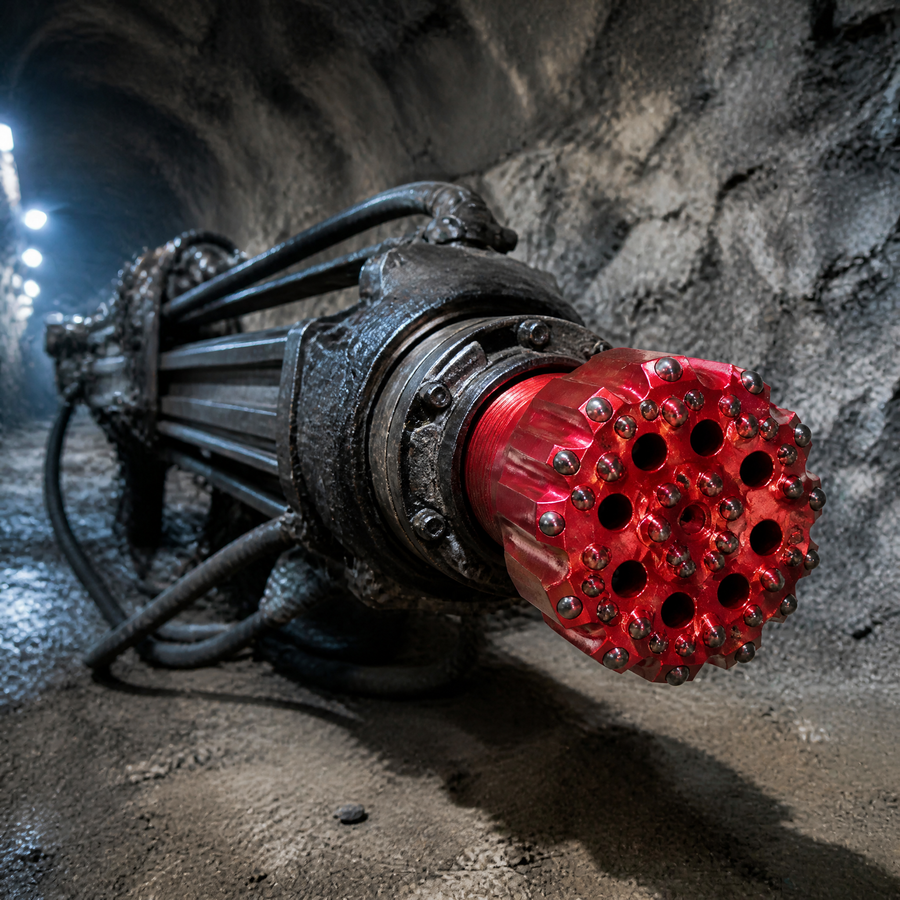

Application Scenarios
- Large bench and production holes
- Open-pit and quarry drilling
- High-capacity top-hammer drilling with GT60 rods
Confirm Before Ordering
Configuration Inputs
- Required hole diameter and drilling objective
- Exact GT60 rod/coupling identity and rig or rock-drill model
- Face, body/skirt, button and flushing preference
- Rock hardness, abrasiveness, fracturing and hole depth
- Quantity, destination, inspection and packing requirements
Operating Limits
- Do not substitute GT60 with another thread family by name or diameter alone
- Industry-reference diameters are not a PerfoMax availability promise
- Performance depends on the complete drill string, equipment condition, settings and formation
- Final configuration is controlled by the written quotation or approved drawing
Quality and Pre-Shipment Checks
01
Configuration and Visual Check
Recorded against the approved quotation or drawing when included in the order scope
Thread/connection, selected geometry, cutting structure, flushing and visible condition
Compare the finished configuration with the approved order reference and record specified dimensions and visual condition.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed by size, configuration and order quantity
Lead TimeConfirmed after configuration, quantity and delivery terms
Available Supply Configurations
- GT60 Threaded Button Bit in the approved configuration
- Optional matching components or spare items when listed in the quotation

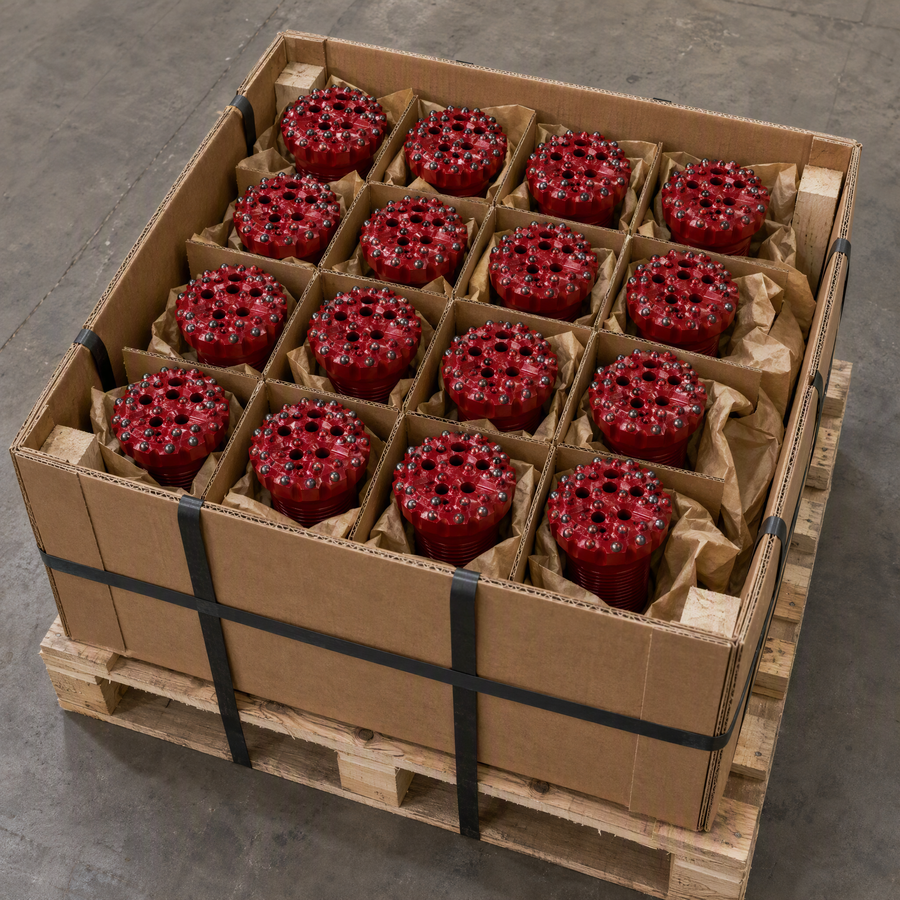

Export Packing
Corrosion protection, individual/carton packing, wooden case or pallet method and shipping marks are confirmed for the selected configuration and destination.
Warranty and After-Sales
Warranty, claim evidence, replacement review and after-sales scope are stated in the written quotation for the approved configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list
Inspection record, material/quality document or certificate when included in the quotation
Frequently Asked Questions
What diameters are shown for GT60 button bits in public catalogs?
Public Sandvik catalog examples include 92, 102, 115, 127, 140 and 152 mm. PerfoMax will confirm the current offered configuration.
Is GT60 the same as another 60-series thread?
No. GT60 must be matched to the dedicated GT60 drill-string interface; a shared number does not establish compatibility.
When should a retrac body be reviewed?
Review retrac configurations for broken or collapsing ground, demanding withdrawal conditions or where gauge management is critical.
What flushing information is required for large holes?
Provide compressor or water capacity, hole diameter/depth, cuttings condition, drilling orientation and any current flushing problems.
How is the final bit controlled?
The quotation or approved drawing states the GT60 interface, diameter, face, body, buttons, flushing and configuration ID.
Matched Top-Hammer Threaded System
A complete GT60 top-hammer system combines the rock drill and shank adapter, coupling, GT60 rod, matched button bit and adequate flushing.
Ready to Confirm the Configuration?
Request a Quote for GT60
Our technical sales team will review the top-hammer threaded bit requirements, resolve the selected configuration and matching components, and state the agreed supply scope and delivery terms in the quotation.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence
Product, Component, Configuration and Packing Views
GT60 threaded button bits for large-diameter top-hammer production drilling, configured by diameter, body, face, buttons, gauge protection and flushing.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
