Concave Fixed-Cutter PDC Bit
Concave PDC Drill Bit
Model:PDC
Selected configuration:Configuration to be confirmed
Selected reference:Configuration required
Concave fixed-cutter PDC bits configured by diameter, connection, body/blades, cutter layout and waterways.
Concave PDC drill bits for coreless rotary drilling in suitable soft-to-medium formations, with connection, cutter and hydraulic configuration confirmed for the project.
- Concave profile for tracking-oriented configurations
- Open fixed-cutter geometry for cuttings evacuation
- Diameter, connection, cutters and waterways customizable by quotation
Request a Configuration-Based Quote
Send full-hole, coring or anchor drilling task and formation; outside diameter and inside diameter if coring; bit connection and matched drill string; cutter arrangement, profile, body and flushing requirements; quantity and delivery country. Not sure is accepted where identification is needed.
At a Glance
Concave fixed-cutter PDC drill bitBit type
50–300 mm examples across specialist supplier catalogsIndustry-reference diameters
Concave center with application-specific gauge structureFace profile
Technical Specifications
| Bit type | Concave fixed-cutter PDC drill bit |
|---|---|
| Industry-reference diameters | 50–300 mm examples across specialist supplier catalogs |
| Body and blade layout | Steel-body integrated or welded construction; blade/wing count by configuration |
| PDC cutters | Industrial PDC cutting elements; common 13, 16 and 19 mm references |
| Face profile | Concave center with application-specific gauge structure |
| Connection | API Reg or project-specific/custom thread by review |
| Fluid path | Waterways or nozzles arranged for cooling and cuttings removal |
| Formation guidance | Soft-to-medium formations; hard, highly abrasive or severely fractured ground requires review |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Rig and circulation system
Rotary drilling setup
Confirm torque, RPM, feed/WOB, fluid type, flow and pressure.
Formation and operating parameters control cutter and hydraulic selection.
PDC Cutting and Connection Configuration
Concave fixed-cutter geometry
The recessed center, blade structure, PDC cutters, gauge and waterways work as one cutting system.
Buyer value
Can support tracking, self-cleaning and efficient rotary cutting in the intended formation.
Selection condition
Profile, cutters and hydraulics must be matched to the project; impact-prone ground requires review.
Application Scenarios

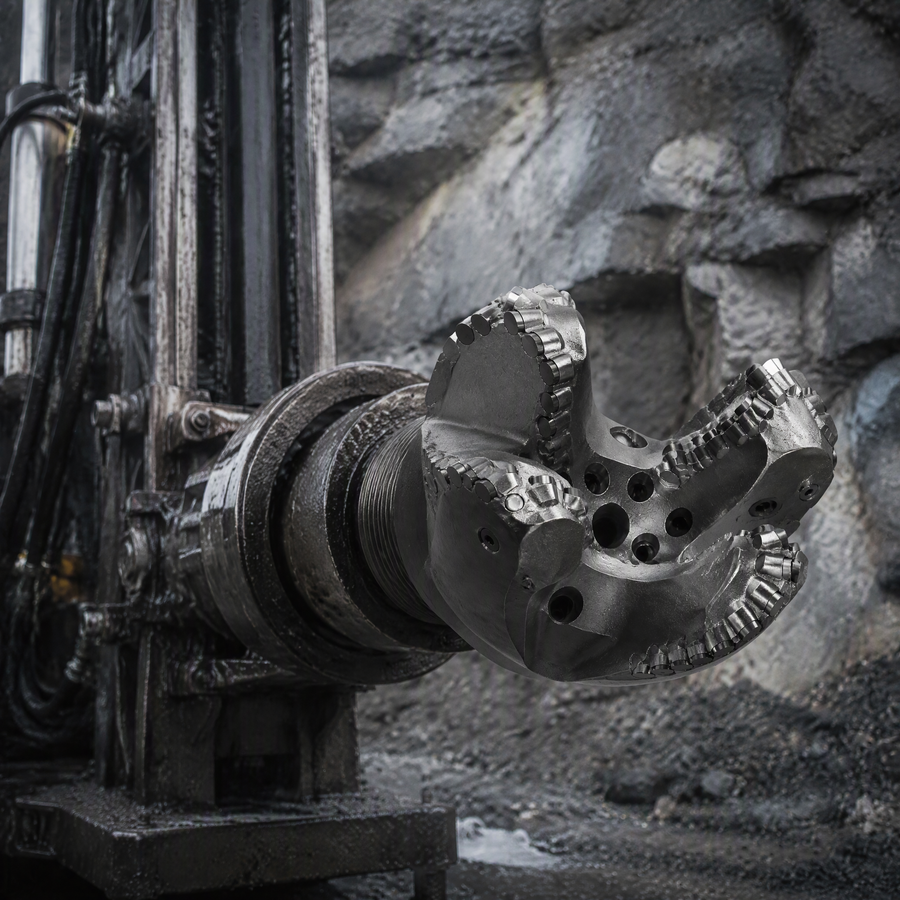

- Water-well and geothermal drilling
- Grouting, gas drainage and mining holes
- Soft-to-medium sedimentary formations after technical review
Confirm Before Ordering
Configuration Inputs
- Coreless/full-hole drilling role and required diameter
- Mating rod or sub connection with thread evidence
- Formation, target depth and hole-straightness requirement
- Cutter/body and circulation requirements plus rig torque/RPM/feed
- Quantity, destination, inspection and packing requirements
Operating Limits
- Confirm whether the drilling role is coreless/full-hole
- Hard, highly abrasive, severely fractured or impact-prone ground requires technical review
- Catalog diameter and cutter references do not prove current PerfoMax availability
- Final connection, cutters, body and fluid path are controlled by quotation/drawing
Quality and Pre-Shipment Checks
01
Configuration and Visual Check
Recorded against the approved quotation or drawing when included in the order scope
Thread/connection, selected geometry, cutting structure, flushing and visible condition
Compare the finished configuration with the approved order reference and record specified dimensions and visual condition.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed by size, configuration and order quantity
Lead TimeConfirmed after configuration, quantity and delivery terms
Available Supply Configurations
- Concave PDC Drill Bit in the approved configuration
- Optional matching components or spare items when listed in the quotation
Export Packing
Corrosion protection, individual/carton packing, wooden case or pallet method and shipping marks are confirmed for the selected configuration and destination.
Warranty and After-Sales
Warranty, claim evidence, replacement review and after-sales scope are stated in the written quotation for the approved configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list
Inspection record, material/quality document or certificate when included in the quotation
Frequently Asked Questions
What does the concave profile do?
A recessed center can support tracking and cutting-force distribution, but actual stability depends on the complete profile, gauge, cutter layout, rig and formation.
Is this a core bit?
This page is for a concave fixed-cutter PDC family and should be treated as coreless/full-hole unless the quotation explicitly defines an annular coring structure.
Which formations are suitable?
Concave PDC configurations are commonly discussed for soft-to-medium sedimentary formations. Hard, highly abrasive, fractured or impact-prone ground needs technical review.
What connection information should I provide?
Send the mating drill rod or sub thread standard, pin/box direction, gauge and shoulder dimensions, or a controlled drawing/current part number.
What is needed for a quotation?
Provide diameter, drilling role, formation, connection, body/blade preference, PDC cutter requirements, circulation method, rig parameters, quantity and destination.
Matched Drill String and Flushing System
A complete PDC drilling setup combines the rig, rotary drive, rod/sub connection, selected concave bit, formation-matched cutters and an adequate circulation system.
Ready to Confirm the Configuration?
Request a Quote for PDC
Our technical sales team will review the pdc drill bit requirements, resolve the selected configuration and matching components, and state the agreed supply scope and delivery terms in the quotation.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence

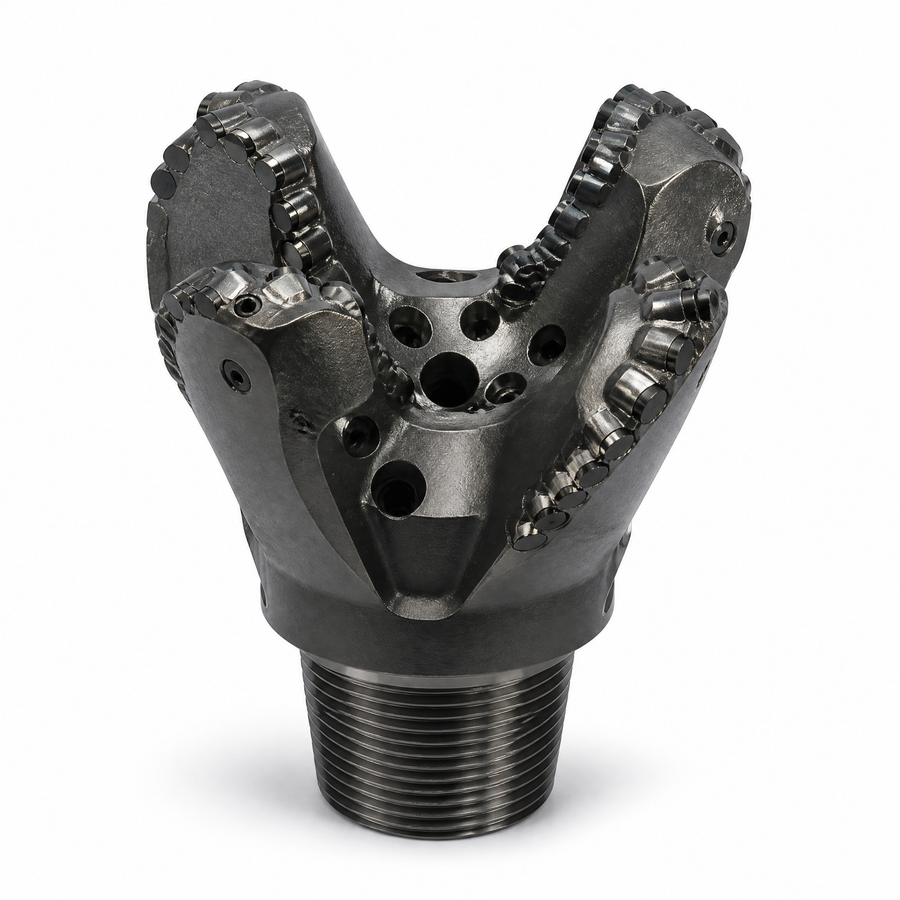

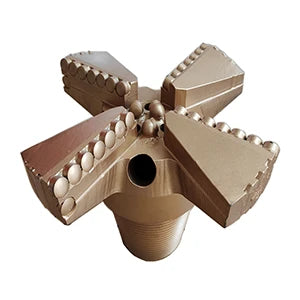

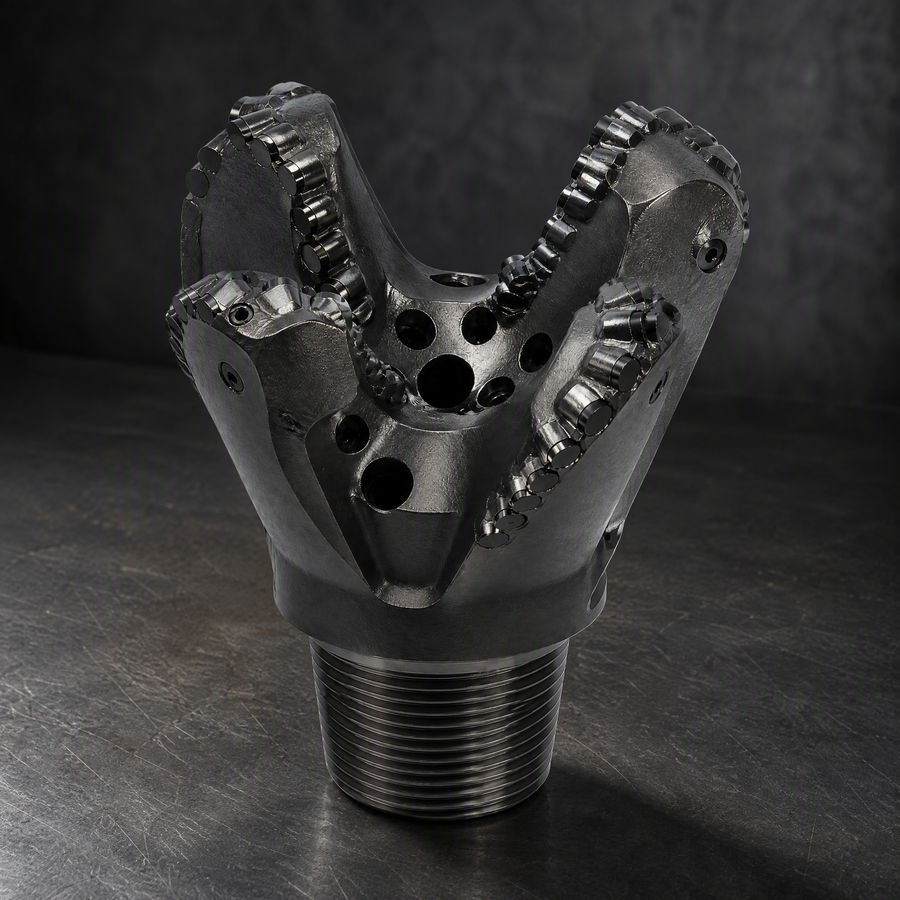

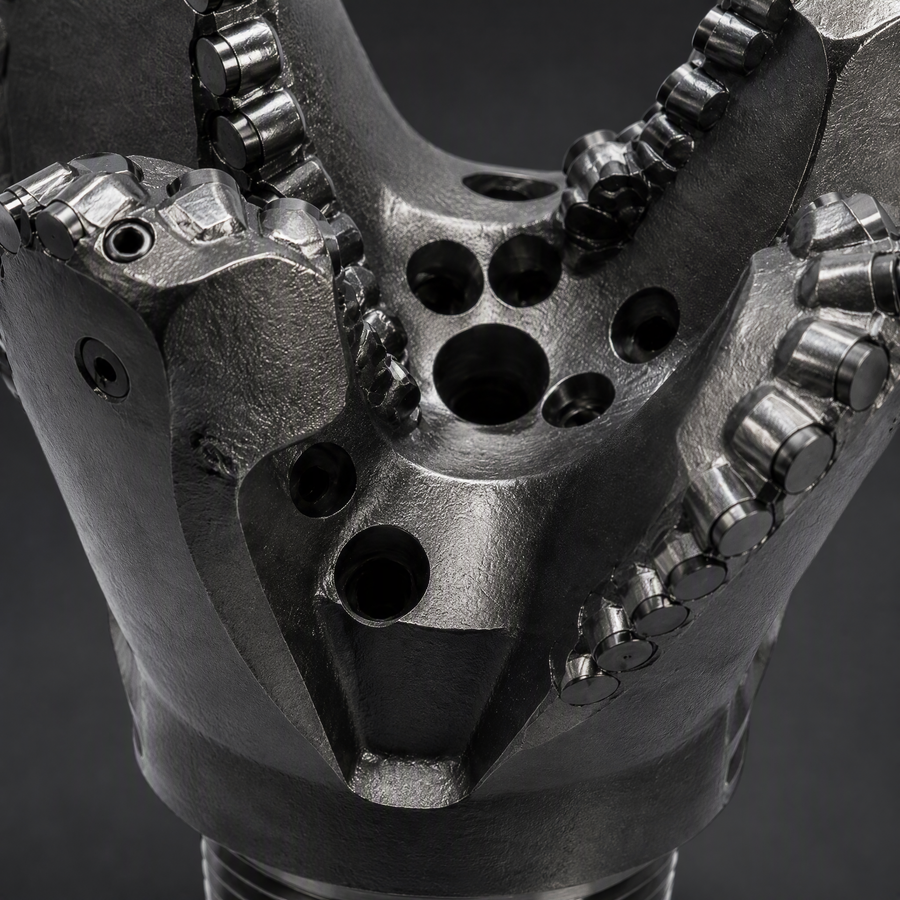

Product, Component, Configuration and Packing Views
Concave PDC drill bits for coreless rotary drilling in suitable soft-to-medium formations, with connection, cutter and hydraulic configuration confirmed for the project.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
