Internal and external flushing are two different ways of bringing air or water from a top-hammer rock drill into the shank adapter and then into the drill string. In an internal-flushing arrangement, the medium enters through a tube or central interface at the rear of the shank. In an external-flushing arrangement, it enters through ports around the shank area and crosses a sealed chamber before reaching the central bore. Both can deliver flushing to the bit; neither configuration can be chosen from the drill-string thread alone.
The practical limit is compatibility. A replacement shank adapter must match the rock-drill model, machine-side splines or lugs, thread, overall geometry, flushing configuration, port locations and seal arrangement. Treat “internal” and “external” as controlled interface descriptions—not as permission to convert the drill by changing only the shank.

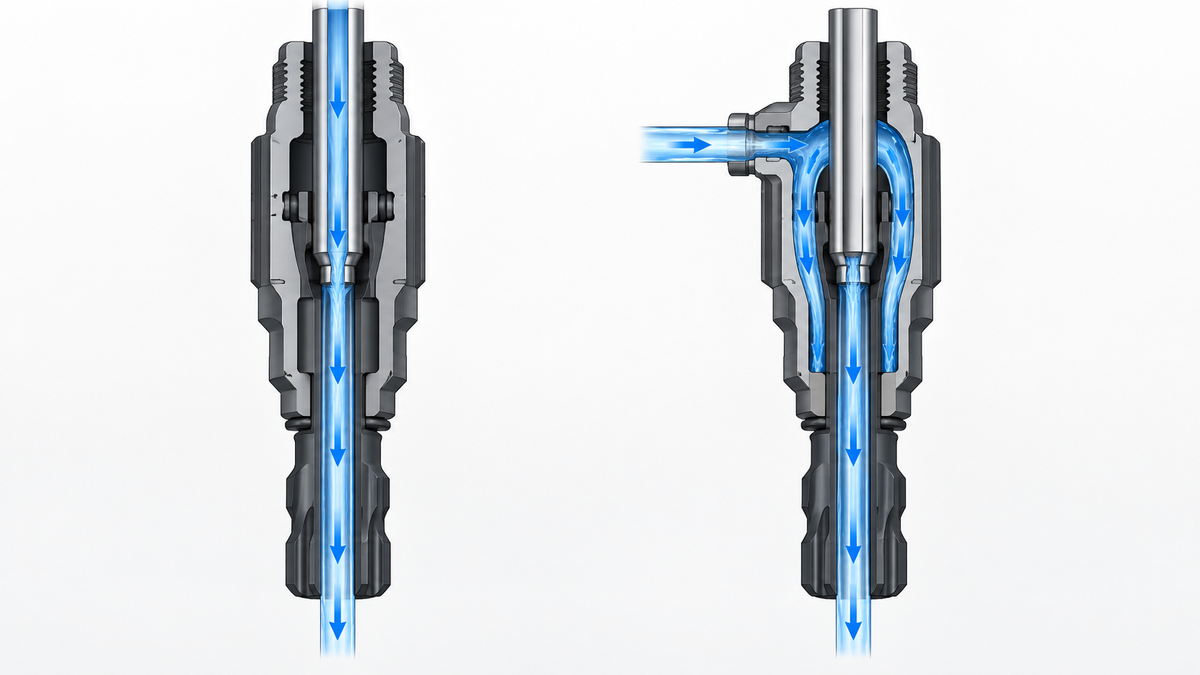

Where the flushing path sits in a top-hammer system
A top-hammer drill transfers percussion, rotation, feed force and flushing through the machine-side connection into the drill string. The shank adapter is the first drill-string component in that chain. Its rear section interfaces with the rock drill; its front thread connects to a rod or coupling; and its bore carries the flushing medium toward the bit.
The central bore through the rods is only part of the circuit. The complete path includes the supply connection, flushing head or tube, seals, shank-adapter inlet, central bore, rod and coupling passages, and the bit outlets. A restriction or mismatch at any one interface can reduce return flow even when the rod bore itself is clear.
If you need the broader component sequence first, review the top-hammer drill-string anatomy guide. The discussion below isolates the machine-to-shank flushing interface.
Internal flushing: the medium enters on the centerline
In an internal-flushing arrangement, a flushing tube or similar central member enters the rear of the shank adapter and seals into the adapter's axial passage. The medium then travels directly into the shank bore and onward through the connected rods and bit.
The visible clues usually include a rear central inlet geometry intended to receive the tube, plus the corresponding sealing parts in the rock drill. Exact shapes and seal locations vary by manufacturer and model, so a photograph of the threaded end is not enough to identify the arrangement.
Interfaces that control an internal-flushing fit
- Tube outside diameter and insertion geometry: the tube must enter the correct bore without interference.
- Seal type and location: the specified seal must seat on the intended surface rather than on a wear step or damaged edge.
- Axial position: the tube and shank must overlap as designed throughout permitted movement.
- Bore continuity: the inlet, adapter bore and downstream drill-string passage must remain open and aligned.
- Rock-drill front-end design: the tube support, guides and service procedure belong to the machine design, not to the thread family.
Internal flushing therefore cannot be specified by saying “T38 internal flush” or “R32 internal flush” alone. The thread identifies the drill-string side; it does not identify the machine-side tube, splines, length or seal interface.
External flushing: the medium crosses a sealed chamber around the shank
In an external-flushing arrangement, the medium enters through a side connection or flushing head around the shank region. Seals confine it in an annular chamber, and one or more ports in the shank adapter carry it from that chamber into the axial bore. From there, the path continues through the drill string to the bit.
This layout separates the supply entry from the rear centerline, but it creates another controlled interface: the adapter's port position must align with the flushing chamber and remain between the correct seals. Port diameter, spacing and axial position are machine-specific features.
Interfaces that control an external-flushing fit
- Side-port location: the adapter port must open inside the intended pressurized chamber.
- Seal lands: surfaces running through the seals must have the specified diameter, finish and condition.
- Front-guide relationship: the adapter must be supported as designed while the ports remain correctly positioned.
- Chamber and supply connection: the flushing head, hose or water connection must match the rock drill's design.
- Central bore and downstream path: external entry still depends on an open passage through rods, couplings and bit.
A patent describing a rock-drill flushing head illustrates why these components must be treated as a system: guides, seals, shank position and the flushing chamber are arranged together inside the drill front end. The drawing principle is useful, but the exact service parts and assembly sequence must come from the manual for the installed drill.
Internal versus external flushing at a glance
| Question | Internal flushing | External flushing |
|---|---|---|
| Where does the medium enter? | Through a central tube or rear axial interface | Through a side-fed chamber around the shank |
| How does it reach the bore? | Directly along the centerline | Through ports from the annular chamber into the center bore |
| Critical sealing area | Tube-to-shank inlet and related internal seals | Seal lands around the shank and the flushing-head chamber |
| Useful identification clue | Rear central inlet intended for a tube | Side port or ports positioned between external seal lands |
| Can thread size prove the type? | No | No |
| Can one replace the other directly? | Only if the rock-drill manufacturer provides an approved conversion with all required front-end parts; never assume a shank-only swap | |
Some supplier literature describes performance preferences between the arrangements. Those statements are design- and model-dependent. For purchasing, the first decision is not which concept sounds better; it is which configuration the installed rock drill was designed to use.
How to identify the required configuration before ordering
- Record the exact rock-drill or drifter model. Include suffixes, serial range and front-head variant where available.
- Find the controlled shank-adapter reference. Use the current parts book, operator manual, approved drawing or a verified existing part number.
- Inspect the machine-side inlet. Note whether the drill uses a central flushing tube or a side-fed flushing head. Do this only under the site's isolation and service procedure.
- Photograph the complete old shank. Capture splines or lugs, striking end, seal lands, ports, shoulder positions, front thread and markings.
- Measure controlled features. Overall length alone is insufficient. The drawing should control spline geometry, thread, port positions, seal diameters, bore and shoulders.
- Confirm the complete downstream string. State rod thread, coupling or MF architecture, rod bore, bit and intended flushing medium.
- Resolve discrepancies before quotation approval. If the parts book, old component and supplier drawing disagree, stop and identify the installed front-end configuration.
The published shank-adapter compatibility checklist covers the full model, spline, thread and length match. Use it together with this flushing-path check rather than treating either one as complete on its own.
Release a Replacement Shank as One Flushing System
Do not release a replacement shank because its thread screws into the first rod. The approval basis must connect the installed drill, front-head parts, flushing inlet, seals, shank geometry and downstream string. Record each gate before installation, then use the drill maker’s approved procedure for any flushing-only or functional test. The matrix below owns the replacement-release decision; it does not replace the machine manual or authorize a field conversion.
| Release gate | Evidence required | Hold or reject trigger | Buyer action |
|---|---|---|---|
| 1. Installed drill baseline | Exact drill or drifter model, suffix, serial range, front-head variant and current parts-book or drawing revision | Model plate, parts book and installed front end do not describe the same configuration | Hold until the installed machine variant is positively identified. |
| 2. Existing controlled reference | Old shank part number and full-length photographs; machine-side spline or lug geometry; striking end; overall and shoulder locations; front thread | Old component is unmarked, modified, broken or too worn to serve as the only reference | Use it as supporting evidence only; obtain the controlled machine reference before approval. |
| 3. Flushing architecture | Internal tube or external chamber confirmed; inlet geometry; port count and axial position; matching flushing-head or tube reference | Supplier offer relies only on R32, T38 or T45 thread, or proposes a different architecture without an approved conversion list | Reject the shank-only substitution or hold the complete conversion for engineering approval. |
| 4. Seals, guides and running surfaces | Seal and guide part references; seal-land diameters and condition; port-edge condition; specified replacement or inspection scope | Damaged seal lands, wrong seal set, uncertain guide wear or ports that may cross a seal outside the intended chamber | Quarantine damaged parts and restore the approved front-end stack before testing. |
| 5. Bore and downstream continuity | Shank bore, first rod or coupling, extension-rod bore and bit outlets matched to the controlled string; approved passage-check method and result | Restriction, offset, retained plug, debris or an unverified mating component interrupts the path | Hold the affected component; do not force an object through the passage or raise pressure to mask a restriction. |
| 6. Isolated flushing verification | Authorized test procedure; supply-medium condition; instrument IDs where required; model-specific limits; leakage locations; stable outlet and return-flow observations | Leakage at the tube, chamber, seals or connection; water entering an unintended area; unstable or materially weaker flow | Stop, isolate and return to the failed interface. Do not proceed to percussion while the cause is unknown. |
| 7. Controlled functional verification | Approved rod and bit; operating configuration; operator and observer; actual test conditions; stop response; flushing, heat, noise and cuttings-return observations | Abnormal leakage, heating, vibration, noise, poor return flow or any result outside the drill maker’s limits | Stop and isolate. Release only after the complete system passes the authorized test and a named approver signs the record. |
Use one replacement disposition
- APPROVE REPLACEMENT: every identity and interface gate matches the controlled references, the approved verification passes, and the result is traceable to the installed drill.
- CONTROLLED TEST: the documented configuration matches, but the buyer’s authorized flushing or functional verification is still required. This status is not permission for production drilling.
- HOLD FOR EVIDENCE: the shank may be correct, but a model variant, port position, seal set, drawing revision, passage result or test limit remains unresolved.
- REJECT / QUARANTINE: the flushing architecture conflicts, a critical geometry cannot mate as designed, a component is damaged or the controlled test fails.
Controlled one-variable comparison after a weak-flow complaint
If flushing weakened immediately after a shank change, compare the previous verified setup with the replacement setup while keeping the supply, hose, valve position, rod string, bit, test medium and authorized operating condition unchanged. Record the inlet condition and observations at the same defined points. A result that follows the replacement assembly narrows the fault to the changed shank, seals, tube or flushing-head interfaces; a result that remains with both assemblies points back toward the supply or downstream string. Do not use an unserviceable old shank as a live reference, and do not exceed model-specific limits to create a difference.
Copy-ready shank flushing approval record
SHANK ADAPTER FLUSHING APPROVAL
Site / machine:
Rock drill or drifter model, suffix and serial:
Front-head variant / parts-book revision:
Existing shank reference:
Replacement shank reference:
Machine-side spline or lug:
Front thread and downstream string:
Flushing type: INTERNAL / EXTERNAL
Tube or flushing-head reference:
Port count / position evidence:
Seal and guide references / condition:
Shank and rod-bore passage results:
Test medium / approved procedure:
Instrument IDs / controlled limits:
Isolated flushing observations:
Functional verification observations:
Leak, heat, noise or return-flow findings:
Disposition: APPROVE REPLACEMENT / CONTROLLED TEST /
HOLD FOR EVIDENCE / REJECT-QUARANTINE
NCR or deviation reference:
Inspector / technical approver / date:
Lock out and release stored energy before inspecting or changing the shank, tube, seals or front-head components. Never pressurize a partly assembled or unidentified path, drill or grind new ports into a heat-treated shank, or treat water delivery at the shank as proof that site dust-control requirements are satisfied.
Symptoms that point to a flushing-interface problem
| Observation | Possible interface cause | First controlled check |
|---|---|---|
| Water leaks around the front head | Damaged seal, worn seal land, wrong port position, incorrect tube fit or loose flushing connection | Compare installed parts with the model-specific exploded view and inspect sealing surfaces |
| Return flow falls after a shank change | Wrong flushing type, partly blocked bore, misaligned port or incompatible seal arrangement | Compare old and new references and verify the complete passage while isolated |
| Normal supply pressure but poor cuttings removal | Restriction downstream of the inlet, blocked bit outlets, leakage before the bore or insufficient delivered flow | Check the circuit in sections; do not assume the shank is the only restriction |
| Seal life is unusually short | Wrong shank diameter or finish, damaged port edge, misalignment, contaminated water or guide wear | Inspect seal lands, ports, guides and water condition against the service limits |
| Water enters areas not intended to be wet | Failed sealing interface or unapproved component combination | Stop operation and follow the manufacturer's leak diagnosis before further percussion |
These symptoms are not proof of a single cause. Low flow can start at the pump, hose, valve, filter, shank interface, rod, coupling or bit. Leakage may also reflect guide wear or incorrect assembly. Diagnose the path systematically and do not raise supply pressure to compensate for an unidentified restriction.
Why flushing is more than a component feature
The flushing circuit removes broken rock from the hole and helps control the drilling environment. Its required medium and flow depend on the rock drill, hole, drill string, application and site procedure. Water delivery can also form part of dust control when drilling silica-containing rock, but the shank adapter alone does not prove that a workplace exposure-control requirement is satisfied.
OSHA's construction silica rule, for example, specifies particular controls for listed drilling tasks and requires tools and controls to be operated and maintained according to the applicable instructions. Mines, quarries and jurisdictions may apply different rules. Treat dust control as a site-level engineering and compliance decision, not as a marketing claim attached to “wet flushing.”
Common mistakes to avoid
- Ordering by thread only. R32, T38 or T45 does not define the rock-drill side or flushing inlet.
- Copying a visually similar shank. Small differences in port location or seal lands may be hidden until installation.
- Assuming external and internal types are interchangeable. A conversion can require a different flushing head, tube, seals, guides and service procedure.
- Reusing damaged seals automatically. A new adapter should be installed with the specified inspection or replacement procedure for related seals and wear parts.
- Grinding or drilling ports in the field. Unapproved modification can damage heat-treated surfaces, geometry and fatigue performance.
- Using pressure to overcome poor flow. Find restrictions, leaks and incompatibilities instead of exceeding the controlled operating limits.
RFQ checklist for the shank and flushing interface
Send the supplier one controlled package containing:
- rock-drill/drifter manufacturer, exact model, suffix and serial range;
- existing shank-adapter part number and clear photographs;
- machine-side spline or lug specification and front-thread family;
- internal or external flushing configuration;
- flushing medium and the machine manufacturer's operating specification;
- port, bore, seal-land and critical shoulder dimensions from an approved drawing;
- matching rod, coupling, bit and drill-string architecture;
- quantity, inspection evidence, preservation, packaging and destination.
For the downstream commercial route, PerfoMax's active R32 drill rod configuration page shows the information needed to continue the central flushing passage through a matched R32 string. It is an example configuration route, not evidence that R32 is correct for every shank adapter.
Frequently asked questions
Is external flushing always better than internal flushing?
No universal conclusion applies to every rock drill. The correct choice is the arrangement approved for the installed model and front-end design. Compare performance claims only after compatibility, operating conditions and service requirements are fixed.
Can a T38 or R32 shank adapter use either flushing type?
The thread designation does not answer that question. The same thread family can appear on shanks with different machine-side geometry and flushing arrangements. Confirm the rock-drill model and controlled part reference.
How can I tell the type from an old shank adapter?
A rear central tube interface suggests internal flushing, while side ports positioned between seal lands suggest external flushing. Treat these as clues only. Verify the part number, drawing and rock-drill front-end components before ordering.
Can I convert internal flushing to external flushing by replacing only the shank?
Normally, no such assumption is safe. The flushing head or tube, seals, guides and other front-end parts may differ. Convert only under a manufacturer-approved parts list and service procedure for the exact drill.
Why did flushing weaken after installing a replacement shank?
Possible causes include the wrong flushing configuration, a port outside the intended chamber, damaged or incorrect seals, a blocked bore, downstream restriction, or insufficient supply. Stop and compare the complete flow path with the controlled model documentation.
Technical references
- US8794347B2 — Flushing-head arrangement for a rock drilling machine: illustrates the relationship between the shank, guides, seals and flushing chamber.
- OSHA 29 CFR 1926.1153 — Respirable crystalline silica: task-based control requirements and limits on treating water delivery as a standalone compliance claim.
Confirm the interface before requesting a quote
Send the rock-drill model, existing shank reference, photos, thread, flushing type, port and seal details, downstream rod system, quantity and destination. Use the Drill Rods collection to define the commercial family; compare the active R32 configuration, T38 extension-rod or T45 extension-rod route only after the machine-side interface is controlled. Submit unresolved fields through the RFQ page rather than guessing them.
