A drill steel that will not come out of the hole is not automatically a broken rock drill. The bit may be wedged by cuttings, the steel may be bent or misaligned, the hole may have collapsed around the tool, or the chuck and retainer may be holding the shank incorrectly. Pulling harder before identifying the binding point can bend the steel, damage the chuck, release stored energy, or turn a recoverable stoppage into a lost-tool event.
The practical rule is simple: stop percussion, isolate and depressurize the air line, stabilize the drill and steel, then determine whether the tool is stuck in the rock, at the bit, or at the chuck. Use the exact machine manual and the site's approved recovery procedure. This guide is a diagnosis framework, not permission to improvise a high-force extraction method.

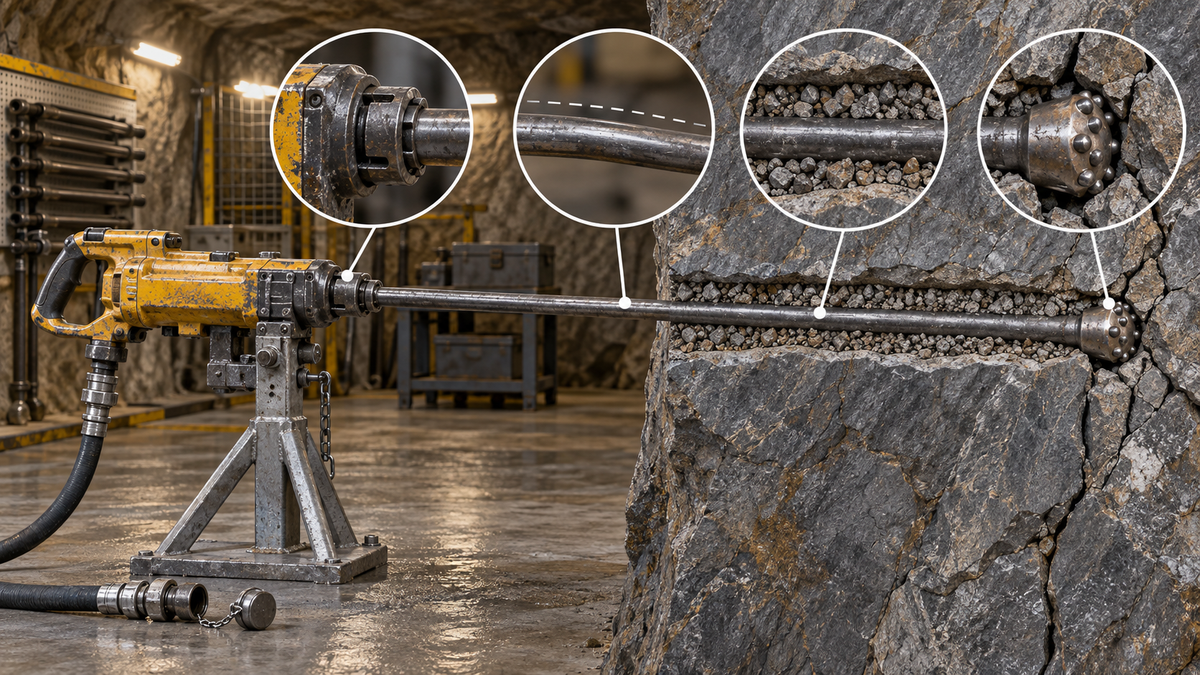

First separate four different symptoms
| What the crew sees | Most likely area | First controlled check | Do not do |
|---|---|---|---|
| Steel will not rotate or withdraw only while in the hole | Bit binding, packed cuttings, collapsed/fractured ground, bent steel | Check flushing return, hole condition, alignment and feed history | Keep hammering at full power |
| Steel turns but will not withdraw | Cuttings packed behind the bit, oversized wear shoulder, local rock closure | Review flushing loss and the last depth where withdrawal was free | Pull from an unstable stance |
| Steel is free in the hole but will not release from the chuck | Retainer, shank damage, chuck-bushing wear or incorrect shank | Isolate, support the steel and inspect the shank/retainer under the manual | Strike the housing or heat the chuck |
| The drill stops rotating and the steel becomes stuck at the same time | Bit jam, excessive feed, misalignment or internal rotation fault | Follow the existing no-rotation diagnosis before recovery | Assume more air pressure will solve it |
Step 1: make the stopped system safe
Shut the tool down using the approved control sequence. Close and isolate the compressed-air supply, release stored pressure, and verify that the line and tool are depressurized before touching a coupling, retainer or drill steel. Keep people out of the line of pull and away from unsupported hose, steel and tools. Stabilize the rock drill so it cannot slide when the load changes.
Do not disconnect a pressurized hose, stand directly behind the drill steel, or use a vehicle, winch or improvised lever unless a competent person has engineered and authorized the method. A stuck string can store bending and tensile energy even after the air is isolated.
Release gate before any recovery pull
Mechanical diagnosis is not permission to pull. Before anyone applies recovery force, a named competent person should release the work area, confirm the hole status, verify energy isolation and establish an exclusion zone. If any one of those controls is uncertain, stop the recovery and escalate it.
| Observed condition | Decision | Release evidence required |
|---|---|---|
| Loose, unsupported or recently disturbed ground; access requires standing below suspect rock | Stop and barricade the area. Do not trade ground exposure for drill-steel recovery. | Ground-control inspection and documented release of the face, roof and intended operator position by the site's authorized person |
| Hole identity is uncertain; the hole may be charged, may contain a misfire, or is beside active charging or blasting work | Stop and notify the blasting authority. Treat unknown hole status as a blasting-control issue, not a mechanical jam. | Positive hole identification plus confirmation from the site's blasting authority that recovery is permitted under the approved procedure |
| Steel is visibly bent, cracked or spring-loaded; the line of pull cannot be kept clear; a vehicle, winch or improvised lever is proposed | Stop and engineer the recovery. Keep personnel out of the stored-energy path. | Written recovery method, approved attachment points, controlled exclusion zone and one designated person directing the pull |
| Air supply is isolated and depressurized; the drill is stable; ground and hole are released; personnel can remain outside the line of fire | Proceed only with the exact drill-manual and site-approved recovery method. | Named recovery lead, confirmed communications, clear stop signal and a plan to quarantine and inspect recovered components |
Copy-ready recovery authorization record
- Face, roof and operator position inspected and released: name, role, date and time
- Hole ID, depth and last known condition; explosives or misfire status positively confirmed
- Compressed-air isolation point locked or otherwise secured; residual pressure verified at zero
- Steel condition recorded: straight, bent, cracked, hot, rotating freely or carrying visible side load
- Recovery method, exclusion-zone boundary, communication method and stop signal
- Recovery lead and observers; final decision: recover, escalate, or abandon and mark the hole
This gate addresses a real fatal-risk boundary. An MSHA fatal investigation describes a worker trying to free a stuck jackleg drill bit beneath unsupported ground. For workplaces governed by OSHA, the control-of-hazardous-energy rule also requires shutdown, isolation, control of stored energy and verification before servicing. Applicable mine law, the site ground-control and blasting plans, and the exact equipment manual remain controlling.
Step 2: identify where the load is trapped
Record four facts before attempting recovery:
- Did rotation slow, stop or remain normal before the jam?
- Did flushing return decrease, become muddy, or disappear?
- Did the feed angle change or did the air leg slip?
- At what depth and rock condition did the steel last move freely?
If flushing stopped before the steel stuck, packed cuttings are a leading suspect. If the jam followed excessive feed, a collaring error or a sudden change in rock, misalignment and bit wedging move higher on the list. If the steel is free until the shank reaches the chuck, inspect the retainer, chuck bushing and shank geometry instead of treating the hole.
Recovery boundary: choose the branch from observed movement
The safest next action depends on where movement was lost, not simply on how hard the steel is to pull. Record the last normal condition, isolate and depressurize the drill, then use the following matrix to decide which system owns the fault. The table is diagnostic only: any physical recovery method must come from the exact drill manual and the site's approved procedure.
| Observed condition before isolation | Most likely trapped zone | Decision before recovery |
|---|---|---|
| Rotation slowed and cuttings return weakened before axial movement stopped | Bit face, packed cuttings or a restricted return path | Treat flushing loss as the initiating fault. Do not increase energy until the approved procedure confirms that the return path can be restored safely. |
| Rotation stopped suddenly while flushing appeared normal | Bit wedging, fractured-rock pinch, bent steel or rotation-system loading | Preserve the hole condition and inspect the external string. Separate a rock/bit trap from a drill rotation fault before ordering machine parts. |
| Steel moves slightly at the collar but remains trapped deeper in the hole | Bit, local hole collapse or cuttings pack below the collar | Escalate to the site's hole-recovery method. Do not assume that chuck service will release a down-hole trap. |
| Steel is free in the hole but binds as the shank reaches the drill | Retainer, chuck bushing, damaged shank or incompatible shank geometry | Move the drill and steel to controlled inspection. The hole is not the primary Owner of the fault. |
| Air leg slipped, drill angle changed or steel visibly bowed before the jam | Feed geometry, unstable support or bent steel | Stabilize the assembly and quarantine visibly damaged steel. Do not use feed thrust to straighten or extract it. |
| The initiating event is unknown or the steel cannot be observed safely | Unconfirmed | Stop and escalate. Unknown load location is not a reason to apply more percussion, pull or torque. |
Stop and escalate when the load path is uncertain
Keep the system out of service when the hole is unstable, the steel is visibly bent or cracked, the chuck or retainer is damaged, pressure cannot be positively isolated, personnel cannot stand clear of the possible release path, or the approved recovery limit has been reached. Do not improvise with a vehicle, chain, unapproved jack, heat, impact on a pressurized assembly or a person standing in line with the steel.
Step 3: restore the easiest missing function first
Use the least aggressive approved action that addresses the diagnosed cause.
- Poor cuttings removal: restore the correct flushing path and verify that return can leave the hole. Do not add water or air blindly if the site procedure warns of unstable ground, back pressure or uncontrolled discharge.
- Excessive feed or misalignment: remove feed load in a controlled way, support the drill and return the steel to the intended axis before trying to withdraw it.
- Bit wedged in fractured rock: stop full percussion. Follow the model and site procedure for reduced-energy rotation, controlled back movement or dedicated recovery equipment.
- Bent steel: take the steel out of service after recovery and inspect straightness, shank, taper/thread and surface damage. Do not return a visibly bent or cracked steel to production.
- Chuck or retainer fault: move the problem to a controlled maintenance area. Inspect mating parts together; replacing only the steel may leave the root cause in the chuck.
A trapped drill string stores load in the steel, feed system and surrounding rock. Continued full percussion or uncontrolled pulling can add stress without identifying the restriction. Use only the model-specific and site-approved recovery method, and stop when its stated limit is reached.
Root-cause checklist after recovery
| Area | Evidence to collect | Corrective direction |
|---|---|---|
| Hole and rock | Fractures, clay seams, collapsing collar, change in cuttings | Adjust collaring, flushing and method to the ground condition |
| Bit | Diameter loss, broken carbide, blocked flushing holes, body damage | Service or replace the bit; confirm bit/steel compatibility |
| Drill steel | Straightness, shank damage, mushrooming, surface cracks | Quarantine damaged steel and inspect the chuck interface |
| Air and water path | Hose ID/length, coupling bore, dynamic inlet pressure, flushing return | Correct restrictions and pressure loss before restarting |
| Feed and alignment | Air-leg position, slipping, excessive thrust, operator stance | Reset support and feed; do not use thrust to force a jammed bit |
| Rock drill | Rotation, chuck-bushing play, retainer and lubrication | Follow the model manual and qualified service procedure |
Prevent the next stuck-steel event
- Collar the hole at controlled energy and confirm alignment before applying full feed.
- Keep flushing active and watch for a change in return before penetration stops.
- Match the bit, drill steel, shank and chuck system; a part that fits loosely is not proof of compatibility.
- Inspect straightness and the shank before every shift or batch change.
- Maintain the line oiler and verify dynamic pressure at the tool, not only static pressure at the compressor.
- Stop when rotation becomes intermittent. Use the pneumatic rock drill no-rotation guide instead of drilling through the symptom.
Minimum stuck-steel recovery record
Keep one short record for maintenance, procurement and recurrence analysis:
- rock-drill model, drill-steel and bit identification;
- hole depth, angle and observed ground condition;
- last normal rotation, flushing and feed condition;
- the first abnormal symptom and its sequence;
- which zone the isolation matrix identified;
- approved recovery method used and the person authorizing it;
- condition of the recovered steel, bit, shank, chuck and retainer;
- quarantined parts and corrective action before restart.
Repeated jams should be trended by hole condition, steel/bit batch, drill model and shift rather than treated as unrelated events.
What to send when the steel cannot be recovered
Send the rock drill model, drill-steel shank, steel length, bit type and diameter, hole depth, drilling angle, rock condition, air and water arrangement, photos of the collar and shank, and a short description of what changed immediately before the jam. This evidence helps separate a supply or setup problem from a damaged tool interface.
For machine selection and matching, review the Pneumatic Rock Drills collection and the active YT28 air-leg rock drill. If impact or rotation failed before the jam, also use the air-but-no-impact guide and the air-hose sizing guide. Then request a configuration review with the field record.
FAQ
Can I keep hammering to free a stuck drill steel?
Do not continue full percussion without an approved recovery procedure. A trapped steel can increase loads on the bit, steel, chuck and operator. Isolate the cause first and follow the exact machine and site instructions.
Does a stuck steel mean the rock drill is faulty?
No. Hole collapse, packed cuttings, a worn bit, a bent steel, poor alignment and excessive feed can all trap the steel while the drill itself remains functional.
Should a recovered steel go straight back into service?
Not before inspection. Check straightness, cracks, shank or thread/taper damage and evidence of overheating or impact. Quarantine any part that does not meet the controlled acceptance rule.
How can I tell whether the steel is stuck in the hole or at the chuck?
If the steel is free until its shank reaches the drill, the retainer, chuck bushing or shank geometry becomes the leading inspection area. If the collar end moves but the bit remains trapped deeper in the hole, investigate the bit, cuttings and ground condition instead.
When should a stuck hole be abandoned?
Stop and escalate when the ground or release path is unstable, the load location is uncertain, approved recovery limits are reached, or the steel and drill cannot be controlled without exposing people to stored energy. The authorized site procedure—not an improvised force level—must decide whether recovery continues.
Technical source boundary
This guide uses qualitative diagnostic boundaries because recovery forces, control positions and permitted methods vary by drill model, tool string and site. Follow the exact equipment manual and approved site procedure. For general compressed-air isolation, hose and portable-tool hazards, see the UK Health and Safety Executive's compressed-air safety guidance.
