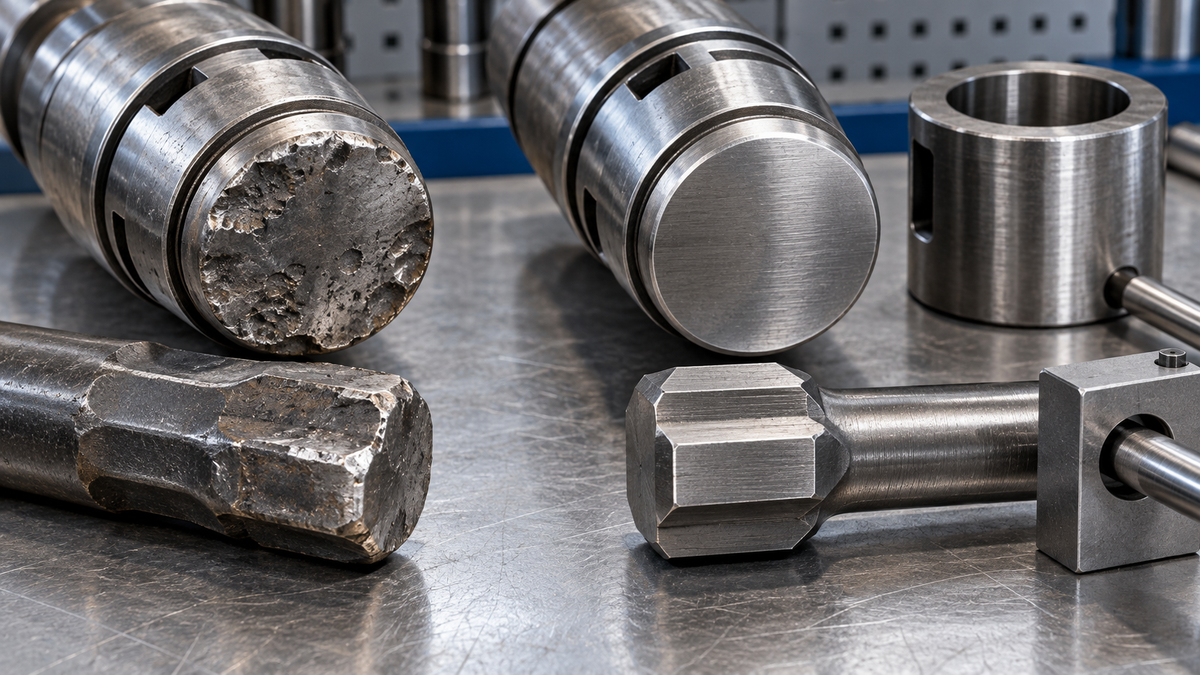

Respuesta directa: cuando una perforadora neumática de roca presenta una cara de impacto del pistón astillada, picada, redondeada o irregular —o el extremo del vástago de la barra de perforación muestra daños coincidentes—, trate el pistón, el vástago, el casquillo del mandril y la configuración operativa como una única interfaz de impacto. Aísle la perforadora, preserve el patrón de desgaste tal como se encontró, compare la barra sospechosa con una controlada, inspeccione la guía y la alineación según el procedimiento exacto del modelo, y no libere ninguna pieza hasta que se determine la causa. Reemplazar solo el componente visiblemente dañado puede reproducir el fallo.
Esta guía está destinada a equipos de minas, canteras, túneles, flotas de alquiler, distribuidores y talleres que inspeccionan perforadoras neumáticas de roca manuales o con avance neumático (air-leg). Cubre la decisión sobre la causa raíz de la cara del pistón y el extremo de impacto de la barra de perforación. No establece límites universales de dureza, planitud, holgura, rectificado o reparación de pistones. Dichos valores y reparaciones permitidas deben provenir del manual exacto de la perforadora, el plano y el procedimiento de taller aprobado.
Regla rápida: registre ambas caras de contacto antes de limpiar o reelaborar. La forma, la ubicación y la repetibilidad del daño son evidencias; una sola cara dañada no es prueba de una barra defectuosa o una perforadora defectuosa.
Condiciones de parada antes de la inspección
Cierre y aísle el suministro de aire comprimido, purgue la presión almacenada, desconecte o asegure la manguera según el procedimiento del sitio, y verifique que la perforadora y la barra no puedan moverse. No mire dentro del mandril, toque un retenedor, afloje varillas laterales ni abra una carcasa mientras haya energía presente. Ponga en cuarentena cualquier barra con grietas, fragmentos sueltos, un labio fuertemente levantado, deformación severa o retención incierta.
La inspección interna del pistón es trabajo de taller. Utilice personal competente, las instrucciones de servicio correctas y piezas controladas. No golpee el pistón o la barra manualmente para "leer" el contacto, no haga funcionar la perforadora sin la barra de trabajo aprobada y la sujeción, ni haga funcionar la herramienta en vacío simplemente para reproducir una marca. Si el procedimiento exacto del modelo no está disponible, la disposición correcta es RETENER PARA DATOS CONTROLADOS.
Matriz de patrones de daño en pistón y vástago
| Patrón observado | Dirección probable de investigación | Evidencia a recolectar | Decisión inmediata |
|---|---|---|---|
| Pulido uniforme sin astillas, grietas, bordes levantados o rechazo medible | Puede ser un contacto normal, pero solo el límite del modelo puede confirmar la aceptación | Fotografías perpendiculares, dimensiones actuales o resultado de calibración, historial de servicio | Continuar inspección controlada; no liberar solo por apariencia |
| Banda brillante de un solo lado, marca de media luna o golpe en el borde | Contacto fuera de eje, guía desgastada, barra doblada, soporte deficiente o desalineación | Posición de reloj de la marca, patrón del casquillo, rectitud de la barra y configuración de avance | Retener el par de perforadora y barra para comprobaciones de alineación |
| Astilla o picadura coincidente en la cara del pistón y el extremo del vástago | Daño transferido, fragmento suelto, inclusión dura, contaminación o impacto repetido en el borde | Fotografías de orientación coincidente, fragmentos, hallazgos de limpieza y cambios de piezas recientes | Poner en cuarentena ambos componentes; se requiere investigación de taller |
| Vástago deformado en forma de hongo o acampanado con la cara del pistón aparentemente intacta | Deformación del extremo de la barra, duda sobre material/tratamiento térmico, casquillo desgastado, contacto rugoso o sobrecarga operativa | Identidad y lote de la barra, geometría del extremo, resultado del casquillo del mandril y otras barras de la misma perforadora | Retirar la barra; inspeccionar el extremo frontal de la perforadora antes de instalar otra |
| Cara del pistón dañada mientras varias barras controladas permanecen utilizables | Problema interno de pistón/cilindro/válvula, daño previo por fragmentos o pieza de taller incorrecta | Identidad de la pieza del pistón, registro de reconstrucción, condición del cilindro y comparación con perforadora emparejada | Retirar la perforadora del servicio para inspección de taller específica del modelo |
| Daño similar en el vástago aparece en varias barras usadas en una perforadora | Problema de seguimiento de la herramienta como guía, alineación, cara del pistón o configuración | Secuencia de la barra, horas o agujeros, ID de activo de la perforadora, evidencia del casquillo y pistón | Dejar de cambiar barras; priorizar la perforadora y la configuración |
| Daño similar sigue a una barra o un lote de barras en perforadoras verificadas | La identidad, geometría, material, tratamiento térmico o acabado de la barra se vuelve más plausible | Orden de compra, referencia de lote/colada, planos, comparación de muestras e informe de inspección | Poner en cuarentena el lote afectado a la espera de evidencia |
| Grieta, metal suelto, desprendimiento profundo o riesgo de fragmentos en cualquiera de las caras | Falla de la interfaz de impacto crítica para la seguridad | Pieza preservada, control de fragmentos, fotografías y cadena de custodia | PARAR / CUARENTENA; no esmerilar ni reutilizar |
Utilice una inspección de interfaz emparejada de seis etapas
1. Preserve la condición tal como se encontró
Etiquete la perforadora y la barra como un par. Registre el modelo de la perforadora, revisión o configuración, ID de activo, especificación de la barra, proveedor y lote (si está disponible), broca, avance neumático o soporte, dirección del orificio, mantenimiento reciente y el evento que desencadenó la inspección. Fotografié la cara del pistón y el extremo del vástago de forma perpendicular y oblicua antes de eliminar rebabas, pulir superficies o limpiar fragmentos.
Mark the clock position of one-sided damage relative to the drill body and rod collar. If the rod can be removed safely, preserve its orientation information. A statement such as “piston damaged” has little diagnostic value without location, direction and operating history.2. Confirm identity before judging condition
Verify the exact drill model and the approved drill-steel shank family, length, collar, striking-end geometry and flushing entry. A shared label such as H22 does not prove complete compatibility. Check the controlled drawing or parts list for the drill, chuck bushing, piston and steel. When the unit was rebuilt, confirm the piston and front-end parts by part number or drawing position rather than appearance. If any identity conflicts, stop the condition judgement. An unknown piston, mixed revision, wrong shank length or incomplete drawing can create a contact pattern that resembles wear.3. Inspect the drill steel outside the machine
Clean without removing evidence. Look for a face that is no longer flat and square to the rod axis, edge rollover, mushrooming, chips, cracks, embedded particles, heat discoloration, roughness, blocked flushing entry, rounded hex flats and bending. Use only the model-approved dimensional, straightness and surface checks. Do not copy a hardness or regrinding rule from another drill family. Compare the suspect steel with an unused or verified serviceable sample of the same controlled specification. The known-good sample is a reference for identity and pattern, not permission to force-fit a part into a suspect chuck.4. Inspect guidance and related front-end parts
The chuck bushing guides the shank toward the piston. Wear, ovality, bell-mouthing, scoring, contamination or uneven contact can allow off-axis striking. Inspect the bushing by the specified gauge or dimensional method, then check the retainer, chuck, front-head faces, rotation parts, water tube or flushing path and side-rod condition as the manual requires. A hand-feel comparison is not an acceptance measurement. If the gauge, drawing or wear limit is missing, record the evidence and hold the drill. Installing a new steel does not correct lost guidance.5. Inspect the piston and internal group in the workshop
Follow the approved teardown procedure. Check the piston face for chipping, pitting, spalling, edge battering, asymmetric polish, embedded debris and distortion. Inspect the piston body, cylinder and valve group only to the model’s service criteria. Confirm whether a fragment or contamination trail connects the visible face damage to another internal component. Do not dress, weld, grind or reuse a piston unless the controlled manufacturer procedure explicitly permits the work and states the acceptance method. Do not transfer a generic material or hardness claim to a PerfoMax model or any other specific drill.6. Run a controlled comparison and release test
After approved corrections, assemble only with verified parts and the correct sequence. Where the manual permits a functional test, use a verified branch, correct lubrication, approved steel and safe restraint. Compare with a known-good drill of the same controlled configuration, changing one variable at a time. Record starting behavior, impact/rotation response, abnormal sound, leakage, heat, steel movement and the post-test condition of both faces. A test passes only when the interface remains stable and all model-specific checks pass. A short period of apparently normal drilling does not erase a crack, deep spall, uncertain part identity or missing wear limit.Result-to-Action Decision Table
| Evidence result | Status | Required action |
|---|---|---|
| Identity verified; both faces and guidance pass the controlled criteria; repeat test shows no abnormal pattern | READY | Release with the inspection and test record plus the site-defined early recheck |
| Serviceable drill; one rod has isolated damage and a verified replacement remains stable | ROD REMOVE / DRILL READY | Quarantine the rod and investigate its identity or history; retain drill evidence |
| Damage follows the drill across controlled steels, or several rods show the same clocked pattern | DRILL WORKSHOP | Inspect piston, bushing, alignment and related front-end parts before further use |
| Damage follows a controlled rod or batch across verified drills | LOT HOLD | Quarantine the affected supply and request traceable geometry/material evidence |
| Part identity, drawing revision, wear limit or repair authority is missing | HOLD FOR DATA | Obtain the exact manual, drawing or written supplier confirmation |
| Crack, loose fragment, deep spall, severe deformation or repeated damage after correction | STOP / QUARANTINE | Remove the paired system from service and escalate to qualified technical review |
Do Not Confuse This Buyer Job With Adjacent related guides
- Shank mushrooming is the visible trigger: use the H22 shank-mushrooming diagnosis to preserve the rod and assess the machine-side contributors.
- Excessive play or guidance wear is the trigger: use the chuck-bushing inspection and gauge-release guide.
- Air passes but percussion is absent: use the no-impact isolation sequence before opening the drill.
- The buyer needs interface terminology: use the H22 shank anatomy guide.
- The workshop needs replacement identities: use the spare-parts RFQ identification guide.
Copy-Ready Piston–Shank Inspection Record
Site / date / inspector: Drill model, revision and asset ID: Piston part number / drawing position: Chuck-bushing part and gauge method: Rod specification, length, supplier and batch/heat reference: Bit and flushing configuration: Air leg / support / drilling direction: Event that triggered inspection: Recent overhaul or parts change: Piston-face pattern and clock position: Shank-end pattern and clock position: Fragments / contamination preserved: Rod straightness and controlled dimensions: Bushing gauge or measurement result: Retainer / chuck / rotation / side-rod findings: Known-good steel comparison: Known-good drill comparison: Approved correction and document reference: Controlled test conditions and result: Post-test face condition: Decision: READY / ROD REMOVE / DRILL WORKSHOP / LOT HOLD / HOLD FOR DATA / STOP Approver / evidence-file reference:
What to Send in a Repair or Replacement RFQ
Provide the exact drill model and revision, asset or serial reference, piston and bushing drawing positions, steel shank specification, rod supplier and batch where known, photographs of both mating faces, measured or gauge results, and the inspection record above. State whether the pattern followed the rod, the drill, the bushing condition, one clock position or a recent repair. Request written confirmation of replacement-part identity and the permitted service limits for the supplied configuration.
For complete-equipment replacement or fleet standardization, review the pneumatic rock drill range, the active YT28 air-leg drill and Y19A hand-held drill. Send the drilling direction, hole range, steel interface, air supply, support system, quantity and failure evidence through the RFQ route.
Safety and Evidence Boundaries
General compressed-air isolation, hose and pneumatic-tool boundaries are supported by HSE HSG39, OSHA 1926.302 and the CAGI air-tool handbook chapter. These sources do not define piston-face, shank-end, hardness or wear limits for a specific rock drill. Current model manuals and controlled drawings remain decisive.
Frequently Asked Questions
Can a damaged drill-steel shank damage the piston?
Yes. A rough, chipped, deformed or off-axis striking end can change contact and transfer damaging loads. The extent and acceptance decision are model-specific, so inspect both faces and the guidance system rather than replacing one part by assumption.
Can a worn chuck bushing cause one-sided piston marks?
It can contribute by allowing poor shank guidance, but a one-sided mark can also involve bent steel, incorrect fit, misalignment or feed/support conditions. Use the specified bushing check and a controlled comparison.
Should a chipped piston face be ground smooth?
Not without an explicit controlled repair procedure for that piston. Grinding can change geometry, contact and material condition while destroying evidence. Quarantine the component and follow the exact service instruction.
Does H22 prove that any H22 rod is safe in the drill?
No. The family label does not freeze shank length, collar, striking-end geometry, flushing entry, taper or complete model compatibility. Confirm the approved drawing and supply configuration.
Why did a new rod become damaged quickly?
A new rod can reproduce an existing tool-side problem if the bushing, piston face, alignment, lubrication or setup was not corrected. Compare the pattern across rods and drills before blaming the replacement.
Bottom line: inspect the piston and drill-steel shank as a paired impact interface, map whether the damage follows the rod, drill, clock position or batch, and release the equipment only after identity, guidance, controlled measurements and a repeat test all agree.
