Pneumatic Breaker Air Leak Diagnosis: Hose, Inlet, Backhead and Exhaust Checks

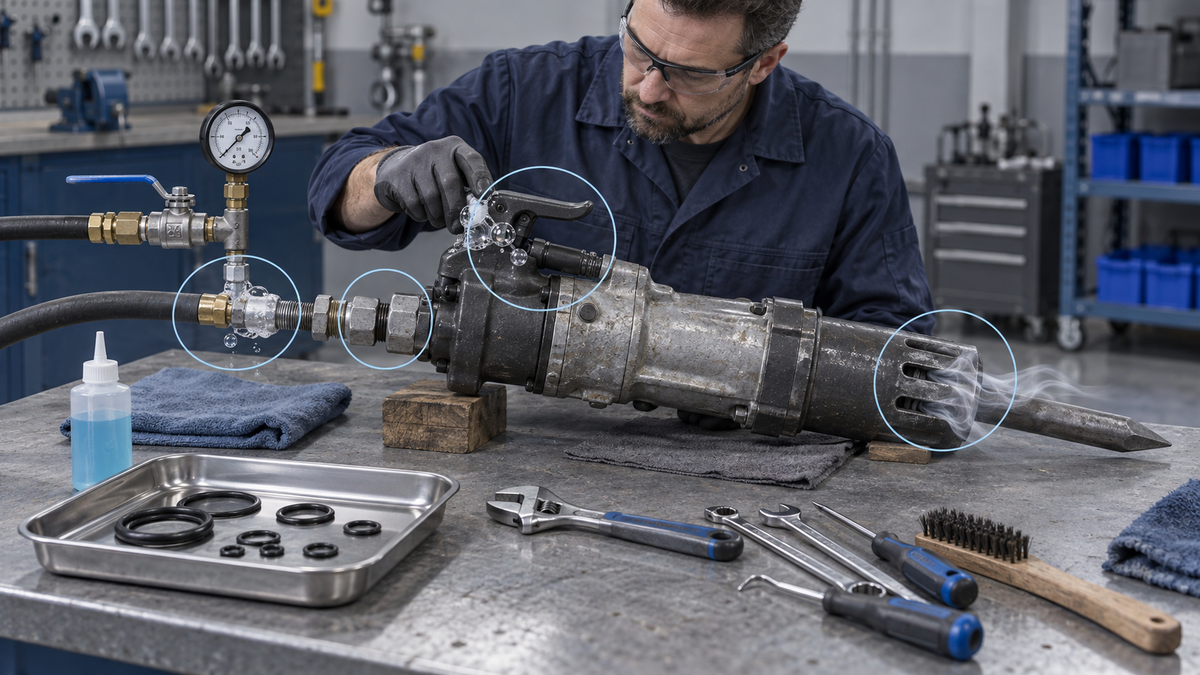

A pneumatic breaker air leak should be diagnosed by location and operating state before any part is tightened or replaced. First determine whether the air escapes from the hose/coupling, the tool inlet, the backhead or throttle area, a body joint, or the exhaust. Then record whether it happens with the throttle released, only while the tool is running, or after the trigger should have closed.

Those observations separate external connection faults from likely internal valve, seal or joint faults. They also prevent a common mistake: treating normal exhaust flow during operation as a leak. If the tool cannot be shut off, a hose moves, a coupling is damaged, or air escapes through a cracked casting, stop immediately, isolate the compressor supply and bleed the line. Do not continue operating to “see if it clears.”

Start with the leak state, not a parts guess

A useful diagnosis begins with three questions:

1. Where is the air actually escaping? A hiss heard near the handle can travel from an inlet fitting, swivel, throttle stem, backhead joint or exhaust opening.
2. When does it escape? Note the throttle position, whether the tool is under load, and whether the leak continues after the throttle is released.
3. What else changes? Record inlet pressure under the approved test condition, impact behavior, throttle return, oil mist, vibration and any loose fasteners.

Do not diagnose by sound alone on a noisy jobsite. Clean the exterior, provide adequate lighting and inspect from a safe position. If the manufacturer permits a bubble solution on external joints, apply it only under a controlled test procedure with the tool secured and people clear of the working end. Never use a hand to search for a high-velocity leak.

Leak-location diagnostic table

The table narrows the fault; it does not authorize universal parts or torque values. Pneumatic breakers with similar weight and appearance can use different throttle valves, seals, backheads, fasteners and inlet arrangements.

Safe diagnostic sequence

1. Stop and isolate the air supply

Close the upstream valve or stop the compressor according to the site procedure, then bleed stored pressure before touching the hose, coupling, inlet or tool fasteners. Verify that the line is depressurized. The Health and Safety Executive’s compressed-air guidance treats isolation and safe maintenance as system responsibilities, not merely operator preferences.

If the breaker will not shut off, the priority is upstream isolation—not reaching across the tool to manipulate a suspect throttle. Disconnect only after the supply is isolated, stored pressure has been released by the approved method, and the line has been verified safe.

2. Inspect the supply side first

Begin at the compressor or distribution point and work toward the breaker. Check the hose, ferrules, intermediate couplings, whip hose, lubricator, isolation valve and final connector. Look for:

• cuts, exposed reinforcement, abrasion, blisters, crushing or heat damage;
• loose ferrules, damaged clamps or unapproved repairs;
• couplings that do not fully lock or belong to different profiles;
• missing, hardened, flattened or cut coupling seals;
• adapters with cracked bodies or damaged threads;
• a hose that twists or side-loads the tool inlet; and
• missing or incorrectly positioned hose restraints.

OSHA requires pneumatic tools to be secured to the hose or whip by a positive means that prevents accidental disconnection. A restraint does not make a damaged coupling acceptable; it is a separate control for the residual hose-whip hazard.

3. Verify the inlet interface

Remove pressure before separating the connection. Confirm the breaker’s specified inlet thread, sealing face, swivel or adapter, coupling profile and effective bore. Do not add multiple reducers merely to make components reach each other. An adapter chain can introduce extra leak paths, restriction, leverage and loosening points.

If the inlet leaks after correct assembly, inspect both mating parts. Thread damage, debris on a sealing face, a missing seal, incorrect sealant or an over-tightened cracked port must be corrected rather than hidden with more tape. The PerfoMax guide to pneumatic breaker air inlet compatibility explains the full thread, coupling and bore check.

4. Separate backhead leakage from exhaust flow

Backhead leakage appears around the handle/backhead joint, throttle-valve area or fastener line. After isolation, qualified service personnel should use the exact model’s manual to assess the applicable valve, seals, housing joint and fasteners. The observed location narrows the inspection scope; it does not authorize a universal replacement part, tightening sequence or torque value.

Exhaust flow is different. During normal hammering, compressed air must leave the tool after doing work. The concern is air that continues with the throttle released, is redirected through a joint, is accompanied by weak or erratic impact, or differs materially from the model’s known baseline.

5. Use a controlled external leak test

After visual inspection and only if the manufacturer’s method permits it, secure the tool, keep the working end controlled and apply the minimum approved test condition. A compatible leak-detection solution can help show bubbles at external joints. Protect openings from liquid ingress and clean the tool afterward.

Do not:

• run fingers around pressurized connections;
• hold a coupling while another person pressurizes the line;
• plug or cover the exhaust;
• strike, bend or heat a fitting to stop leakage;
• tighten fasteners while the tool is pressurized; or
• use an unverified flammable cleaning fluid around compressed-air equipment.

6. Decide whether field action or workshop service is appropriate

Field action should normally stop at replacing approved external hose, coupling, seal or adapter components, completing specified lubrication and confirming correct assembly. Internal throttle, valve, piston, cylinder, backhead and joint work belongs in a clean service area with the exact model drawing, service limits, tools and replacement parts.

A temporary reduction in hissing after tightening does not prove the repair is sound. Over-tightening can distort joint faces, crush seals, damage threads or preload fasteners incorrectly. Record what changed, who performed it and what return-to-service check was completed.

How leak location changes the root cause

Hose or coupling leak

This is normally an external supply-package problem. Verify hose rating and condition, coupling family, seal, locking engagement and restraint. A worn coupler may leak only when the hose is bent, which makes routing and side load part of the evidence.

Inlet or swivel leak

Suspect thread or sealing mismatch, loose assembly, damaged sealing surfaces or mechanical load from the hose. Confirm the controlled parts information before replacement. Avoid judging thread compatibility by diameter alone.

Backhead leak

Possible causes include damaged O-rings, throttle-valve wear, loose backhead fasteners, contamination or a damaged casting. If the throttle also sticks or the tool will not stop, isolate it and remove it from service immediately.

Body-joint leak

A leak at a joint can follow seal failure, loose or uneven fasteners, distorted faces or incorrect prior assembly. External tightening without inspecting the mating surfaces can conceal the fault and complicate later repair.

Continuous exhaust or excess air consumption

First confirm that the observation is outside the model’s normal cycle and that inlet pressure and measurement method are valid. If air continues with the throttle released or consumption rises together with weak blows, an internal valve, seal, cylinder or piston-clearance issue may be present. See the related guide on a pneumatic breaker with weak blows for the performance-side checks.

Evidence to collect before ordering parts

A useful service request should identify the fault rather than ask for a generic “seal kit.” Send:

• manufacturer, exact model and serial number where available;
• clear photographs of the nameplate, inlet, backhead, throttle and full tool;
• video or audio showing the leak from a safe position;
• the leak location marked on a photograph;
• whether the throttle is released or activated when leakage occurs;
• inlet pressure and where it was measured, using the approved procedure;
• hose bore, length, coupling profile and lubricator arrangement;
• impact behavior, shutdown behavior and any recent change;
• previous repairs, replaced parts and drawing revision; and
• the requested quantity and whether a complete rebuild kit is acceptable.

Model family names are not enough. The same breaker family can have different revisions, backheads or valve arrangements. Ask the supplier to confirm part numbers and supersessions against a controlled parts list.

Return-to-service checklist

After qualified repair, the responsible technician should confirm:

• all parts match the exact model and revision;
• joint faces, threads and fasteners are serviceable;
• seals are the specified type and installed without damage;
• fasteners were tightened in the specified sequence and to the documented value;
• the throttle returns freely and the tool stops when released;
• the inlet, hose, coupling and restraint are correctly assembled;
• the tool received the specified lubricant;
• external leakage is absent under the approved test;
• impact and exhaust behavior are normal for the model; and
• the repair and test results are recorded.

Keep repair completion and return-to-service acceptance as separate recorded steps. Use the exact model’s acceptance procedure and identify the technician who approved the repaired tool for use.

Frequently asked questions

Is air from the exhaust always a leak?

No. A pneumatic breaker exhausts air as part of its normal operating cycle. The abnormal conditions are continuous flow with the throttle released, air escaping from a joint, or exhaust behavior that changes together with poor impact or loss of control.

Can I keep using a breaker with a small air leak?

Do not assume a small audible leak is harmless. It can indicate a damaged hose, loosening connection, throttle fault or seal failure. Isolate the tool and determine the source before returning it to work.

Can soap solution be used to find the leak?

A compatible bubble solution may help on external joints if the manufacturer and site procedure allow it. The tool must be secured and tested under controlled conditions. Never use hands to feel for the leak or allow liquid into the tool.

Why does the backhead leak only when the breaker is running?

Running changes pressure and airflow inside the tool, so a worn seal, loose joint or throttle-area fault may become visible only during the cycle. Record the exact state and have the model-specific backhead assembly inspected.

What information should I send when requesting a seal kit?

Send the exact model, serial number, parts-list revision, photographs and confirmed leak location. Also state whether the throttle closes correctly. A generic diameter or breaker weight class is not enough to identify internal seals.

Specify the whole air connection, not only the breaker

For a replacement breaker, hose, coupling or service-parts recommendation, provide PerfoMax with the model, inlet interface, leak location, operating state, air-supply layout and parts evidence. Review the current pneumatic breaker and pick range, then request written confirmation for the complete connection and service package.

Technical references: HSE compressed-air safety guidance; and OSHA pneumatic power-tool requirements. Apply the relevant law, exact manufacturer manual and approved site procedures.
