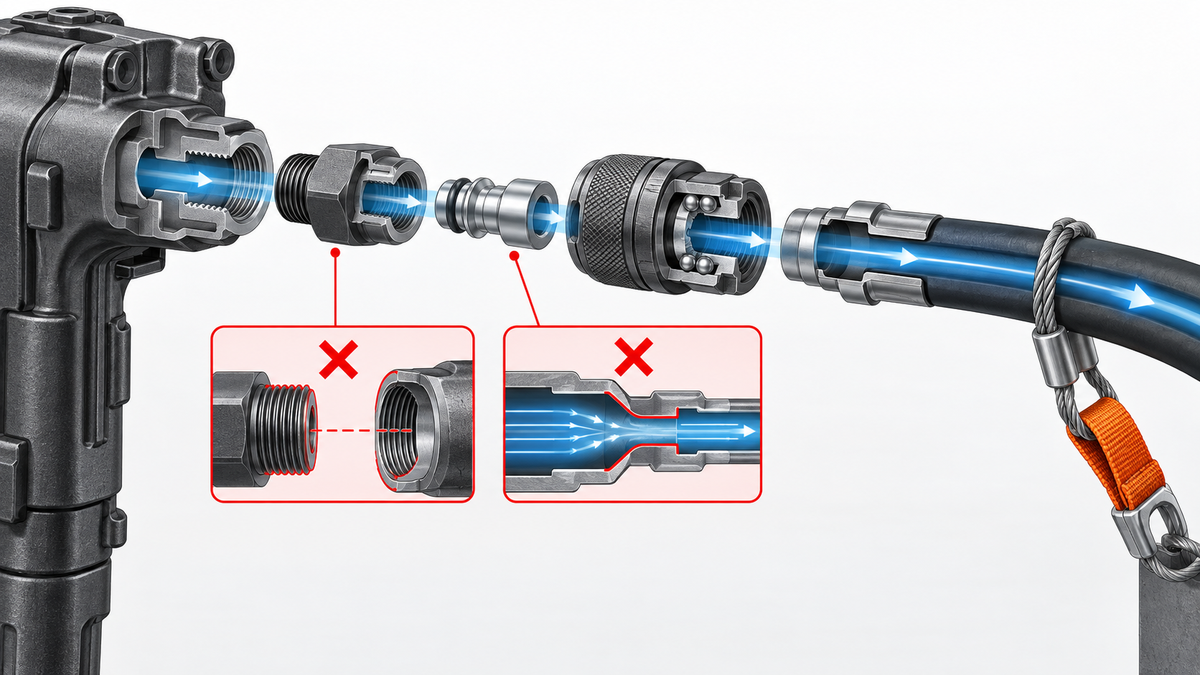

A pneumatic breaker air inlet is compatible only when the complete connection chain matches: the tool inlet thread and seal, the swivel or adapter, the quick-coupling profile, the effective air bore, the working-pressure rating, and the locking or restraint arrangement. A thread that can be screwed in, or a plug that appears to enter a socket, is not enough evidence.
Before ordering or connecting an air line, identify the exact breaker model and obtain the controlled inlet or swivel specification. Then verify every interface against drawings, part numbers, markings and supplier data. This guide is for selection and pre-purchase checks; it does not replace the breaker manual, coupling manufacturer's instructions, a site compressed-air risk assessment, or local safety rules.
What must match from the breaker to the hose?
| Interface | What to identify | Why a visual match can fail |
|---|---|---|
| Breaker inlet | Exact model, inlet or swivel part number, thread designation, seal method and orientation | Similar outside diameters can use different pitches, thread forms or sealing locations |
| Adapter or swivel | Male and female ends, rated service, internal bore, material and drawing revision | An adapter can mate mechanically while introducing a weak thread, poor seal or flow restriction |
| Plug and socket | Manufacturer, series/profile, nominal body size, locking method and valve arrangement | Different pneumatic profiles can look alike but may not latch, seal or flow correctly |
| Hose and end fitting | True hose inside diameter, assembly rating, retention method, oil and site compatibility | The hose label does not prove the end fitting or crimp is suitable for the same duty |
| Safety controls | Positive locking, isolation, depressurization, restraint or air-fuse requirement | A secure thread does not control hose whip after a rupture or accidental separation |
Compatibility is therefore a chain decision. The smallest bore can become the flow bottleneck, the lowest-rated item controls the assembly rating, and an unverified transition can defeat an otherwise correct hose and breaker selection.
Step 1: identify the breaker before measuring the fitting
Start with the nameplate, model, serial range where relevant, parts book and the current inlet or swivel part number. Breaker families can have market-specific fittings, earlier revisions or locally installed adapters. Record what is actually installed, but do not assume an old field modification is the approved configuration.
For an RFQ, provide one photograph of the complete breaker, one close view of the inlet assembly, and one view of any markings on the swivel, nipple or coupling. Put a scale beside the part only as supporting evidence. A photograph and caliper measurement help identify candidates; they do not establish the thread form, taper, pitch or pressure rating.
If the model cannot be confirmed, isolate and depressurize the system before removing the fitting. Have a competent person identify the connection using controlled gauges or a verified mating component. Do not test an unknown thread by forcing together new parts.
Step 2: verify the thread and sealing method
A thread description should state the standard or manufacturer designation, nominal size, pitch, male/female form and how the joint seals. Some connections seal on the thread; others seal on a face, cone, washer, O-ring or another controlled surface. Applying sealant cannot correct a wrong thread form or an incompatible sealing design.
Nominal pipe size is also not the same as measured thread outside diameter. Avoid converting a caliper reading directly into an NPT, BSP or other designation. Where a controlled drawing is unavailable, combine several checks:
- confirm whether the thread is parallel or tapered;
- measure diameter and pitch with suitable instruments;
- inspect the sealing face and shoulder;
- compare with the correct thread standard or gauge;
- record engagement by hand without pressure or force; and
- obtain written supplier confirmation for the exact breaker model.
Mixed thread systems are especially risky because partial engagement can feel convincing. A connection that tightens after only a few turns may be cross-threaded or sealing on the wrong surface. Stop if the parts bind, rock, show damaged crests or require abnormal torque.
Step 3: identify the quick-coupling profile—not just its body size
“Industrial,” “European,” “universal” and similar labels are not sufficiently controlled purchase specifications. Record the coupling manufacturer and exact series/profile for both plug and socket. Compare the plug nose, groove positions, shoulder geometry and permitted socket series using the manufacturer's current drawing.
ISO 6150:2018 defines connecting dimensions and tolerances for specified cylindrical pneumatic quick-action coupling plugs, along with application guidance and tests. Its scope also makes an important boundary clear: dimensional criteria do not by themselves establish every functional characteristic of a coupling. The socket design remains a manufacturer-controlled element. Therefore, an ISO reference should be paired with the exact series, pressure/temperature limits, valve behavior, material and service conditions.
Never accept a plug/socket combination merely because it connects once on a bench. It must latch positively, resist accidental release, seal under the intended conditions and disconnect according to the selected safety design.
Step 4: check the effective air path
Breaker performance depends on pressure and airflow available at the tool while it is operating. The nominal hose size does not describe every restriction between the compressor and breaker. Reducers, small-bore nipples, restrictive couplers, clogged strainers, long hoses and undersized lubricators can all reduce dynamic pressure at the inlet.
Trace the minimum internal diameter through each component, including valves and adapters. Ask the supplier for flow data or the relevant bore dimensions instead of estimating capacity from the outer body. Where the system is critical, measure pressure at the breaker inlet under load using the machine manufacturer's procedure. A normal static gauge reading with the breaker stopped does not prove adequate flow.
Use the published pneumatic air-hose sizing guide to assess length and pressure drop. In this compatibility check, the key rule is simple: do not add a convenient adapter that becomes the narrowest point in the supply chain without confirming the resulting performance.
Step 5: control ratings, materials and the installed environment
The complete assembly must be suitable for the maximum pressure that can reach it, not only the expected operating setting. Confirm the rating of the hose, fittings, coupling, swivel, adapter, clamps or crimp ferrules and any restraint. The lowest acceptable limit governs the assembled line.
Also specify temperature, rock-drill oil, water, dust, abrasion, UV exposure, underground or quarry conditions and any fire-resistant or anti-static requirement imposed by the site. HSE's Compressed Air Safety guidance says hose selection should consider temperature, oils and pressure, and that manufacturer advice should be followed. A hose or seal compound that is suitable for clean factory air may not be suitable for lubricated outdoor breaker service.
ISO 4414:2010 provides general safety rules for pneumatic fluid-power systems and components. Use it as a system-level reference together with the breaker, coupling and hose manufacturers' limits; it is not a substitute for the exact part approval.
Step 6: specify locking, isolation and restraint
The tool connection needs a positive means against accidental disconnection appropriate to the coupling design and applicable law. The supply branch must also be isolatable and depressurized before assembly, service or disconnection. Never rely on pulling a coupling apart while it is carrying trapped pressure.
HSE warns that damaged flexible hoses can rupture and cause unsupported lengths to whip or snake. Its guidance recommends restraint or shielding where hose failure would be hazardous and discusses controlled-venting connectors and flow-reducing devices for certain conditions. OSHA's construction requirements for power-operated hand tools likewise address positive securing of pneumatic tools to hoses and source/branch safety devices under specified conditions. These are jurisdiction-specific references: the site must identify and apply its own governing rule.
A whip check or restraint is not a cure for an incompatible coupling. Select it for the exact hose assembly, attach it only to approved anchor points, and follow its manufacturer’s installation limits.
Compatibility decision table
| Evidence available | Decision | Next action |
|---|---|---|
| Breaker manual/parts list, exact inlet part, approved hose assembly | Controlled direct match | Confirm current revisions, ratings and site safety controls |
| Known breaker inlet plus documented adapter and coupling series | Conditional match | Verify both threads, seals, bore, ratings and adapter approval in writing |
| Thread appears to fit but profile or seal is unknown | Not approved | Gauge and identify the interface; do not pressurize |
| Plug enters socket but series/manufacturer is unknown | Not approved | Identify both drawings and locking behavior |
| Multiple reducers or field-made transitions | High review priority | Replace with a documented assembly or obtain engineering approval |
| Any damaged thread, latch, hose end or restraint | Remove from service | Isolate, tag and replace under the site procedure |
Common purchasing mistakes
- Ordering by nominal size only: the RFQ omits the thread form, pitch, seal and coupling series.
- Calling a coupler “universal”: the term replaces a controlled profile and manufacturer reference.
- Using an adapter as a shortcut: both ends fit, but the bore, rating or material is not verified.
- Checking static pressure only: the breaker receives insufficient pressure during operation because a coupling or reducer restricts flow.
- Mixing new and worn components: damaged plug grooves, socket locking parts or threads make a nominally correct system unreliable.
- Forgetting the safety chain: the parts connect, but there is no verified isolation, positive locking, restraint or inspection plan.
RFQ and pre-connection checklist
Send the supplier the following package:
- breaker manufacturer, exact model and inlet/swivel part number;
- controlled drawing or clear photos of the complete inlet assembly and markings;
- thread designation, pitch, form, sealing method and male/female ends;
- coupling manufacturer, series/profile, plug/socket sides and valve type;
- hose inside diameter, length, end-fitting retention method and service rating;
- required airflow and operating pressure from the breaker documentation;
- maximum supply pressure and expected site temperature/environment;
- oil, water, abrasion, fire-resistant or anti-static requirements;
- adapter material, minimum bore, drawing revision and traceable part number;
- positive locking, venting, isolation and restraint requirements; and
- requested evidence: dimensional drawing, rating data, compatibility statement and assembly inspection.
For a current commercial reference, review the TPB60 pneumatic breaker. When requesting a quotation, include the inlet and air-line details above so PerfoMax can check the connection path instead of assuming compatibility from a generic size.
Frequently asked questions
Is thread size enough to identify a pneumatic breaker inlet?
No. You also need the thread standard/form, pitch, taper or parallel condition, sealing method, engagement and breaker-specific part reference.
Can NPT and BSP fittings be mixed if they start to screw together?
Do not treat partial engagement as compatibility. Different thread forms, pitches and sealing assumptions can create leakage, damage or inadequate strength. Use the exact approved designation and mating component.
Does a smaller coupling bore reduce breaker performance?
It can. Any restriction may increase pressure loss when the breaker is consuming air. Confirm the complete flow path and, where required, verify dynamic pressure at the tool under the manufacturer's test conditions.
Can an adapter make any hose and breaker compatible?
No. An adapter must match both interfaces and also satisfy bore, pressure, material, sealing, vibration and safety requirements. Avoid untraceable field-made transitions.
What should a buyer photograph before ordering?
Photograph the full breaker and nameplate, the installed inlet/swivel, every adapter, the plug and socket profiles, hose markings and end-fitting retention. Add part numbers and a scale, but use these only with controlled specifications.
Final selection rule
Approve the air inlet as one documented assembly, not as a pile of individually plausible parts. Freeze the breaker inlet, thread and seal, adapter, coupling series, minimum flow path, hose assembly, ratings and safety controls on the RFQ. If any link remains unknown, keep the line depressurized until the connection is identified and approved.
