A purchase order that says only “R32 drill rods and couplings” is not a complete drilling-tool specification. R32 identifies a thread family, but it does not freeze the rod architecture, body, length, flushing hole, coupling design, shank-adapter interface, bit connection, rig feed or acceptance evidence. The parts can arrive with correct-looking labels and still fail to assemble or perform as one drill string.
Use this checklist to prepare an RFQ or purchase-order attachment for threaded top-hammer rods and coupling sleeves used in underground development, tunneling, bolting or similar work. It does not replace the drill-rig and tool-system manufacturer's approved configuration.
Start with the complete interface chain
Record the system in order:

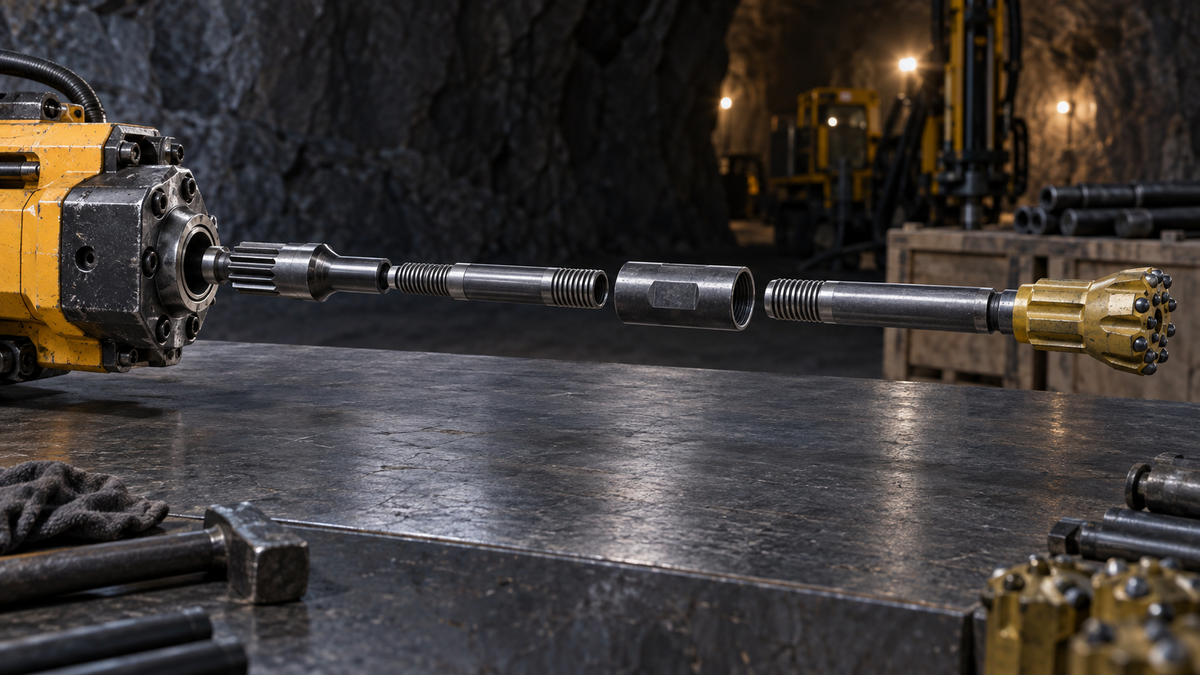

Rock drill/drifter → shank adapter → first rod → coupling or MF connection → additional rod(s) → bit → target hole and flushing path.
Do not approve one item in isolation. Thread and rod failures are system events: mismatched or worn components, loose joints, misalignment, excessive feed and worn bits can shift load into the joint. A rod specification should therefore lock both the part and the operating interfaces that load it.
One-page specification table
| Field | Buyer must state | Supplier must confirm |
|---|---|---|
| Application | Face drilling, bolting, development, bench or other task | Proposed tool system is intended for the task |
| Rig and drifter | Manufacturer, model, shank-adapter reference | Exact mating interface |
| Thread family | R32, T38, T45 or other controlled designation | Drawing/catalog reference and both mating ends |
| Rod architecture | Male–male extension rod, male–female/MF rod, drifter rod or other | End arrangement, bridge/coupling requirement |
| Rod body | Round/hex body, nominal diameter and controlled geometry | Actual supplied body and tolerance reference |
| Length | Required nominal/effective length and permissible tolerance | Catalog or drawing length and mass |
| Flushing | Air/water, central hole, hole diameter and connection path | Bore and alignment match the full string |
| Coupling | Thread, standard/full-bridge or controlled design, length and OD | Compatible part number and wear/replacement rule |
| Bit interface | Thread and planned bit range | Compatibility with rod and hole program |
| Material/process | Required grade or performance requirement | Material, heat treatment and evidence offered |
| Inspection | Dimensions, thread gauge, straightness, surface and traceability | Method, sampling, records and acceptance rule |
| Commercial | Quantity by item, spare ratio, packaging, Incoterm and lead time | Quoted scope, exclusions and document revision |
Assembled-string approval matrix: compare quotations line by line
The one-page specification defines the buying requirement. Before releasing a purchase order, transfer each supplier offer into the matrix below and prove that every adjacent interface belongs to one controlled drill-string configuration. A thread-family label alone is not evidence of interchangeability.
| Line item | Requested or installed reference | Supplier offer | Interface proof required | Release status |
|---|---|---|---|---|
| Drifter and shank adapter | Machine/drifter model, shank part number, output thread and flushing route | Exact proposed reference and revision | Approved drawing, catalog revision or verified installed sample | Approve / clarify / reject |
| First and extension rods | Thread at both ends, male–male or MF architecture, body, length and flushing bore | Part number and every offered characteristic | Both mating ends plus effective-length and bore continuity evidence | Approve / clarify / reject |
| Intermediate rods | Required family, architecture and quantity by position | Any difference from the first rod or current string | Written confirmation that no unapproved end, body or length substitution is included | Approve / clarify / reject |
| Coupling sleeves | Thread at both ends, bridge/design, length, outside diameter and allowed mating parts | Coupling part number and quantity | Controlled reference showing compatibility with the offered rods and shank | Approve / clarify / reject |
| Bit | Thread, diameter/face requirement, flushing ports and target hole | Bit reference and proposed operating range | Interface match to the last rod and the approved hole program | Approve / clarify / reject |
| Gauges and reference samples | Gauge identity, calibration requirement and drawing/catalog revision | Inspection method and record format | Traceable gauge or buyer-approved mating sample linked to the acceptance rule | Approve / clarify / reject |
| Packing and traceability | Item count, lot identity, thread protection and document set | Packing plan and records supplied | Lot-to-item link, protective caps and inspection report included | Approve / clarify / reject |
Use one release decision for the complete string
- APPROVE: every line item and adjacent interface matches the buyer-approved controlled references.
- CLARIFY: a dimension, revision, mating reference or inspection record is missing; do not release production or shipment.
- REJECT: an interface conflicts, mating would require force, or the supplier has introduced an unapproved substitute.
Control every substitution with a deviation register
A supplier may offer a technically valid alternative, but “equivalent” is not a release decision. Record each difference before approval.
| Requested value | Supplier-offered value | Reason for change | Affected interfaces | Technical evidence | Buyer disposition |
|---|---|---|---|---|---|
| Exact requirement and document revision | Exact proposed alternative | Availability, design change or other stated reason | Shank, rod, coupling, bit, feed, centralizer, flushing or handling | Controlled drawing, catalog revision, inspection result or approved sample | Approved / rejected, approver and date |
1. Lock the thread family without guessing
Use markings, controlled drawings, a known mating component and the machine documentation. A pitch gauge or visual comparison can help identify a candidate thread, but it does not prove full compatibility or tolerance. If the existing string is uncertain, follow the R32/T38/T45 identification guide before requesting a replacement.
Never treat a larger number as an automatic upgrade. Changing from R32 to T38 or T45 can affect the shank adapter, coupling, rod body, bit, feed, centralizer, handling and drilling parameters.
2. State male–male, male–female or another architecture
Two rods with the same thread label can have different connection logic. A male–male extension rod normally requires a coupling sleeve between rods. An MF/speed rod incorporates a female end and changes how the string is assembled and handled. The order must show each end, not only the thread family.
Use the Drill Rods selection guide to choose the architecture, then keep /collections/drill-rods as the commercial family Owner.
3. Plan length around the feed and underground handling space
Nominal length must work with effective feed travel, centralizers, rod changer or manual handling, retraction clearance, heading size and the required hole depth. Record whether the stated length includes or excludes thread engagement and which tolerance controls acceptance.
For underground work, also check whether the crew can safely add, remove and store the selected length in the available space. A length that reaches the target depth on paper may still be impractical in a narrow heading.
4. Freeze the flushing path
State air or water flushing, the rod flushing-hole requirement and every interface that carries the medium. A blocked, undersized or misaligned bore can reduce cuttings removal and contribute to heat, jamming and poor penetration. Do not infer the rod bore from outside diameter alone.
5. Treat the coupling as a controlled wear component
Specify the coupling thread, bridge/design, overall length, outside diameter and the rod/shank components it is allowed to join. New rods should not be paired automatically with couplings of unknown wear. Define a controlled inspection and replacement rule for rods and couplings together.
The thread grease and galling guide covers make/break care. The purchase specification must separately define which coupling is being supplied.
6. Make acceptance evidence executable
Avoid vague requirements such as “high quality” or “standard hardness.” State what will be checked, by whom, using which controlled reference, and what constitutes pass or fail.
| Evidence | Minimum useful content |
|---|---|
| Dimensional report | Item/lot, drawing revision, measured characteristic, result and instrument |
| Thread inspection | Exact gauge identity, calibration status, method and acceptance rule |
| Straightness | Support/measurement method, limit and actual result |
| Material/heat treatment | Lot link, method, result and approved range where required |
| Surface inspection | Acceptance for dents, cracks, rust, thread damage and coating |
| Traceability | Heat/lot identification connected to packing and inspection records |
Use the thread gauge inspection guide when the order requires functional thread gauging.
Red flags before release
- quotation lists only the thread family and total quantity;
- rod end architecture is absent;
- shank adapter and bit interfaces are not identified;
- coupling part number or bridge/design is missing;
- catalog, drawing and quotation revisions conflict;
- supplier substitutes a “compatible” thread without written approval;
- inspection evidence is promised but no method or acceptance rule is stated;
- new rods are planned for use with unknown worn couplings.
RFQ package
Send photos and markings of the complete existing string, rig and drifter model, shank adapter, required thread, rod architecture, body and length, flushing medium, coupling type, bit and hole range, monthly quantity, inspection evidence, packaging and destination. Review the Drill Rods collection. If the controlled configuration calls for male–male extension rods, compare the verified T38 extension-rod route or T45 extension-rod route, then request a technical quotation with the completed matrix.
FAQ
Is “R32 drill rod” enough for a quotation?
No. It does not define rod architecture, body, length, flushing, coupling, machine interface, bit or acceptance evidence.
Should new rods be used with old couplings?
Only if the controlled inspection and manufacturer guidance allow it. Worn couplings can accelerate wear or damage new rod threads; rods and couplings should be evaluated as a system.
Can a supplier confirm compatibility from a photo?
A photo helps identify candidates but is not a complete approval basis. Use markings, dimensions, controlled drawings/catalog references and the exact mating components.
Evidence boundary
Final acceptance must use buyer-approved drawings or catalog revisions, exact mating components and traceable inspection records. No industry thread-family designation, photograph or supplier equivalence statement by itself proves interchangeability. Keep all dimensions and pass/fail limits tied to the exact controlled tool system.
