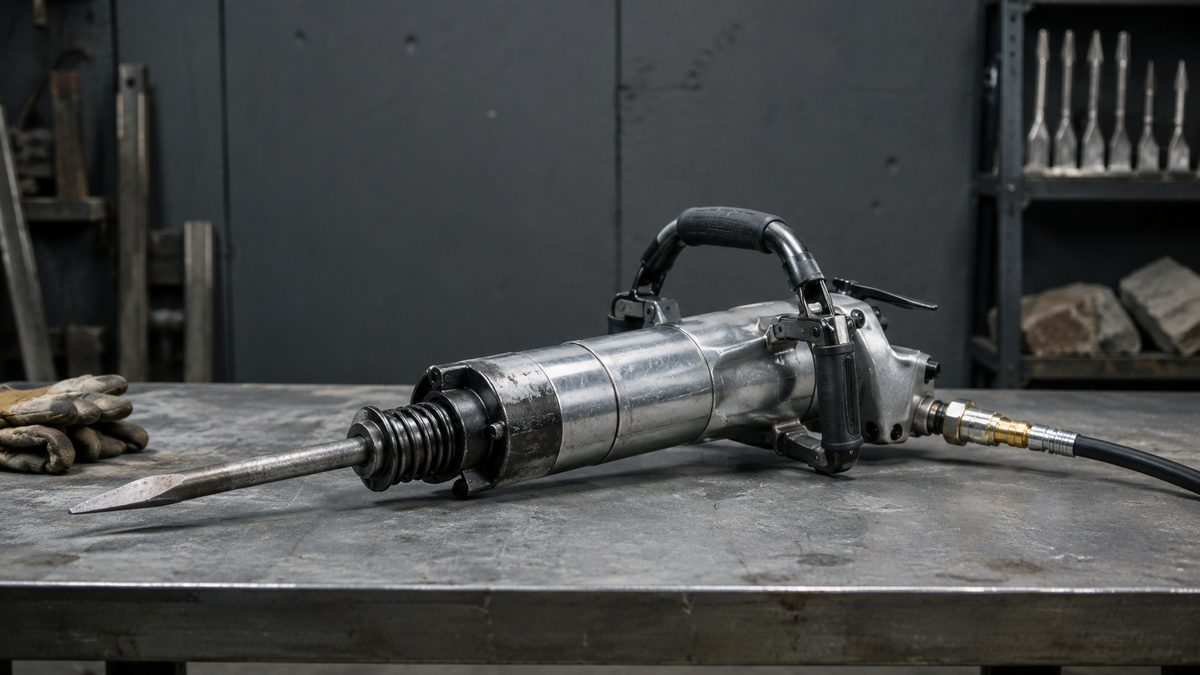

If a pneumatic breaker suddenly vibrates more than its normal baseline, stop and isolate it before continuing work. The most useful first checks are the working tool and shank, chuck or chisel-bushing clearance, retainer condition, vibration-reducing handle movement, air-hose and coupling condition, lubrication, and operator technique. A change in vibration is a symptom, not a diagnosis: an over-worn front guide, damaged handle spring, incorrect chisel, loose retainer, restricted air supply, or side loading can produce similar complaints.
This guide is for mines, quarries, demolition contractors, rental fleets and distributors diagnosing a new or clearly increased vibration condition. It does not provide a universal vibration limit, chuck clearance or air-pressure setting. Those values depend on the exact breaker model, working-tool shank and manufacturer. Use the model manual, approved wear gauge and site vibration-control program as the decision authority.
When increased vibration becomes a stop-use signal
Remove the breaker from service immediately if the change is accompanied by a cracked or bent chisel, damaged retainer, visible front-head movement, jammed or loose handle, broken spring, air-hose damage, coupling movement, abnormal exhaust behavior, loose fasteners, or a tool that can escape the closed retainer. Disconnect the air supply, bleed pressure and secure the control before touching the chisel or front head.
Do not keep operating merely to “see whether it clears.” Continued impact can enlarge wear, damage the working tool and obscure the original evidence. Do not increase supply pressure to force the breaker through the symptom, and do not grind a shank or modify a retainer to make incompatible parts fit.
Separate a vibration complaint into observable symptoms
“Excessive vibration” can describe different conditions. Ask the operator when the change appeared, whether it is continuous or intermittent, and whether power, sound, exhaust or tool movement changed at the same time. Compare with a known normal baseline for the same breaker model, chisel type, air system and material—not with a different machine.
| Observed condition | Likely check zone | First evidence to collect |
|---|---|---|
| Vibration rose gradually over several shifts | Chisel shank and chuck/bushing wear; handle wear; maintenance interval | Wear-gauge result, shank photos, service history and operating hours if recorded |
| Vibration changed immediately after fitting another chisel | Shank dimensions, collar/retainer geometry, straightness and seating | Chisel drawing, markings, measured dimensions and comparison with the previous tool |
| One handle feels loose, stiff or uneven | Vibration-reducing handle mechanism, springs, pivots and fasteners | Movement check with air disconnected, photos and side-to-side comparison |
| Vibration appears with weak or irregular blows | Air delivery under load, hose restriction, couplings, lubrication and exhaust | Exact supply setup, hose/coupling condition and model manual requirements |
| Vibration rises when the tool jams or is pulled sideways | Working technique, tool selection, edge condition and material break pattern | Short safe video of posture and tool angle, plus chisel-tip condition |
A controlled diagnostic sequence
1. Record the change before cleaning or replacing parts
Record the breaker model and serial number, chisel type and shank, material being broken, operator report, approximate time since the symptom began, and any recent chisel, hose, coupling or maintenance change. Photograph the chisel tip, full shank, retaining surfaces, chuck opening, retainer and handles. Preserve wear marks until the supplier or service team has reviewed them.
A complaint such as “vibrates badly” is difficult to reproduce. A better record states whether vibration increased after a tool change, whether the handle motion became stiff, whether the chisel rattles laterally, whether impact became irregular, and whether the same condition appears with another verified setup.
2. Confirm that the chisel is correct and serviceable
Check the working tool against the breaker manufacturer’s approved shank dimensions and retainer geometry. Diameter alone is not enough: overall shank shape, insertion length, collar or notch position, retaining surfaces and striking-end condition must match the breaker. Look for bending, cracks, mushrooming, heavy scoring, corrosion pits, localized polishing and uneven contact marks.
An incorrect or worn shank may move abnormally inside the front guide. A blunt or unsuitable working end can also encourage longer dwell, harder gripping and side loading. If the chisel is suspect, quarantine it. Do not use a random replacement; compare only with a straight, correctly matched, serviceable tool whose identity is known.
3. Measure chuck or chisel-bushing wear with the approved gauge
OEM maintenance instructions for pneumatic breakers identify excessive clearance between the insertion-tool shank and the chisel bushing or chuck as a source of increased vibration. Inspect the front guide using the gauge specified for the exact shank size. The manufacturer’s gauge and discard rule control; a generic ruler, visual guess or universal clearance value does not.
Also examine whether wear is even. Ovality, localized scoring, metal transfer or one-sided witness marks can indicate that the tool has been running at an angle or that the chisel and guide are not behaving as a matched pair. If the approved gauge reaches the manufacturer’s reject condition, keep the breaker out of service and replace or repair the specified component through qualified personnel.
4. Check the retainer and front-head security
With the tool isolated and depressurized, inspect the retainer, latch or spring arrangement for cracks, deformation, heavy contact marks, missing parts and free movement. Close the retainer and perform only the manual retention check described by the breaker maker. A working tool that can be released from a closed retainer is a stop-use condition.
Do not confuse retention with guidance. The retainer prevents tool escape, while the chuck or bushing guides the shank. Both can affect the symptom, but replacing a retainer will not correct an over-worn guide, and replacing a chisel will not repair a damaged retaining mechanism.
5. Inspect vibration-reducing handles and springs
If the breaker has vibration-reducing handles, check their movement exactly as the manufacturer instructs. OEM maintenance guidance commonly requires the handles to move freely through their intended direction without jamming, while avoiding excessive play in other directions. Inspect springs, pivots, fasteners, rubber elements and stops for damage or asymmetry.
A stiff handle can bypass the intended isolation movement; an over-loose or damaged assembly can feel unstable. Do not weld, pack, clamp or otherwise immobilize a vibration-reducing handle. Replace damaged elements with approved parts and have safety-critical repairs performed by trained service personnel.
6. Inspect the air path and lubrication without exceeding model limits
Check the hose, couplings, separator, regulator and lubricator for damage, restriction, leakage, contamination and incorrect assembly. Confirm the exact model’s required operating pressure, air consumption, hose arrangement and lubricant. A normal compressor receiver gauge does not prove that the breaker receives stable pressure and airflow while operating.
Supply problems more often explain weak or irregular cycling than a purely mechanical vibration change, but the symptoms can overlap. A restricted coupling, damaged hose, water contamination, inadequate lubrication or blocked exhaust can make impact behavior erratic. Never raise pressure above the breaker manufacturer’s limit as a diagnostic shortcut. If the breaker also has weak blows, follow the separate pneumatic breaker weak-impact diagnostic sequence.
7. Review operator technique and the application
HSE guidance notes that vibration exposure from breakers depends strongly on how the tool is operated. Use the correct working tool for the material, keep the breaker in a stable working position, let its weight contribute instead of forcing it with a tight grip, stop impact while repositioning, and avoid levering or prolonged operation in a jammed cut. Site procedures and the model manual take precedence.
If the complaint appears only with one operator, one chisel shape or one material, do not immediately assign an internal defect. Reproduce the condition only through a controlled, supervised test after all stop-use checks pass. A safe comparison should change one variable at a time.
Symptom-to-action matrix
| Finding | Interpretation boundary | Action |
|---|---|---|
| Approved chuck gauge indicates reject wear | Excessive guide clearance is a confirmed condition, but other damage may coexist | Keep out of service; repair or replace the specified guide/front-head component |
| Correct chisel works normally; suspect chisel repeats the symptom | The working tool is implicated, not automatically the steel grade | Quarantine and document the suspect chisel; verify dimensions and condition |
| Handle is jammed, asymmetric or has a damaged spring | Handle system cannot be assumed to control vibration as designed | Remove from service and repair with approved parts |
| Vibration accompanies weak or irregular impact | Air delivery, lubrication or internal cycling may be involved | Complete external air-path checks before qualified internal inspection |
| No external defect found, but vibration remains abnormal after service | Internal condition or assembly requires specialist diagnosis | Stop testing and refer the exact model to an authorized or qualified workshop |
Common diagnostic mistakes
- Using feel as a wear gauge: lateral play can be a clue, but the manufacturer’s gauge and discard instruction decide serviceability.
- Changing several variables at once: a new chisel, hose and operator may make the symptom disappear without revealing the cause.
- Increasing pressure: this can exceed the breaker rating and add risk without correcting clearance, handle or compatibility problems.
- Ignoring the handle mechanism: front-end wear is important, but damaged vibration-reducing handles can create a distinctly different operator complaint.
- Linking vibration directly to “bad steel”: chisel damage, guide wear, side loading and incorrect fit must be separated with evidence.
Evidence checklist for service or supplier review
- Breaker make, model, serial number and readable nameplate photo
- Chisel type, shank drawing or supplier specification, batch or marking, and purchase reference
- Photos of the tip, full shank, striking end, retaining surface, chuck opening, retainer and handles
- Approved wear-gauge result and the manual page or service instruction used
- Air source, regulator, separator, lubricator, hose length/diameter and coupling arrangement
- Material, work orientation, operator description and safe video of the symptom if permitted
- Maintenance date, parts recently changed and whether the symptom followed a specific change
For a replacement breaker, working-tool package or compatibility review, send this evidence with the RFQ. PerfoMax can review the application and available pneumatic picks and breakers; use the request-a-quote page to share the exact model, shank, air supply and job conditions.
Frequently asked questions
Why did my pneumatic breaker suddenly start vibrating more?
A sudden change often follows a changed or damaged chisel, loose or failed retainer/handle component, hose or supply change, or abnormal operating condition. Stop, isolate and compare the exact setup with its previous known-good state before opening the breaker.
Can a worn chisel bushing or chuck increase vibration?
Yes. OEM maintenance instructions explicitly associate excessive clearance between the insertion-tool shank and its guide with increased vibration. Use the approved gauge for the exact shank and follow the model-specific replacement rule.
Should I increase air pressure if the breaker feels unstable?
No. Do not exceed the breaker manufacturer’s operating limit. Verify delivered pressure and airflow under load, but treat pressure, hose, coupling, lubrication, tool fit and mechanical wear as separate checks.
How can I tell whether the problem is technique or wear?
Inspect and gauge the breaker first, then conduct a controlled comparison only if all safety checks pass. Keep the model, chisel, air system and material constant while a trained operator changes one operating variable. Technique and wear can coexist.
When should the breaker go to a workshop?
Refer it when the retainer or handle system is damaged, the approved wear gauge rejects the chuck/bushing, fasteners or front-head parts are loose, abnormal vibration remains after external checks, or internal valve, piston, cylinder or assembly condition is suspected. Internal work should follow the exact service manual.
Technical references
- Atlas Copco: Maintenance Checklist for Pneumatic Hammers and Breakers
- Atlas Copco RTEX Safety and Operating Instructions
- UK HSE: Operator Training Provided by a Breaker Manufacturer
- UK HSE: Hand-Arm Vibration Advice to Employers
Reference note: these sources support the diagnostic principles in this guide. Always use the instructions issued for the exact breaker model in service.
