An H22 tapered drill rod sample should be approved only after a controlled trial shows that the exact rod, taper bit, rock drill and operating setup are compatible and repeatable under the buyer’s real conditions. Do not approve a bulk order from appearance, one successful hole or an unstructured operator impression. Freeze the sample identity, inspect it before use, compare it with a known baseline in comparable ground, record drilling output and wear, then apply acceptance rules agreed before the trial starts.
This guide is for mines, quarries, tunnelling contractors, distributors and procurement teams qualifying H22 tapered drill rods for handheld or air-leg rock drilling. It does not prescribe a universal sample quantity, metres-to-failure target, penetration-rate threshold or allowable wear limit. Those decisions depend on the application, geology, drill model, rod length, taper connection, bit, purchasing risk and the governing product drawing.
What a field trial can—and cannot—approve
A controlled field trial answers an application question: does the candidate H22 drill-steel system work acceptably in the intended operation when compared on a fair basis? It can reveal incompatibility, unstable taper seating, abnormal shank or rod wear, premature bending or fracture, poor hole control, low drilling output and handling problems.
It does not prove the chemical composition, heat treatment, internal soundness or consistency of every item in a future production lot. A passed sample also does not replace dimensional inspection, batch documentation, shipment acceptance or a contractual sampling plan. Treat the trial, pre-shipment inspection and incoming-lot acceptance as separate gates.
Freeze the configuration before drilling
“H22 rod” is not a complete test specification. Record the exact shank, rod and taper system before issuing samples to the site. If any field is unknown, pause the trial rather than allowing operators to make parts fit.
| Control item | What to record | Why it matters |
|---|---|---|
| Rock drill interface | Drill make/model, chuck or bushing condition, required shank form and insertion length | H22 across-flats size alone does not prove correct shank engagement |
| Rod identity | H22 designation, shank drawing, total/effective length, taper angle, sample or batch code | Prevents mixed lengths, tapers or revisions from entering one result set |
| Bit system | Bit profile, nominal diameter, matching female taper and initial condition | A rod trial becomes misleading if bit compatibility or wear varies |
| Application | Hole purpose, target diameter/depth, drilling orientation, rock unit and visible fracturing | Performance cannot be compared across materially different jobs without qualification |
| Air and flushing | Breaker/drill operating requirement, delivered pressure under load, hose and coupling setup, flushing method | Supply restriction can make a sound rod-and-bit system appear inefficient |
| Operating method | Operator, feed practice, collaring method, lubrication and stop/use rules | Technique can change penetration, jamming, vibration and tool life |
For PerfoMax’s current H22 route, buyers can review the active H22 × 108 mm, 11° tapered drill rod inquiry range. Final approval must still use the drawing, length, bit connection and rock-drill interface confirmed for the actual order.
Inspect and identify every sample before the trial
Assign each rod a durable trial code that remains readable after use. Link that code to the supplier, purchase reference, production or sample batch, drawing revision and inspection record. Do not rely on packaging once rods are issued to the crew.

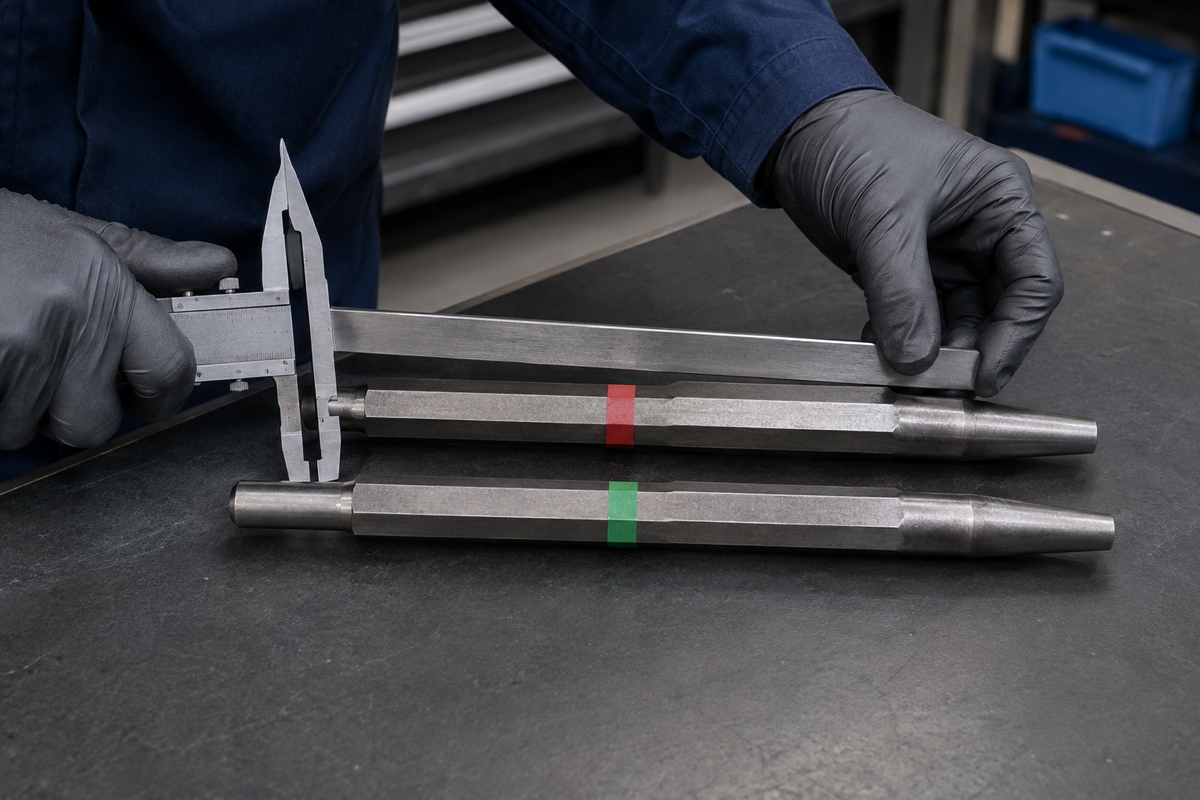

Before drilling, check the rod against the agreed drawing: shank geometry, hex body, overall and effective length, taper end, surface condition and straightness. Inspect for cracks, laps, deep marks, corrosion, grinding repairs, bent condition and impact damage. Confirm that the matching bit seats as intended without forcing or improvised modification.
Build a fair comparison, not a product demonstration
The strongest design compares the candidate with the buyer’s current known baseline while keeping other variables as stable as the site allows. Run both in the same defined rock zone, on the same drill model, with compatible bits, equivalent starting condition, the same air and flushing arrangement, and trained operators following one method.
Geology is rarely uniform. Alternating candidate and baseline tools across comparable holes is generally more informative than drilling all baseline holes in one area and all candidate holes in another. If the rock unit, fracturing, water, hole orientation or air supply changes, mark the change and separate that data rather than averaging unlike conditions together.
Do not change multiple variables to help a candidate pass. A new rod tested with a different bit profile, sharper bit, shorter hose and more experienced operator cannot be attributed to the rod alone. If the trial concerns a complete rod-and-bit system, say so explicitly and approve the system as a package.
Define acceptance rules before the first hole
Agree the sample quantity and trial duration according to purchase risk, expected tool life, geology variation and the cost of failure. One rod can reveal an obvious incompatibility but normally cannot establish repeatability or future-lot consistency. A fixed universal sample count would create false confidence; the buyer and supplier should document the rationale.
| Decision area | Example pre-agreed rule | Evidence source |
|---|---|---|
| Compatibility | Correct shank engagement, bit seating and taper retention with no modification | Drawing check, assembly record and controlled operating observation |
| Drilling output | Candidate performance compared with the site baseline within a buyer-defined range | Hole log, drilling time, drilled length and downtime record |
| Rod service | No crack, fracture, permanent bend or abnormal shank/taper deformation | Stop-use inspection and post-trial measurements |
| Bit/rod connection | No repeated loosening, abnormal seating or one-sided contact pattern | Connection inspections and operator event log |
| Hole result | Diameter, depth, collaring and alignment meet the job requirement | Site measurement method agreed before trial |
| Repeatability | Results are not dependent on one unusually favourable hole, operator or rock band | Replicated observations across controlled trial blocks |
Use four possible outcomes: approve, approve with stated limits, extend the trial, or reject/quarantine. “Looks good” is not a release decision.
Record the field data that procurement can use
A useful trial log connects each result to one rod code and one controlled configuration. At minimum, capture:
- Date, shift, location, rock description and visible ground changes
- Rod code, starting condition, length, taper and matching bit code
- Rock drill model, chuck condition, hose/coupling route, air and flushing setup
- Operator and drilling orientation
- Hole number, drilled depth, drilling time and interruptions
- Bit changes, rod changes, stuck-tool events, taper loosening and abnormal vibration
- Downtime attributed to the tool system
- Post-hole and end-of-shift observations at the shank, hex body, taper and bit
Penetration rate can be calculated from drilled length and active drilling time, but define whether collaring, repositioning, flushing delays and bit changes are included. Cost per drilled metre should use the same boundary for candidate and baseline. Otherwise two correct calculations may still be incomparable.
Apply stop-use rules during the trial
Stop and isolate the drill if a rod develops a visible crack, permanent bend, abnormal shank deformation, severe surface damage, unstable taper connection or any condition prohibited by the drill or tool manufacturer. Also stop for repeated bit release, abnormal vibration, unexpected chuck engagement or a hose/flushing problem that makes the test unsafe.
Do not straighten, weld, heat, grind or otherwise repair a failed sample before documenting it. Preserve the full rod and bit as a matched evidence set. Photograph the failure location and surrounding surfaces, record the last known hole and operating condition, and quarantine other samples from the same code until the event is reviewed.
Interpret results without confusing geology and quality
A candidate may drill fewer metres because it encountered harder or more abrasive rock; it may also appear faster because it received a sharper bit or more favourable ground. Treat operator comments as evidence, not proof. Look for consistent patterns across the controlled data: penetration trend, wear location, taper retention, straightness, failure mode, hole result and downtime.
If candidate and baseline results differ, first check comparability. Were the same rock unit, hole depth, drill, bit starting condition, air delivery and method used? If not, extend or redesign the trial. If a safety-critical failure occurs, do not average it away with successful holes.
OEM rock-tool documentation commonly evaluates productivity through rate of penetration, service life, hole accuracy, tool changes and cost per drilled metre. Comparative research on rock-drill bits likewise shows that bit design, hammer and rock type affect wear and efficiency. These are reasons to control the system—not reasons to assign one universal benchmark.
Turn a passed trial into a controlled bulk order
A field-trial approval must identify exactly what was approved. Attach the final drawing and revision, sample codes, shank and taper definition, length, surface and straightness criteria, marking, packaging, batch traceability, inspection records and agreed change-notification rule to the purchase specification.
Retain an approved reference sample or a complete verified measurement record where practical. State whether future lots must match the approved configuration, what evidence the supplier must provide, how pre-shipment samples will be selected, and which defects trigger hold or rejection. The existing H22 drill rod pre-shipment inspection checklist covers the physical shipment gate; the H22 × 108 compatibility guide helps define the system boundary.
If production material, heat treatment, drawing, subcontractor or manufacturing route changes, the buyer should decide whether documentary review, partial requalification or a new field trial is required. Do not silently transfer approval to a different configuration.
Frequently asked questions
How many H22 drill rods should be included in a sample trial?
There is no universal number. Set the quantity from expected tool life, geology variation, purchase volume, safety consequence and the confidence required. One sample can expose incompatibility but offers weak evidence of repeatability.
Should the candidate rod use the same bit as the current rod?
Use equivalent, correctly matched bits when the rod alone is being compared. If the supplier proposes a complete rod-and-bit system, test and approve that package explicitly; do not attribute the result to the rod only.
What is the most useful performance metric?
No single metric is sufficient. Review penetration under comparable conditions, drilled metres, tool and bit changes, downtime, hole result, wear pattern and safety-critical failures. Cost per drilled metre is useful only when its calculation boundary is consistent.
Can a passed field sample replace pre-shipment inspection?
No. The trial demonstrates application suitability for identified samples. Pre-shipment and incoming inspection address whether the production lot matches the approved specification and contractual acceptance plan.
When should a trial be extended rather than rejected?
Extend when the data are insufficient or confounded by different geology, air supply, bits or operator methods and no stop-use failure occurred. Reject or quarantine when compatibility fails, a safety-critical defect appears, or pre-agreed acceptance rules are not met.
