An extension drill rod coupling that becomes unusually hot is giving a warning, but temperature alone does not identify the fault. Heat can be created by thread friction, poor shoulder contact, incompatible thread forms, insufficient or unsuitable lubricant, worn components, misalignment or unstable drilling conditions. Replacing only the coupling sleeve may hide the evidence and allow the same failure to return.
Stop the machine safely and preserve the joint before forcing it apart. Record where the heat appears, which rod positions are affected and whether the condition started after a component, lubricant or operating change.
Read the heat pattern before disassembly
| Observation | Possible mechanism to investigate | Evidence to collect |
|---|---|---|
| One coupling is hotter than the others | Local wear, mismatch, damage or incorrect assembly | Joint position, component IDs and close-up photos |
| Several joints heat together | Lubrication, alignment or operating-condition issue | Lubricant batch, feed/percussion settings and machine history |
| Heat is concentrated near one end | Uneven engagement or shoulder contact | Marking pattern and thread-engagement evidence |
| Coupling is hot and difficult to release | Galling, over-tightening or damaged threads | Surface transfer, pickup and removal method |
| Heat began after mixing old and new parts | Wear-state or geometry mismatch | Life history of each rod and sleeve |
These are inspection paths, not automatic diagnoses. The same symptom can have more than one cause.
Controlled inspection workflow
1. Make the system safe
Follow the equipment shutdown, isolation and cooling procedure. Do not touch or quench a hot joint unless the approved procedure requires it. Sudden cooling or forced removal can alter the evidence or create another hazard.
2. Mark the joint position
Number the coupling sleeve and both rods before separation. Record whether the joint was near the shank adapter, in the middle of the string or closest to the bit. Note hole depth, drilling direction, rock condition and the operating stage when heat appeared.
3. Confirm component identity

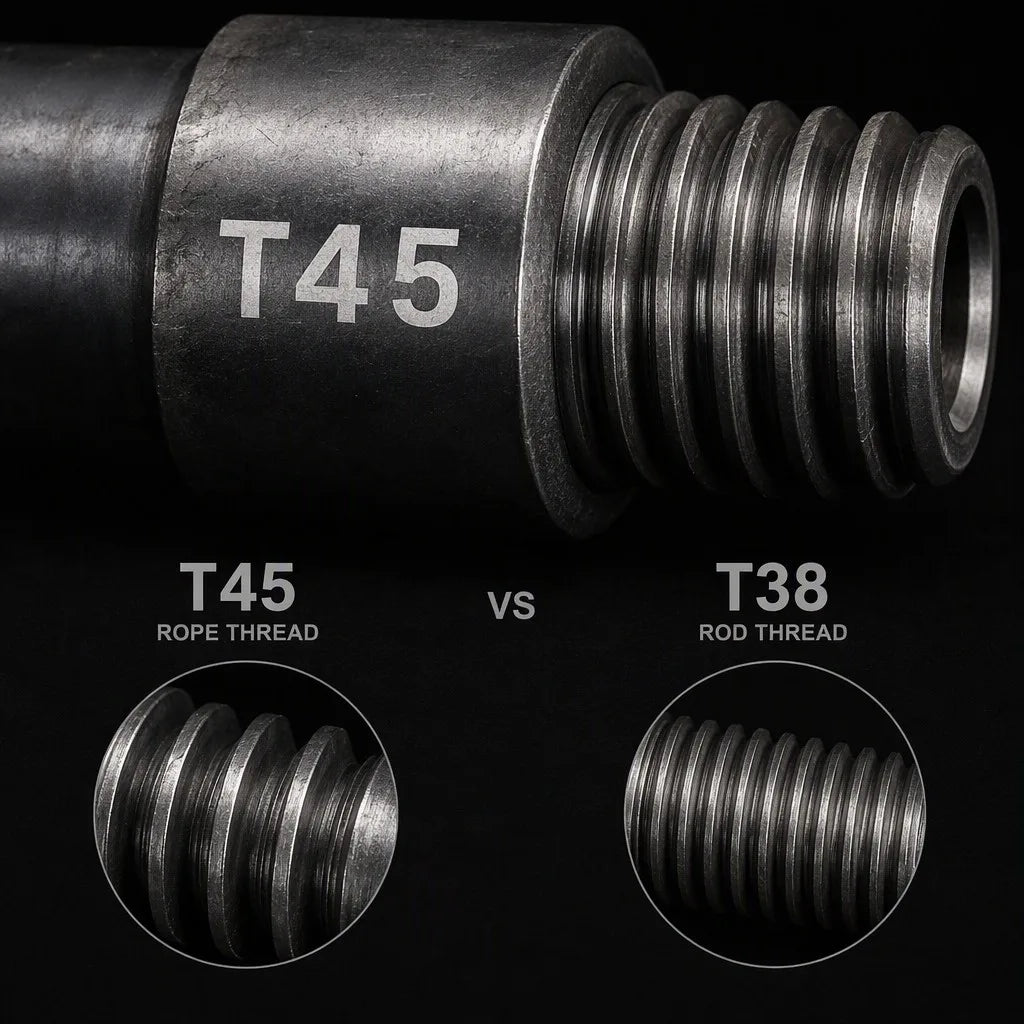

Verify the thread system, nominal size, rod type, coupling type and supplier references. Similar-looking threads are not proof of compatibility. Check whether a reducing or special coupling has been introduced.
4. Inspect thread and shoulder contact
After cleaning by the approved method, look for polished bands, smeared metal, pickup, crushed crests, uneven flank contact, impact marks and abnormal shoulder patterns. Compare both ends of the sleeve and both rod threads. A new coupling installed on badly worn rods may not solve the contact problem.
5. Review lubricant control
Record the product, batch, application method, quantity practice and contamination condition. Too little, unsuitable or contaminated thread compound can increase friction; uncontrolled excess should not be assumed to correct a geometry or alignment fault.
6. Check alignment and operating inputs
Review drill-string straightness, guide condition, feed stability, percussion settings, flushing performance and rod handling. Bending and vibration can load the joint unevenly even when the components are correct.
7. Compare the full string
Inspect at least one normal joint from the same string. The comparison helps distinguish a local component problem from a system-wide operating condition. Keep failed and reference parts labelled separately.
8. Decide the disposition
Quarantine components with cracks, severe deformation, heavy metal transfer or uncertain identity. Replacement and reuse limits must follow the equipment and component supplier's criteria. Do not grind or reshape threads to make a joint assemble.
RFQ fields
- Drill model and shank-adapter identity
- Rod length, diameter and exact thread system
- Coupling-sleeve type, marking and supplier reference
- Joint position in the drill string
- Old/new component combination and service history
- Lubricant product, batch and application method
- Heat location and measured temperature, if safely recorded
- Thread, shoulder and removed-part photographs
- Rock condition, hole direction and operating symptoms
- Quantity of affected rods and couplings
Review Drill Rods. For a component review, Request a Quote with identity, operating and inspection evidence.
FAQ
Is a hot coupling always caused by insufficient grease?
No. Lubrication is one inspection path, but mismatch, wear, contact, alignment and operating conditions can produce similar heat.
Can I keep drilling until the shift ends?
Use the approved stop criteria. Continuing can damage more components and remove evidence needed to identify the cause.
Should I replace only the coupling sleeve?
Not before inspecting both mating rod threads and the wider system. A new sleeve can quickly be damaged by worn or incompatible rods.
