A DTH hammer that becomes unusually hot should be treated as a symptom, not a diagnosis. The shell can warm during normal drilling because compressed air arrives hot and the piston converts part of its energy into friction and impact heat. The warning signs are a sudden temperature rise from the established baseline, a localized hot band, disappearing oil mist, weak or irregular impact, unusual air consumption, smoke or a burnt-oil smell, or difficulty moving the piston after shutdown. Stop drilling when these symptoms appear; continuing can turn a correctable lubrication or air-path problem into piston scoring, galling, or seizure.
This guide gives mine, quarry, water-well and drilling contractors a field sequence for diagnosing DTH hammer overheating. It does not replace the hammer manufacturer's service manual. Temperature limits, oil type, lubrication rate, disassembly tools and wear limits must come from the manual for the exact hammer model.
When is a hot DTH hammer abnormal?
There is no useful universal “too hot” number for every DTH hammer. Hammer size, air pressure, compressor discharge temperature, ambient temperature, hole depth, water injection, duty cycle, oil viscosity and where the measurement is taken all change the reading. A bare-metal infrared reading can also be misleading because polished surfaces reflect surrounding heat.
Use a repeatable baseline instead. Record temperatures at the same marked positions, with the same instrument, at similar drilling time and operating conditions. Compare the top sub, middle of the wear sleeve and chuck end. A stable, gradual and broadly even rise may reflect hot supply air. A rapid change from the machine's normal pattern, especially when paired with performance loss, requires investigation.
| Observed pattern | Likely direction to investigate | Immediate field action |
|---|---|---|
| Entire hammer warms evenly; impact remains stable | Hot compressor air, high ambient temperature or long duty cycle | Record the baseline and compare inlet-air conditions before changing the hammer |
| Hotter band through the piston travel zone | Insufficient oil film, contaminated oil, piston-to-bore friction or early scoring | Stop, isolate and verify oil delivery before restarting |
| Top sub and inlet side hottest | High compressor discharge temperature, hose restriction or hot booster air | Check the air system upstream and compare temperature before and after the hose run |
| Chuck end hottest with poor penetration | Bit sticking, damaged splines, restricted exhaust or cuttings recirculation | Check bit movement, splines, flushing and hole cleaning |
| Heat plus weak or irregular impact | Lubrication loss, internal drag, damaged piston/valve components or wrong operating conditions | Do not compensate blindly with more pressure; diagnose the cause |
| Heat plus rising air consumption | Internal leakage, wear, seal or valve damage, or an open air path | Compare compressor delivery, pressure at the rig and hammer performance |
Safe diagnostic boundary before touching the hammer
Shut down the drill, isolate the air supply, release stored pressure and follow the site's lockout procedure. Allow hot components to cool before handling. Wear eye, hand and face protection appropriate to residual oil and debris. Never loosen a backhead, chuck or drill-pipe connection while the string may be pressurized.
Do not cool a hot hammer abruptly with cold water, heat the body with a torch, or strike the wear sleeve to free internal parts. Rapid cooling can distort temperature evidence and create thermal stress; uncontrolled heat and hammer blows can damage precision surfaces. If the piston will not move using the manufacturer's approved service procedure, send the unit for controlled teardown.
DTH hammer overheating diagnosis: a seven-step sequence
1. Capture the operating context before adjustments
Record hammer model and serial number, bit and shank, hole diameter and depth, rock condition, air pressure at the rig, compressor flow, ambient temperature, water or foam injection, oil grade, lubricator setting, drilling time since startup and the exact symptom. Note whether the problem followed a hose change, oil change, new bit, hammer rebuild or move to a deeper hole.
This prevents a common mistake: changing several controls at once and losing the evidence needed to identify the cause.
2. Map the temperature pattern safely

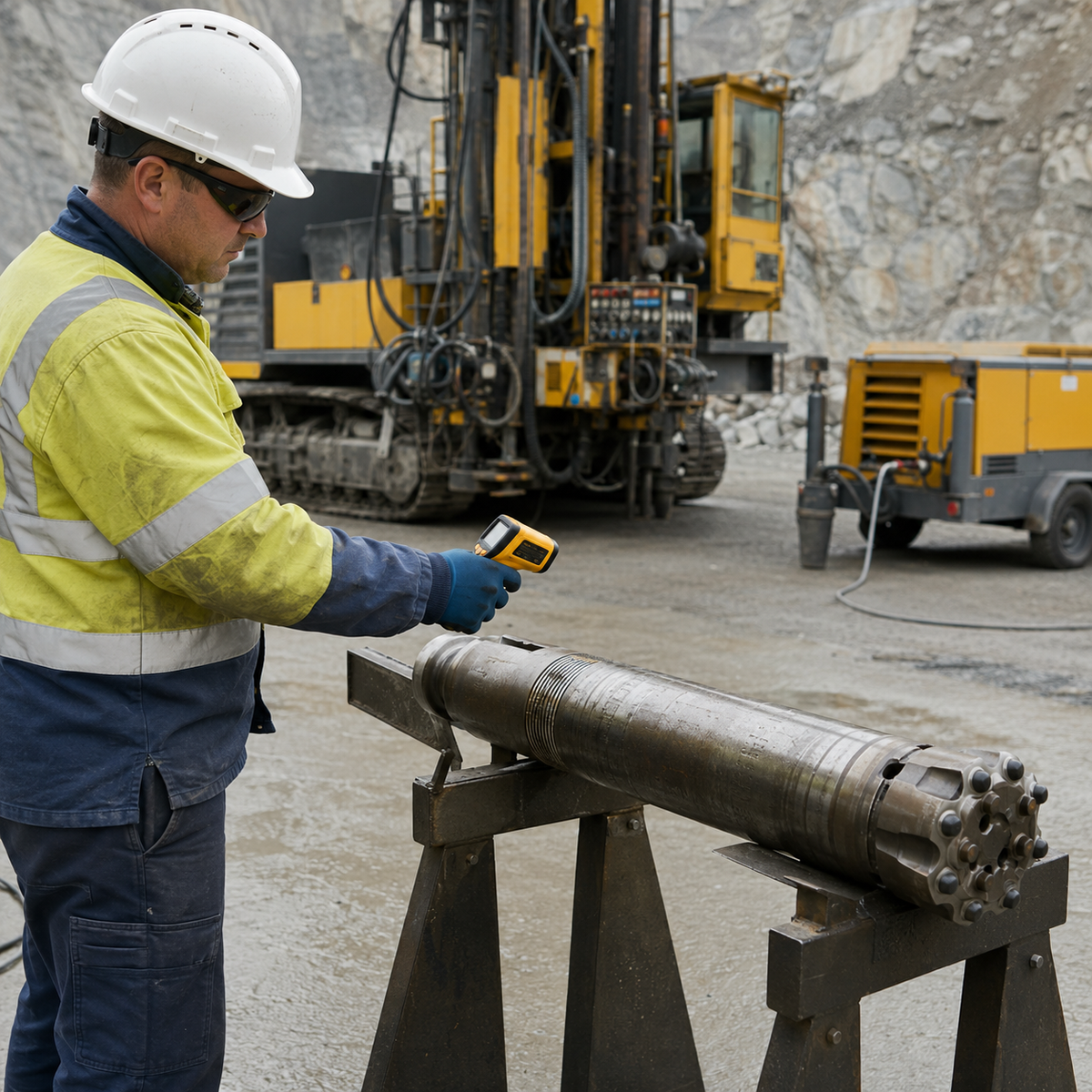

Use a non-contact thermometer or thermal camera from a safe position. Mark repeatable measurement points on the top, middle and lower shell. Clean loose dust from the measurement area and follow the instrument maker's guidance for emissivity; a consistent piece of approved matte reference tape can improve repeatability on reflective metal when site rules permit it.
Record the time after drilling starts and the time after shutdown. The trend and location are more diagnostic than a single isolated reading. Compare the hammer with its own known-good baseline rather than an unrelated hammer of another size or design.
3. Confirm oil actually reaches the hammer
A reservoir level alone does not prove that oil enters the air stream. With the system isolated, inspect the lubricator pickup, metering valve, check valve, hoses and fittings for blockage, leakage, wrong assembly or an empty air pocket. Confirm that the lubricator is installed in the correct flow direction and that its capacity suits the air demand.
After restarting under the approved procedure, look for the oil indication specified by the OEM at the hammer exhaust or drill string. No oil evidence, a sudden drop in consumption or a dry exhaust should be treated as a lubrication-delivery fault. Excess oil is not a cure: it can increase cost, carry contamination and mask another problem.
Use the oil grade and rate stated for the exact hammer, ambient temperature and water-injection condition. DTH rock-drill oils are formulated for adhesion and high-pressure air service; substituting general hydraulic, engine or compressor oil can change film strength, misting and water tolerance. For a deeper setup checklist, see the published guide on DTH hammer lubrication and rock-drill oil rate.
4. Check air delivery and restrictions
Measure pressure where the rig manufacturer specifies, not only at the compressor. Long, undersized or damaged hoses, partially closed valves, dirty separators and leaking connections can alter both pressure and temperature at the hammer. A compressor or booster working outside its intended condition may send unusually hot air downstream.
Do not raise pressure simply because penetration falls. If internal friction is already increasing, more energy can accelerate damage. First compare actual compressor delivery with the combined demand of the hammer, flushing and accessories. If heat is accompanied by abnormal air demand, use the separate DTH hammer excessive-air-consumption troubleshooting guide.
5. Verify flushing and bit movement
Cuttings that are not cleared can recirculate around the bit and chuck, increase resistance and make the lower hammer run hotter. Check that exhaust passages and bit face flushing holes are open. Confirm the bit moves freely through its specified stroke after the string is depressurized. Inspect splines for pickup, burrs, dry contact or embedded abrasive material.
Relate the check to the hole: deep holes, wet cuttings, collapsing formations and excessive water can change evacuation. A hammer problem and a hole-cleaning problem can occur together, so record return flow, cuttings size and any change in penetration or rotation torque.
6. Inspect the piston and wear sleeve when field checks do not resolve it
Disassemble only with the correct manual, fixtures and trained personnel. Keep parts in order and protect lapped or sealing surfaces. Look for longitudinal scoring, smeared or transferred metal, blue/brown heat discoloration, heat-check cracking, local polishing, embedded debris and uneven contact on the piston and internal bore.
Photograph the damage before cleaning. Do not remove heavy scoring with abrasive paper merely to make the part move: this can change clearances and erase failure evidence. Measure the piston and bore at the OEM's specified locations and compare them with published wear limits. Replace or rebuild parts when scoring, cracking, distortion or clearance is outside the manufacturer's criteria.
7. Run a controlled confirmation test
After correcting the identified cause, restore the approved oil, air and water settings. Test under a controlled, short operating interval while tracking the same temperatures, oil use, pressure, impact sound and penetration response. Stop immediately if the abnormal trend returns. A successful test should reproduce the normal temperature pattern and stable performance—not merely a temporarily cooler shell.
Cause-and-evidence checklist
| Possible cause | Evidence that supports it | Evidence to collect before parts replacement |
|---|---|---|
| Oil starvation | Dry exhaust, unexpectedly low oil consumption, blocked pickup or localized piston-zone heat | Oil grade, consumption over time, lubricator setting and photos of delivery components |
| Wrong oil viscosity or type | Poor misting in cold conditions, thin film in high heat, water wash-off or recent oil substitution | Product data sheet, ambient range and water-injection condition |
| Hot supply air | High temperature already present upstream; even shell heating without impact loss | Compressor/booster readings and temperatures along the hose route |
| Restricted flushing | Hot chuck area, blocked bit passages, poor cuttings return or bit sticking | Bit photos, return condition, hole depth and water/foam settings |
| Piston or bore scoring | Localized heat, irregular impact, drag after isolation and visible longitudinal damage | Clean damage photos, measurements and service history |
| Internal wear or leakage | Heat with increasing air consumption and falling impact energy | Pressure/flow data, operating hours and measured component clearances |
Common mistakes that make overheating worse
- Using touch as the temperature test. It is unsafe and cannot provide a reliable trend.
- Increasing air pressure before checking lubrication. More energy can accelerate dry friction and scoring.
- Assuming a full lubricator means the hammer is receiving oil. Delivery can fail downstream of the reservoir.
- Changing oil, pressure and water at the same time. Multiple changes destroy diagnostic clarity.
- Restarting after the piston sticks. A stuck or dragging piston needs controlled inspection.
- Polishing away scoring without measurement. This can create excessive clearance and hide the root cause.
- Applying one temperature limit to every hammer. Limits and measurement locations are model-specific.
What to send with a service request or replacement inquiry
A useful technical inquiry lets the supplier distinguish an operating fault from a compatibility or wear problem. Provide:
- hammer brand, model, serial number and service hours;
- bit diameter, shank design and current bit condition;
- compressor model, rated flow and pressure, plus measured pressure at the rig;
- oil brand, grade, lubricator type, setting and measured consumption;
- ambient temperature, hole depth, drilling orientation and water/foam use;
- temperature readings by location and time, including the normal baseline;
- impact, penetration and air-consumption changes;
- clear photographs of the piston, bore, splines and any scoring; and
- the event that immediately preceded the overheating.
Frequently asked questions
Is it normal for a DTH hammer to feel hot?
Some warming is expected because the incoming air and impact cycle carry heat. “Feels hot” is not a safe or reliable criterion. Use repeatable measurements and investigate a rapid, localized or performance-related rise from the hammer's established baseline.
Can too little rock-drill oil cause a DTH hammer to seize?
Yes. Loss of the lubricating film increases metal-to-metal contact and can lead to scoring, galling and seizure. Confirm actual downstream oil delivery, not just reservoir level, and follow the hammer maker's specified oil type and rate.
Can too much oil make the hammer overheat?
Over-oiling is usually not the first explanation for a localized hot band, but it can affect exhaust condition, operating cost and diagnosis. Set the approved rate rather than using excess oil to conceal an air, contamination or internal-wear problem.
Should I increase pressure when a hot hammer loses impact?
Not until lubrication, air delivery, flushing and internal drag have been checked. More pressure applied to a dry or scored piston can accelerate damage. Restore the correct condition first, then perform a controlled confirmation test.
When should the hammer be removed from service?
Remove it when heat rises suddenly with weak or irregular impact, oil delivery is absent, the piston drags or sticks, burnt oil or smoke appears, or inspection finds scoring, transferred metal, cracking or distortion. Use the OEM's wear and service limits for the final repair decision.
Match the repair decision to the commercial next step
If the investigation identifies a correctable oil, hose or flushing fault, fix that system before installing another hammer. If the piston and wear sleeve are outside service limits or the existing hammer no longer matches the required hole range and air package, document the operating data before requesting a replacement.
For 90–130 mm low-pressure applications, review the active CIR90 Low-Pressure DTH Hammer. Compatibility still depends on bit shank, hole diameter, air supply, formation and operating conditions. For another hammer platform or a documented technical match, send PerfoMax your drilling and compressor data rather than selecting from body diameter alone.
Technical references
- Rockmore International: DTH hammer operations manuals — model-specific lubrication, operation and service guidance.
- Epiroc: Rock Drill 100 lubricant information — rock-drill oil behavior and application context.
- Mincon: Extending hammer life in blast-hole drilling — maintenance factors affecting DTH hammer life.
Always follow the hammer, drill rig, compressor and site safety manuals. This guide supports diagnosis and procurement communication; it does not authorize work on a pressurized drill string.
