DTH Bit Flushing Holes and Face Grooves: Selection Checks for Reliable Cuttings Removal

DTH bit flushing holes and face grooves should be selected as one engineered flow path, not by counting holes or choosing the largest opening. The correct layout must accept the hammer’s exhaust air, sweep cuttings away from the carbide buttons, move them across the bit face, and release them into the annulus without weakening the bit body or creating destructive local erosion.

For mines, quarries, drilling contractors, and distributors, the practical decision is therefore conditional: first lock the hammer and shank family, bit diameter, face design, and foot-valve or tubeless configuration; then compare the proposed flushing layout with the compressor, hole clearance, rock fragmentation, water injection, and expected cuttings. A physically fitting bit can still be a poor flushing match.

DTH bit flushing design: the short selection answer

How flushing holes and face grooves move cuttings

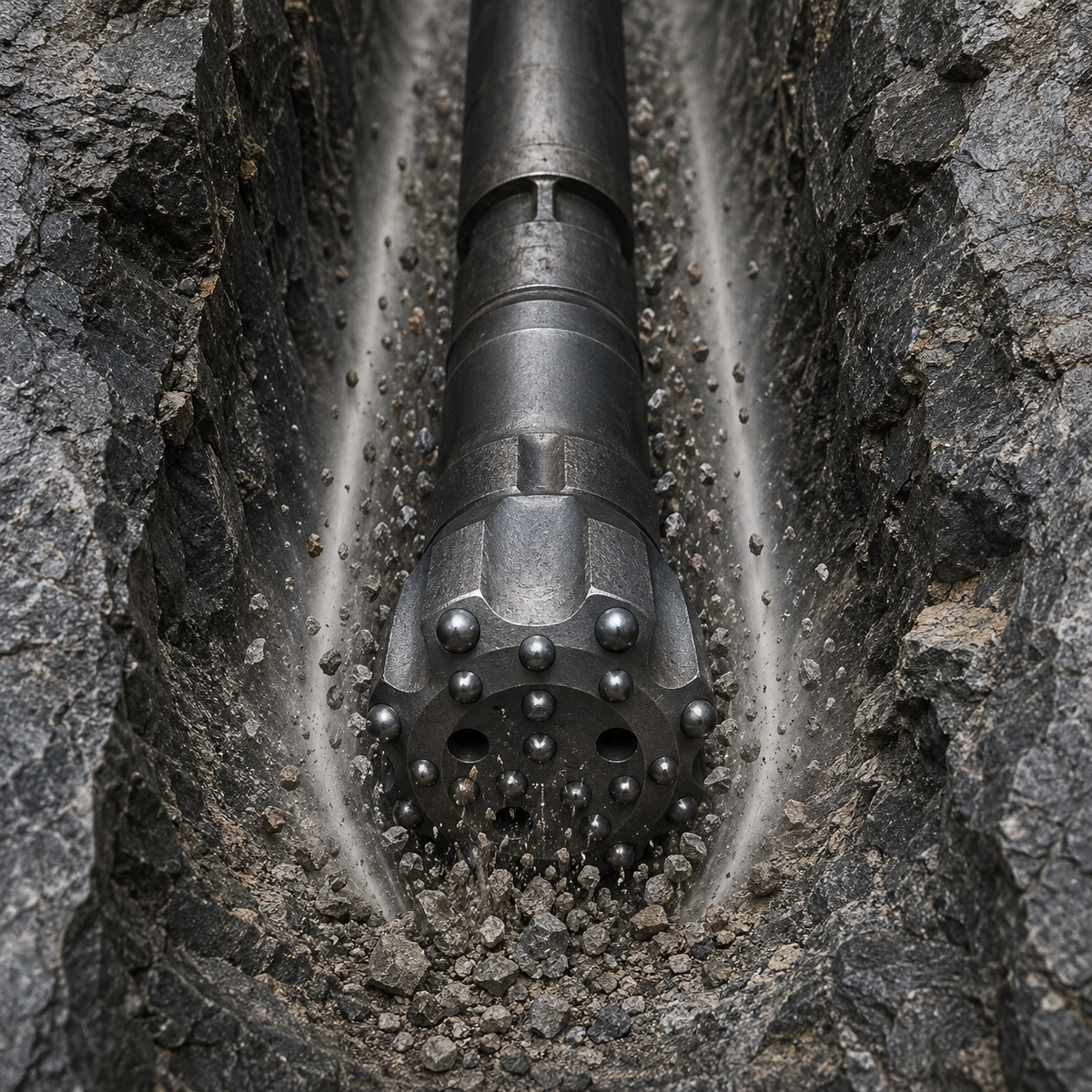

Compressed air travels down the drill string and powers the DTH hammer. After doing work in the hammer, the exhaust reaches passages in the bit and exits through the flushing holes. The air then has to sweep fragmented rock away from the impact zone and carry it into the annular space between the drilling assembly and the borehole wall.

The flushing holes are outlets, while face grooves are distribution and escape channels. A good combination limits dead zones where cuttings can remain under the bit. It also avoids an excessively concentrated jet that can erode the steel surrounding an outlet or wash one part of the face much faster than another.

OEM product information confirms that flushing cannot be judged from one feature. Sandvik describes deep face grooves as part of a cutting structure intended to support flushing and cuttings removal. Epiroc similarly links an optimized face design with improved handling of drill cuttings. Boart Longyear states that its bit designs balance flushing with gauge-button wear, face-button wear, bit life, and penetration rate. These are coupled objectives rather than independent checkboxes.

Variables that change the right flushing layout

Why flushing-hole count alone is a poor specification

Published OEM tables show that different DTH bit sizes and face configurations can use different numbers of flushing holes. Boart Longyear, for example, lists both two-hole and three-hole arrangements across its bit range. That does not create a general rule that three is better than two. The table rows also change diameter, face profile, button arrangement, and shank.

Hole count does not reveal total outlet area, outlet angle, the internal passage feeding each hole, or whether face grooves connect cleanly to the annulus. Two large outlets can behave very differently from three smaller outlets. A photograph can confirm the visible layout, but it cannot verify internal passage geometry or the steel section remaining around the ports.

For that reason, an RFQ should not say only “two flushing holes” or “three flushing holes.” It should identify the exact hammer and bit interface, intended hole, compressor and ground condition, then attach the current bit code or a controlled drawing where interchangeability is required.

Compatibility gates before comparing flushing performance

Flushing comes after basic mechanical compatibility. Reject a proposed substitute if any controlling interface remains uncertain.

1. Hammer model and shank: confirm the full hammer identification and the bit-shank family, not only the nominal hammer size.
2. Spline and chuck interface: verify spline count and form, engagement length, drive surfaces, and retention details from controlled information.
3. Foot valve or tubeless arrangement: confirm whether the hammer requires a foot valve, its dimensions, and its installed condition. Do not assume all bits within a shank family use the same air-control arrangement.
4. Bit diameter and gauge: match the required finished hole, hammer clearance, any casing plan, and the acceptable wear allowance.
5. Face and button layout: confirm concave, convex, flat, or other specified face plus button shape and distribution.
6. Flushing layout: verify outlet count, position, internal passages, face grooves, and any model-specific restrictions.

For the mechanical interface, use the published DTH bit shank and foot-valve compatibility guide. For the separate trade-offs among face profiles, see the convex, concave, and flat DTH bit face guide.

How to distinguish a bit-layout problem from a system problem

Poor returns do not prove that the bit needs different flushing holes. Use a sequence that separates supply, restriction, return-path, and face-design causes.

1. Record the symptom. Note penetration trend, return consistency, dust or water behavior, cuttings size, torque changes, vibration, and whether the problem begins at a particular depth or formation.
2. Verify delivered air. Check the compressor condition and loaded operating data, then inspect hoses, couplings, drill pipe, valves, and leakage points.
3. Inspect the outlets and grooves. Look for packed fines, scale, foreign material, peening, cracking, wash, or a damaged edge. Clean only by the approved procedure.
4. Check the annulus. Compare bit gauge, hammer and pipe outside diameters, hole condition, and any casing. A restricted or irregular return path can overwhelm a sound face design.
5. Check operating setup. Rotation, feed, water addition, and off-bottom air behavior must follow the hammer and rig manuals.
6. Compare with a controlled baseline. If possible, compare the suspect bit with the previously approved bit under the same measured conditions. Change one variable at a time.

If the problem follows a rock seam, water inflow, depth, or compressor-load change, the primary cause may be the application or air system. If it follows one bit design under otherwise controlled conditions, the face and flushing layout deserves closer review.

Special flushing designs have specific boundaries

Some projects require more than conventional open-hole flushing. Mincon’s Spiral Flush system, for example, redirects air sideways and upward within a casing for sensitive ground where uncontrolled air escape is a concern. That is a purpose-designed system, not a field modification to a standard bit.

This distinction matters commercially. A buyer dealing with loose overburden, urban foundations, casing-while-drilling, reverse circulation, or another controlled-return method should specify the complete drilling method. The hammer, bit, casing, return path, and compressor must be treated as a system. Do not drill extra holes, grind deeper grooves, weld the face, or otherwise modify a heat-treated bit in the field.

Trial protocol for an alternative DTH bit

When a substitute is mechanically compatible but the flushing design differs, a controlled field trial is safer than a bulk change.

• Use the same rig, hammer, drill pipe, compressor setup, hole diameter, and comparable ground where practicable.
• Record loaded pressure, relevant airflow information, depth, water addition, rotation, and penetration time.
• Collect representative cuttings and note whether returns are steady, pulsing, delayed, unusually fine, or wet and cohesive.
• Inspect the face, flushing outlets, grooves, gauge row, skirt, and hammer casing at planned intervals.
• Track blockage, regrinding signs, outlet erosion, body wash, button wear, hole gauge, and retrieval behavior.
• Stop if returns collapse, air escapes into unintended ground, torque rises abnormally, the bit overheats, or the hammer behaves outside its manual.

The approval decision should combine drilling performance with wear and hole quality. A short penetration-rate gain is not useful if the layout accelerates body wash, blocks in the target formation, or creates unacceptable return behavior.

RFQ checklist for DTH bit flushing-hole and groove selection

• rig make and model, rotary-head connection, and drilling method;
• compressor model plus loaded pressure and airflow at the planned operating point;
• exact DTH hammer model, size, backhead connection, and service condition;
• current bit manufacturer, part number, shank, foot-valve or tubeless arrangement, diameter, and face;
• clear photographs of the bit face, side, shank, splines, and any foot valve;
• target and measured hole diameter, depth, inclination, and straightness requirement;
• drill-pipe outside diameter, inside diameter, length, and thread;
• rock strength description, abrasiveness, fractures, weathering, clay seams, and water inflow;
• cuttings size and return behavior, including any blockage or recirculation;
• water injection, foam, mist, casing, dust collection, or controlled-return requirement;
• trial quantity, acceptance criteria, inspection interval, and required documentation; and
• destination, quantity, Incoterm, packaging, and spare-bit planning.

PerfoMax’s active DTH drill bit selection page is the appropriate commercial starting point. Send the hammer, shank, hole, compressor, rock, and current-bit details so the proposed bit can be checked as a complete configuration.

Common selection mistakes

• Ordering from a face photo alone. Internal passages and shank details are not visible.
• Specifying only nominal diameter. Shank, face, foot valve, buttons, flushing, and gauge allowance remain uncontrolled.
• Assuming more holes mean more flow. Delivered air, total outlet area, restrictions, and groove paths matter.
• Treating compressor nameplate data as delivered air. Actual supply changes with pressure, altitude, temperature, wear, leaks, and the drill string.
• Ignoring the annular return path. Face cleaning is only the first part of cuttings transport.
• Changing bit, compressor settings, and water together. The trial then cannot identify which change produced the result.
• Modifying outlets in the field. Uncontrolled machining can weaken the body, disturb heat-treated surfaces, and create stress or erosion points.

Frequently asked questions

What do flushing holes do in a DTH bit?

They carry hammer exhaust air to the bit face. The air sweeps broken rock toward face grooves and then into the annulus so cuttings can return up the hole.

How many flushing holes should a DTH bit have?

There is no universal number. OEM ranges use different counts across bit sizes and face designs. Select the exact approved layout for the hammer, diameter, face, airflow, and formation rather than applying a general two-hole or three-hole rule.

Can blocked face grooves reduce penetration?

Yes. Blocked or worn flow paths can leave cuttings under the buttons, so the bit spends energy regrinding broken material. However, confirm delivered air and the annular return path before deciding the bit design is at fault.

Can I enlarge a DTH bit flushing hole on site?

Do not modify a heat-treated bit unless the original manufacturer provides a controlled repair procedure. Enlarging or relocating a passage can reduce steel support, change airflow distribution, and create a fatigue or erosion site.

What information is most important when replacing a bit with a different flushing layout?

Provide the exact hammer and current bit codes, shank and foot-valve arrangement, bit diameter and face, compressor operating data, drill-pipe dimensions, hole geometry, formation, moisture, cuttings, and observed return problem. Use a controlled trial before bulk approval.

Technical references

• Sandvik — Down-the-hole bits: face designs, deep face grooves, and cuttings removal
• Boart Longyear — DTH bits: flushing balance and model-specific flushing-hole tables
• Epiroc — DTH drill-bit face design, flushing, and cuttings handling
• Mincon — Spiral Flush: purpose-designed airflow control for sensitive ground

These references illustrate engineering principles and OEM-specific designs. They do not establish interchangeability with another hammer or authorize field modification. The manual and controlled data for the exact hammer and bit remain decisive.

Select the complete flow path, not one visible feature

DTH bit flushing holes and face grooves work only as part of the hammer, bit, air supply, hole, and return path. Lock mechanical compatibility first, define the drilling conditions, compare controlled designs, and validate any alternative in a measured field trial. To review a current configuration, send PerfoMax the DTH hammer, current bit, compressor, hole target, and rock conditions for a compatibility-focused quotation.
