A line on a drill rod thread may be a crack, a machining mark, a scratch, a grease track or transferred material. It should not be dismissed from a photograph, but it should not be diagnosed from appearance alone either. The safe response is to remove the rod from service, preserve its identity and have the indication assessed by an approved inspection method.
Do not grind, file, weld or blend the area before technical review. These actions can remove fracture evidence, change the geometry and make the part more difficult to evaluate.
Immediate actions
| Action | Purpose | Avoid |
|---|---|---|
| Isolate the rod | Prevent continued loading of an uncertain component | Returning it to the rack as usable |
| Mark rod and string position | Preserve operating context | Marking directly across the indication |
| Photograph before cleaning | Capture grease, rust and contact state | Cropped images with no orientation |
| Clean by approved method | Reveal the surface without changing it | Aggressive grinding or blasting |
| Record matching components | Check whether the joint contributed | Discarding the coupling sleeve |
Inspection workflow
1. Establish traceability
Record rod type, thread designation, length, diameter, batch or serial marking, supplier, receiving date and service history available. Identify the coupling sleeve, shank adapter or bit connected to the suspect end.
2. Map the indication
State whether the line is in the root, flank, crest, run-out, shoulder or body transition. Mark its clock position without covering it. Add a scale and take overview, mid-range and macro photographs.
3. Clean without erasing evidence
Use the cleaning method approved for the inspection process. Remove loose grease and dirt while preserving surface condition. Record any corrosion, metal pickup, hammer marks or prior repair around the indication.

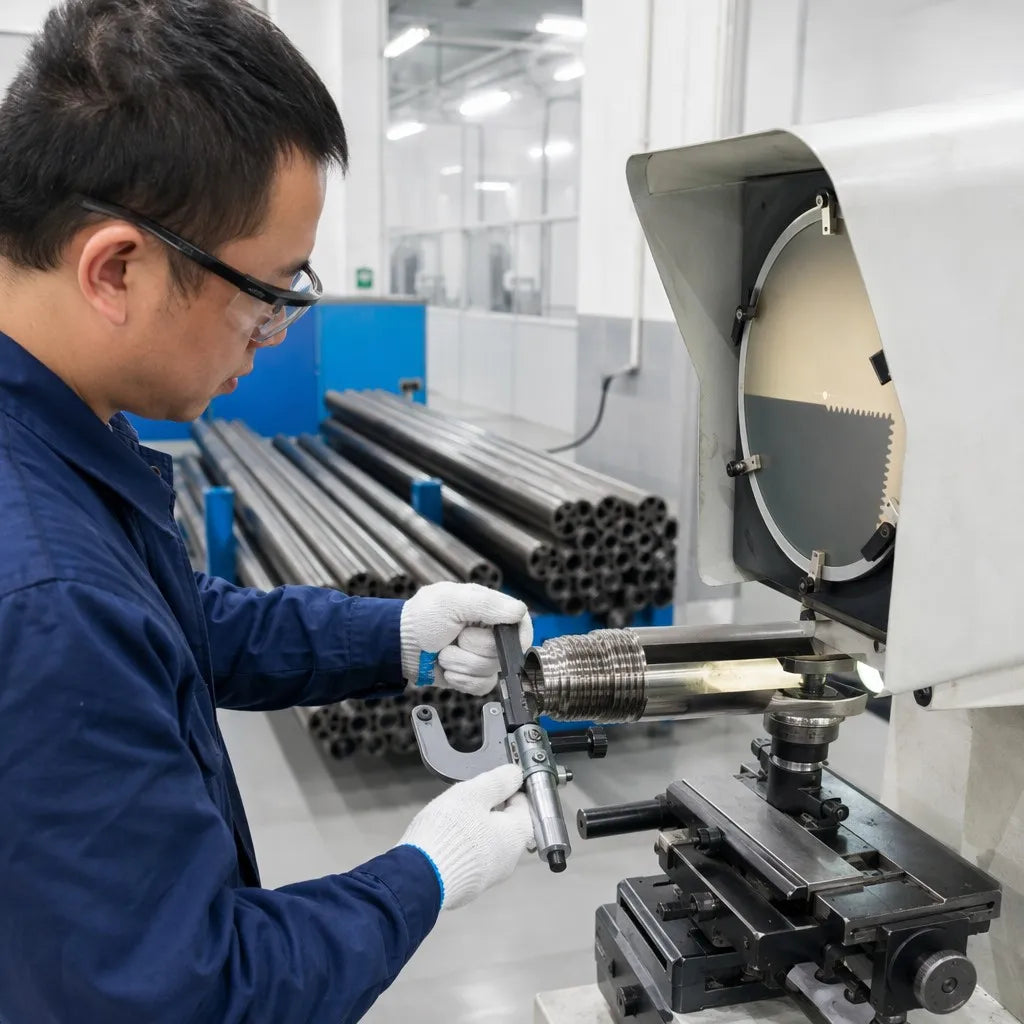

4. Perform visual inspection
Use suitable lighting and magnification as required by the procedure. A continuous line, branching, opening or repeat indication increases concern, but visual appearance alone is not a universal acceptance test.
5. Select the approved NDT method
Where required, a competent inspector should select and perform the appropriate non-destructive test for the material, geometry and suspected flaw. Penetrant, magnetic-particle, ultrasonic or other methods are not interchangeable, and each needs a written procedure and acceptance basis.
6. Inspect the mating joint
Check the coupling sleeve and adjoining component for uneven contact, damage, galling, mismatch or contamination. A cracked thread can be the final result of bending, impact, poor contact or operating overload elsewhere in the system.
7. Review operating history
Record hole direction, rock condition, deviation, jamming, feed and percussion changes, flushing issues and unusual vibration. Note whether the rod was new, mixed with worn components or recently moved to another machine.
8. Decide using documented criteria
The owner, manufacturer or authorized technical authority must decide disposition against the applicable standard and component documentation. A suspected or confirmed crack should remain quarantined until that decision is recorded.
Evidence package for root-cause review
- Full rod photograph with both ends visible
- Close-ups with scale and location marks
- Rod and coupling markings
- Exact thread and rod specification
- String position and mating components
- Service hours or drilling history if available
- Event description and operator observations
- Cleaning and NDT method, procedure and results
- Similar findings in the same batch or fleet
- Storage, handling and transport history after removal
RFQ fields
- Drill and shank-adapter model
- Rod type, dimensions and thread system
- Quantity from the same batch
- Marking, supplier and purchase reference
- Suspected crack location and evidence package
- Mating coupling or bit identity
- Operating history and failure sequence
- Required inspection, certificate and traceability level
- Replacement quantity and delivery destination
Review Drill Rods. For a replacement or evidence-led review, Request a Quote with the quarantined-part record.
FAQ
Can I grind away the line and continue drilling?
No uncontrolled rework should be used to erase a suspected indication. Quarantine the rod and follow the approved assessment and disposition process.
Does dye penetrant prove the rod is safe?
No single test automatically proves fitness for service. The method, procedure, inspector competence and acceptance criteria must suit the exact component.
Should the coupling sleeve be kept?
Yes, when safe and practical. It can contain contact or mismatch evidence important to the root-cause review.
