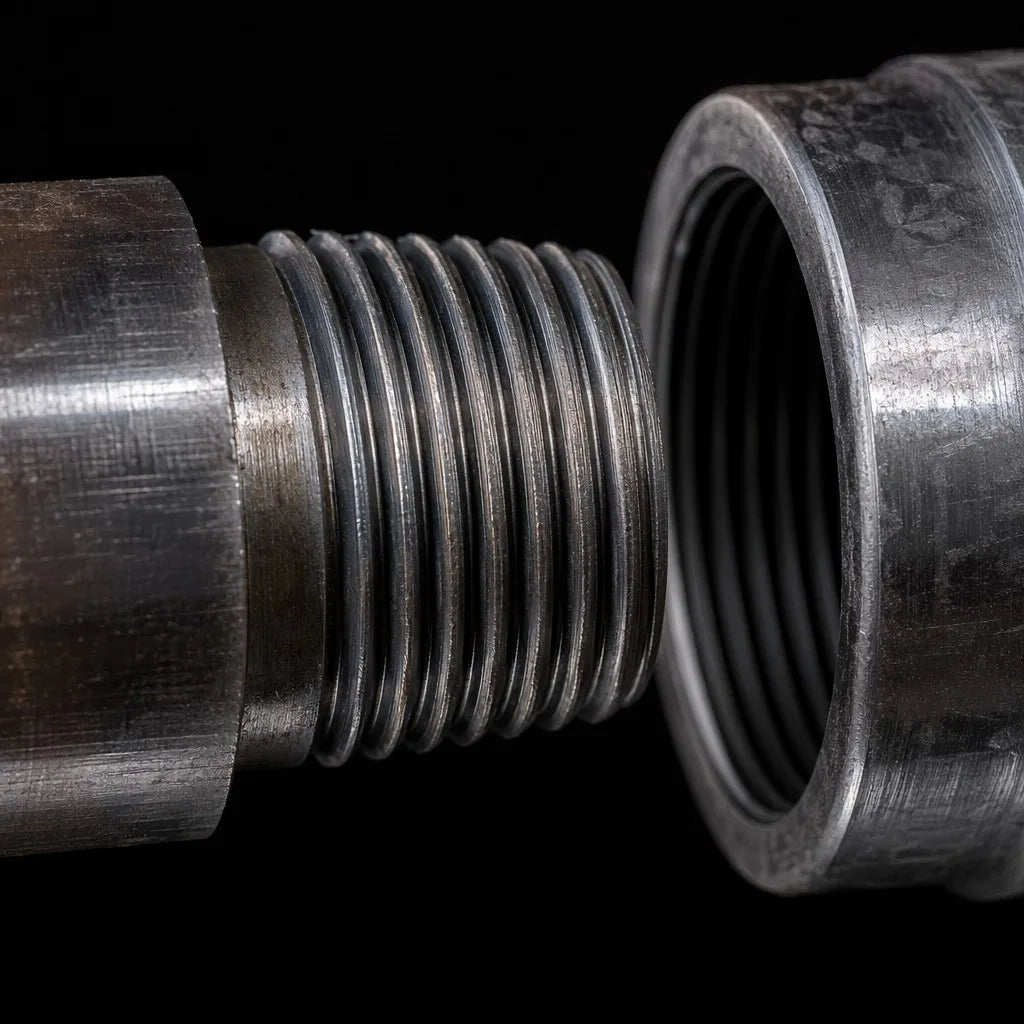

A drill rod and coupling can screw together yet still be an unsuitable working interface. Correct make-up depends on the exact thread system, dimensions, shoulder design, condition and assembly method. The buyer’s inspection should establish identity first, then examine engagement and contact using the supplier’s approved criteria. “It threads on” is not an acceptance test.
This guide focuses on evidence before field release. It does not provide a universal make-up torque, turn count or gap. Those values and methods vary by product system and must come from the applicable drawing, standard or manufacturer.
Why shoulder contact matters
The threaded connection must transfer repeated drilling loads through its designed contact surfaces. If the wrong parts are mixed, surfaces are damaged, debris prevents seating or wear has changed the geometry, load may concentrate in an unintended area. Possible consequences include loosening, thread damage, heat, poor energy transfer or premature failure.
| Check | Acceptable evidence basis | Do not accept as proof |
|---|---|---|
| Thread identity | Marking, approved drawing, gauge or controlled reference | Similar appearance |
| Engagement | Supplier-defined make-up condition | Number of turns remembered from another system |
| Shoulder contact | Approved visual or contact method | “Feels tight” |
| Surface condition | Clean, documented inspection against criteria | Hidden damage under grease or dirt |
| Pairing | Rod and coupling listed as compatible | Both parts share a nominal diameter |
A controlled inspection sequence
1. Freeze the exact identities
Record rod type, thread designation, diameter, length, manufacturer or supplier reference, coupling type and revision. Separate male-female speed rods, extension rods, tapered steel and other systems before inspection. Never infer compatibility from one dimension.
2. Clean without erasing evidence
Remove contamination using the approved method. Preserve unusual fretting, impact marks, galling, corrosion or uneven witness patterns with photographs before aggressive cleaning. Inspect thread crests, roots, flanks, lead-in and shoulder surfaces where applicable.
3. Use an approved reference
Check gauges, master parts or drawing dimensions required by the inspection plan. Confirm their identity and calibration or control status. A worn field coupling is not a reliable master.
4. Assemble under the specified method
Use the stated lubricant, cleanliness condition and make-up procedure. Stop if the connection binds, crosses, rocks or reaches an abnormal condition. Do not use impact force to make an uncertain interface appear acceptable.
5. Record the contact result
Where the supplier provides a shoulder-contact, witness-mark or gap method, record the result and setup. If no criterion exists, do not invent one; request a drawing or written acceptance rule before approving the combination.
New, worn and mixed parts
New-to-new fit does not prove compatibility if the specification is wrong. New-to-worn and mixed-supplier combinations require particular care because wear patterns and tolerances can interact. If mixed use is intended, include it explicitly in the technical agreement and trial plan. Do not convert a successful hand assembly into a blanket field approval.
RFQ fields
- Rod and coupling type, designation and quantity
- Thread system and nominal size
- Rod body diameter and length
- Male-female or separate-coupling arrangement
- Drawing, standard and revision
- Required gauge, make-up or shoulder-contact evidence
- Lubrication and assembly method
- Existing fleet or mating-part identity
- Photos of markings and interfaces
See Drill Rods for product context. For a compatibility review, Request a Quote with photos and the approved interface details.
FAQ
If a coupling screws on smoothly, is it compatible?
No. Smooth engagement does not prove the correct thread profile, dimensions, shoulder contact or load path.
Is there one correct gap or turn count for all drill rods?
No. Use the product-system drawing or supplier criterion. A universal value would be misleading.
Can a worn coupling be used as a fit gauge?
Not as an uncontrolled reference. Wear can change the interface and hide incompatibility.
