Pneumatic Air-Leg Rock Drill
Model / SKU:PFM-YT28
Pneumatic air-leg rock drill for 34–42 mm wet blast-hole drilling up to approximately 5 m in medium-hard and hard rock. Uses an H22 × 108 mm shank and requires correctly matched air supply, lubrication, water flushing, air leg, rods and bits.

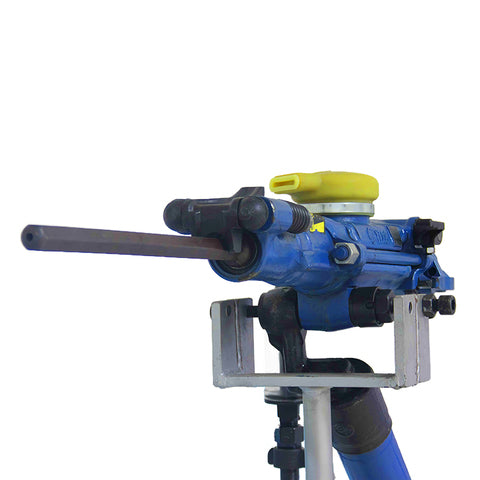

YT28 is a pneumatic air-leg rock drill for underground development, tunneling, quarrying and civil rock excavation. It is selected for 34–42 mm wet drilling in medium-hard and hard rock when stable air supply, correct lubrication and a matched drilling package are available.
Send hole diameter, hole depth, rock condition, air pressure at the tool, quantity and delivery country.
| Rock Drill Weight | Approx. 26 kg |
|---|---|
| Impact Energy | Approx. 70 J at rated conditions |
| Impact Frequency | ≥34 Hz at 0.50 MPa; ≥36 Hz at 0.63 MPa |
| Air Consumption | ≤55 L/s at 0.50 MPa; ≤81 L/s at 0.63 MPa |
| Recommended Drilling Diameter | 34–42 mm |
| Working Air Pressure | 0.50–0.63 MPa at the tool inlet |
| Cylinder Diameter | 80 mm |
| Piston Stroke | 60 mm |
| Maximum Drilling Depth | Up to approximately 5 m |
| Shank Specification | H22 × 108 mm |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.

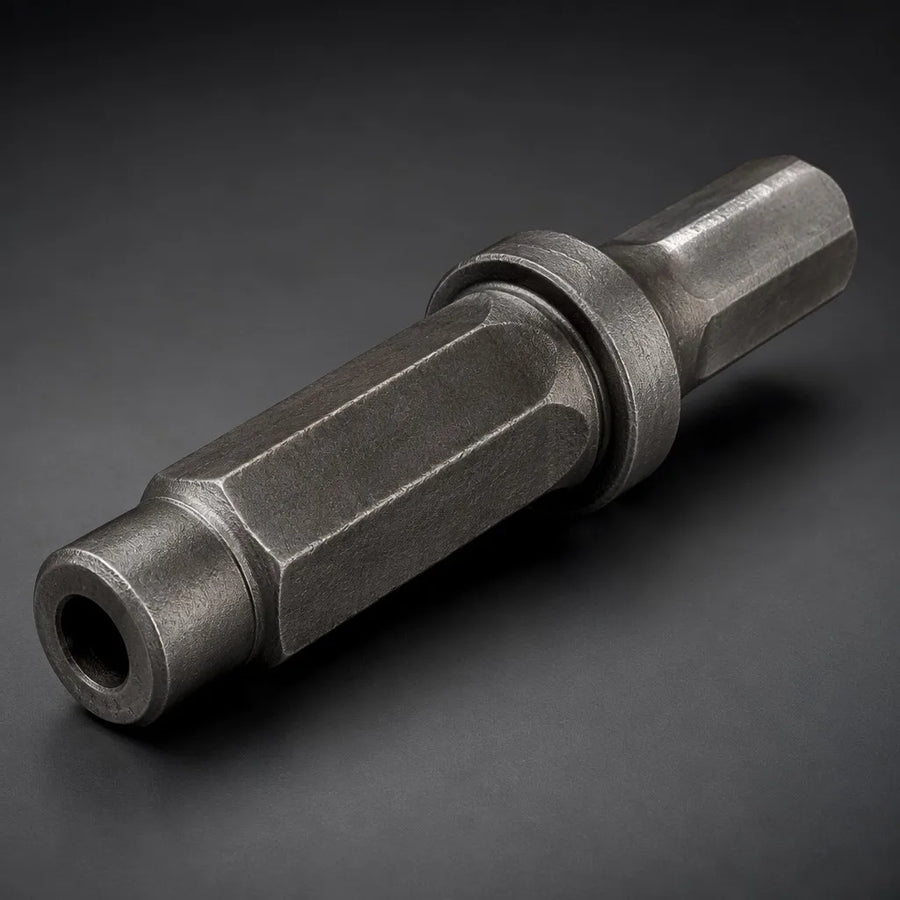

H22 × 108 mm shank; 34–42 mm matched bit range
Tapered rod and bit system matched to hole depth, taper and rock condition
Confirm rod length, taper angle, bit diameter and bit design against the required hole depth, abrasiveness and local replacement preference.

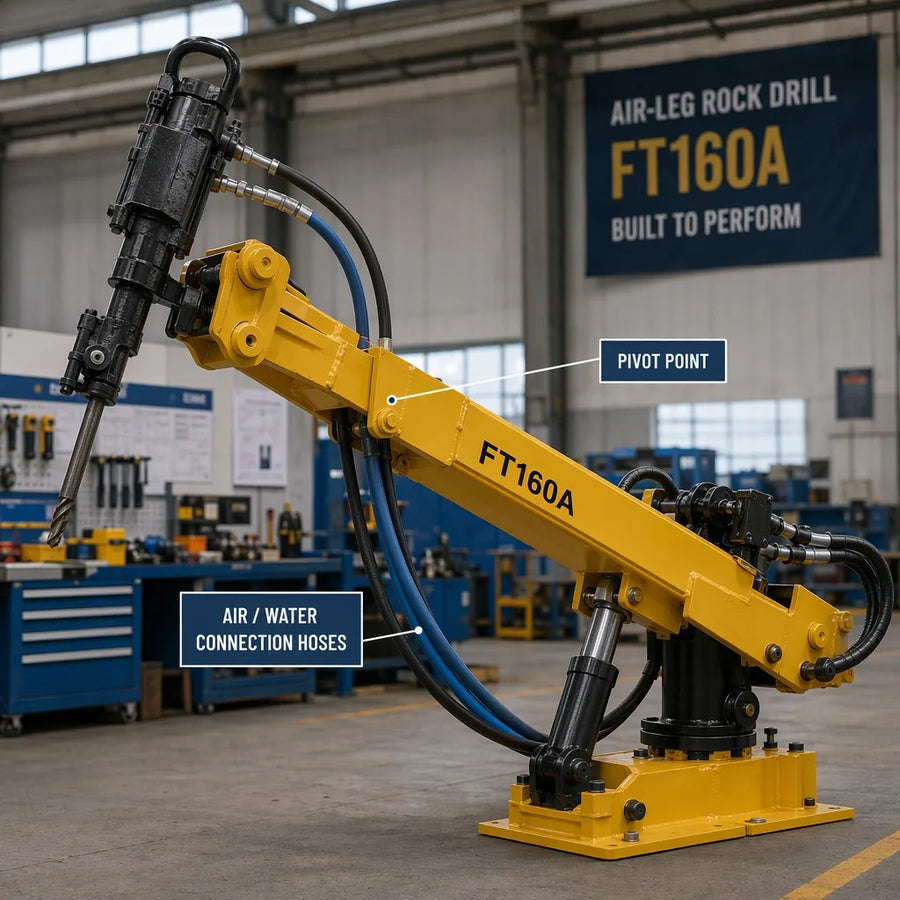

Compatible FT160-series air leg
Air-leg configuration matched to drilling direction, feed length, working height and available space
Air-leg model naming and specifications can vary by manufacturer. Confirm the required feed stroke and installation interface against the supplied unit.
FY200B or compatible in-line lubricator
Lubricator and pneumatic-tool oil suitable for the selected hose and air-supply configuration
Continuous lubrication is essential. Lubricator setting and oil grade must follow the supplied operating manual and site conditions.

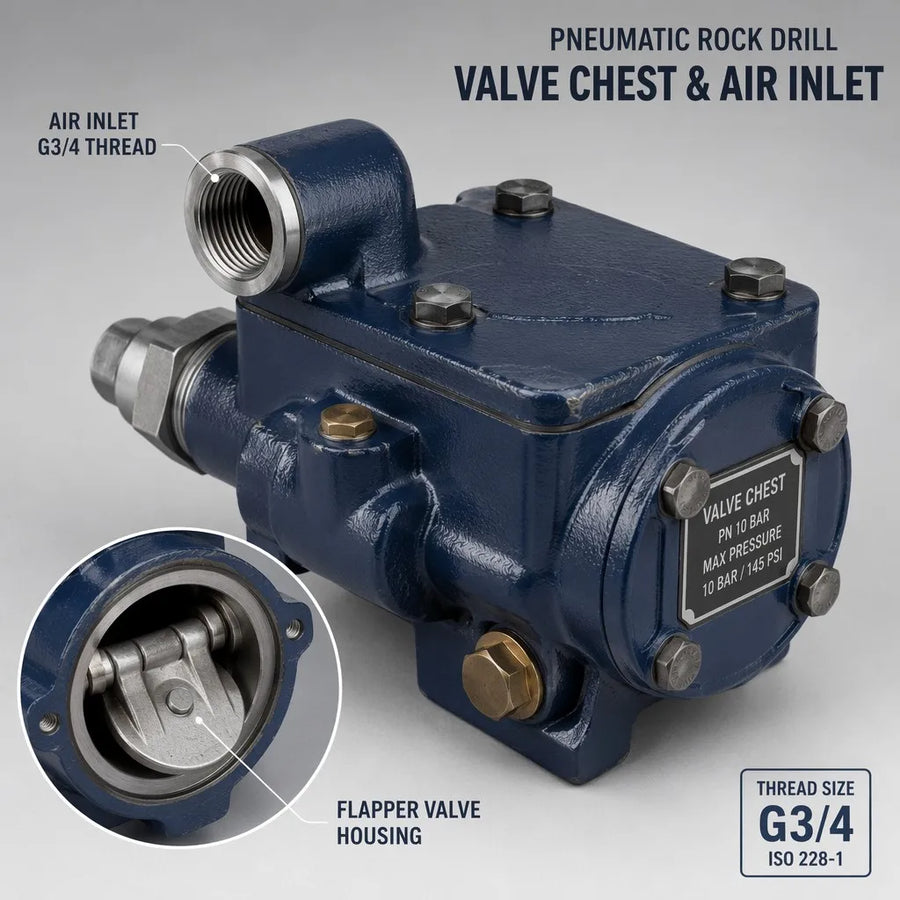

The valve system controls alternating compressed-air flow to the piston to support repeatable percussion and rotation cycles.
Buyer value
Supports stable drilling when air pressure at the tool inlet, lubrication and hose sizing are maintained within the required operating range.
Selection condition
Impact frequency and air consumption are pressure-specific. Hose losses, leakage and compressor capacity directly affect field performance.
The YT28 is operated with water flushing and a compatible air leg to provide feed support during underground, tunneling and rock-excavation drilling.
Buyer value
Enables a complete drilling setup that combines percussion, feed support, flushing, drill steel and bit selection around the job-site conditions.
Selection condition
Confirm air-leg model and feed length, water supply, drilling direction, rod lengths and bit range before quotation.
Pre-Shipment Configuration and Function Check
Model, agreed configuration, assembly condition, control movement, no-load running, air and water passages, accessories and packing can be checked before export.
Inspection scope depends on the final order configuration and the checks included in the quotation.
Inspection photos and a basic pre-shipment record can be supplied upon request when included in the order.

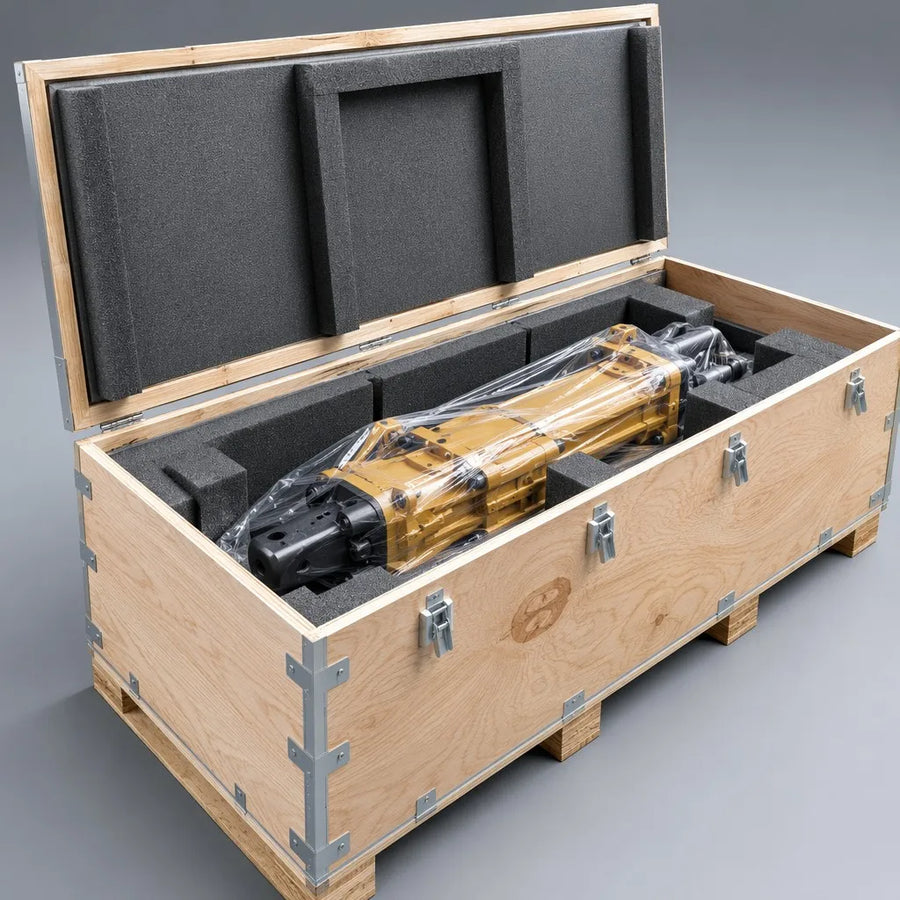

Standard export packing can be supplied in a reinforced plywood case with internal protection. Final packing dimensions, gross weight, corrosion protection, shipping terms and delivery schedule are confirmed in the formal quotation.
A complete YT28 drilling system can include the rock drill, compatible FT160-series air leg, FY200B line oiler, air and water hoses, H22 × 108 mm tapered drill rods, 34–42 mm matched bits, tool kit and recommended spare parts.
Ready to Confirm the Configuration?
We will confirm the drill body, feed system, lubricator, drill steel, bits, spare-parts package, packing and shipping terms.
Product Evidence
YT28 is a pneumatic air-leg rock drill for underground development, tunneling, quarrying and civil rock excavation. It is selected for 34–42 mm wet drilling in medium-hard and hard rock when stable air supply, correct lubrication and a matched drilling package are available.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
